3-08A — PARKING BRAKE (#64079) — 112 parça

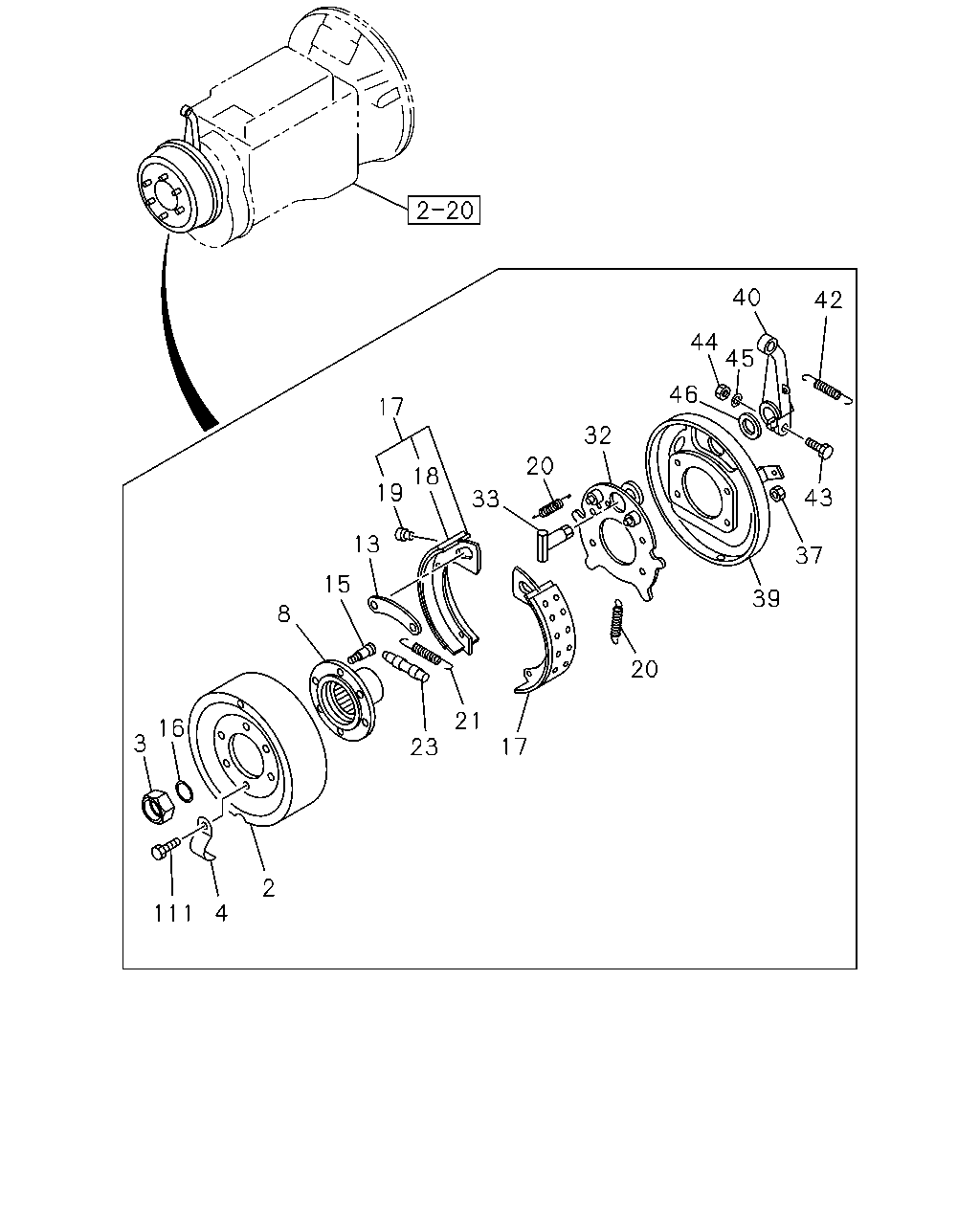

40 42 44 45 46 17 32 20 18 19 43 33 13 37 15 39 8 20 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-004-1	01	1	9510-	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9510-0004			●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9510-0004			●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46219-015-1	02	1	9510-	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9510-0004			●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-254-0	01	1	9510-	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9510-0004			●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	9510-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9510-0004			●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-1	04	1	9510-0004	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-2	04	1	0005-0305	●	●
15	BOLT; FLANGE 14" CLUTCH(WF6) M12X39	1-09046-001-2	04	1	0306-0707	●	●
15	BOLT; FLANGE 14" CLUTCH(WF6) M12X39	8-97365-446-0	04	1	0708-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9510-0004			●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9510-0004			●
17	SHOE; PARKING BRK EURO2 SPECIFICATION<THN>	1-46220-029-0	02	1	0306-0410	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0411-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-024-0	02	1	9510-0305	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN>	1-46220-024-0	02	1	0306-0410	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	0306-0410		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9510-0004			●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9510-0004			●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9510-0004			●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	9510-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9510-0004			●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	9510-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9510-0004			●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	9510-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9510-0004			●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	9510-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9510-0004			●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-002-0	01	1	9510-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9510-0004			●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	01	1	9510-0604	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	01	1	0605-	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9510-0004		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9510-0004			●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	0005-0604		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0605-		●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-067-0	01	1	9510-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9510-0004			●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-003-0	01	1	9510-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9510-0004			●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	9510-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9510-0004			●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9510-0004			●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9510-0004			●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-010-0	01	1	9510-9608			●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9609-0004			●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	9510-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9510-0004			●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0906	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004			●

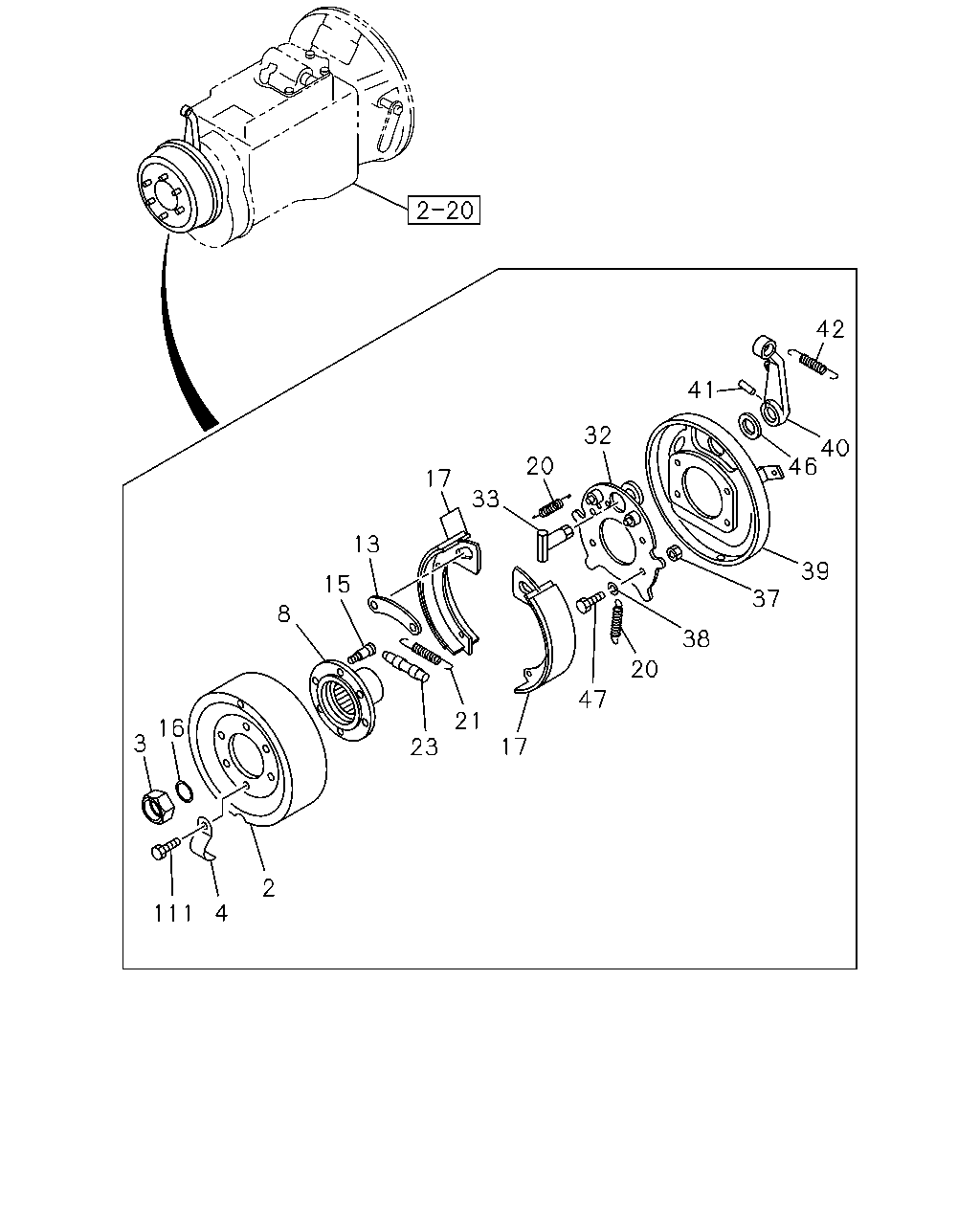

42 41 32 40 46 20 17 33 13 39 15 37 8 38 20 47 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-004-1	01	1	9510-	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9510-0004			●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	9910-	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9510-0004			●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46219-015-1	02	1	9510-	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9510-0004			●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-254-0	01	1	9510-	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9510-0004			●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	9510-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9510-0004			●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-1	04	1	9510-0004	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-2	04	1	0005-0305	●	●
15	BOLT; FLANGE 14" CLUTCH(WF6) M12X39	1-09046-001-2	04	1	0306-0707	●	●
15	BOLT; FLANGE 14" CLUTCH(WF6) M12X39	8-97365-446-0	04	1	0708-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9510-0004			●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9510-0004			●
17	SHOE; PARKING BRK EURO2 SPECIFICATION<THN>	1-46220-029-0	02	1	0306-0410	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0411-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-024-0	02	1	9510-0305	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN>	1-46220-024-0	02	1	0306-0410	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	0306-0410		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9510-0004			●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	9510-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9510-0004			●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	9510-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9510-0004			●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	9510-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9510-0004			●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	9510-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9510-0004			●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-002-0	01	1	9510-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9510-0004			●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	01	1	9510-0604	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	01	1	0605-	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9510-0004		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9510-0004			●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	0005-0604		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0605-		●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	9510-0603	●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	03	1	0604-	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-067-0	01	1	9510-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9510-0004			●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-003-0	01	1	9510-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9510-0004			●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	9510-	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	9510-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9510-0004			●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	9510-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9510-0004			●
47	BOLT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X32	0-23801-432-0	03	1	9510-	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0906	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004			●
