3-05 — REAR WHEEL BRAKE (#64078) — 226 parça

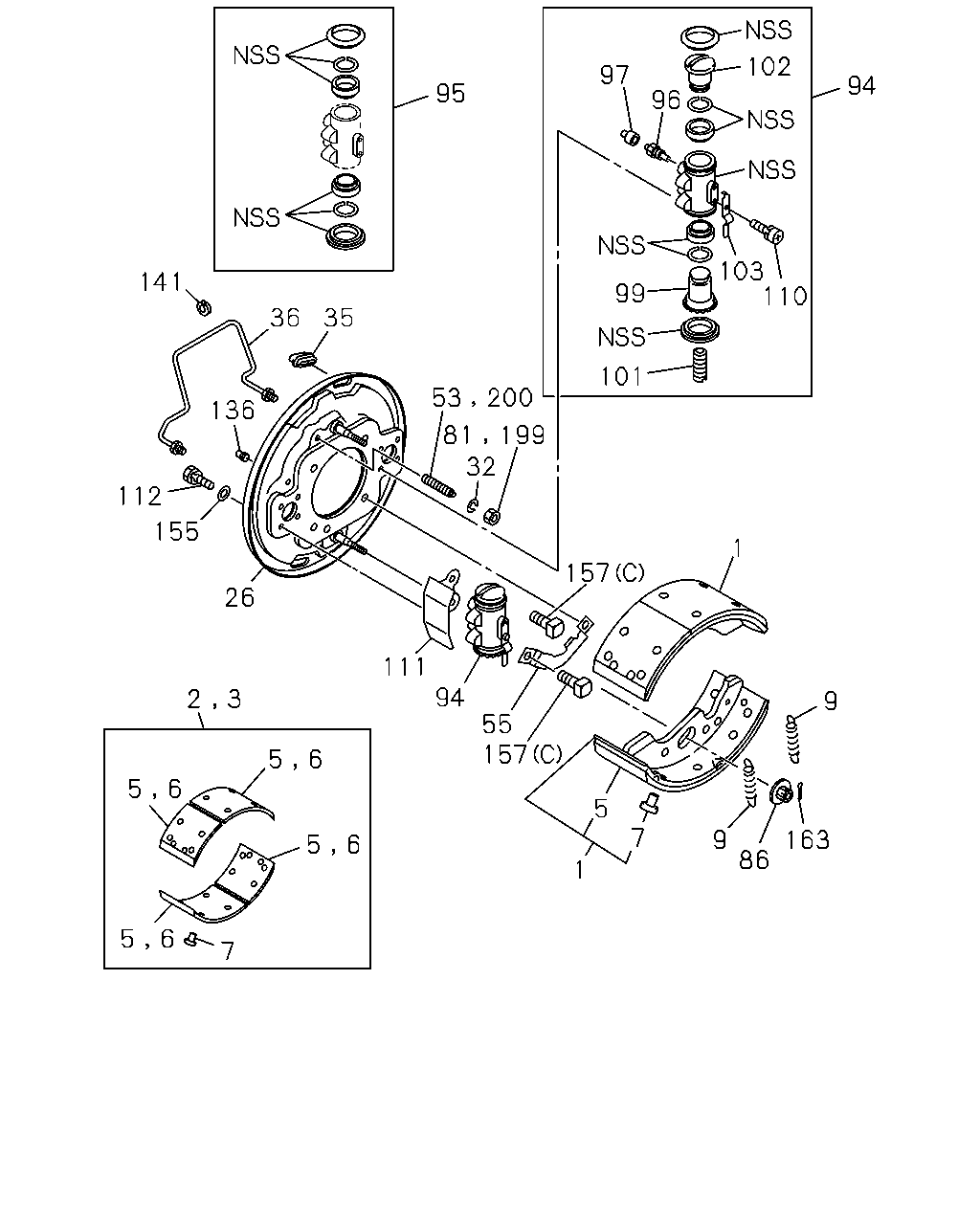

102 97 94 95 96 103 110 141 99 36 35 101 136 81 199 32 112 155 1 157 26 111 94 2 3 9 55 157 5 6 5 6 5 7 163 9 5 6 86 1 5 6 7 53 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-990-1	04	1	9510-9802
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-627-0	04	1	9803-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-005-1	04	1	9510-9802
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	9803-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-200-0	02	1	0005-
2	LINING SET; RR BRK,STANDARD	1-88310-075-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD	1-88310-551-0	02	1	9803-0004
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	0005-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-131-0	01	1	9803-0004
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-201-0	02	1	0005-
3	LINING SET; RR BRK,OVER SIZE	1-88310-552-0	02	1	9803-0004
3	LINING SET; RR BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	0005-
5	LINING; RR BRK SHOE,STANDARD	1-47125-004-1	08	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9803-
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9803-
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	96	1	9510-
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	9510-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-275-0	04	1	9510-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-271-0	04	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-481-0	01	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-480-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	9510-
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-110-0	04	1	9510-
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	04	1	9510-0603
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	0604-
35	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-139-0	04	1	9510-
35	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-416-0	01	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-415-0	01	1	9510-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-815-0	02	1	9510-
53	BOLT; LOCK PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-017-0	02	1	9510-0904
53	BOLT; LOCK PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-050-0	02	1	0905-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-038-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-037-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	9510-
81	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	9510-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-038-0	04	1	9510-
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-664-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-719-3	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-662-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-718-3	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-849-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-958-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-850-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-959-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-847-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-956-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-848-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-957-0	01	1	9704-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-87830-562-0	02	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-87830-645-0	02	1	9510-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-770-0	04	1	9510-
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	9510-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-015-0	02	1	9510-9511
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	9512-
97	CAP; BLEEDER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	02	1	9510-
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-247-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-264-1	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-246-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-263-1	01	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-241-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	9704-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-240-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	9704-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47622-037-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-047-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD LH THREAD	1-47622-035-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-046-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-248-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-265-1	02	1	9510-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-242-0	04	1	9510-9703
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	9704-
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-078-0	02	1	9510-
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	9510-
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	9510-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-107-0	02	1	9510-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	9510-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	9510-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-125-0	16	1	9510-0111
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	0112-
136	GROMMET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-138-0	04	1	9510-
136	GROMMET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	9510-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-
141	PROTECTOR; RR BRK PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	9510-
155	WASHER; PL,WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-221-0	16	1	9510-0111
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X47	1-47159-113-0	04	1	9510-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X47 4 SQUARE HEAD	1-47159-114-0	08	1	9510-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-009-0	12	1	9510-9512
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-015-0	12	1	9601-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0606
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0607-
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	9510-
199	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	9510-
200	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-017-0	02	1	9702-0904
200	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-050-0	02	1	0905-

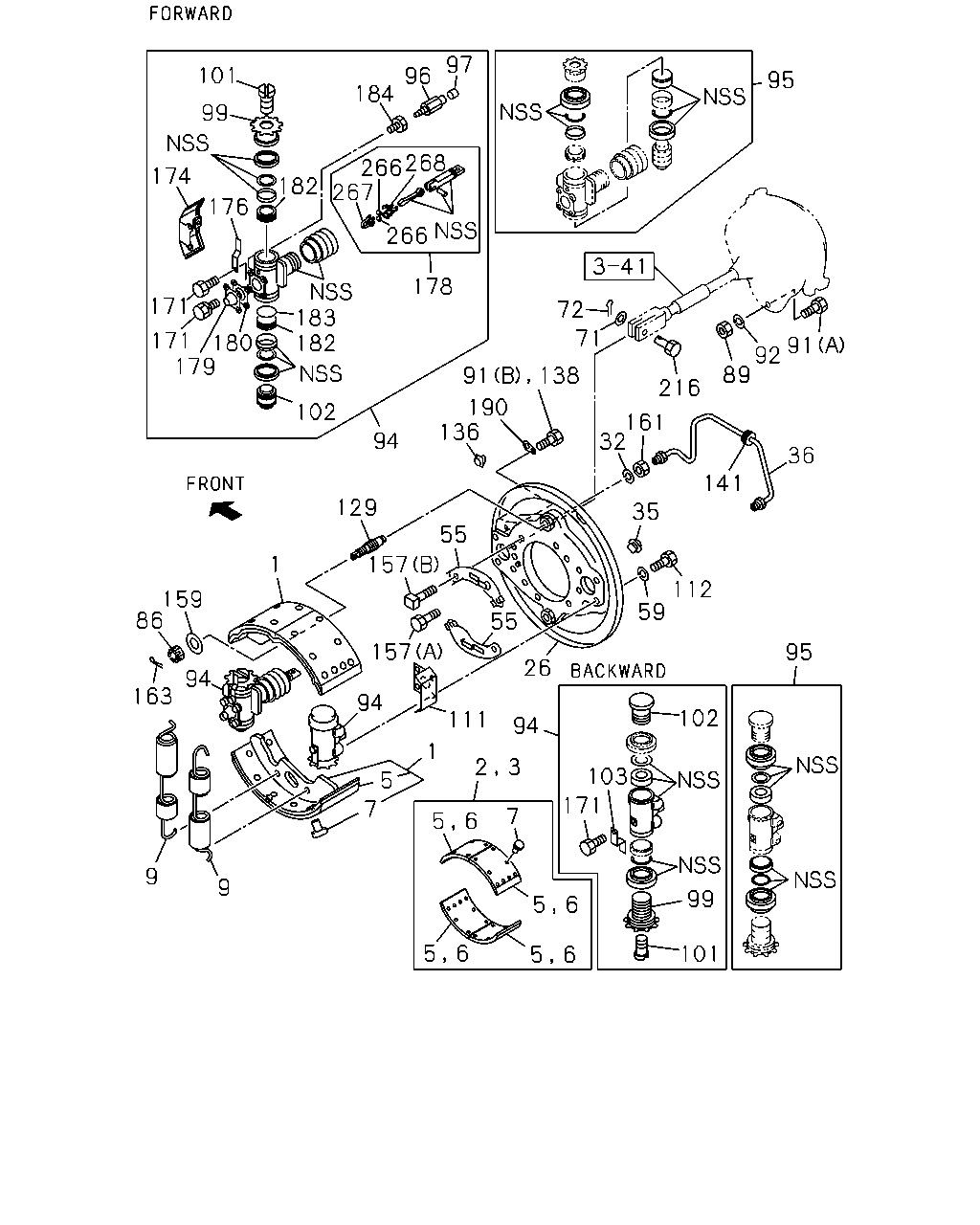

97 101 96 95 184 99 268 266 267 174 182 176 266 178 183 182 171 72 71 171 180 179 91 92 89 91 138 216 190 136 102 161 32 94 36 141 129 35 55 157 1 112 159 86 59 55 157 95 26 94 163 94 102 111 94 1 103 5 171 7 7 5 6 9 9 99 5 6 6 5 101 5 6 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-990-1	04	1	9510-9802
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-627-0	04	1	9803-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-005-1	04	1	9510-9802
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	9803-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-200-0	02	1	0005-
2	LINING SET; RR BRK,STANDARD	1-88310-075-0	02	1	9510-9802
2	LINING SET; RR BRK,STANDARD	1-88310-551-0	02	1	9803-0004
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	0005-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-131-0	01	1	9803-0004
3	LINING SET; RR BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-201-0	02	1	0005-
3	LINING SET; RR BRK,OVER SIZE	1-88310-552-0	02	1	9803-0004
3	LINING SET; RR BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	0005-
5	LINING; RR BRK SHOE,STANDARD	1-47125-004-1	08	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9803-
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9803-
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	96	1	9510-
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	9510-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-275-0	04	1	9510-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-271-0	04	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-481-0	01	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-480-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	9510-
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-110-0	04	1	9510-
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	04	1	9510-0603
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	0604-
35	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-139-0	04	1	9510-
35	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-416-0	01	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47423-415-0	01	1	9510-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-815-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-038-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-037-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	9510-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	14	1	9510-0603
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0604-
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9510-0605
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5	0-91610-510-0	02	1	0606-
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9510-0606
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	0-81123-018-0	02	1	0607-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-038-0	04	1	9510-
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	9510-
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	04	1	9510-0512
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91110-512-0	04	1	0601-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X30	0-20801-230-0	04	1	9510-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M5X10 W/LK WASHER	9-03910-510-0	02	1	9510-0604
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M5X10 W/LK WASHER	0-36220-510-0	02	1	0605-
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	04	1	9510-0603
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	04	1	0604-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-664-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-719-3	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-662-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-718-3	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-849-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-958-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-850-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-959-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-847-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-956-0	01	1	9704-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-848-0	01	1	9510-9703
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47600-957-0	01	1	9704-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-87830-562-0	02	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-87830-645-0	02	1	9510-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-770-0	04	1	9510-
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	9510-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-015-0	02	1	9510-9511
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	9512-
97	CAP; BLEEDER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	02	1	9510-
97	CAP; BLEEDER,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-247-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-264-1	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-246-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-263-1	01	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-241-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	9704-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-240-0	02	1	9510-9703
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	9704-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47622-037-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-047-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD LH THREAD	1-47622-035-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47622-046-0	01	1	9510-
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-248-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-265-1	02	1	9510-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-242-0	04	1	9510-9703
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	9704-
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-078-0	02	1	9510-
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	9510-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-107-0	02	1	9510-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	9510-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	9510-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-125-0	16	1	9510-0111
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	0112-
129	PIN; SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-019-1	04	1	9510-0909
129	PIN; SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-044-0	04	1	0910-
136	GROMMET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-138-0	04	1	9510-
136	GROMMET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	9510-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	9-03910-510-0	02	1	9510-0604
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0605-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=5 OD=18 T=8	1-09332-063-0	02	1	9510-
141	PROTECTOR; RR BRK PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	9510-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X47	1-47159-113-0	04	1	9510-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X47 4 SQUARE HEAD	1-47159-114-0	08	1	9510-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-009-0	12	1	9510-9512
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X45 SQUARE HEAD	1-09060-015-0	12	1	9601-
159	WASHER; SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-037-0	04	1	9510-
161	NUT; SHOE HOLD LOCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-111-0	04	1	9510-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0606
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0607-
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	9510-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-036-0	14	1	9510-
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-091-0	02	1	9510-
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-001-0	02	1	9510-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-001-1	02	1	9510-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-002-0	02	1	9510-0111
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0112-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	9510-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-082-0	04	1	9510-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-561-0	02	1	9510-
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-111-1	04	1	9510-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9510-
216	PIN; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	9510-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	9510-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	9510-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	9510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
