Sayfa 2-85 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶

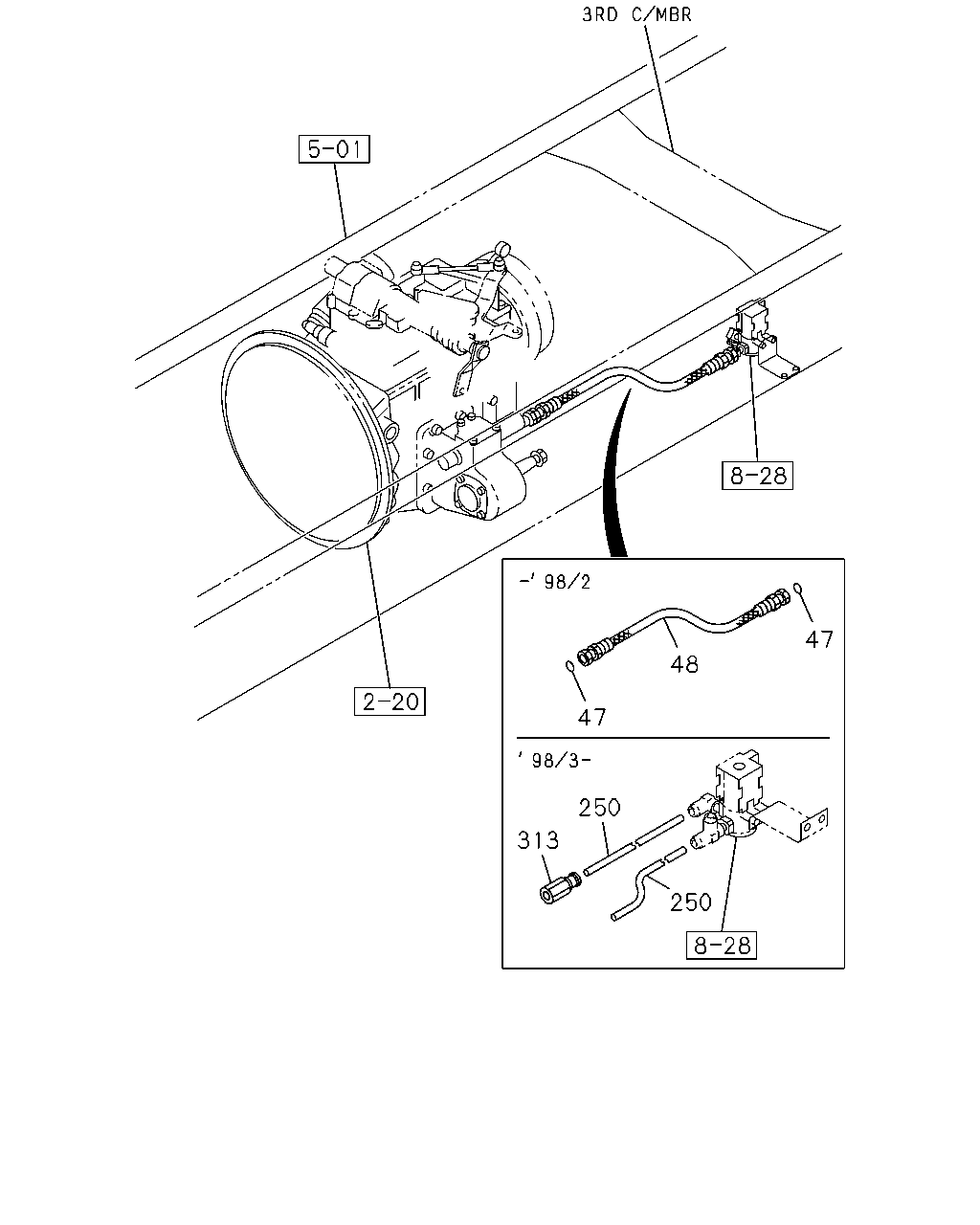

2-85 — POWER TAKE OFF CONTROL (#64076) — 14 parça

47 48 47 250 313 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420	0-07150-420-0	01	1	9510-9802	●	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804	●	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804	●	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004	●	●	●
250	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004	●	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212		●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212		●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-		●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-		●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004	●	●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007		●	●
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-		●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	55	GROMMET; CABLE	1-09983-068-0	01	1	9510-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
