9-01 — TOOLS (#6407) — 125 parça

86 82 87 87 90 89 88 115 114 99 106 93 121 119 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR	9-85211-139-0	01	1	9604-
86	REPLACER; FLYWHEEL	1-85230-006-0	01	1	9604-
87	TOOL; PISTON (A)	1-85220-058-0	01	1	9604-9806
87	TOOL; PISTON (B)	1-85220-082-0	01	1	9807-
88	TOOL; CONNROD BUSHING	1-85220-002-0	01	1	9604-
89	TOOL; PISTON RING	1-85221-029-0	01	1	9604-
90	PULLER; INJ PUMP BRG	1-85210-039-0	01	1	9604-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9604-
99	WRENCH; CYL HD BOLT	1-85115-013-0	01	1	9604-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	9604-
114	WRENCH; INJ PUMP	1-85220-027-0	01	1	9604-
115	PLIER	5-85171-001-0	01	1	9604-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	9604-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	9604-
121	PULLER ASM; COUNTER REAR	1-85210-069-0	01	1	9604-

47 43 42 49 50 57 51 54 63 70 70 61 73 81 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	HANDLE; SLIDING	9-09590-512-0	01	1	9604-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9604-
47	WRENCH ASM; UNIVERSAL,INJ PUMP	1-85220-018-0	01	1	9604-
49	REPLACER ASM; VALVE	1-85235-001-0	01	1	9604-
50	REPLACER; NOZZLE HOLDER L=500	1-85230-007-0	01	1	9604-
51	PULLER ASM; WATER PUMP	1-85210-028-0	01	1	9604-
54	PULLER; THERMOSTAT SEAL	1-85210-029-0	01	1	9604-
57	TOOL; SETTING CRANK GEAR OD=175	1-85221-028-0	01	1	9604-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9604-
63	PULLER; NOZZLE SLEEVE	1-85210-026-0	01	1	9604-
70	TOOL; SETTING,OIL SEAL (B) FOR OIL SEAL	1-85220-051-0	01	1	9604-
70	TOOL; SETTING,OIL SEAL (A) FOR OIL THROWER	1-85220-053-0	01	1	9604-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	9604-
74	TOOL; SETTING,INJ PUMP BRG (A)	1-85220-019-0	01	1	9604-
74	TOOL; SETTING,INJ PUMP BRG (B)	1-85220-020-1	01	1	9604-
81	PULLER; BRG CAP	1-85210-015-0	01	1	9604-

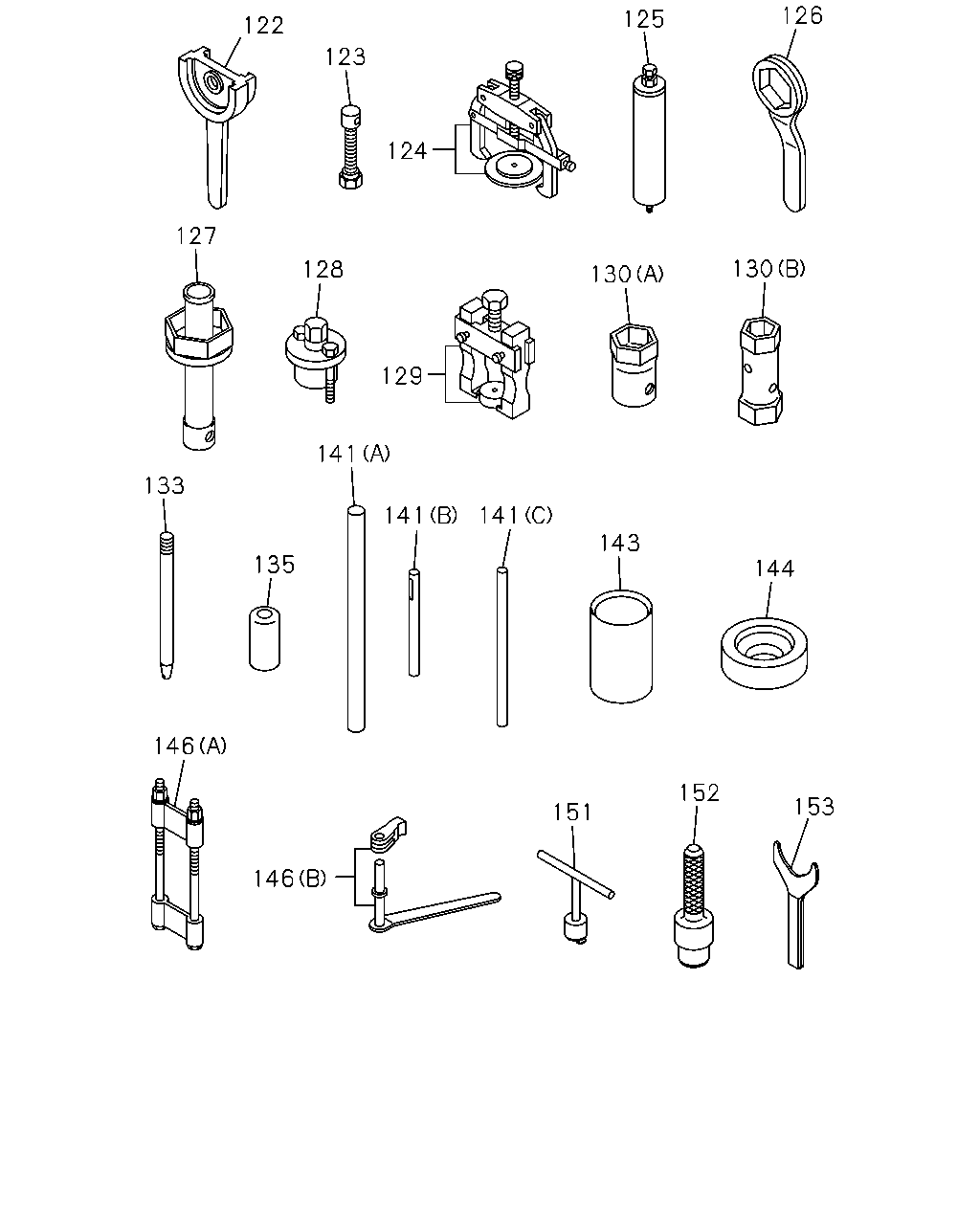

126 125 122 123 124 127 130 128 130 129 141 133 141 141 143 135 144 146 152 153 151 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
122	PULLER ASM; COUNTER FRT	9-85210-129-1	01	1	9604-
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	9604-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9604-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9604-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9604-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	9604-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9604-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9604-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9604-
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9604-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9604-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9604-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9604-
133	WRENCH; NUT STARTER	1-85221-030-0	02	1	9604-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9604-
141	HANDLE; WRENCH (A)OD=25 L=480	1-85116-011-0	01	1	9604-9805
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9604-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9604-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9604-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9604-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9604-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9604-
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85237-016-0	01	1	9604-
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85237-017-0	01	1	9604-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9604-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9604-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9604-

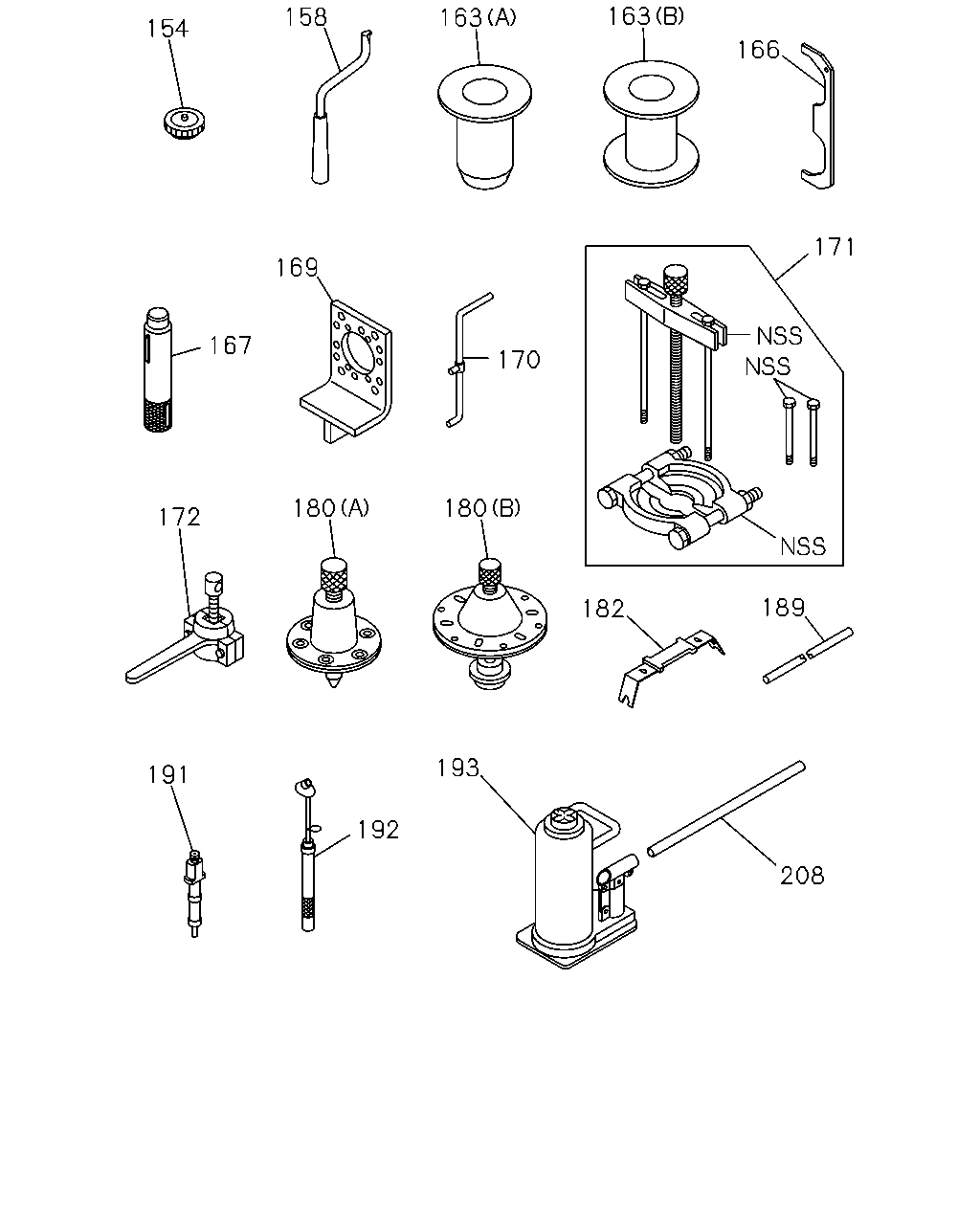

163 158 163 154 166 171 169 167 170 180 180 172 189 182 193 191 192 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9604-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9604-
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	9604-
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	9604-
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	9604-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9604-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9604-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9604-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9604-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9604-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9604-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9604-
182	REMOVER ASM	1-85239-008-0	01	1	9604-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9604-
191	ADAPTER	1-85317-002-0	01	1	9604-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9604-9912
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9604-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-0	01	1	9604-9608
193	JACK ASM 15TON	1-85510-021-0	01	1	9709-9709
193	JACK ASM 15TON	1-85510-019-1	01	1	9710-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9604-

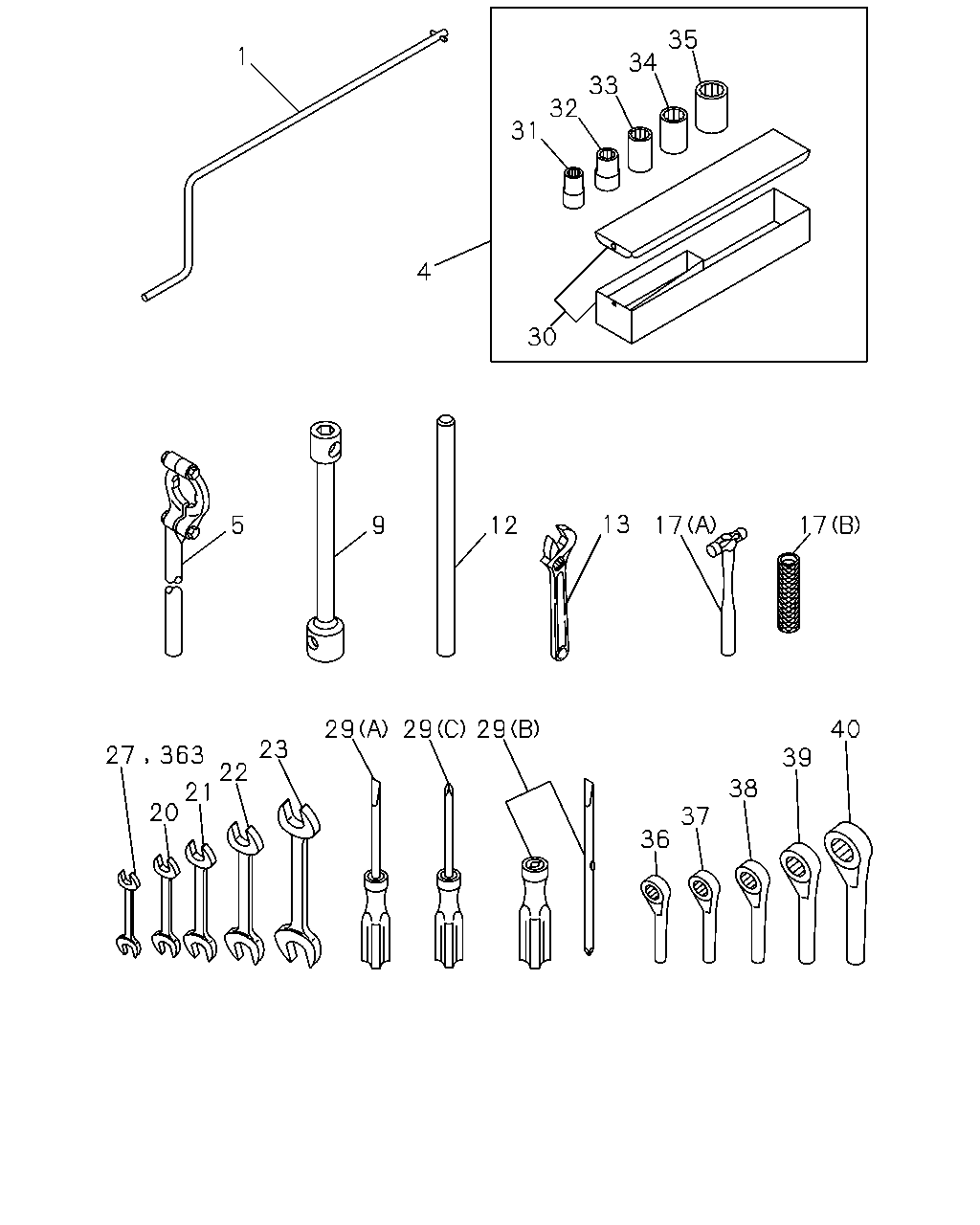

35 34 33 32 1 31 4 30 13 5 9 12 17 17 29 40 23 22 21 20 39 38 37 36 29 29 27 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9604-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9604-
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9604-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9604-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9604-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9604-
17	HAMMER (B) L=150	1-85220-021-0	01	1	9604-
17	HAMMER (A) L=310	9-85121-406-0	01	1	9604-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9604-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9604-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9604-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9604-
27	WRENCH; OPEN END 5.5X7 8X10	9-99592-108-0	01	1	9604-9904
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9604-
29	DRIVER; SCREW (B) <+>,<-> L=160	8-94242-798-1	01	1	9604-
29	DRIVER; SCREW (C) <+> L=275	9-09595-023-0	01	1	9604-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9604-
31	WRENCH; 12 M8	9-09590-012-0	01	1	9604-
32	WRENCH; 14 M10	9-09590-014-0	01	1	9604-
33	WRENCH; 17 M12	9-09590-017-0	01	1	9604-
34	WRENCH; 19	9-09590-019-0	01	1	9604-
35	WRENCH; 22 M14	9-09590-022-0	01	1	9604-
36	WRENCH; 24	9-85111-377-0	01	1	9604-
37	WRENCH; 27	9-85111-375-0	01	1	9604-
38	WRENCH; 32	9-85111-358-0	01	1	9604-
39	WRENCH; 36	9-85111-374-0	01	1	9604-
40	WRENCH; 41	9-85111-356-0	01	1	9604-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9905-

227 232 218 219 230 237 329 245 246 247 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	PLUG	1-15629-043-0	01	1	9604-
219	GASKET	9-09720-555-0	01	1	9604-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9604-
230	PUMP; GREASE	1-85556-007-2	01	1	9604-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9604-
237	BAG; TOOL	8-97130-902-0	01	1	9604-
245	CHAIN; TIRE,SINGLE TIRE 900-20 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	9604-
246	CHAIN; TIRE,1000-20,SINGLE TIRE 1000-20 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9604-
246	CHAIN; TIRE,1000-20,SINGLE TIRE 1100-20 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9604-
247	CHAIN; TIRE,750-20,DOUBLE TIRE 900-20 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	9604-
248	CHAIN; TIRE,1000-20,DOUBLE TIRE 1000-20 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	9604-
248	CHAIN; TIRE,1000-20,DOUBLE TIRE 1100-20 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	9604-
249	CHAIN; TIRE,TRIPLE TIRE 900-20 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	9604-
250	CHAIN; TIRE,1000-20,TRIPLE TIRE 1000-20 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9604-
250	CHAIN; TIRE,1000-20,TRIPLE TIRE 1100-20 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9604-
329	PULLER ASM; SLINGER ID=124	1-85220-052-0	01	1	9604-
