◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#64067) — 183 parça

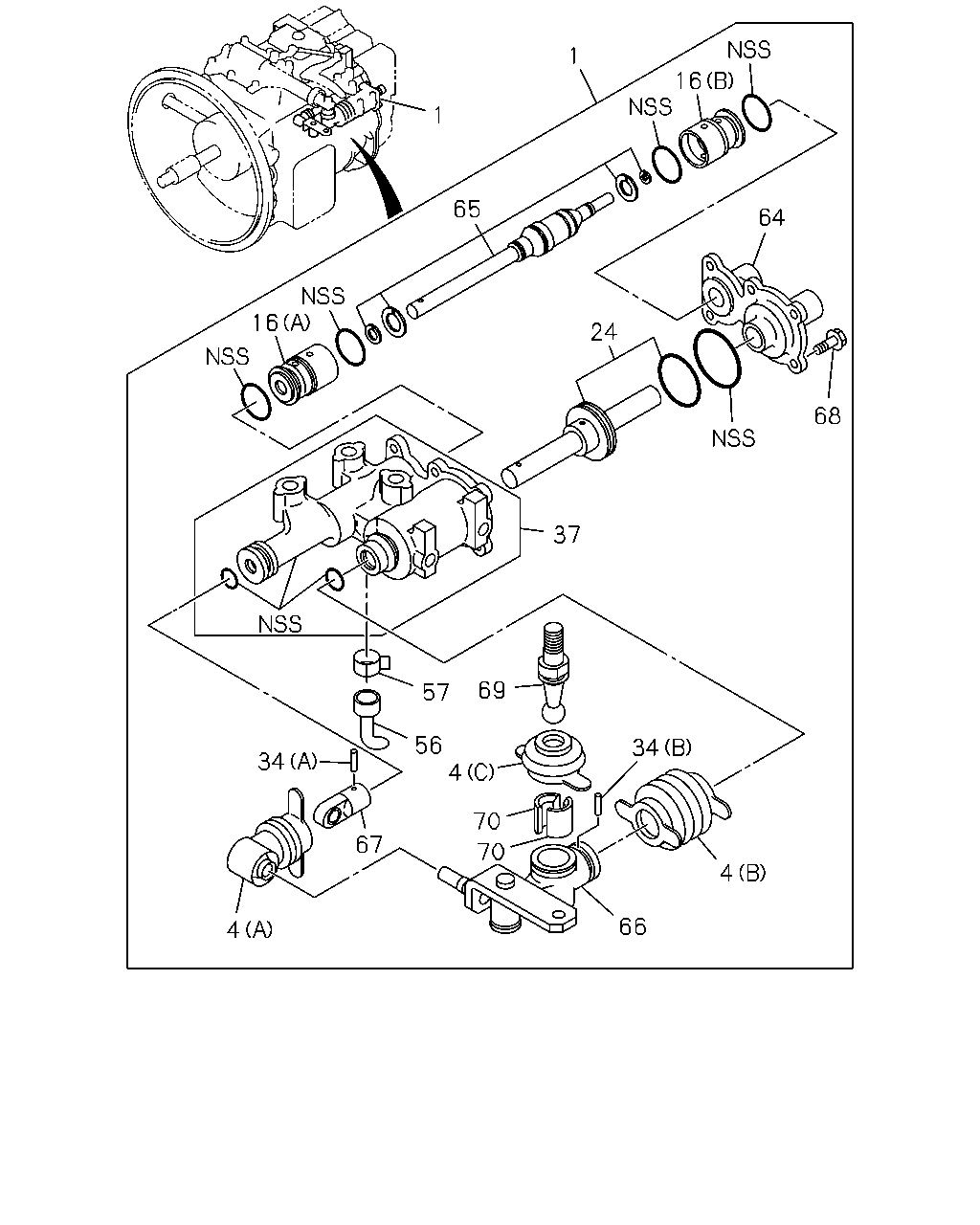

çizim 114286
1 16 1 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-0 01 1 9510-9802
1 ASSISTOR ASM; POWER,SHIFT 1-33730-156-2 01 1 9803-9810
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 9811-0004
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9803-0004
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 9510-9802
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 9803-0004
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 9803-0004
24 PISTON 1-33739-578-0 01 1 9510-9802
24 PISTON 1-33739-836-1 01 1 9803-0004
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-575-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-845-0 01 1 9803-9810
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0004
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9803-0004
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 9510-9802
37 HOUSING; POWER SHIFTER 1-33739-831-1 01 1 9803-9810
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 9811-0004
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9803-0004
57 CLAMP; HOSE 1-33739-569-0 01 1 9510-9802
57 CLAMP; HOSE 1-33739-849-0 01 1 9803-0004
64 COVER; HOUSING 1-33739-832-2 01 1 9803-9810
64 COVER; HOUSING 1-33739-970-0 01 1 9811-0004
65 VALVE; POWER SHIFTER 1-33739-833-2 01 1 9803-9810
65 VALVE; POWER SHIFTER 1-33739-971-0 01 1 9811-0004
66 JOINT ASM; POWER SHIFTER 1-33739-834-0 01 1 9803-9810
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 9811-0004
67 JOINT; BALL,POWER SHIFTER 1-33739-835-0 01 1 9803-9810
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 9811-0004
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 9803-0004
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 9803-0004
70 SEAT; BALL STUD 1-33659-118-0 02 1 9803-0004

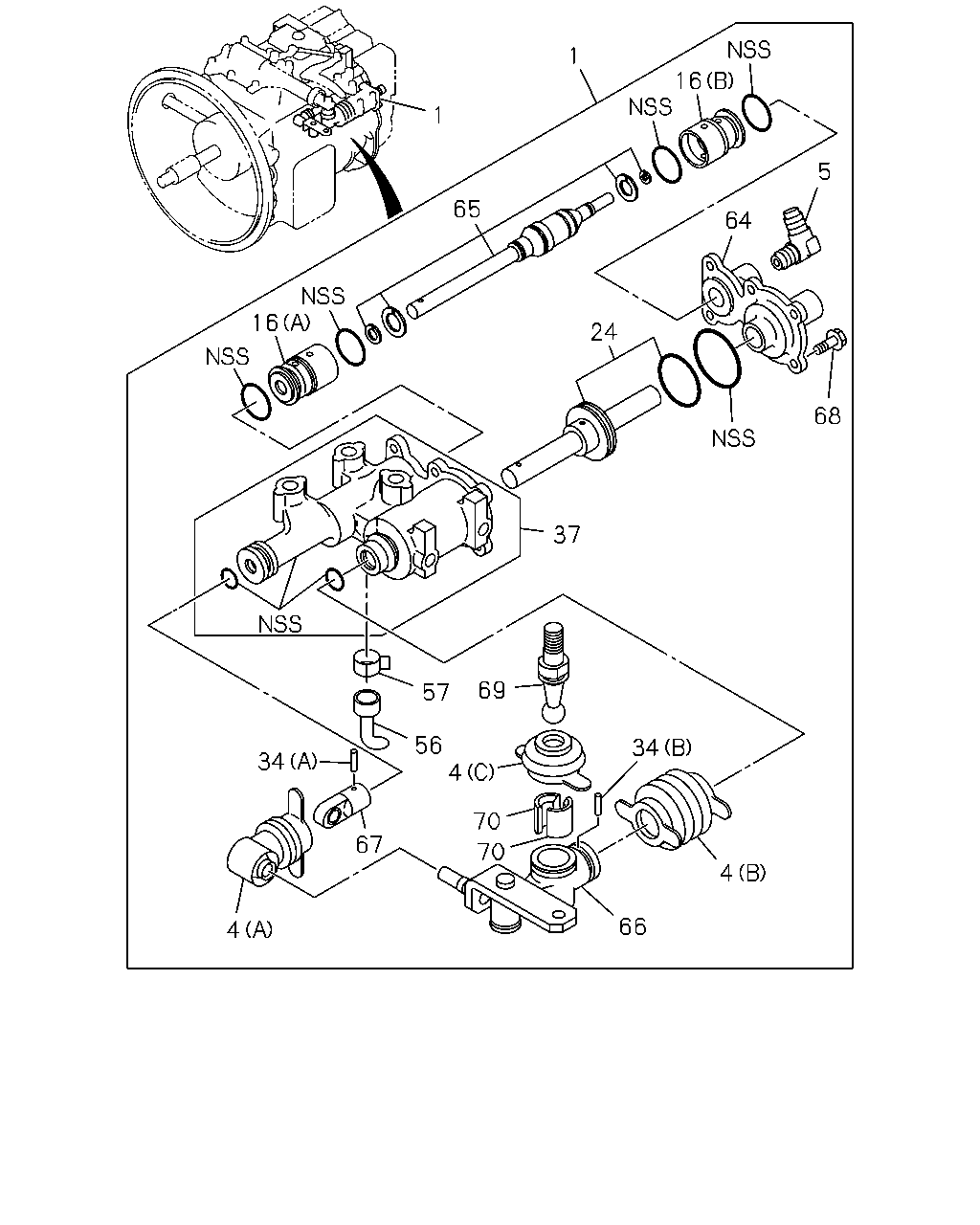

çizim 114387
1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-0 01 1 9510-9802
1 ASSISTOR ASM; POWER,SHIFT 1-33730-156-2 01 1 9803-9810
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 9811-0004
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9803-0004
5 CONNECTOR; CYL 1-33739-017-0 01 1 9510-9802
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 9811-0004
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 9510-9802
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 9803-0004
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 9803-0004
24 PISTON 1-33739-578-0 01 1 9510-9802
24 PISTON 1-33739-836-1 01 1 9803-0004
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-575-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-845-0 01 1 9803-9810
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0004
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9803-0004
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 9510-9802
37 HOUSING; POWER SHIFTER 1-33739-831-1 01 1 9803-9810
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 9811-0004
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9803-0004
57 CLAMP; HOSE 1-33739-569-0 01 1 9510-9802
57 CLAMP; HOSE 1-33739-849-0 01 1 9803-0004
64 COVER; HOUSING 1-33739-832-2 01 1 9803-9810
64 COVER; HOUSING 1-33739-970-0 01 1 9811-0004
65 VALVE; POWER SHIFTER 1-33739-833-2 01 1 9803-9810
65 VALVE; POWER SHIFTER 1-33739-971-0 01 1 9811-0004
66 JOINT ASM; POWER SHIFTER 1-33739-834-0 01 1 9803-9810
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 9811-0004
67 JOINT; BALL,POWER SHIFTER 1-33739-835-0 01 1 9803-9810
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 9811-0004
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 9803-0004
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 9803-0004
70 SEAT; BALL STUD 1-33659-118-0 02 1 9803-0004

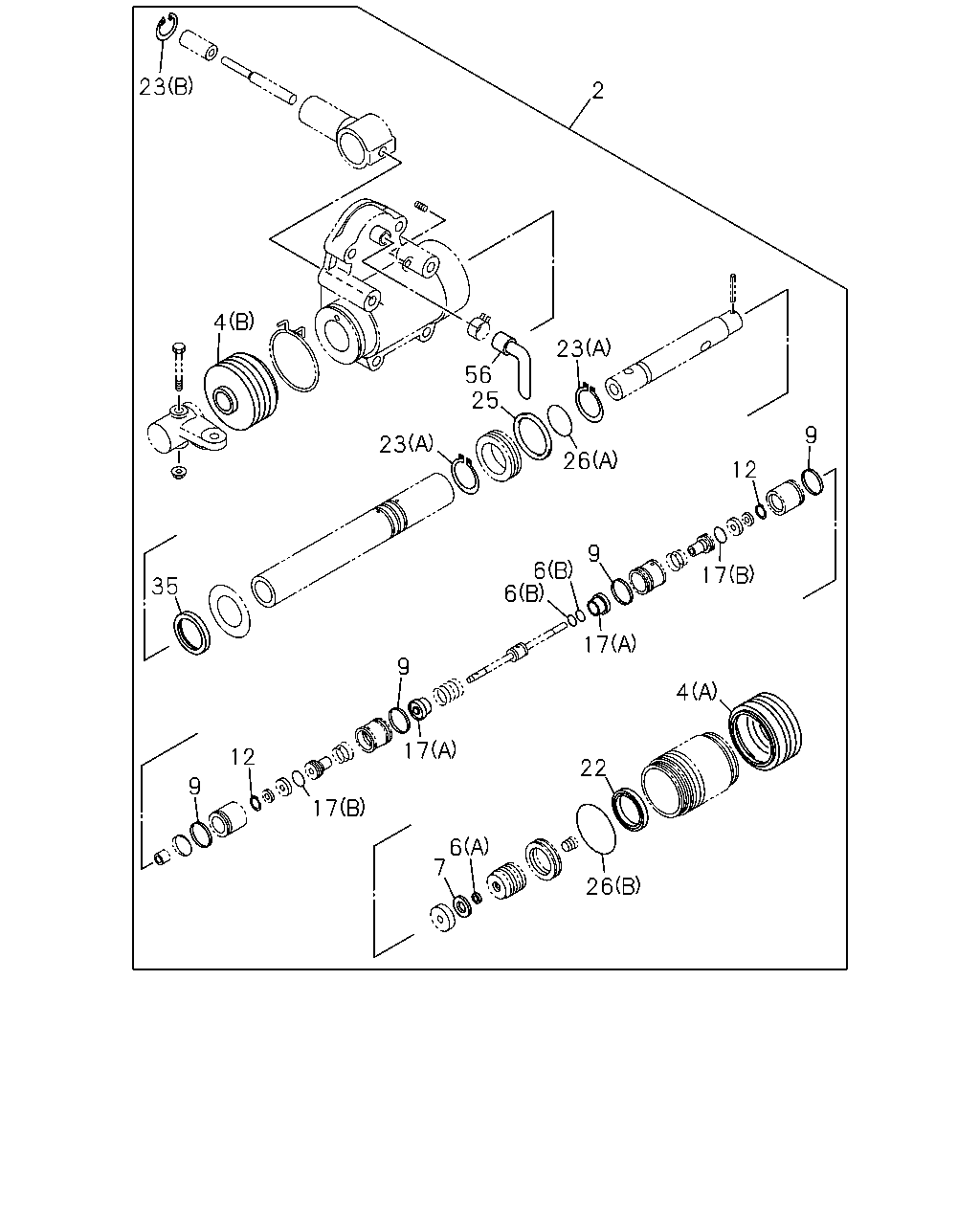

çizim 114663
23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 12 22 9 17 6 7 26
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 9510-9802
2 REPAIR KIT; POWER SHIFTER 1-33739-888-0 01 1 9803-9810
2 REPAIR KIT; POWER SHIFTER 1-33739-975-0 01 1 9811-9910
2 REPAIR KIT; POWER SHIFTER 1-33739-028-0 01 1 9911-0004
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9803-0004
6 GASKET
(A) 		1-33739-013-0 01 1 9510-9802
6 GASKET
(B) 		1-33739-583-0 02 1 9510-9802
7 FILTER; AIR 1-33739-033-0 01 1 9510-9802
9 RING; SQUARE 1-33739-086-0 04 1 9510-9802
12 RING; RET 1-33739-016-0 02 1 9510-9802
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 9510-9802
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 9510-9802
22 SEAL; OIL 1-33739-353-0 01 1 9510-9802
23 RING; RET
(A) 		1-33739-022-0 02 1 9510-9802
23 RING; RET
(B) 		1-33739-564-0 01 1 9510-9802
25 RING; "X",PISTON 1-33739-420-0 01 1 9510-9802
26 GASKET
(A) 		1-33739-496-0 01 1 9510-9802
26 GASKET
(B) 		1-33739-573-0 01 1 9510-9802
35 GASKET; CUP 1-33739-073-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9803-0004

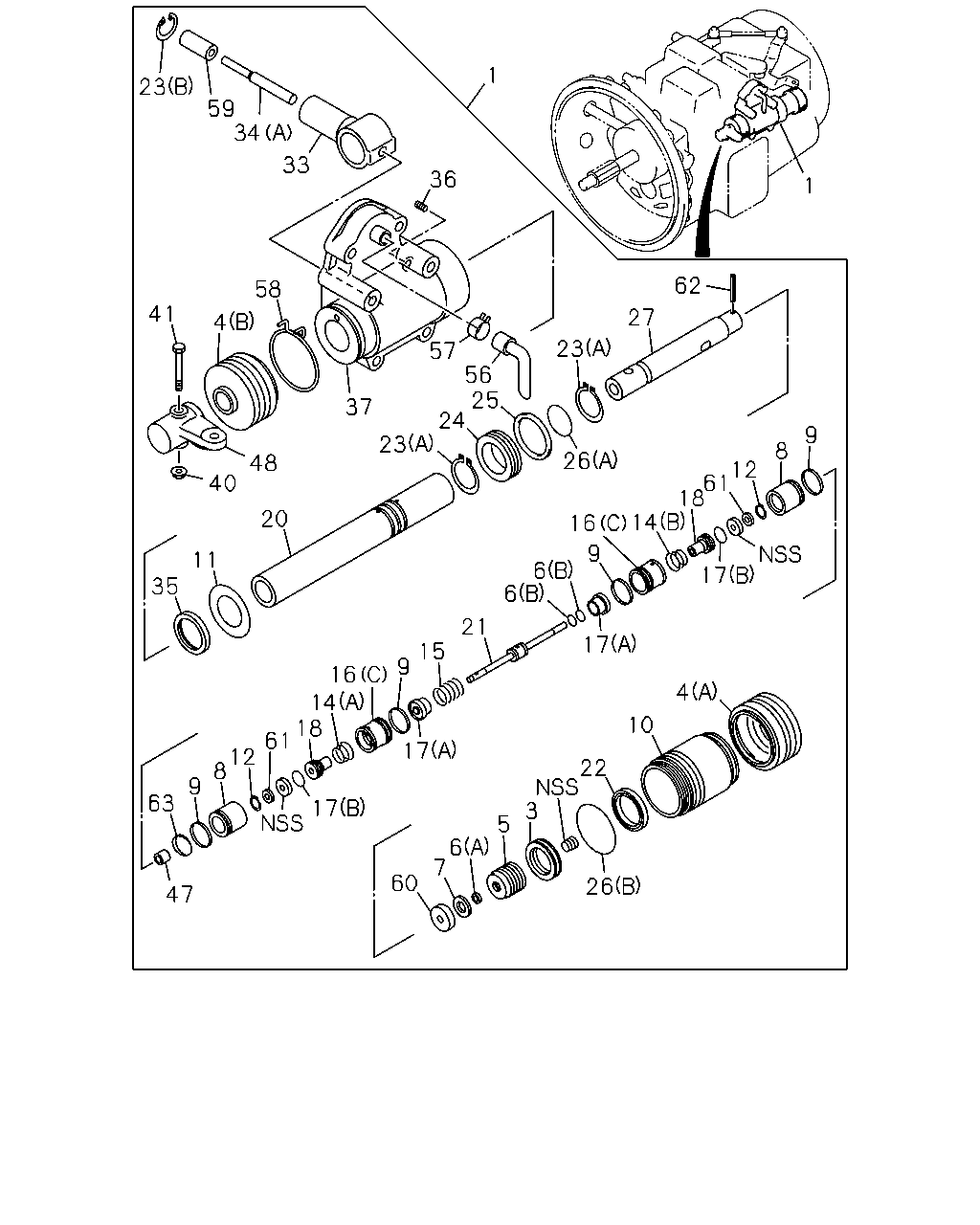

çizim 183854
1 23 59 34 33 36 1 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 40 20 9 11 6 6 17 35 21 17 15 9 16 14 18 4 10 61 17 12 8 22 3 9 63 17 5 6 7 60 26 47 16 14
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-0 01 1 9510-9802
1 ASSISTOR ASM; POWER,SHIFT 1-33730-156-2 01 1 9803-9810
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 9811-0004
3 NUT; LK,ROD 1-33739-025-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9803-0004
5 CONNECTOR; CYL 1-33739-017-0 01 1 9510-9802
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 9811-0004
6 GASKET
(A) 		1-33739-013-0 01 1 9510-9802
6 GASKET
(B) 		1-33739-583-0 02 1 9510-9802
7 FILTER; AIR 1-33739-033-0 01 1 9510-9802
8 TUBE 1-33739-560-0 02 1 9510-9802
9 RING; SQUARE 1-33739-086-0 04 1 9510-9802
10 CYLINDER; POWER SHIFTER 1-33739-572-0 01 1 9510-9802
11 PLATE; CYL 1-33739-576-0 01 1 9510-9802
12 RING; RET 1-33739-016-0 02 1 9510-9802
14 SPRING; VALVE LIFTER
(A) 		1-33739-066-0 01 1 9510-9802
14 SPRING; VALVE LIFTER
(B) 		1-33739-568-0 01 1 9510-9802
15 SPRING; VALVE SEAL 1-33739-582-0 01 1 9510-9802
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 9510-9802
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 9803-0004
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 9803-0004
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 9510-9802
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 9510-9802
18 LIFTER; VALVE 1-33739-586-0 02 1 9510-9802
20 ROD ASM; W/CAP 1-33739-765-0 01 1 9510-9802
21 PIPE; AIR,POWER SHIFTER 1-33739-587-0 01 1 9510-9802
22 SEAL; OIL 1-33739-353-0 01 1 9510-9802
23 RING; RET
(A) 		1-33739-022-0 02 1 9510-9802
23 RING; RET
(B) 		1-33739-564-0 01 1 9510-9802
24 PISTON 1-33739-578-0 01 1 9510-9802
24 PISTON 1-33739-836-1 01 1 9803-0004
25 RING; "X",PISTON 1-33739-420-0 01 1 9510-9802
26 GASKET
(A) 		1-33739-496-0 01 1 9510-9802
26 GASKET
(B) 		1-33739-573-0 01 1 9510-9802
27 ROD; POWER SHIFTER 1-33739-580-0 01 1 9510-9802
33 STRIKER; POWER SHIFTER 1-33739-577-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-575-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-845-0 01 1 9803-9810
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0004
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9803-0004
35 GASKET; CUP 1-33739-073-0 01 1 9510-9802
36 SCREW; SET 1-33739-040-0 01 1 9510-9802
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 9510-9802
37 HOUSING; POWER SHIFTER 1-33739-831-1 01 1 9803-9810
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 9811-0004
40 NUT; LEVER 1-33739-363-0 01 1 9510-9802
41 BOLT; SET,LEVER 1-33739-339-0 01 1 9510-9802
47 BUSHING; CYL 1-33739-567-0 01 1 9510-9802
48 LEVER; CONT,CABLE 1-33739-559-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9803-0004
57 CLAMP; HOSE 1-33739-569-0 01 1 9510-9802
57 CLAMP; HOSE 1-33739-849-0 01 1 9803-0004
58 CLAMP; BOOT 1-33739-562-0 01 1 9510-9802
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 9510-9802
60 COLLAR; CYL 1-33739-561-0 01 1 9510-9802
61 PLATE; VLV LIFTER 1-33739-581-0 02 1 9510-9802
62 PIN; PIPE 1-33739-566-0 01 1 9510-9802
63 CLAMP; CYL 1-33739-565-0 01 1 9510-9802

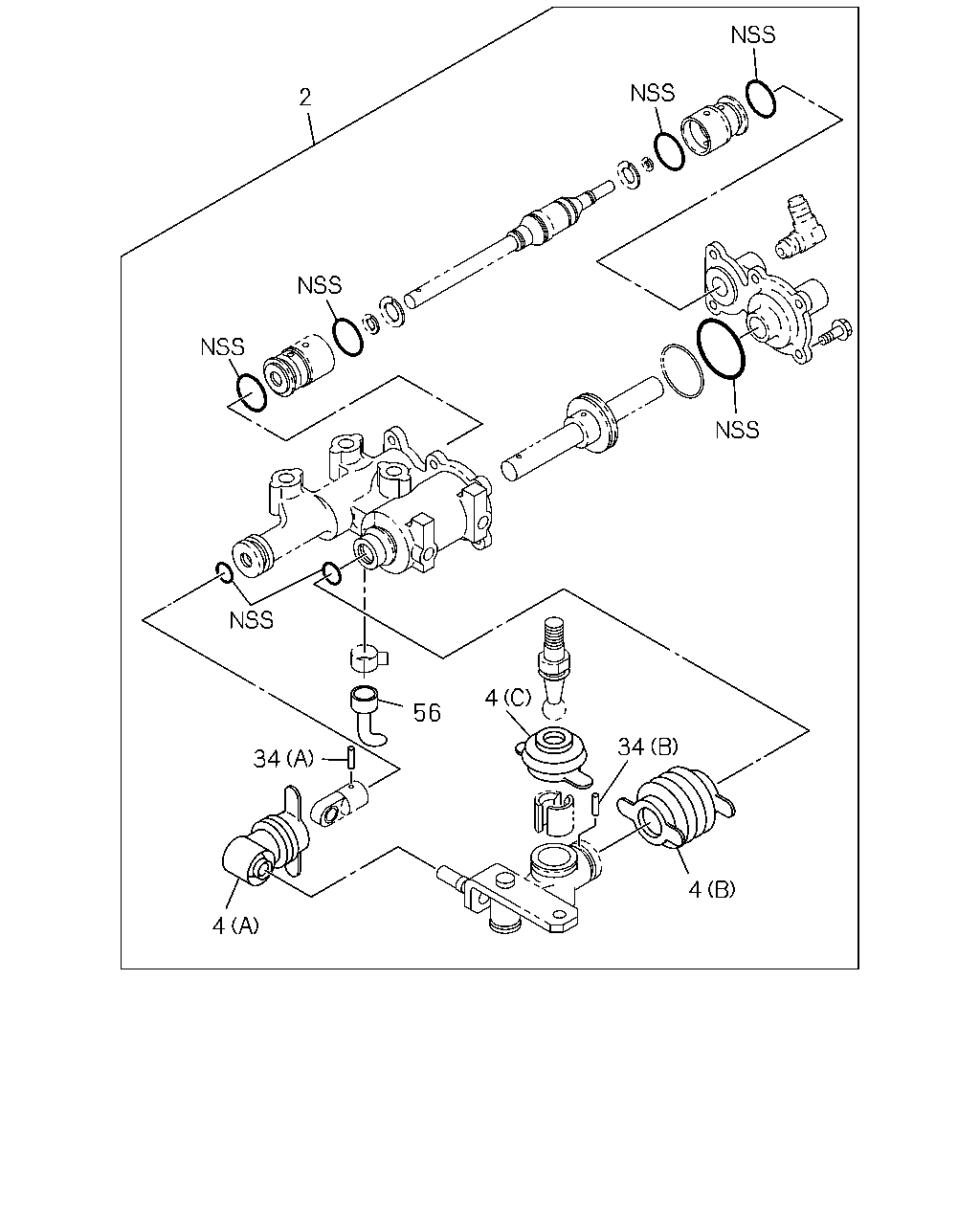

çizim 183860
2 4 56 34 34 4 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 9510-9802
2 REPAIR KIT; POWER SHIFTER 1-33739-888-0 01 1 9803-9810
2 REPAIR KIT; POWER SHIFTER 1-33739-975-0 01 1 9811-9910
2 REPAIR KIT; POWER SHIFTER 1-33739-028-0 01 1 9911-0004
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9510-9802
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9803-0004
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9803-0004
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-575-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-845-0 01 1 9803-9810
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0004
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9803-0004
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9510-9802
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9803-0004

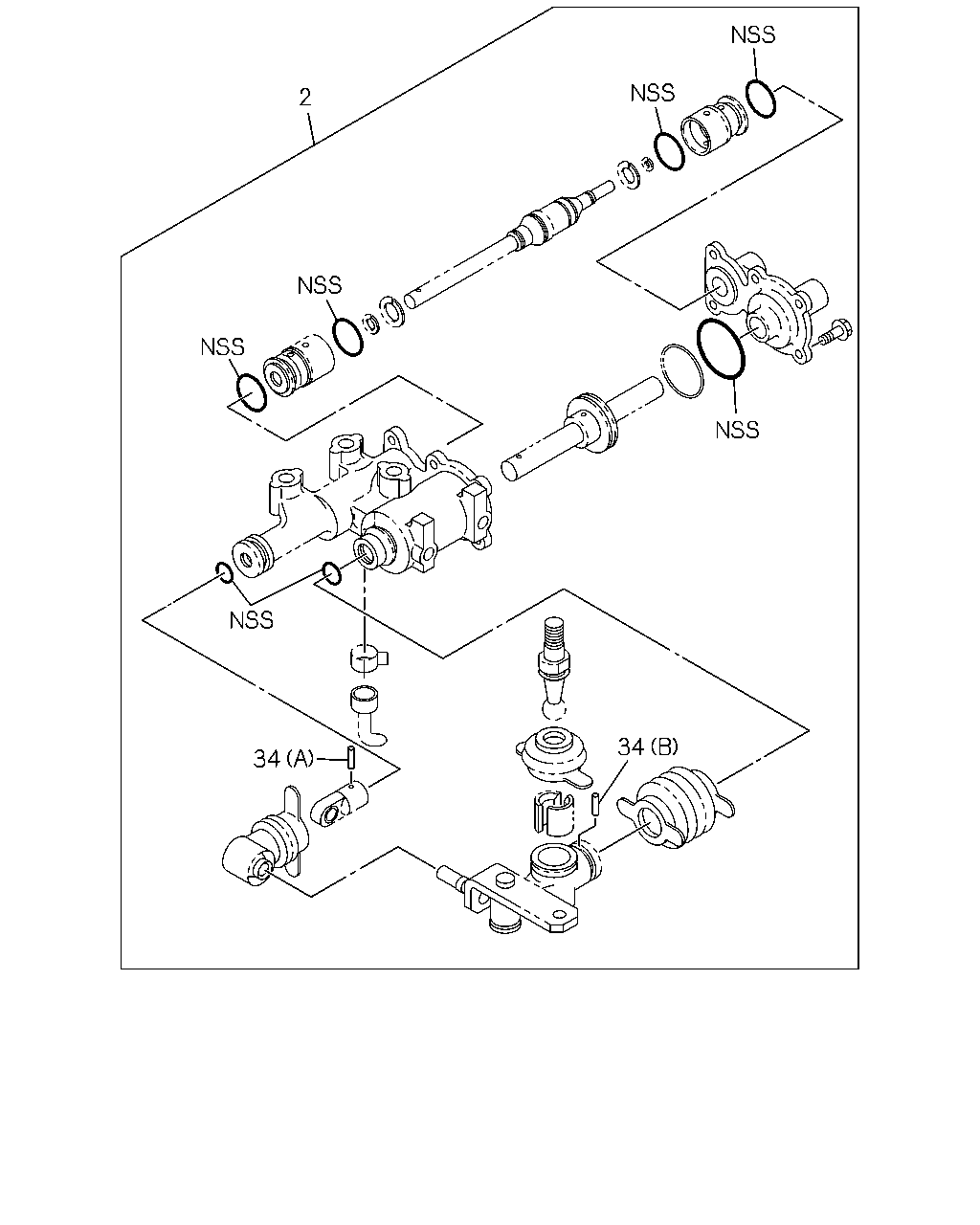

çizim 183864
2 34 34
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 9510-9802
2 REPAIR KIT; POWER SHIFTER 1-33739-888-0 01 1 9803-9810
2 REPAIR KIT; POWER SHIFTER 1-33739-975-0 01 1 9811-9910
2 REPAIR KIT; POWER SHIFTER 1-33739-028-0 01 1 9911-0004
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-575-0 01 1 9510-9802
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-845-0 01 1 9803-9810
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0004
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9803-0004
