Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#64063) — 596 parça

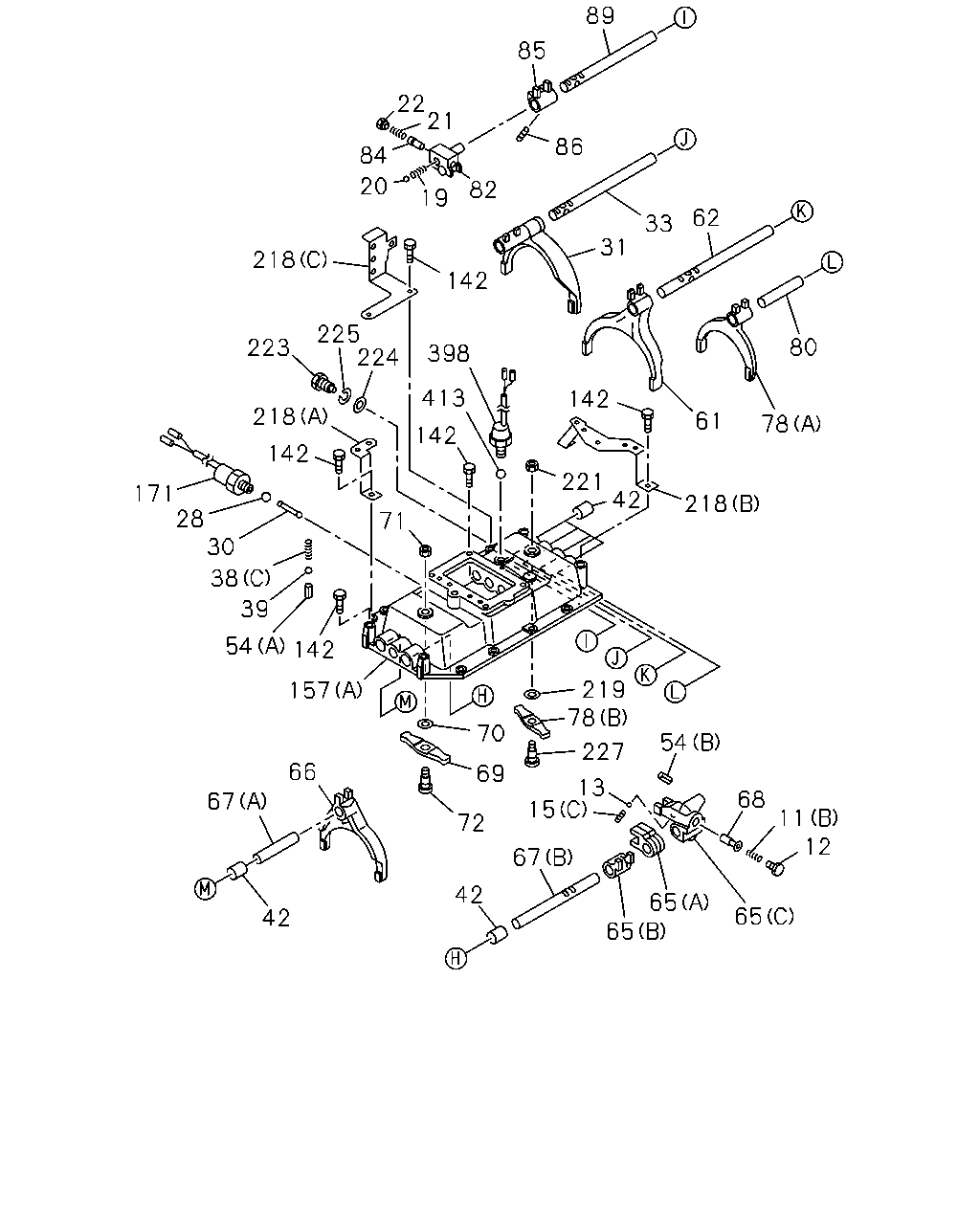

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 80 223 398 413 142 218 61 78 142 142 221 4 171 28 30 218 71 38 39 54 142 219 78 157 70 54 227 66 69 13 15 68 67 12 11 72 67 42 65 65 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	ROD; SHIFT,6TH (B)	1-33531-340-1	01	1	9510-9606	●
4	ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	9607-	●
4	ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	9510-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0004	●		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0005-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-9604	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-0004	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-9604			●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9510-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9510-0004			●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-	●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	9510-0004			●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9510-0004			●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-0004			●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9510-0004			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0004	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-		●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-0004			●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-		●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-0004			●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9510-0004			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9510-0004			●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9510-9606		●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	04	1	9510-9606	●
38	SPRING; DETENT (D)	1-09580-548-0	04	1	9607-9706	●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9510-9802			●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9803-9904			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0004			●
39	BALL; DETENT	9-00097-013-0	03	1	9510-		●
39	BALL; DETENT	9-00097-013-0	04	1	9510-	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-0004			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-0004			●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9510-0004			●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9510-0004			●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9510-0004			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9510-0004			●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	9510-0004			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	9510-0004			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-357-1	01	1	9510-9602			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9603-0004			●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	9510-0004			●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	9510-0004			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9510-0004			●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9510-0004			●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	9510-0004			●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	9510-0004			●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	9510-0004			●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	9510-0004			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9510-0004			●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9510-0004			●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9510-0004			●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9510-0004			●
84	SLEEVE; REV	1-33516-025-0	01	1	9510-0004			●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9510-0004			●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9510-9512			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-0004			●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9510-0004			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9510-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-		●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	9510-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9510-0004	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9510-0004	●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9510-9802			●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	04	1	9803-0004			●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	9510-0004			●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9510-0004			●
221	NUT; SPINDLE	0-91150-110-0	01	1	9510-0602	●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9510-0004			●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9510-0004			●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9510-0004			●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9510-0004			●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810	●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9510-0004			●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-0004	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9510-0004			●

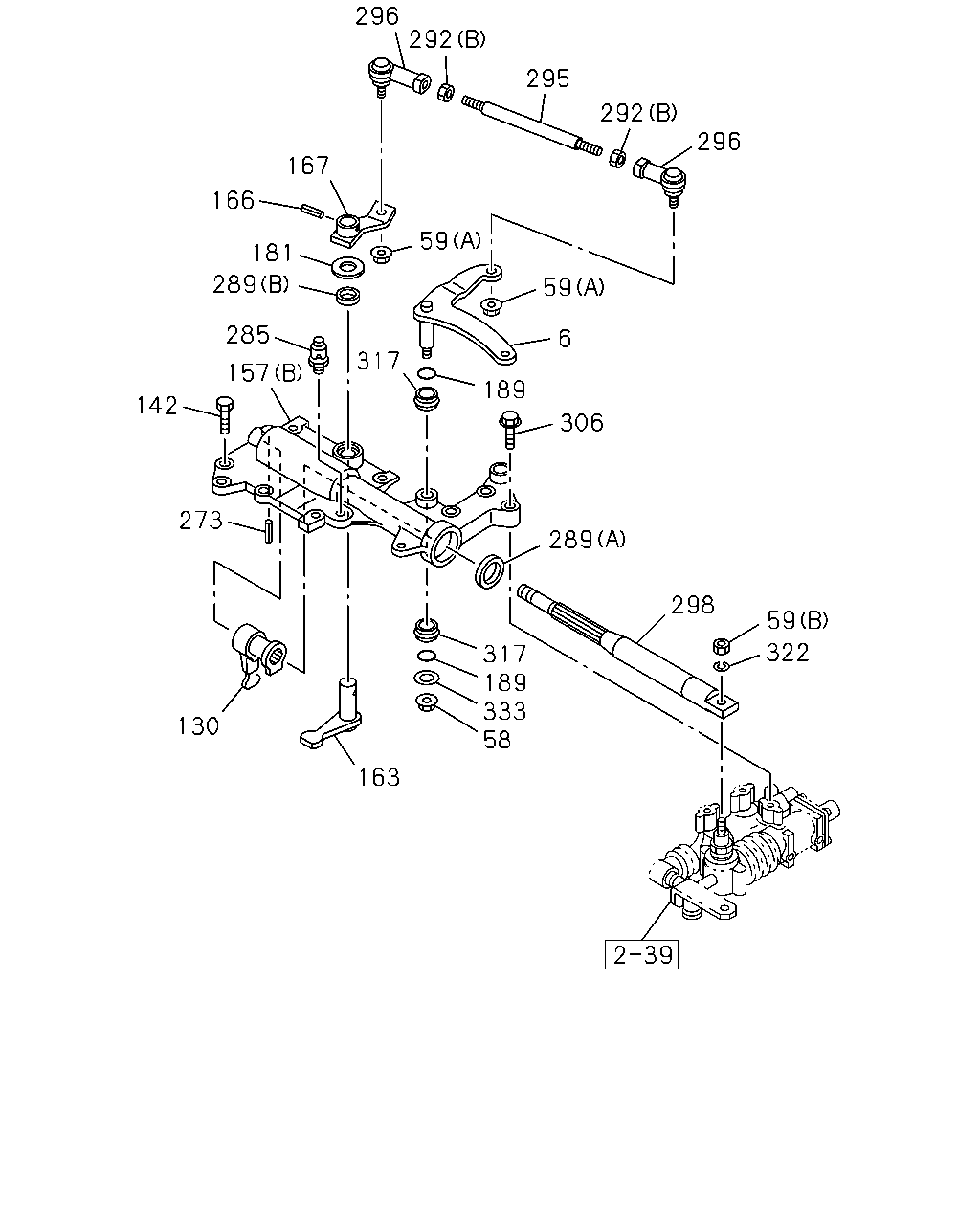

296 292 295 292 296 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	1-33511-462-0	01	1	9510-0005	●
6	LEVER; RELAY	1-33511-574-1	01	1	0006-	●
6	LEVER; RELAY	1-33651-686-2	01	1	9803-0004			●
58	NUT M10 FLANGE	0-91150-110-0	01	1	9803-0004			●
59	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9803-0004			●
59	NUT (B) M12	9-99110-412-0	01	1	9803-0004			●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9510-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802			●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9803-0004			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9510-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-		●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	9510-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9510-0004	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9510-0004	●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9510-9802			●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	04	1	9803-0004			●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9510-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9510-9802			●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9803-0004			●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	9803-0004			●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9510-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9510-9802			●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9803-0004			●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9510-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802			●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9803-0004			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	9803-0004			●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	9803-0004			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-0004	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9803-0004			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9803-0004			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9804	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0004	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9803-0004			●
296	ROD END L=48	1-09760-038-1	02	1	9510-0004	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9510-9802	●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9803-	●	●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9510-9802			●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9803-0004			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9510-9802			●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	9803-0004			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9510-9802			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-0004	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-	●	●
322	WASHER; LK ID=12.2	9-09150-512-0	01	1	9803-0004			●
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9803-0004			●

292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 315 321 319 317 274 433 285 292 289 271 323 157 271 272 289 130 305 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9510-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802			●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9803-0004			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9510-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9510-9802			●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9803-0004			●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9510-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9510-9802			●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9803-0004			●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9510-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802			●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9803-0004			●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9510-0004	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9510-9804	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0004	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-	●	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	9510-	●	●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	9510-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9510-9802			●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9510-9802			●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	9510-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9510-9802			●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9510-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9510-9802			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-0004	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9803-0004			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9803-0004			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9804	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0004	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9510-0004	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9803-0004			●
296	ROD END L=48	1-09760-038-1	02	1	9510-0004	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9510-9802	●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9803-	●	●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9510-9802			●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9803-0004			●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9510-	●	●
315	LEVER; SELECT	1-33651-652-0	01	1	9510-9802	●	●
315	LEVER; SELECT	1-33651-703-0	01	1	9803-	●	●
315	LEVER; SELECT	1-33651-650-0	01	1	9510-9802			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-0004	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9510-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9510-0004	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0005-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9510-0004	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-	●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9510-9802	●	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9803-0004	●	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0005-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9511-9809	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9810-0004	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0005-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9511-0004	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0005-	●	●

142 382 218 142 398 171 390 393 28 30 218 142 223 411 42 28 221 28 30 28 28 142 142 157 42 42 52 219 39 38 522 38 22 17 11 18 39 227 52 15 2 2 20 1 17 26 25 49 52 52 34 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9510-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	9510-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	9510-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0004	●		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0005-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-	●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	9510-0004			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	9510-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	9510-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9510-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-0004			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0004	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-430-0	01	1	9510-9807	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9808-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-362-1	01	1	9510-9606	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9607-	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-		●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-0004			●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-		●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-0004			●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-363-1	01	1	9510-9606	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9607-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9510-9606		●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	04	1	9510-9606	●
38	SPRING; DETENT (D)	1-09580-548-0	04	1	9607-9706	●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9510-9802			●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9803-9904			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0004			●
39	BALL; DETENT	9-00097-013-0	03	1	9510-		●
39	BALL; DETENT	9-00097-013-0	04	1	9510-	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-0004			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-0004			●
49	ARM; SHIFT,4TH & 5TH	1-33511-460-0	01	1	9510-9807		●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	9808-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-463-0	01	1	9510-9807	●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9808-	●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	9510-		●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	9510-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9510-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-		●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	9510-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9510-0004	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9510-0004	●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9510-9802			●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	04	1	9803-0004			●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	9510-0004			●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9510-0004			●
221	NUT; SPINDLE	0-91150-110-0	01	1	9510-0602	●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9510-0004			●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9510-0004			●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810	●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9510-0004			●
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	9510-		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	9510-	●
382	BRACKET; PARKING BRK CONT CABLE (C)	1-46147-109-0	01	1	9510-0004			●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-	●	●
393	PIN; SW	1-33534-003-0	01	1	9510-	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-0004	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-	●	●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9510-	●	●

398 218 142 218 142 411 221 142 223 157 42 218 171 390 142 42 30 28 28 142 393 28 30 39 217 28 28 28 30 28 219 52 38 38 522 39 227 2 22 11 18 17 52 2 15 5 1 25 9 11 15 17 20 12 13 4 52 521 26 7 10 6 52 34 52 49 4 50 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9510-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	9510-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	9510-	●	●
4	ROD; SHIFT,6TH (B)	1-33531-340-1	01	1	9510-9606	●
4	ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	9607-	●
4	ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	9510-	●
5	BLOCK; SHIFT,6TH	1-33511-326-1	01	1	9510-	●
6	LEVER; RELAY	1-33511-462-0	01	1	9510-0005	●
6	LEVER; RELAY	1-33511-574-1	01	1	0006-	●
6	LEVER; RELAY	1-33651-686-2	01	1	9803-0004			●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9510-0004	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9510-	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9510-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9510-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9510-0004	●		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0005-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-9604	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-0004	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-9604			●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9510-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9510-0004			●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9510-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9510-	●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	9510-0004			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	9510-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	9510-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9510-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9510-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-0004			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-0004	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-430-0	01	1	9510-9807	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9808-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-362-1	01	1	9510-9606	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9607-	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9510-		●
28	BALL; INTER LK	9-00097-010-0	07	1	9510-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-0004			●
30	PIN; INTER LK	1-33534-002-0	02	1	9510-		●
30	PIN; INTER LK	1-33534-002-0	03	1	9510-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-0004			●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-363-1	01	1	9510-9606	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9607-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9510-9606		●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706		●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	04	1	9510-9606	●
38	SPRING; DETENT (D)	1-09580-548-0	04	1	9607-9706	●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	9707-	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9510-9802			●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9803-9904			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0004			●
39	BALL; DETENT	9-00097-013-0	03	1	9510-		●
39	BALL; DETENT	9-00097-013-0	04	1	9510-	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-0004			●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9510-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9510-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-0004			●
49	ARM; SHIFT,4TH & 5TH	1-33511-460-0	01	1	9510-9807		●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	9808-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-463-0	01	1	9510-9807	●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9808-	●
50	ARM; SHIFT,6TH	1-33511-477-0	01	1	9510-	●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	9510-		●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	9510-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9510-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-		●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	9510-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	9510-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9510-0004	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9510-0004	●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9510-9802			●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	04	1	9803-0004			●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9510-	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-0004			●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9510-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9510-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	9510-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	9510-0004			●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	9510-0004			●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9510-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9510-0004			●
221	NUT; SPINDLE	0-91150-110-0	01	1	9510-0602	●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9510-0004			●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9510-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9510-0004			●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9510-9810	●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9510-0004			●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-	●	●
393	PIN; SW	1-33534-003-0	01	1	9510-	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-0004	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9510-	●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	9510-	●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9510-	●	●

382 383 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	9510-		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	9510-	●
382	BRACKET; PARKING BRK CONT CABLE (C)	1-46147-109-0	01	1	9510-0004			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9510-0512	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9510-0004			●

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 315 317 433 324 274 319 285 271 321 289 323 271 289 157 272 298 163 130 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9510-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802			●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9803-0004			●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9510-9709		●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-		●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9510-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-456-1	01	1	9510-9709	●
157	BOX; QUAD,TRANS (A)	1-33541-503-0	01	1	9710-9903	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	9904-	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9510-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-0004			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9510-9802			●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9803-0004			●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9510-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9510-9802			●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9803-0004			●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9510-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9510-9802			●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9803-0004			●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9510-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802			●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9803-0004			●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9510-0004	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9510-9804	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0004	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-	●	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	9510-	●	●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	9510-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9510-9802			●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9510-9802			●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	9510-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9510-9802			●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9510-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9510-9802			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-0004	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9510-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9803-0004			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9803-0004			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9804	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0004	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9510-0004	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9803-0004			●
296	ROD END L=48	1-09760-038-1	02	1	9510-0004	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9510-9802	●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9803-	●	●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9510-9802			●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9803-0004			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9510-9802			●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	9803-0004			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9510-9802			●
315	LEVER; SELECT	1-33651-652-0	01	1	9510-9802	●	●
315	LEVER; SELECT	1-33651-703-0	01	1	9803-	●	●
315	LEVER; SELECT	1-33651-650-0	01	1	9510-9802			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-0004	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9510-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9510-0004	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0005-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9510-0004	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-	●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9510-9802	●	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9803-0004	●	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0005-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9511-9809	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9810-0004	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0005-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9511-0004	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
