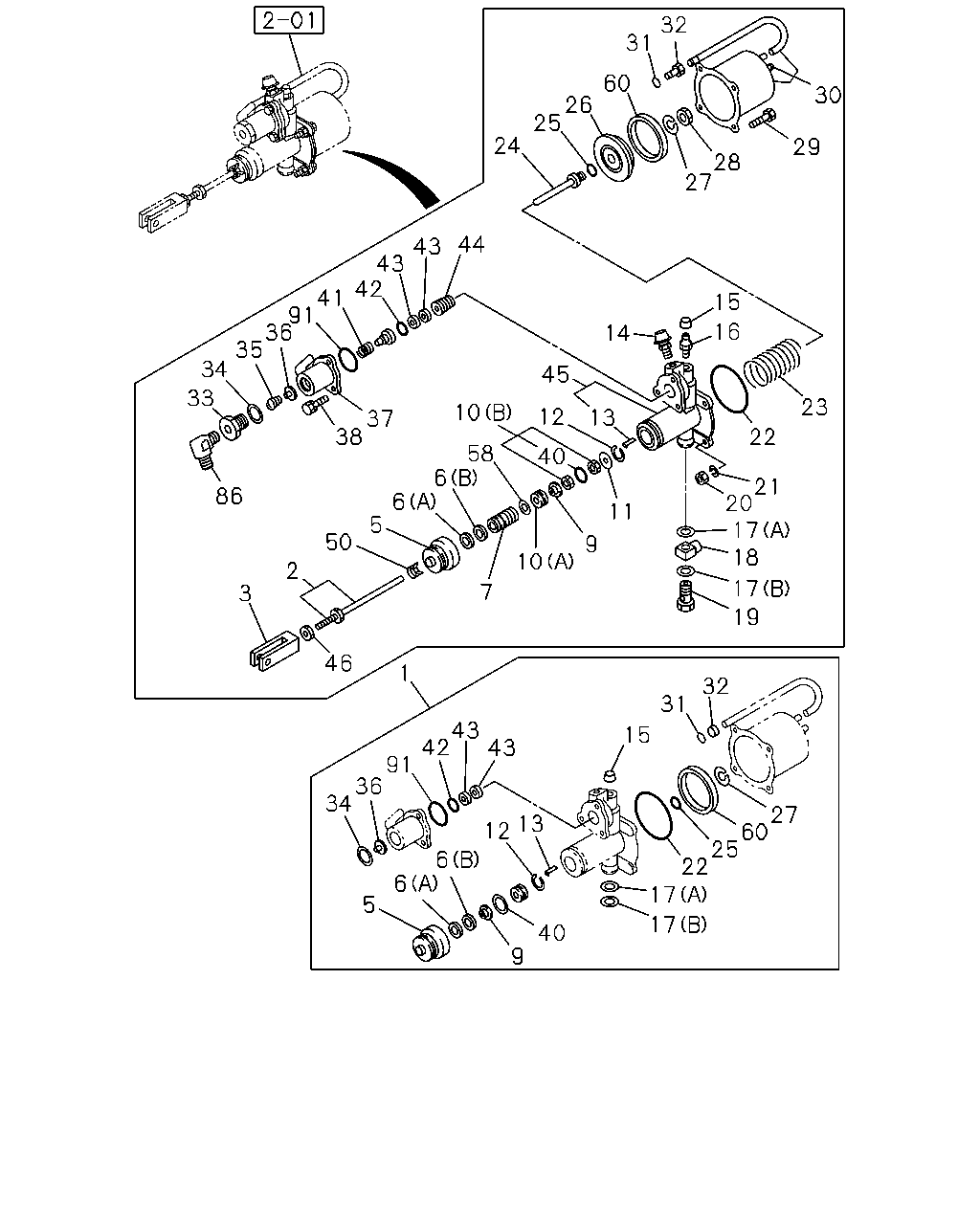

2-07 — CLUTCH BOOSTER; MINIPACK (#64056) — 103 parça

32 31 60 30 26 25 24 29 28 27 44 43 43 42 41 91 36 35 34 15 16 14 45 33 23 10 12 13 37 38 22 58 6 40 21 20 17 18 86 6 11 5 50 9 10 2 17 7 3 19 46 1 32 31 43 15 91 36 34 13 12 27 60 25 22 17 6 6 5 17 40 9 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-359-0	01	1	9510-0004	●
1	REPAIR KIT; CLU BOOSTER	1-31829-352-0	01	1	9510-0004		●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-156-0	01	1	9510-0004	●
2	ROD; PUSH,CLU BOOSTER	1-31824-156-0	01	1	9510-0004		●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-0	01	1	9510-0004	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-0	01	1	9510-0004		●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	9510-0004	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9510-0004		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	9510-0004	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9510-0004		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	9510-0004	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9510-0004		●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-013-0	01	1	9510-0004	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9510-0004		●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	9510-0004	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9510-0004		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-107-0	01	1	9510-0004	●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-108-0	01	1	9510-0004	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-285-0	01	1	9510-0004		●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-293-0	01	1	9510-0004		●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	9510-0004	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9510-0004		●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	9510-0004	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9510-0004		●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	9510-0004	●
13	PIN; SPR	1-31829-109-0	01	1	9510-0004		●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-102-0	01	1	9510-0004	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9510-0004		●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	9510-0004	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9510-0004		●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	9510-0004	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9510-0004		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	9510-0004	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9510-0004		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	9510-0004	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9510-0004		●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	9510-0004	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9510-0004		●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	9510-0004	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9510-0004		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	9510-0004	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9510-0004		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	9510-0004	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9510-0004		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	9510-0004	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9510-0004		●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-110-0	01	1	9510-0004	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	9510-0004		●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	9510-0004	●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9510-0004		●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	9510-0004	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9510-0004		●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-057-0	01	1	9510-0004	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9510-0004		●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	9510-0004	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9510-0004		●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	9510-0004	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9510-0004		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	9510-0004	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9510-0004		●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-026-0	01	1	9510-0004	●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	9510-0004		●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	9510-0004	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9510-0004		●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	9510-0004	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9510-0004		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-212-0	01	1	9510-0004	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-212-0	01	1	9510-0004		●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	9510-0004	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9510-0004		●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-077-0	01	1	9510-0004	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9510-0004		●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-016-0	01	1	9510-0004	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9510-0004		●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-018-0	01	1	9510-0004	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	9510-0004		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	9-83315-113-0	03	1	9510-0004	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	9510-0004		●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	9510-0004	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9510-0004		●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-104-0	01	1	9510-9601	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9510-9601		●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-420-0	01	1	9602-0004	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	9602-0004		●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-143-0	01	1	9510-0004	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9510-0004		●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	9510-0004	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9510-0004		●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-029-0	01	1	9510-0004	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	9510-0004		●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-081-0	01	1	9510-0004	●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9510-0004		●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	01	1	9510-0004	●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	01	1	9510-0004		●
50	CLAMP; PISTON GUARD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	9510-0004	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-168-0	01	1	9510-0004		●
58	WASHER; PISTON,CLU BOOSTER	1-31829-294-0	01	1	9510-0004		●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-066-0	01	1	9510-0004	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9510-0004		●
86	ELBOW ASM; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09650-358-1	01	1	9510-0004	●
86	ELBOW ASM; CLU BOOSTER	1-09650-358-1	01	1	9510-0004		●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	9510-0004	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9510-0004		●
