Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#64053) — 261 parça

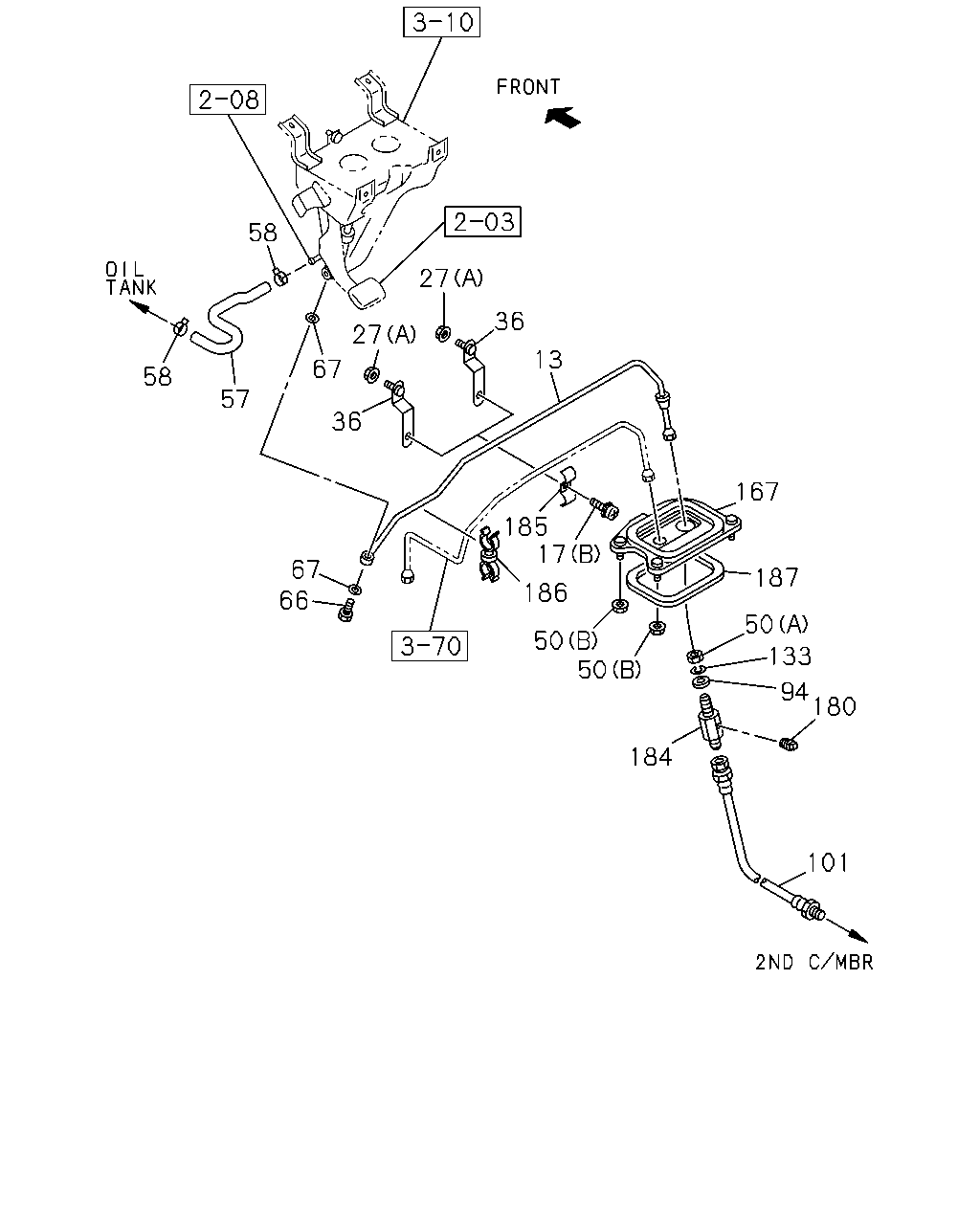

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9510-0004	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0005-		●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0004	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-		●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9510-0004	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-		●	●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0004	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0005-0512		●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9510-0004	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9510-0004	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0005-		●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-0004	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-		●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-0004	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0805		●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-		●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312		●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-0004	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0605		●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0603		●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-		●	●
167	BRACKET; UNION	1-79738-204-2	01	1	9510-9911	●	●	●
167	BRACKET; UNION	1-79738-845-0	01	1	9912-0004	●	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	0005-		●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9510-0004	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0804		●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9510-0004	●	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0005-0804		●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-		●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9510-0004	●	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-		●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9510-9706	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-0004	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0005-		●	●
187	SEAL; BRKT	1-79738-190-0	01	1	9510-0004	●	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	0005-		●	●

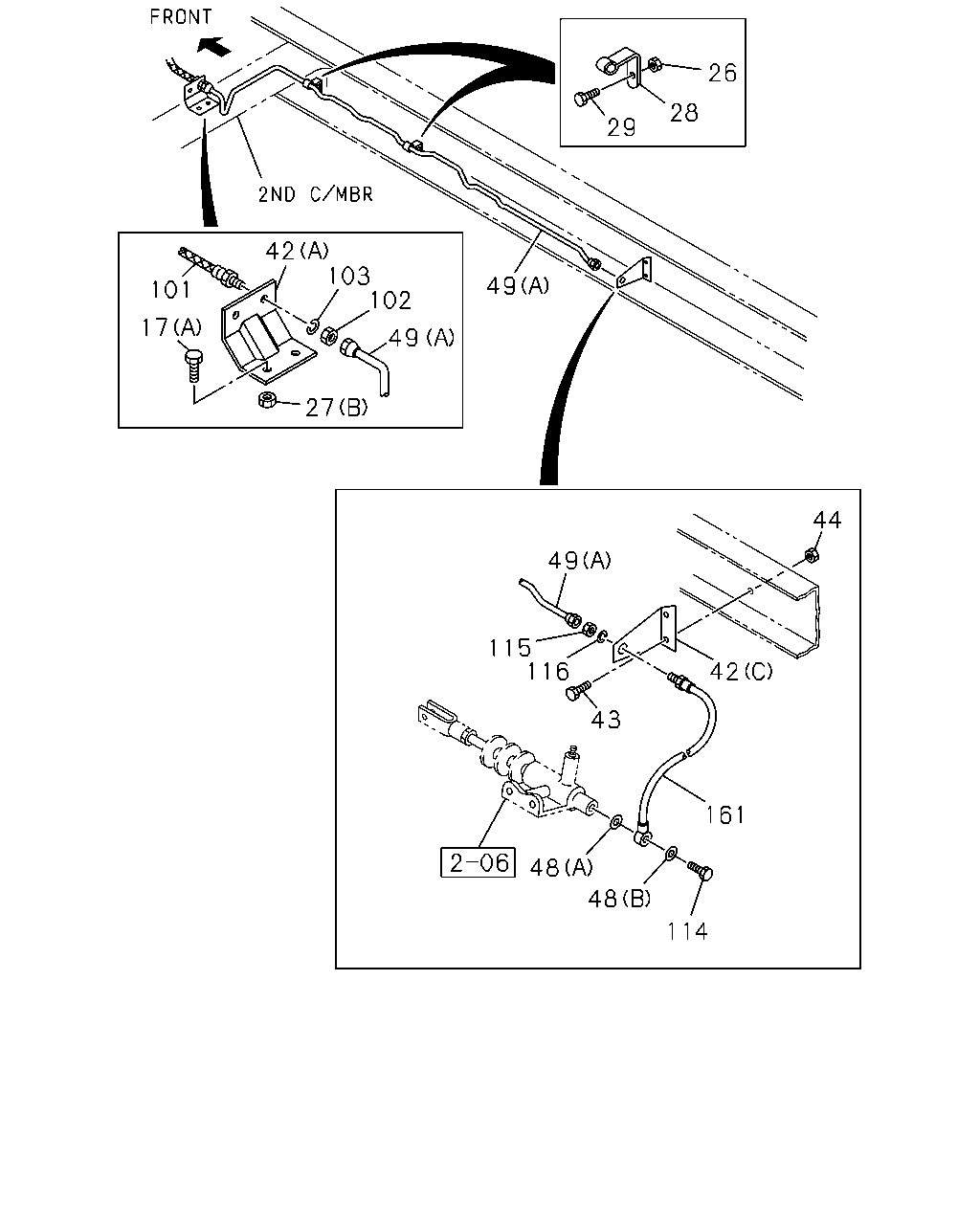

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-		●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9510-9606		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9809		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9810-0602		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9810-0004	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0004	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-		●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9803-9809	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9810-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9802	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9810-0004	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9810-0512		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-		●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9809	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9810-0004	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-709-0	01	1	9510-0004		●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (C)	1-47475-709-0	01	1	9510-0004			●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-709-0	01	1	0005-		●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0004	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-		●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9510-9702			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9510-9702	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-0004			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-0004	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-0004		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-		●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-0004		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0005-		●	●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9510-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2330 SERVICED BY L=2400	1-47426-395-0	01	1	9510-		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=216	1-47493-418-1	01	1	9510-9802			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9510-9802	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9803-0004			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	9803-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2986 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2974 SERVICED BY L=3000	1-47426-397-0	01	1	9803-0004	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512		●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9510-0004		●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9510-0004			●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0005-		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512		●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	9510-0004		●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=310	0-05567-310-0	01	1	9510-0004			●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	0005-		●	●

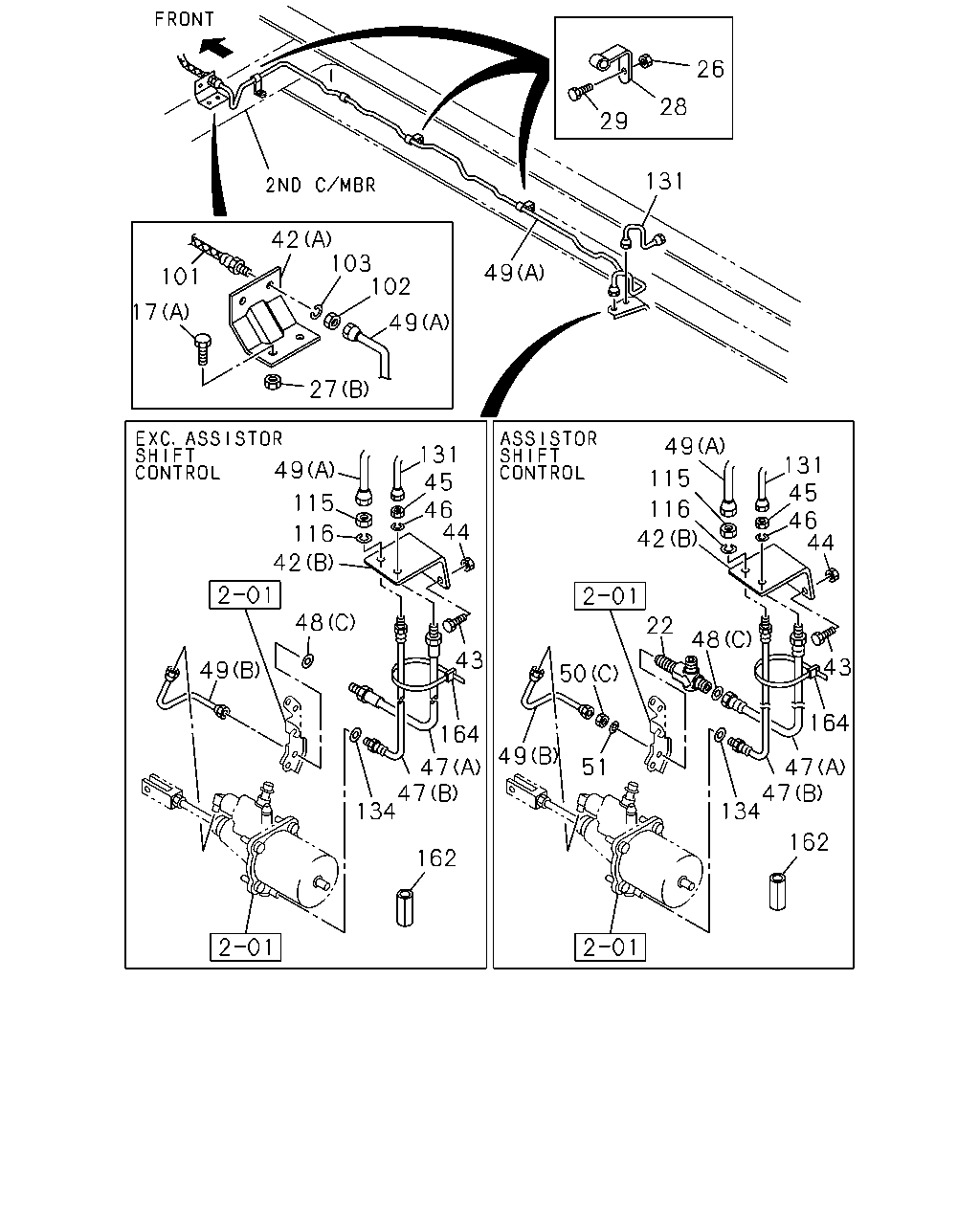

26 28 29 131 42 103 102 49 101 17 49 27 49 131 45 46 44 131 45 46 44 49 115 115 116 116 42 42 48 22 48 43 43 49 50 164 164 49 51 47 47 134 47 47 134 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-		●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 & M20X2 3WAY	1-09656-395-3	01	1	9510-9802	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	9803-0004	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9510-9606		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9809		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9810-0602		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9810-0004	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0004	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-		●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9803-9809	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9810-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9802	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9810-0004	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9810-0512		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-		●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9809	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9810-0004	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-709-0	01	1	9510-0004		●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (C)	1-47475-709-0	01	1	9510-0004			●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-709-0	01	1	0005-		●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0004	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-		●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9510-9702			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9510-9702	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-0004			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-0004	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	9510-0004			●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9510-0004	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9510-0004			●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9510-0004	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=500	1-09364-329-0	01	1	9510-9802			●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9510-9802	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=470	1-09364-692-0	01	1	9803-0004			●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	9803-0004	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (A) L=600	0-07030-600-0	01	1	9601-9602			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (A) L=580	0-07030-580-0	01	1	9603-9702			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (A) L=580	0-07030-580-0	01	1	9703-9802			●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=580	0-07030-580-0	01	1	9703-9802	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (A) L=560	1-09363-689-0	01	1	9803-0004			●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	9803-0004	●
47	HOSE; FLEX,CLU CONT (A) L=500	0-07120-500-0	01	1	9510-9702	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=500	0-07120-500-0	01	1	9703-9802	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=470	1-09363-682-0	01	1	9803-0004	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-0004		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-		●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-0004		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0005-		●	●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9510-0004			●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9510-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2330 SERVICED BY L=2400	1-47426-395-0	01	1	9510-		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=216	1-47493-418-1	01	1	9510-9802			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9510-9802	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9803-0004			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	9803-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2986 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2974 SERVICED BY L=3000	1-47426-397-0	01	1	9803-0004	●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0004	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0005-0512		●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9510-0004	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9510-0004	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512		●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0004	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512		●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49114-873-0	01	1	9510-9802			●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49114-873-0	01	1	9510-9802	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-152-0	01	1	9803-0004			●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	9803-0004	●
134	GASKET AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	01	1	9510-9912			●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9510-9912	●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	9603-0004			●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	9603-0004	●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9603-0004			●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9603-0004	●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	9603-0004			●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9603-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
