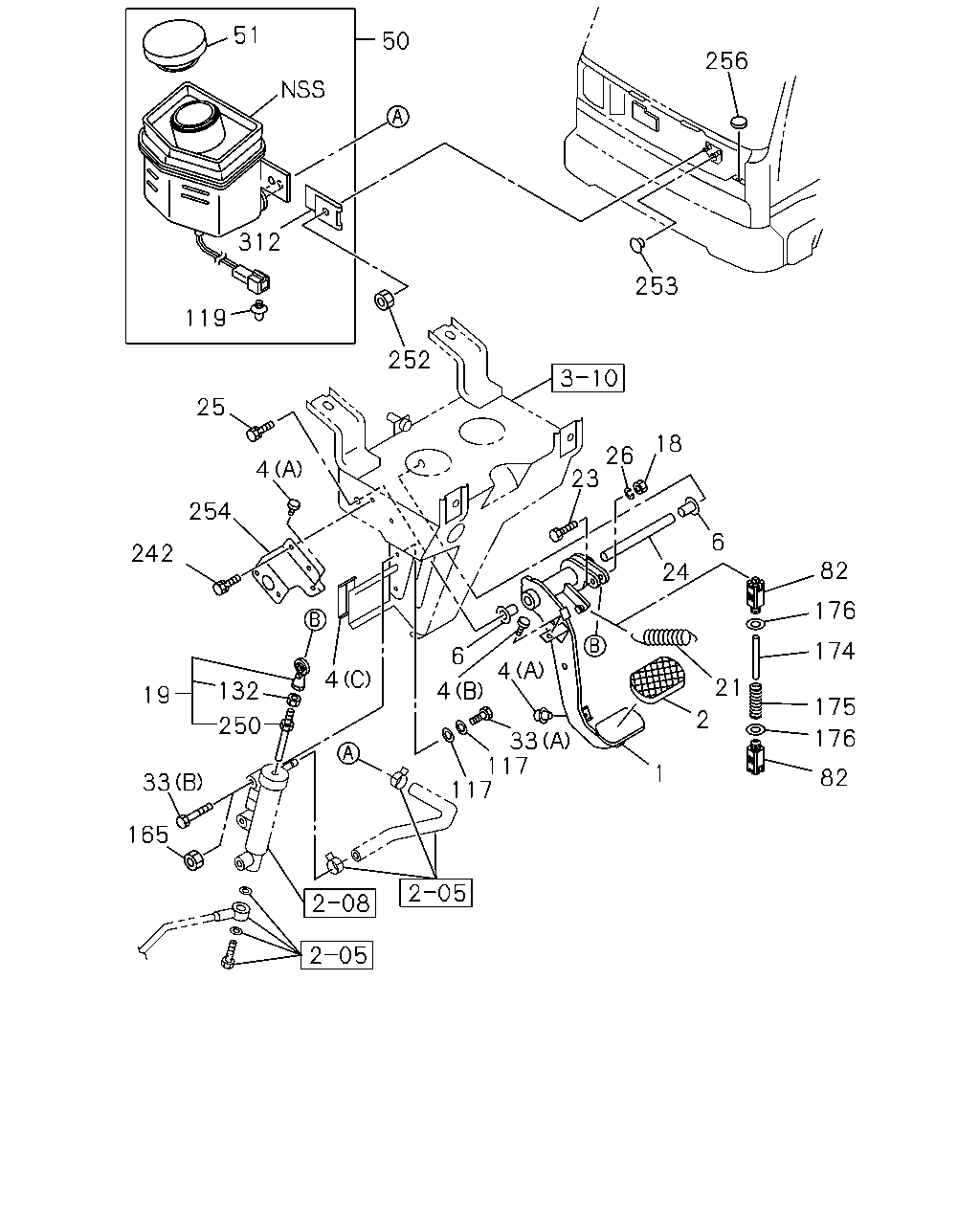

1 |
PEDAL; CLU
AIR ASSIST CLUTCH<PK1>
|
1-73908-079-3 |
01 |
1 |
9510-0004 |
| |
1 |
PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73908-078-3 |
01 |
1 |
9510-9803 |
| |
1 |
PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73908-342-2 |
01 |
1 |
9804-0004 |
| |
1 |
PEDAL; CLU
|
1-73908-342-2 |
01 |
1 |
0005-0103 |
| |
1 |
PEDAL; CLU
ISUZU M/T<X9A>
|
1-73908-342-2 |
01 |
1 |
0104- |
| |
2 |
COVER; CLU PEDAL
|
8-94204-810-0 |
01 |
1 |
9510-0103 |
| |
2 |
COVER; CLU PEDAL
ISUZU M/T<X9A>
|
8-97893-618-1 |
01 |
1 |
0104- |
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
04 |
1 |
9510-9512 |
| |
4 |
STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1>
(A)
|
1-47319-014-1 |
04 |
1 |
9601-0004 |
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
02 |
1 |
0005- |
| |
4 |
STOPPER; CLU PEDAL
(B)
|
5-31419-003-0 |
01 |
1 |
9510-9904 |
| |
4 |
STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1>
(C)
|
1-73908-088-0 |
01 |
1 |
9510-9612 |
| |
4 |
STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1>
(A)
|
1-47319-014-1 |
02 |
1 |
9601-0004 |
| |
4 |
STOPPER; CLU PEDAL
ISUZU M/T<X9A>
(B)
|
1-73908-088-1 |
01 |
1 |
0104- |
| |
6 |
BUSHING; CLU PEDAL
|
1-09330-045-0 |
02 |
1 |
9510-0103 |
| |
6 |
BUSHING; CLU PEDAL
ISUZU M/T<X9A>
|
1-09330-045-0 |
02 |
1 |
0104- |
| |
18 |
NUT; PUSH ROD
M8
|
9-09110-508-0 |
01 |
1 |
9510-0103 |
| |
18 |
NUT; PUSH ROD
ISUZU M/T<X9A>
M8
|
9-09110-508-0 |
01 |
1 |
0104- |
| |
19 |
ROD ASM; PUSH,CLU
|
1-73996-144-0 |
01 |
1 |
9510-9803 |
| |
19 |
ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1>
|
1-73996-144-0 |
01 |
1 |
9804-9809 |
| |
19 |
ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1>
|
1-73996-144-0 |
01 |
1 |
9905-0004 |
| |
19 |
ROD ASM; PUSH,CLU
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73908-332-0 |
01 |
1 |
9804-0004 |
| |
19 |
ROD ASM; PUSH,CLU
|
1-73908-332-0 |
01 |
1 |
0005-0103 |
| |
19 |
ROD ASM; PUSH,CLU
ISUZU M/T<X9A>
|
1-73908-332-0 |
01 |
1 |
0104- |
| |
21 |
SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1>
|
1-73998-820-0 |
01 |
1 |
9510-9608 |
| |
21 |
SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1>
|
1-73908-265-0 |
01 |
1 |
9609-0004 |
| |
23 |
BOLT; PUSH ROD
M8X35
|
9-01060-835-0 |
01 |
1 |
9510-9803 |
| |
23 |
BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1>
M8X35
|
9-01060-835-0 |
01 |
1 |
9804-9809 |
| |
23 |
BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1>
M8X35
|
9-01060-835-0 |
01 |
1 |
9905-0004 |
| |
23 |
BOLT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1>
M8X43.7
|
1-73908-333-0 |
01 |
1 |
9804-0004 |
| |
23 |
BOLT; PUSH ROD
M8X43.7
|
1-73908-333-0 |
01 |
1 |
0005-0103 |
| |
23 |
BOLT; PUSH ROD
ISUZU M/T<X9A>
M8X43.7
|
1-73908-333-0 |
01 |
1 |
0104- |
| |
24 |
SHAFT; CLU PEDAL
|
1-73998-936-1 |
01 |
1 |
9510- |
| |
25 |
BOLT; PEDAL
M10X25 W/LK WASHER
|
0-50051-025-0 |
02 |
1 |
9510- |
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
9-09150-608-0 |
01 |
1 |
9510-0103 |
| |
26 |
WASHER; LK,PUSH ROD
ISUZU M/T<X9A>
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0104- |
| |
33 |
BOLT; CLU M/CYL TO BRKT
(A)
M10X65
|
5-09030-024-1 |
02 |
1 |
9510-9703 |
| |
33 |
BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1>
(A)
M10X65
|
5-09030-024-1 |
02 |
1 |
9704-0004 |
| |
33 |
BOLT; CLU M/CYL TO BRKT
(A)
M10X65
|
5-09030-024-1 |
02 |
1 |
0005-0103 |
| |
33 |
BOLT; CLU M/CYL TO BRKT
ISUZU M/T<X9A>
(A)
M10X65
|
5-09030-024-1 |
02 |
1 |
0104- |
| |
33 |
BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1>
(B)
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
9704-0004 |
| |
50 |
TANK; OIL,CLU
|
1-47530-182-0 |
01 |
1 |
9510-0004 |
| |
50 |
TANK; OIL,CLU
ISUZU M/T<X9A>
|
1-47530-182-0 |
01 |
1 |
0005- |
| |
51 |
CAP; OIL TANK,CLU
|
8-94136-483-1 |
01 |
1 |
9510-0004 |
| |
51 |
CAP; OIL TANK,CLU
ISUZU M/T<X9A>
|
8-94136-483-1 |
01 |
1 |
0005- |
| |
82 |
CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73998-472-1 |
02 |
1 |
9510-0004 |
| |
82 |
CLEVIS; HELPER,CLU PEDAL
|
1-73998-472-1 |
02 |
1 |
0005-0103 |
| |
82 |
CLEVIS; HELPER,CLU PEDAL
ISUZU M/T<X9A>
|
1-73998-472-1 |
02 |
1 |
0104- |
| |
117 |
WASHER; PL,CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1>
ID=10.5 OD=18
|
1-09985-173-0 |
04 |
1 |
9510-9601 |
| |
119 |
CLIP; CONNECTOR
OD=7 H=1.2
|
8-94364-750-0 |
01 |
1 |
9903-0004 |
| |
119 |
CLIP; CONNECTOR
ISUZU M/T<X9A>
OD=7 H=1.2
|
8-94364-750-0 |
01 |
1 |
0005- |
| |
132 |
NUT; LK,PUSH ROD
M8
|
9-09110-408-0 |
01 |
1 |
9510-0103 |
| |
132 |
NUT; LK,PUSH ROD
ISUZU M/T<X9A>
M8
|
9-09110-408-0 |
01 |
1 |
0104- |
| |
165 |
NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9510-0004 |
| |
165 |
NUT; CLU M/CYL
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0005-0103 |
| |
165 |
NUT; CLU M/CYL
ISUZU M/T<X9A>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0104-0602 |
| |
165 |
NUT; CLU M/CYL
ISUZU M/T<X9A>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
174 |
PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73998-474-0 |
01 |
1 |
9510-0004 |
| |
174 |
PIN; STRAIGHT,CLU PEDAL
|
1-73998-474-0 |
01 |
1 |
0005-0103 |
| |
174 |
PIN; STRAIGHT,CLU PEDAL
ISUZU M/T<X9A>
|
1-73998-474-0 |
01 |
1 |
0104- |
| |
175 |
SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1>
|
1-73908-052-0 |
01 |
1 |
9510-0004 |
| |
175 |
SPRING; HELPER
|
1-73908-052-0 |
01 |
1 |
0005-0103 |
| |
175 |
SPRING; HELPER
ISUZU M/T<X9A>
|
1-73908-052-0 |
01 |
1 |
0104- |
| |
176 |
SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1>
|
1-09503-114-0 |
02 |
1 |
9510-9612 |
| |
176 |
SEAT; SPRING
ISUZU M/T<X9A>
|
1-09503-114-0 |
02 |
1 |
0104- |
| |
242 |
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
9510-0103 |
| |
242 |
BOLT; BRKT,CLUTCH
ISUZU M/T<X9A>
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
0104- |
| |
250 |
ROD; PUSH,CLU
|
1-73996-219-0 |
01 |
1 |
9510-0103 |
| |
250 |
ROD; PUSH,CLU
ISUZU M/T<X9A>
|
1-73996-219-0 |
01 |
1 |
0104- |
| |
252 |
NUT; OIL TANK
M8 FLANGE W/RUBBER
|
1-09984-176-0 |
02 |
1 |
9510-0004 |
| |
252 |
NUT; OIL TANK
ISUZU M/T<X9A>
M8 FLANGE W/RUBBER
|
1-09984-176-0 |
02 |
1 |
0005- |
| |
253 |
GROMMET; HOLE,OIL TANK
A/T<X9D>
|
1-09983-146-0 |
01 |
1 |
0005- |
| |
254 |
BRACKET; CLU SENSOR
|
1-73998-979-4 |
01 |
1 |
9510-0103 |
| |
254 |
BRACKET; CLU SENSOR
ISUZU M/T<X9A>
|
1-73998-979-5 |
01 |
1 |
0104- |
| |
256 |
SEAL; HOLE
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
9510- |
| |
312 |
PLATE; OIL TANK,CLU
|
1-21249-007-1 |
01 |
1 |
9803-0004 |
| |
312 |
PLATE; OIL TANK,CLU
ISUZU M/T<X9A>
|
1-21249-007-1 |
01 |
1 |
0005- |
