◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#64048) — 477 parça

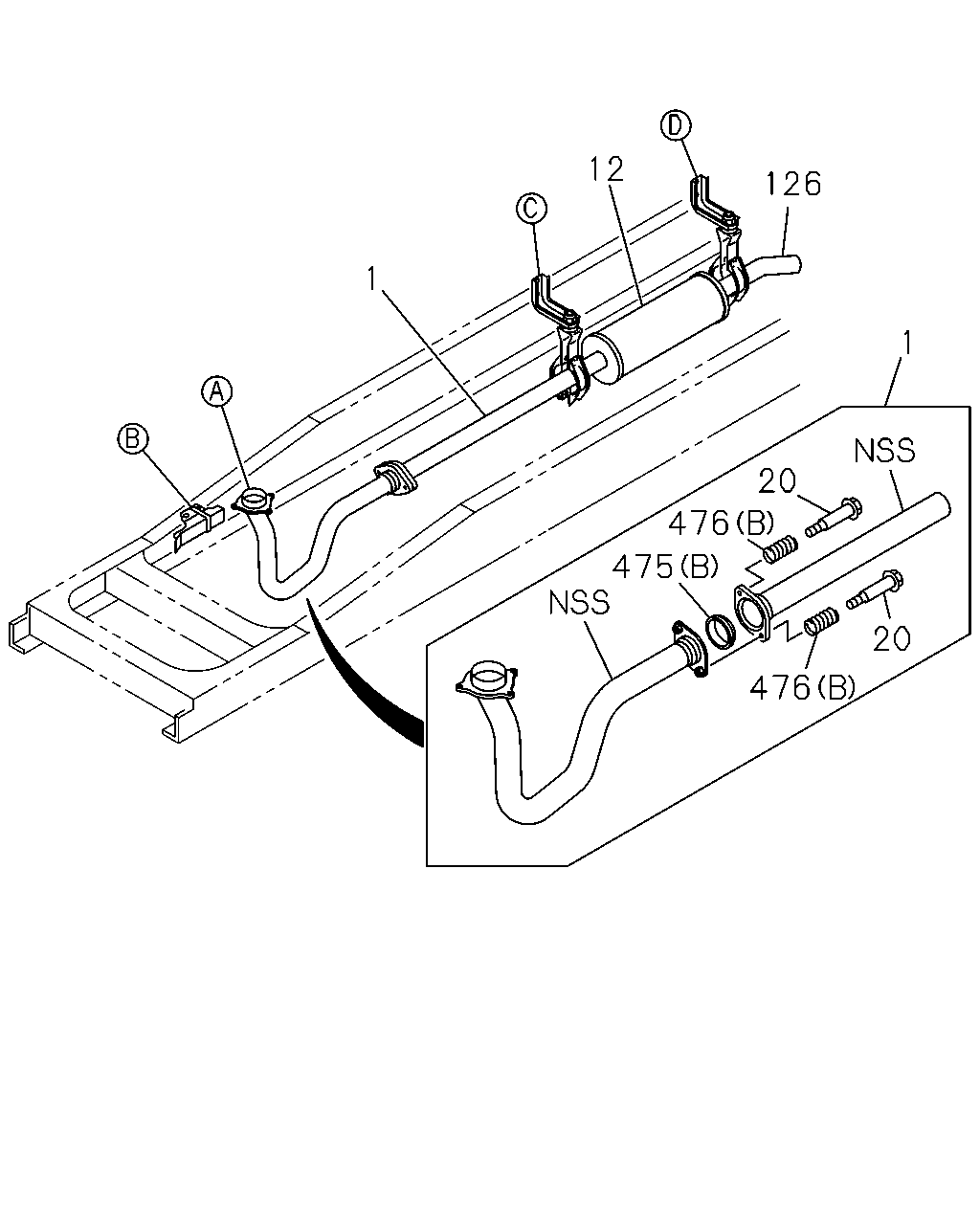

çizim 96470
12 126 1 1 20 476 475 20 476
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> 		1-22123-316-0 01 1 0303-0304 ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-9803 ●
1 PIPE; EXH 1-22122-733-1 01 1 9804-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22123-495-0 01 1 0106-0302 ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0303- ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0411- ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<THN> 		1-22140-917-0 01 1 0303- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9803 ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9804-0004 ● ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0302 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0303-0410 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0303-0410 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0411- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0411- ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9510-0004 ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-9803 ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9804-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) OD=80 		1-22126-076-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=80 		1-22126-076-1 01 1 0005- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EURO2 SPECIFICATION<THN> (A) OD=100.4 		1-22119-374-1 02 1 0303- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-0 02 1 9510-0004 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-0 02 1 0005-0305 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-1 02 1 0306- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22119-277-1 02 1 0306- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) 		1-22119-277-1 02 1 0306- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112 		1-22119-294-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-298-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-298-0 02 1 0005- ● ● ●
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 9510-0004 ● ●
çizim 97187
1 34 476 36 475 476 36 475 36 34 34 36 1 17 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> 		1-22123-316-0 01 1 0303-0304 ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-9803 ●
1 PIPE; EXH 1-22122-733-1 01 1 9804-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22123-495-0 01 1 0106-0302 ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0303- ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<THN> KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9510-9803 ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9804-0004 ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9510-9802 ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9803-0004 ● ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0410 ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ● ●
35 GASKET; EXH PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		1-22116-024-0 01 1 0005- ● ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9510-9803 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9804-0004 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9510-0004 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EURO2 SPECIFICATION<THN> (A) OD=100.4 		1-22119-374-1 02 1 0303- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-0 02 1 9510-0004 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-0 02 1 0005-0305 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) 		1-22119-277-1 02 1 0306- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22119-277-1 02 1 0306- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) 		1-22119-277-1 02 1 0306- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112 		1-22119-294-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-298-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-298-0 02 1 0005- ● ● ●
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 9510-0004 ● ●

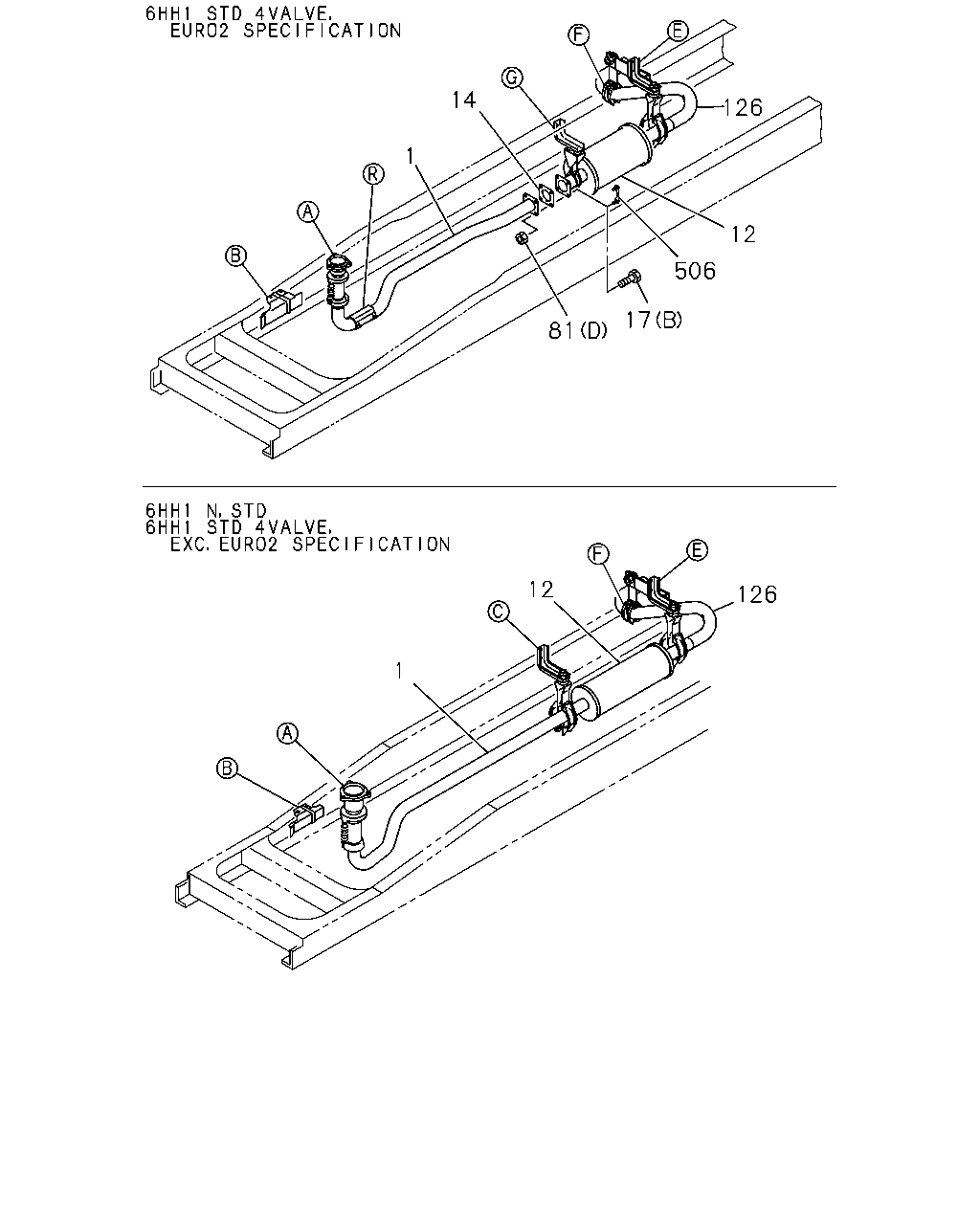

çizim 183822
14 126 1 12 506 17 81 12 126 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> 		1-22123-316-0 01 1 0303-0304 ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-9803 ●
1 PIPE; EXH 1-22122-733-1 01 1 9804-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22123-495-0 01 1 0106-0302 ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0303- ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0411- ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<THN> 		1-22140-917-0 01 1 0303- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9803 ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9804-0004 ● ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0302 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0303-0410 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0303-0410 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0411- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0411- ●
14 GASKET; SILENCER TO EXH PIPE
EURO2 SPECIFICATION<THN> ID=87 		8-94394-391-0 01 1 0303- ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<THN> KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9510-9803 ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9804-0004 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0305-0309 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (D) M12 FLANGE 		0-91150-212-0 04 1 0303-0602 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (D) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9609 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9609 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9610-9803 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9610-9803 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9804-0004 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9804-0004 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0302 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0302 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ● ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9510-9606 ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 9607-0004 ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0005-0205 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0206-0302 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0206-0302 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-9803 ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9804-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) OD=80 		1-22126-076-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=80 		1-22126-076-1 01 1 0005- ● ● ●
506 BRACKET; STUD
EURO2 SPECIFICATION<THN> M12X35 		1-22131-963-0 02 1 0303-1203 ●
506 BRACKET; STUD
EURO2 SPECIFICATION<THN> EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204- ●

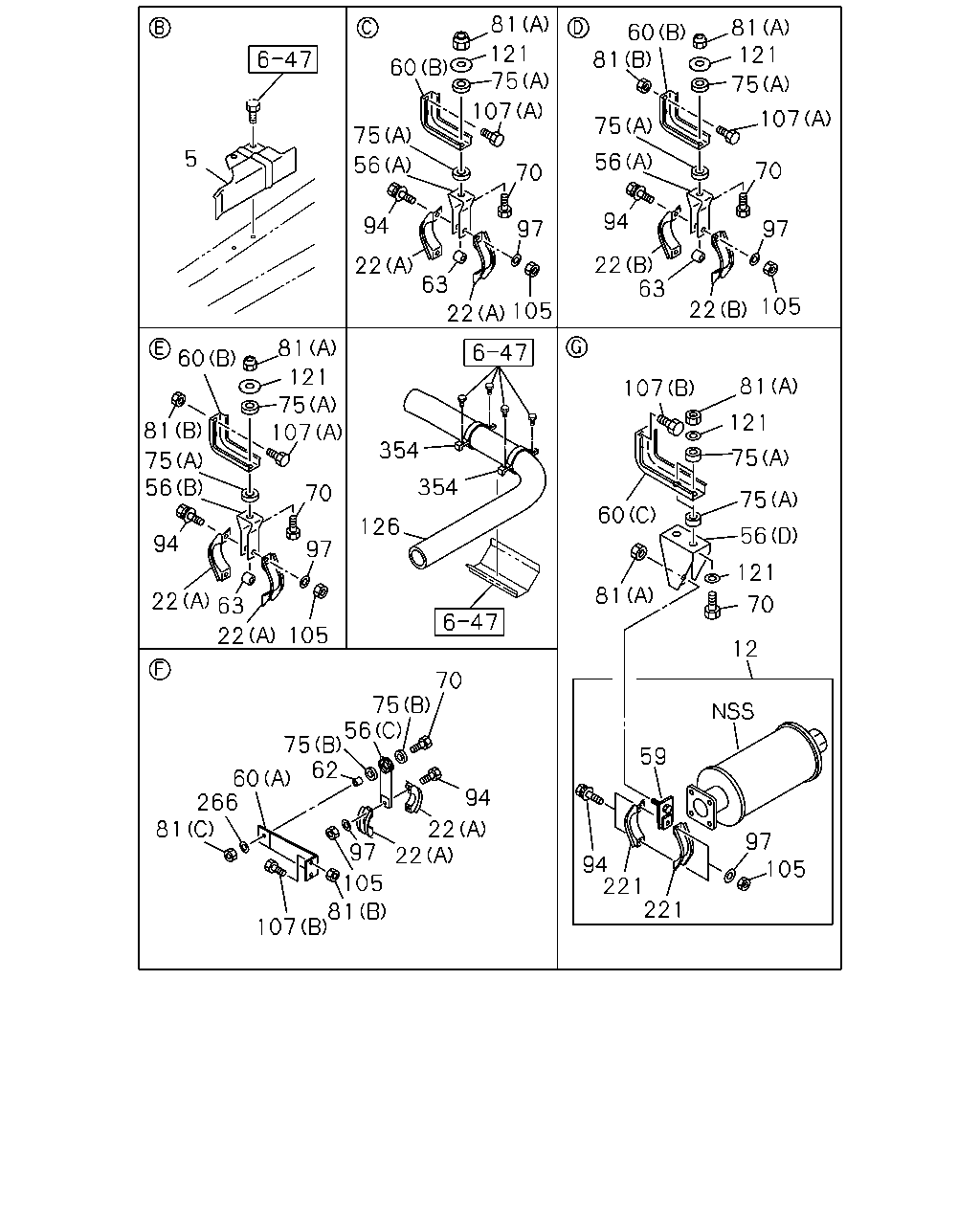

çizim 183888
81 81 121 60 81 121 75 60 75 107 107 75 75 5 56 56 70 70 94 94 97 97 22 63 22 63 105 22 105 22 81 60 121 75 107 81 107 121 81 354 75 75 56 354 70 75 60 126 56 94 97 121 81 22 63 70 105 22 12 70 75 56 75 62 59 60 266 81 94 22 22 97 105 97 94 221 221 105 81 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM10"(B1T) 		1-33659-182-1 01 1 9510-9802 ● ● ●
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM10"(B1T) 		1-33659-182-1 01 1 9803-0004 ● ● ● ●
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM10"(B1T) 		1-33659-182-1 01 1 0005- ● ● ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0411- ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<THN> 		1-22140-917-0 01 1 0303- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9803 ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9804-0004 ● ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0302 ● ● ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0303-0410 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0303-0410 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0411- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0411- ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 04 1 0310- ● ● ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9510-9609 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9701-9803 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9804-0004 ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9510-0004 ● ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9510-0004 ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9510-0004 ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0302 ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0302 ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0302 ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0303-0309 ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0303-0309 ● ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0303-0309 ● ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0303-0309 ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0303-0309 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) H=125 		1-22139-048-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) H=135 		1-22139-054-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (D) 		1-22139-197-0 01 1 0305- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-9802 ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-9802 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9803-0004 ● ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9803-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 0005-0302 ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 0303-0309 ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0303-0309 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0303-0309 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 9510-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 0005- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 9510-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 0005-0309 ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) H=119 		1-22139-060-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (B) H=119 		1-22139-060-0 01 1 0310- ●
59 BRACKET; EXH SILENCER,FRT
EURO2 SPECIFICATION<THN> 		1-22139-098-0 01 1 0303- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 02 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<THN> (C) 		1-22151-691-0 01 1 0305- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 02 1 9510-9609 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9610-9803 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9610-9803 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9804-0004 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9804-0004 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0005-0302 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0005-0302 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0303-0309 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0303-0309 ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-0 01 1 0303-0309 ●
60 BRACKET; FRAME TO BRKT
EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-0 01 1 0303-0309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-602-0 01 1 9510-0004 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-602-0 01 1 0005- ● ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9510-0004 ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0005- ● ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 02 1 0310- ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9510-9609 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9610-9803 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9610-9803 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0004 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0004 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005-0302 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005-0302 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0303-0309 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0303-0309 ● ●
63 TUBE; DIST,BRKT
EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0303-0309 ●
63 TUBE; DIST,BRKT
EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0303-0309 ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ● ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ● ● ●
63 TUBE; DIST,BRKT
EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0305-0309 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9510-9803 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9804-0004 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9804-0004 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0302 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0302 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0302 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0303-0309 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0303-0309 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0303-0309 ● ●
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0303-0309 ●
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0303-0309 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0310-0512 ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0310-0512 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 02 1 0601- ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 01 1 9607-9705 ● ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9706-0004 ● ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 0005-0204 ● ● ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0305-0309 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0310- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9510-9609 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9610-9803 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9610-9803 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0004 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0004 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0005-0302 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0005-0302 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0303-0309 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0303-0309 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0303-0309 ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0303-0309 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=35 		9-22159-008-0 02 1 9510-9805 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 9806-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0005- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0305-0309 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (D) M12 FLANGE 		0-91150-212-0 04 1 0303-0602 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (D) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9609 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9609 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9610-9803 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9610-9803 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9804-0004 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9804-0004 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0302 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0302 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ● ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0303-0309 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9510-9606 ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 9607-0004 ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0005-0205 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0206-0302 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0206-0302 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0310-0805 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ● ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28681-040-0 02 1 0303-0512 ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28651-040-0 02 1 0601- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612 ● ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612 ● ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9612 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9804-0004 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9804-0004 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9804-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0302 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0302 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0302 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0303-0309 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0303-0309 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0303-0309 ● ●
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0303-0309 ●
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0303-0309 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 04 1 0310- ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9510-9705 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9510-9705 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9804-0004 ● ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9804-0004 ● ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9804-0004 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0302 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0302 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0302 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0303-0309 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0303-0309 ● ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0303-0309 ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0303-0309 ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0303-0309 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0310- ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0310- ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0310- ● ● ●
97 WASHER; PL,CLAMP
EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0310- ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 04 1 0310-0512 ● ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 04 1 0601- ● ● ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 02 1 0303-0602 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9510-9606 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9510-9606 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9803 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9803 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9804-0004 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9804-0004 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0204 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0204 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0302 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0302 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0302 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0303-0309 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0303-0309 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0303-0309 ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0303-0309 ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0303-0309 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0310-0512 ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ● ● ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ● ● ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9510-9606 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612 ● ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612 ● ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9612 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9701-0004 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ● ● ●
107 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9802 ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9803-0004 ● ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9510-9606 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0305-0309 ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9510-9609 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9610-9803 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9610-9803 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0004 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0004 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0302 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0302 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0303-0309 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0303-0309 ● ●
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0303-0309 ●
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0303-0309 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-9803 ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9804-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) OD=80 		1-22126-110-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) OD=80 		1-22126-076-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=80 		1-22126-076-1 01 1 0005- ● ● ●
221 CLAMP; EXH SILENCER
EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0303- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0004 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0204 ● ● ●
354 CLAMP; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22119-347-0 02 1 0102-0302 ●
354 CLAMP; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22119-347-0 02 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
