1-41 — FUEL PIPING; CHASSIS (#64046) — 54 parça

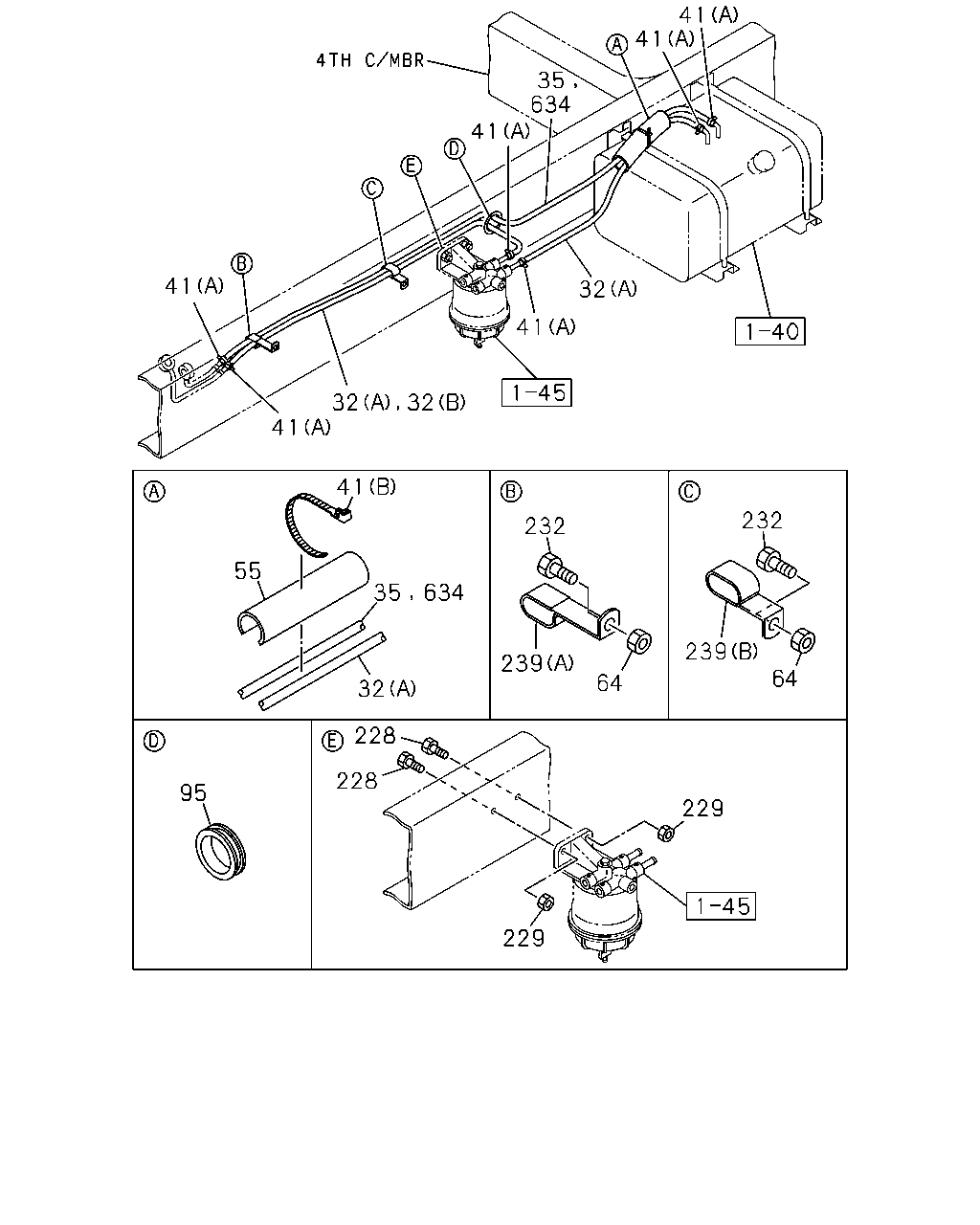

çizim 93011
41 41 35 634 41 41 32 41 32 32 41 41 232 232 55 35 634 239 239 64 64 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9802 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0302 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0302 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9802 ● ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-0004 ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-0 01 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005- ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-690-1 01 1 9510-9802 ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 9803-0004 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 0005- ● ● ●
64 NUT; CLIP
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-9802 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9803-0004 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005- ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9802 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9803-0004 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-9802 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9803-0004 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9802 ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9803-9907 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005- ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-9802 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9803-0004 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005- ● ● ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0302 ● ● ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0303- ●
