1-31 — AIR DUCT (#64043) — 106 parça

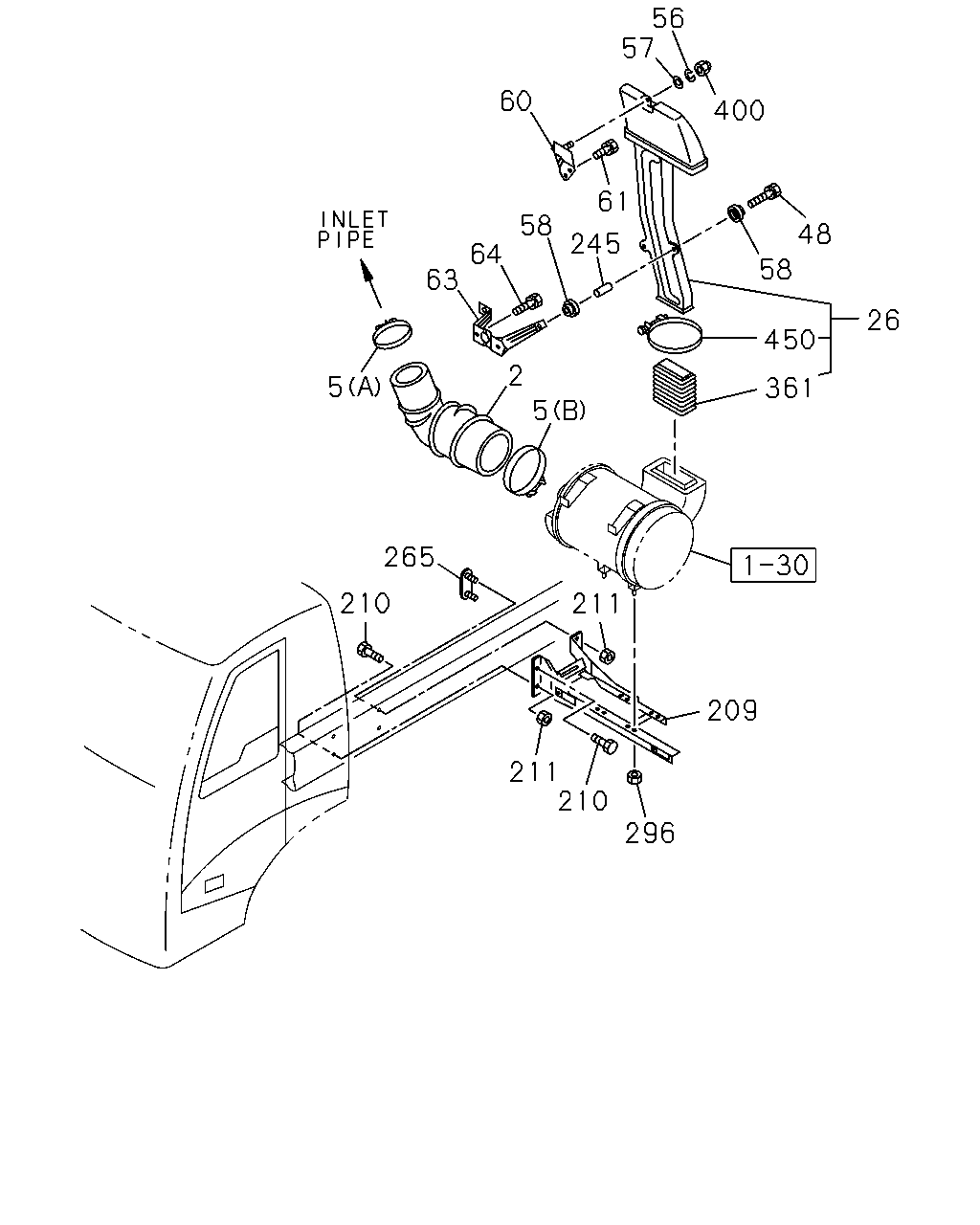

çizim 91736
56 57 60 400 61 58 48 245 64 58 63 26 450 2 5 361 5 265 210 211 209 211 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOSE; ACL 1-14231-853-1 01 1 9510-9609 ●
2 HOSE; ACL 1-14231-853-1 01 1 9612-9804 ●
2 HOSE; ACL 1-14231-853-1 01 1 9805-0004 ● ●
2 HOSE; ACL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-14232-006-0 01 1 0005-0302 ●
2 HOSE; ACL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-14232-006-0 01 1 0303- ●
2 HOSE; ACL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		1-14231-907-1 01 1 9510-9901 ● ●
2 HOSE; ACL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> 		1-14231-907-1 01 1 9902-0004 ● ●
2 HOSE; ACL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-14231-907-1 01 1 0005- ● ●
2 HOSE; ACL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		1-14231-851-0 01 1 9510-9901 ● ●
2 HOSE; ACL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		1-14231-851-0 01 1 9902-0004 ● ●
2 HOSE; ACL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-14231-851-0 01 1 0005- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9510-9803 ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-0004 ● ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9510-9803 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9804-0004 ● ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 9510-0004 ● ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 0005-0212 ● ● ●
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0301-0811 ● ● ●
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 9510-0004 ● ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 0005-0212 ● ● ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0301-0812 ● ● ●
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 0901-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002- ● ● ●
26 DUCT; AIR INT
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-14230-221-2 01 1 0501- ●
26 DUCT; AIR INT 1-14230-120-4 01 1 9510-9611 ●
26 DUCT; AIR INT 1-14230-156-0 01 1 9612-9712 ●
26 DUCT; AIR INT 1-14230-173-0 01 1 9801-9803 ●
26 DUCT; AIR INT 1-14230-173-0 01 1 9804-0004 ● ●
26 DUCT; AIR INT 1-14230-126-4 01 1 9510-9610 ● ●
26 DUCT; AIR INT 1-14230-153-0 01 1 9611-9712 ● ●
26 DUCT; AIR INT 1-14230-176-0 01 1 9801-0004 ● ●
26 DUCT; AIR INT 1-14230-176-2 01 1 0005-0410 ● ● ●
26 DUCT; AIR INT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-14230-176-2 01 1 0411- ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 9510-9802 ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 9803-0004 ● ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0005- ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 9510-9802 ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 9803-0004 ● ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0005- ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-0004 ● ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005- ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 9510-9802 ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 9803-0004 ● ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0005- ● ● ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 9510-9802 ● ● ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 9803-0004 ● ● ● ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 0005- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9510-9802 ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9803-0004 ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005- ● ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 9510-9802 ● ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 9803-0004 ● ● ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 0005- ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9510-9802 ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9803-0004 ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005- ● ● ●
209 BRACKET; ACL
TAIWAN EQUIPMENT(WW5) 		1-53497-478-2 01 1 9510-9609 ●
209 BRACKET; ACL 1-53497-478-2 01 1 9510-9609 ● ●
209 BRACKET; ACL 1-53497-478-2 01 1 9610-9804 ● ● ●
209 BRACKET; ACL 1-53497-478-2 01 1 9805-0004 ● ● ● ●
209 BRACKET; ACL 1-53497-478-2 01 1 0005- ● ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28081-235-0 02 1 9510-9606 ● ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 9607-9802 ● ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 9803-0004 ● ● ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-112-0 03 1 9510-9606 ● ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9802 ● ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9803-0004 ● ● ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0005-0602 ● ● ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 9510-9802 ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 9803-0004 ● ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0005- ● ● ●
265 BRACKET; STUD,ACL
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-348-1 01 1 9510-9802 ● ● ●
265 BRACKET; STUD,ACL
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-348-1 01 1 9803-0004 ● ● ● ●
265 BRACKET; STUD,ACL
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-348-1 01 1 0005- ● ● ●
265 BRACKET; STUD,ACL
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-477-0 01 1 9510-9802 ● ● ●
265 BRACKET; STUD,ACL
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-477-0 01 1 9803-0004 ● ● ● ●
265 BRACKET; STUD,ACL
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53497-477-0 01 1 0005- ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 9510-9802 ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 9803-0004 ● ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-0 01 1 9801-0004 ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0005-0410 ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-14231-973-1 01 1 0411-0412 ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-14231-973-1 01 1 0501- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-14231-973-1 01 1 0501- ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-0 01 1 9611-9611 ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-0 01 1 9612-9712 ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 9510-9802 ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 9803-0004 ● ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005- ● ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9801-0004 ● ● ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0005-0410 ● ● ●
450 CLAMP; HOSE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		9-09915-504-1 01 1 0411-0412 ● ● ●
450 CLAMP; HOSE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		9-09915-504-1 01 1 0501- ● ● ●
450 CLAMP; HOSE
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		9-09915-504-1 01 1 0501- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9611-9611 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9612-9712 ● ● ●
