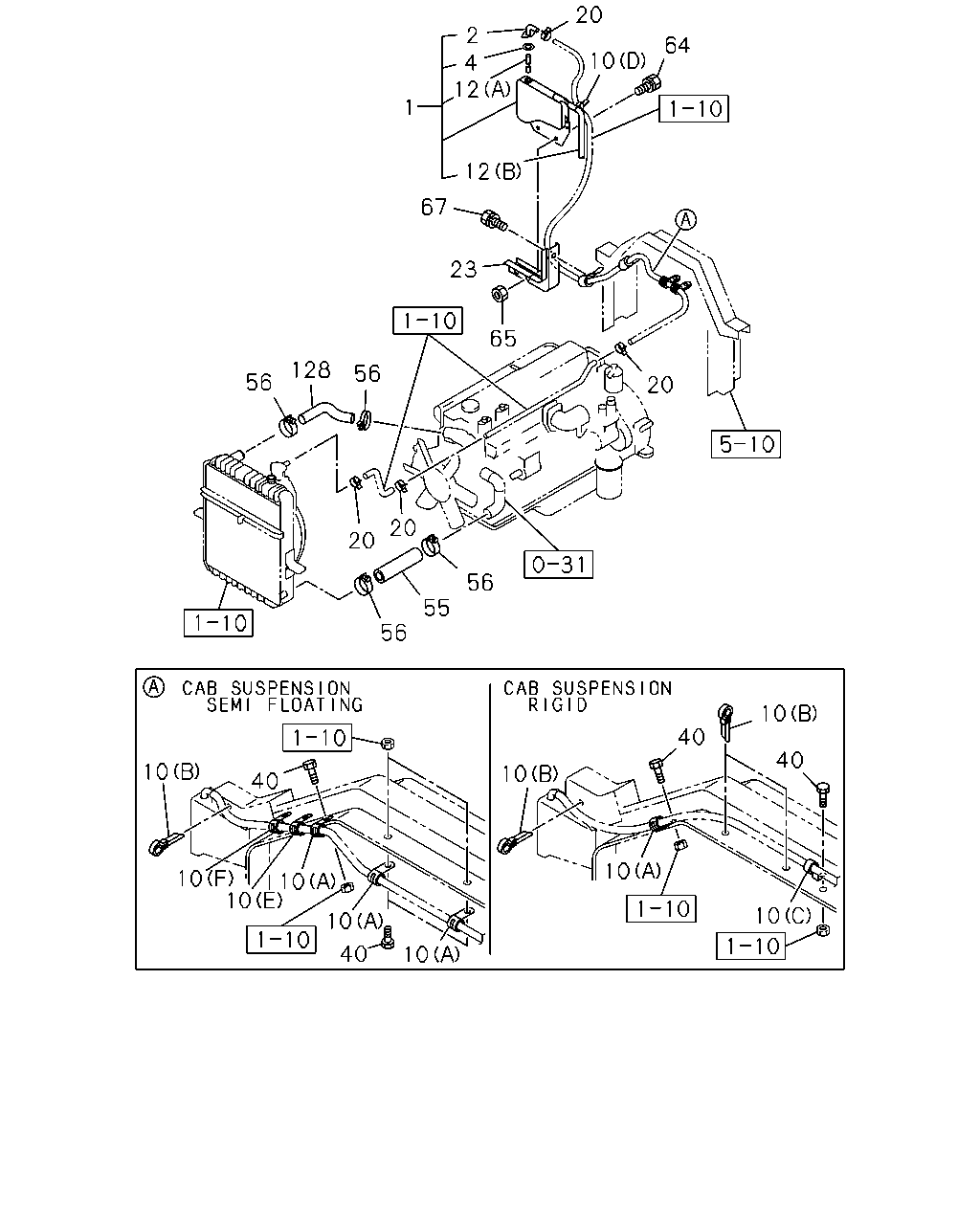

1-11 — RADIATOR HOSE AND SUB TANK (#64041) — 77 parça

20 2 4 12 64 10 1 12 67 23 65 128 56 56 20 20 20 56 55 56 10 40 40 10 10 40 10 10 10 10 10 10 40 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9510-9802	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9803-9812	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-		●	●		●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9510-9802	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9803-9812	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-		●	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9510-9802	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9803-0004	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-		●	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-		●	●		●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	9-09525-286-0	01	1	0005-0606		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	0-95235-286-0	01	1	0607-		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-					●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	03	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	03	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	0005-		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	9510-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	9510-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (E) ID=12 L=70	1-09700-097-1	01	1	0005-		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (F) ID=13 L=20	9-09525-235-0	01	1	0005-0606		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (F) ID=13 L=20	0-95235-235-0	01	1	0607-		●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	0005-		●	●		●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-		●	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9510-9802	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9803-0004	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-		●	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9510-9802	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9803-0004	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-		●	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9510-9802	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9803-0004	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-		●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	9607-9802	●	●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●		●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	03	1	9510-9606	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	03	1	9607-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	04	1	0005-0512		●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●		●
55	HOSE; WATER,RAD OUTLET	1-21437-560-0	01	1	9510-9802	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-560-0	01	1	9803-0004	●	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	0005-		●	●		●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9510-9802	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9803-0004	●	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-		●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9510-9802	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9803-0004	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0707		●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-		●	●		●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9510-9606	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9803-0004	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0602		●	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-		●	●		●
67	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9510-9606	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9802	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9803-0004	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512		●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-		●	●		●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9510-9708	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9802	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9803-0004	●	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0707		●	●		●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
