◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#64040) — 319 parça

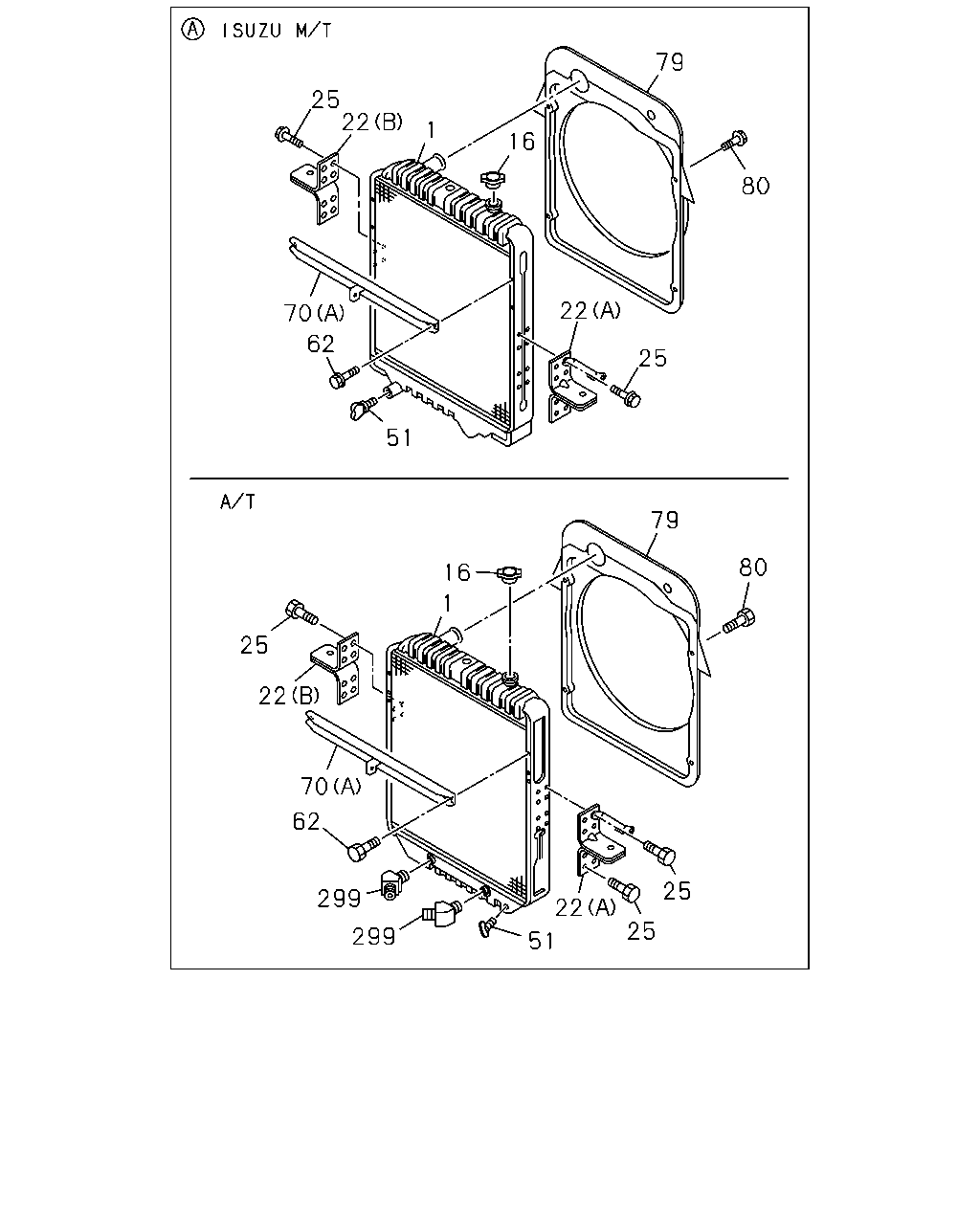

çizim 85416
79 25 22 1 16 80 22 70 62 25 51 79 80 16 1 25 22 70 62 25 299 22 25 299 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIATOR ASM 1-21410-675-1 01 1 9510-9803 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9804-0004 ● ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-1 01 1 0005-0103 ● ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-2 01 1 0104- ● ● ●
1 RADIATOR ASM 1-21410-674-1 01 1 9510-0004 ● ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-674-1 01 1 0005-0010 ● ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0302 ● ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303-0305 ● ●
1 RADIATOR ASM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0303-0305 ●
1 RADIATOR ASM
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0303-0305 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0309- ● ●
1 RADIATOR ASM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0309- ●
1 RADIATOR ASM
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-21410-674-1 01 1 0309- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011-0302 ● ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0303- ● ● ●
1 RADIATOR ASM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0303- ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7> EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0309-0311 ● ●
16 CAP; RAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0312- ● ● ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0312- ● ●
16 CAP; RAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD 1-21450-053-1 01 1 9510-9803 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9804-0004 ● ● ● ●
16 CAP; RAD 1-21450-053-2 01 1 0005-0305 ● ● ●
16 CAP; RAD 1-21450-053-2 01 1 0306-0308 ● ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0306-0308 ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0306-0308 ●
16 CAP; RAD
ISUZU M/T<X9A> EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7> 		1-21450-053-2 01 1 0306-0308 ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ● ● ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0309-0311 ● ● ●
16 CAP; RAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0312- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-521-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9804-0004 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0010 ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0011-0302 ● ● ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0011-0302 ● ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0303-0305 ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0303-0305 ● ●
22 BRACKET; RAD MTG
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0303-0305 ●
22 BRACKET; RAD MTG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0303-0305 ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0306-0306 ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> (B) 		1-21464-548-0 01 1 0306-0306 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0306-0306 ●
22 BRACKET; RAD MTG
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0306-0306 ●
22 BRACKET; RAD MTG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0306-0306 ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0307-0308 ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> (B) 		1-21464-548-0 01 1 0307-0308 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0307-0308 ●
22 BRACKET; RAD MTG
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0307-0308 ●
22 BRACKET; RAD MTG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0307-0308 ●
22 BRACKET; RAD MTG
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0307-0308 ●
22 BRACKET; RAD MTG
A/T<X9D> (B) 		1-21464-548-0 01 1 0309- ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (B) 		1-21464-548-0 01 1 0309- ● ●
22 BRACKET; RAD MTG
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),RADIATOR HEAVY DUTY<V05>,A/T<X9D>,CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0309- ●
22 BRACKET; RAD MTG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-21464-548-0 01 1 0309- ●
22 BRACKET; RAD MTG
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0309- ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9510-9803 ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9804-0004 ● ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0005- ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9510-9609 ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9610-9704 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-0004 ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0011-0302 ● ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0303-0306 ● ● ●
22 BRACKET; RAD MTG
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0303-0306 ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0307- ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-9510 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9511-9803 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9804-0004 ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005- ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-9803 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0004 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510-9803 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9804-0004 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005- ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510-9510 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9511-9803 ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9804-0004 ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005- ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9803 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9804-0004 ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005- ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-9802 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9803-0004 ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9510-9803 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9804-0004 ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0005- ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510-9803 ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9804-0004 ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005- ● ● ●
299 NIPPLE; RAD
A/T<X9D> 		1-09660-646-0 02 1 0005-0103 ● ●
299 NIPPLE; RAD
A/T<X9D> 		1-09660-646-0 02 1 0104-0203 ● ●

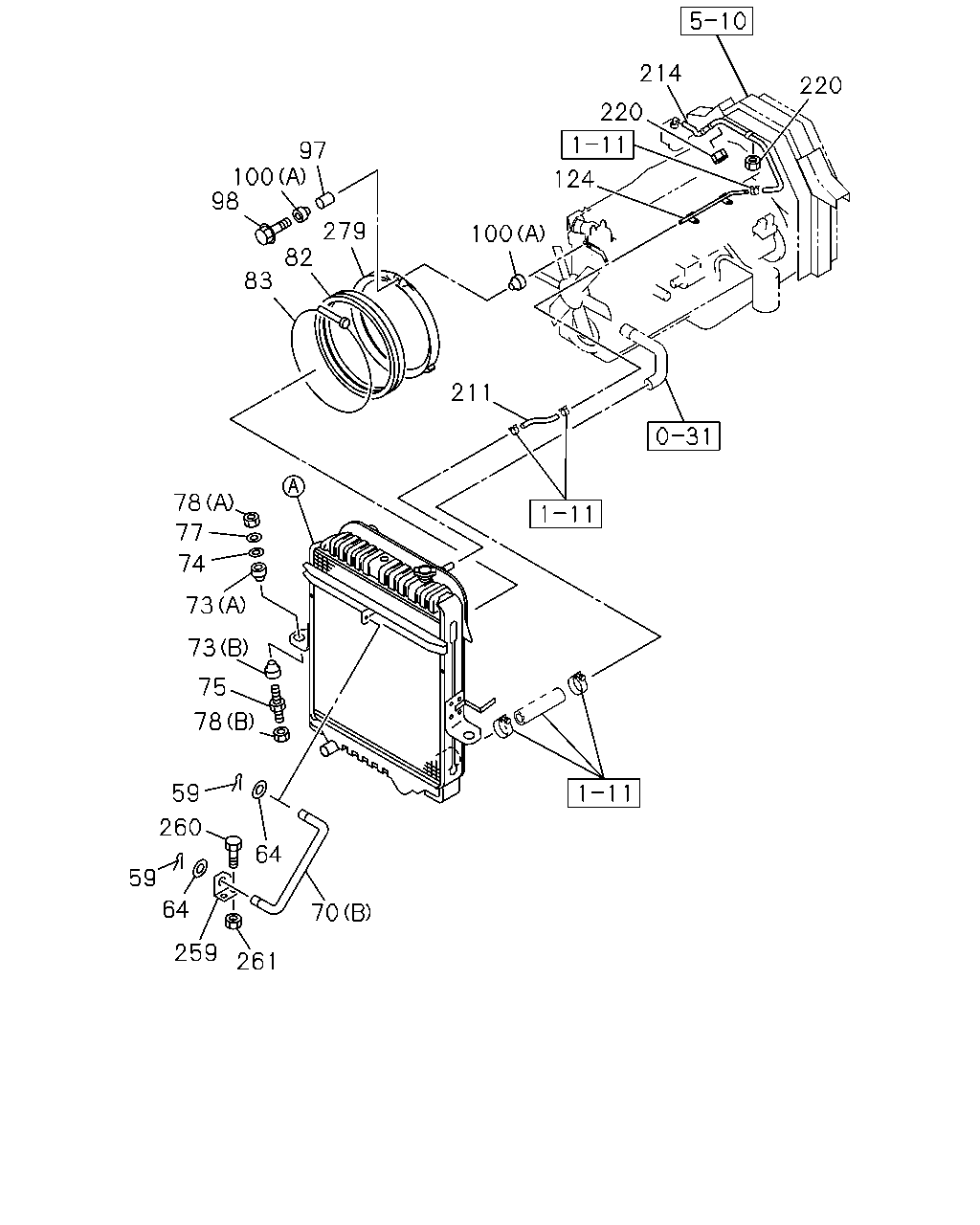

çizim 85538
214 220 220 97 100 98 124 279 82 100 83 211 78 77 74 73 73 75 78 59 260 64 59 64 70 259 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-9802 ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9803-0004 ● ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-9802 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9803-0004 ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9803 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9804-0004 ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005- ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-9802 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9803-0004 ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-9802 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9803-0004 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-9802 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9803-0004 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9802 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9803-0004 ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-9802 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9803-0004 ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005- ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-9802 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9803-0004 ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-9802 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9803-0004 ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9510-9803 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9804-0004 ● ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 0005-0410 ●
82 COVER; FAN,RAD
SAUDI ARABIA EQUIPMENT(WH1) EXC. A/T<X9D> 		1-21559-211-0 01 1 0411- ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 0411- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-0004 ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0410 ● ●
82 COVER; FAN,RAD
ISUZU M/T<X9A> 		1-21559-340-0 01 1 0005-0410 ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0411- ● ●
82 COVER; FAN,RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1),A/T<X9D> 		1-21559-340-0 01 1 0411- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-9802 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9803-0004 ● ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-9802 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9803-0004 ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9802 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9803-0004 ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9911-0001 ● ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9510-9803 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9804-0004 ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-9802 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9803-0004 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9510-9803 ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9804-0004 ● ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-986-0 01 1 0005-0302 ●
124 PIPE; WATER,TANK TO RAD 8-94392-986-0 01 1 0303- ●
124 PIPE; WATER,TANK TO RAD
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-461-4 01 1 9510-9802 ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 9510-9802 ●
124 PIPE; WATER,TANK TO RAD
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-461-4 01 1 9803-9901 ●
124 PIPE; WATER,TANK TO RAD
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94394-461-4 01 1 9803-9901 ●
124 PIPE; WATER,TANK TO RAD
ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94394-461-4 01 1 9902-0004 ●
124 PIPE; WATER,TANK TO RAD
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94394-461-4 01 1 9902-0004 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-461-4 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94396-222-1 01 1 9510-9802 ●
124 PIPE; WATER,TANK TO RAD
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94396-222-1 01 1 9803-9901 ●
124 PIPE; WATER,TANK TO RAD
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-222-1 01 1 9803-9901 ●
124 PIPE; WATER,TANK TO RAD
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94396-222-1 01 1 9902-9911 ●
124 PIPE; WATER,TANK TO RAD
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-222-1 01 1 9902-9911 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-222-1 01 1 9902-9911 ●
124 PIPE; WATER,TANK TO RAD
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94396-222-1 01 1 9912-0004 ●
124 PIPE; WATER,TANK TO RAD
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-222-1 01 1 9912-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 0005-0302 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ISUZU M/T<X9A> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) 		8-94396-222-1 01 1 0005-0302 ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-222-1 01 1 0005-0302 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-2 01 1 0303- ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-222-2 01 1 0303- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9901 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0302 ●
211 HOSE; RAD TO PIPE
L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9803 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9901 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9902-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9510-9606 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9606 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9510-9802 ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9803-0004 ● ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005- ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9802 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9803-0004 ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
279 BELL MOUTH 8-94394-174-1 01 1 9510-9803 ●
279 BELL MOUTH 8-94394-174-1 01 1 9804-0004 ● ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 0005-0410 ●
279 BELL MOUTH
SAUDI ARABIA EQUIPMENT(WH1) EXC. A/T<X9D> 		8-94394-174-1 01 1 0411- ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 0411- ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-0004 ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0410 ● ●
279 BELL MOUTH
ISUZU M/T<X9A> 		8-94394-808-2 01 1 0005-0410 ●
279 BELL MOUTH 8-94394-808-2 01 1 0411- ● ●
279 BELL MOUTH
EXC. SAUDI ARABIA EQUIPMENT(WH1),A/T<X9D> 		8-94394-808-2 01 1 0411- ●

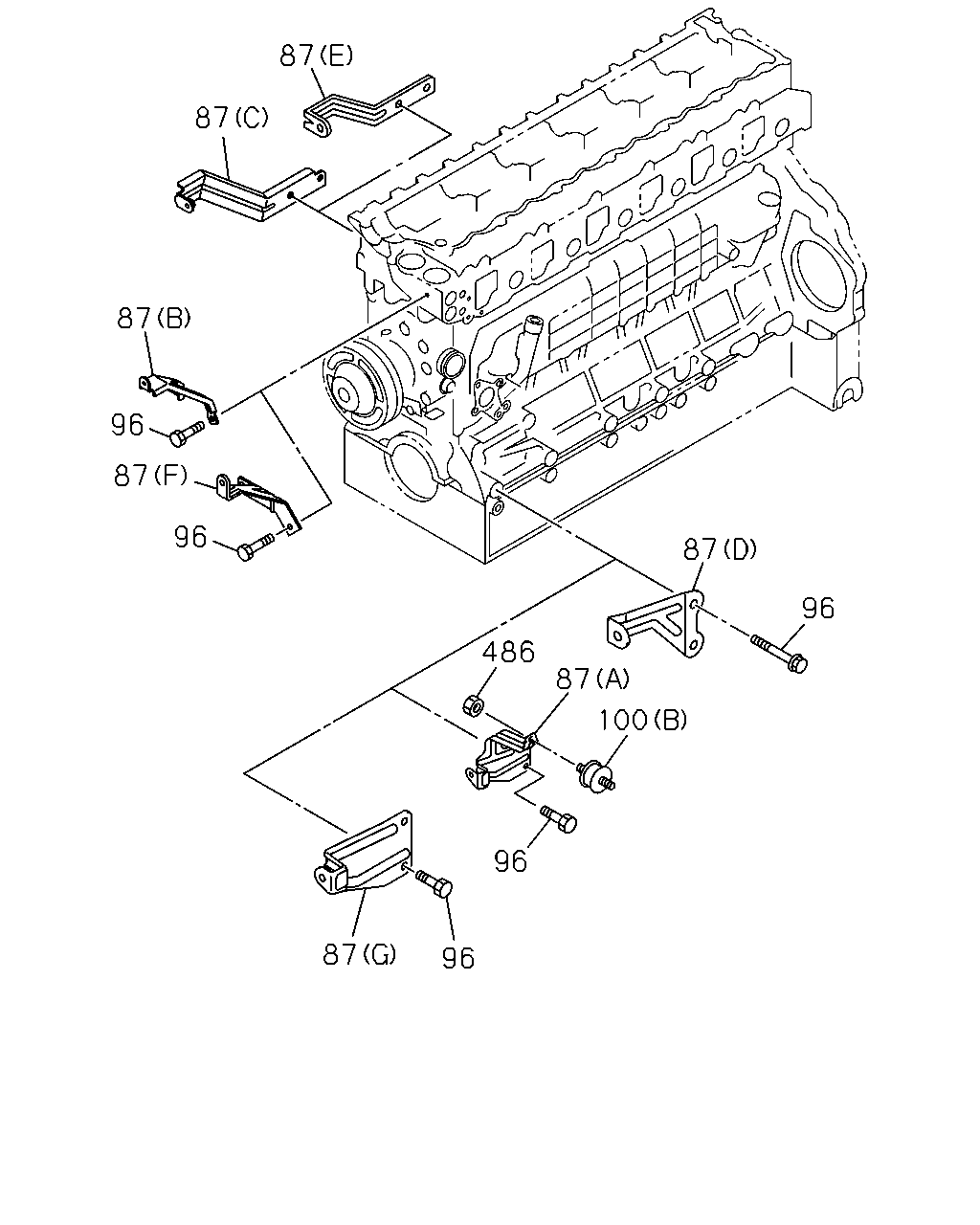

çizim 89338
87 87 87 96 87 96 87 96 486 87 100 96 87 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9510-9803 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9804-0004 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9510-9803 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9804-0004 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9510-9803 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9804-0004 ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-0004 ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (E) 		8-94394-775-0 01 1 0005- ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-0004 ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (F) 		8-94396-496-1 01 1 0005- ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-0004 ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (D) 		8-94397-395-1 01 1 0005- ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 0102-0411 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 0412-0506 ●
87 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94393-119-2 01 1 0412-0506 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 0507- ●
87 STAY; FAN GUIDE
ANTI NOISE EQUIPMENT ECE<SLK> (C) 		8-94393-119-2 01 1 0507- ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 0102-0411 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 0412-0506 ●
87 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94393-726-0 01 1 0412-0506 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 0507- ●
87 STAY; FAN GUIDE
ANTI NOISE EQUIPMENT ECE<SLK> (B) 		8-94393-726-0 01 1 0507- ●
87 STAY; FAN GUIDE
A/T<X9D> (G) 		8-97601-016-0 01 1 0102-0411 ●
87 STAY; FAN GUIDE
A/T<X9D> (G) 		8-97601-016-0 01 1 0412-0506 ●
87 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60) (G) 		8-97601-016-0 01 1 0412-0506 ●
87 STAY; FAN GUIDE
A/T<X9D> (G) 		8-97601-016-0 01 1 0507- ●
87 STAY; FAN GUIDE
ANTI NOISE EQUIPMENT ECE<SLK> (G) 		8-97601-016-0 01 1 0507- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-9803 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9804-0004 ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9510-9803 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9804-0004 ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-9802 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9803-0004 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9510-9803 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
