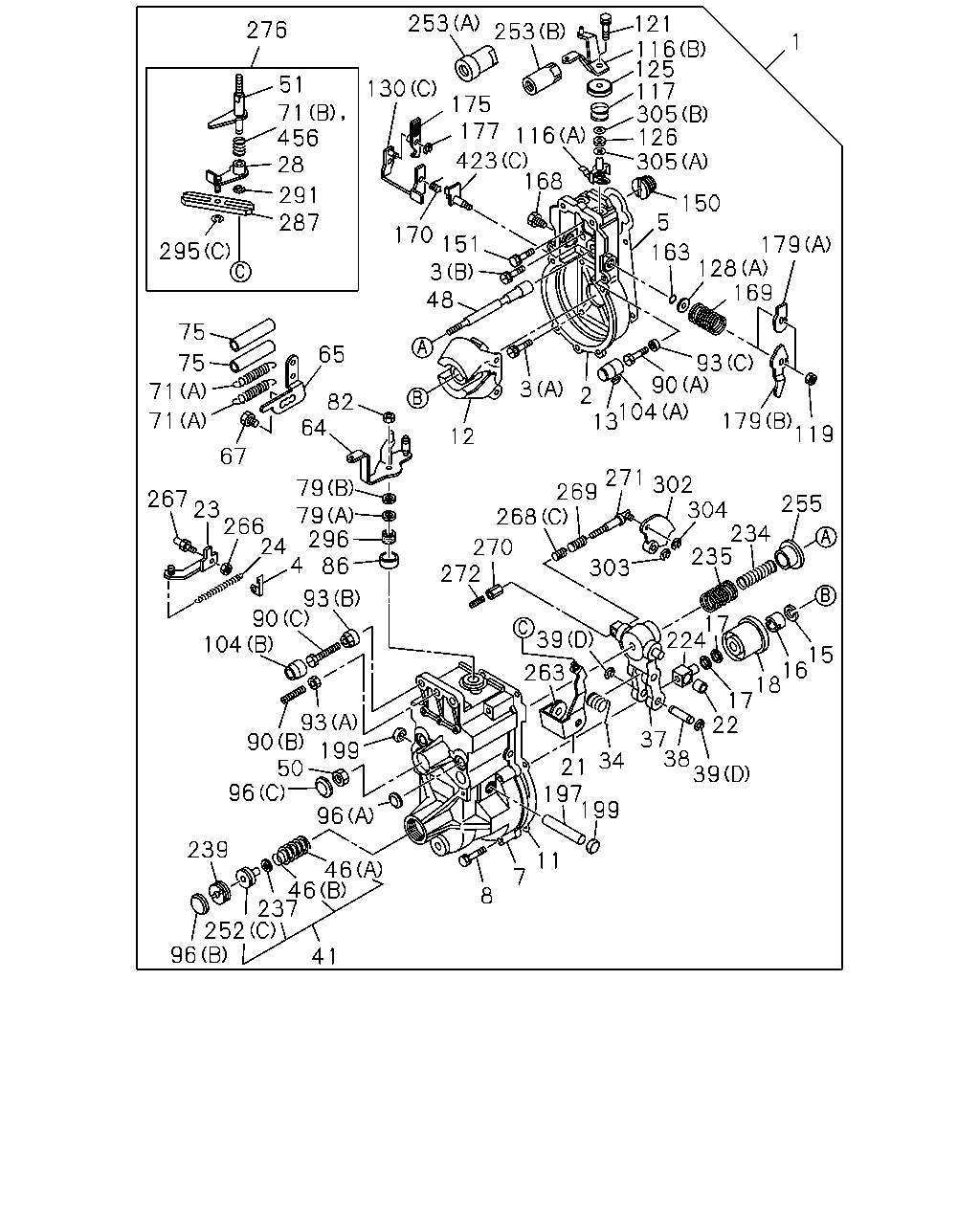

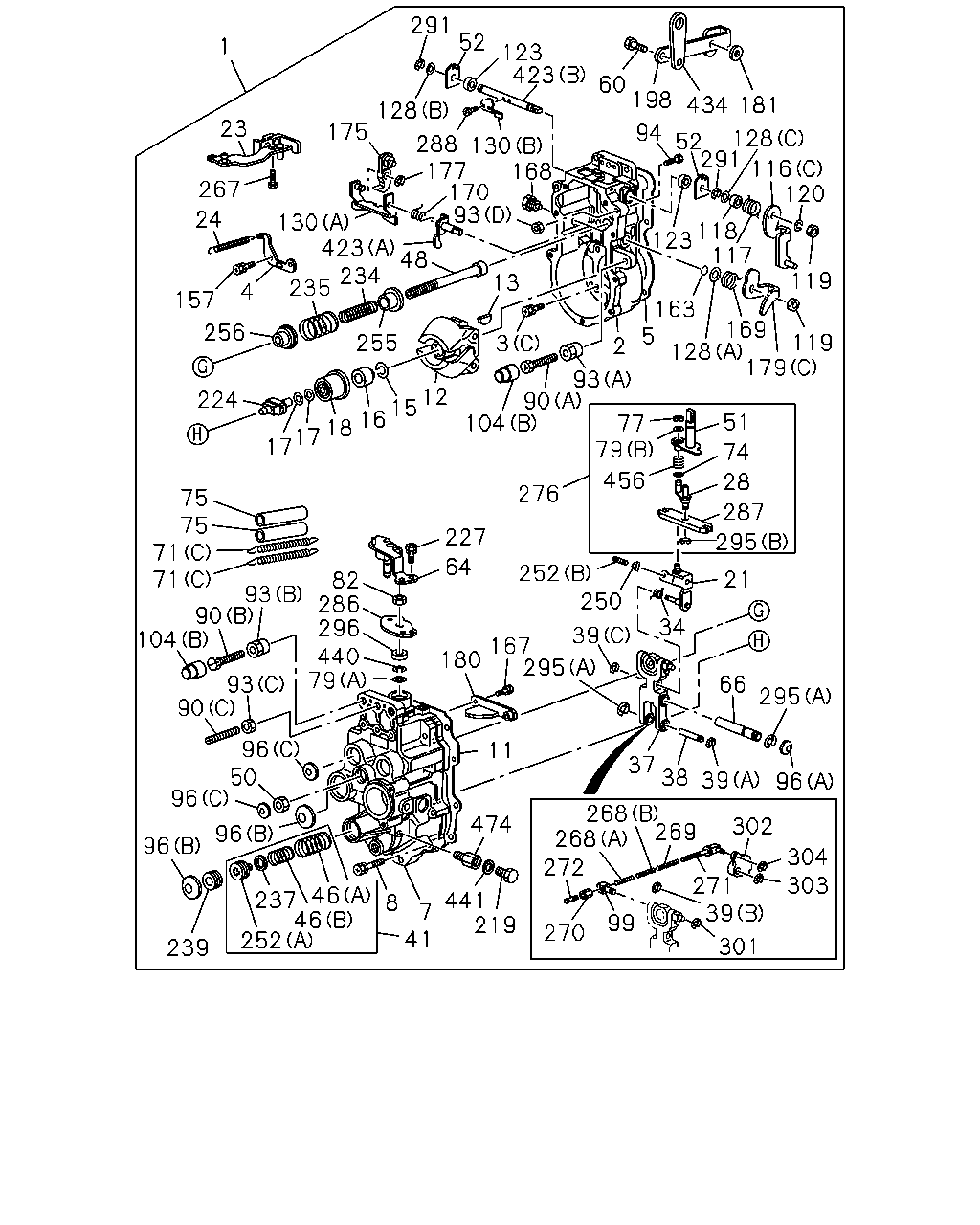

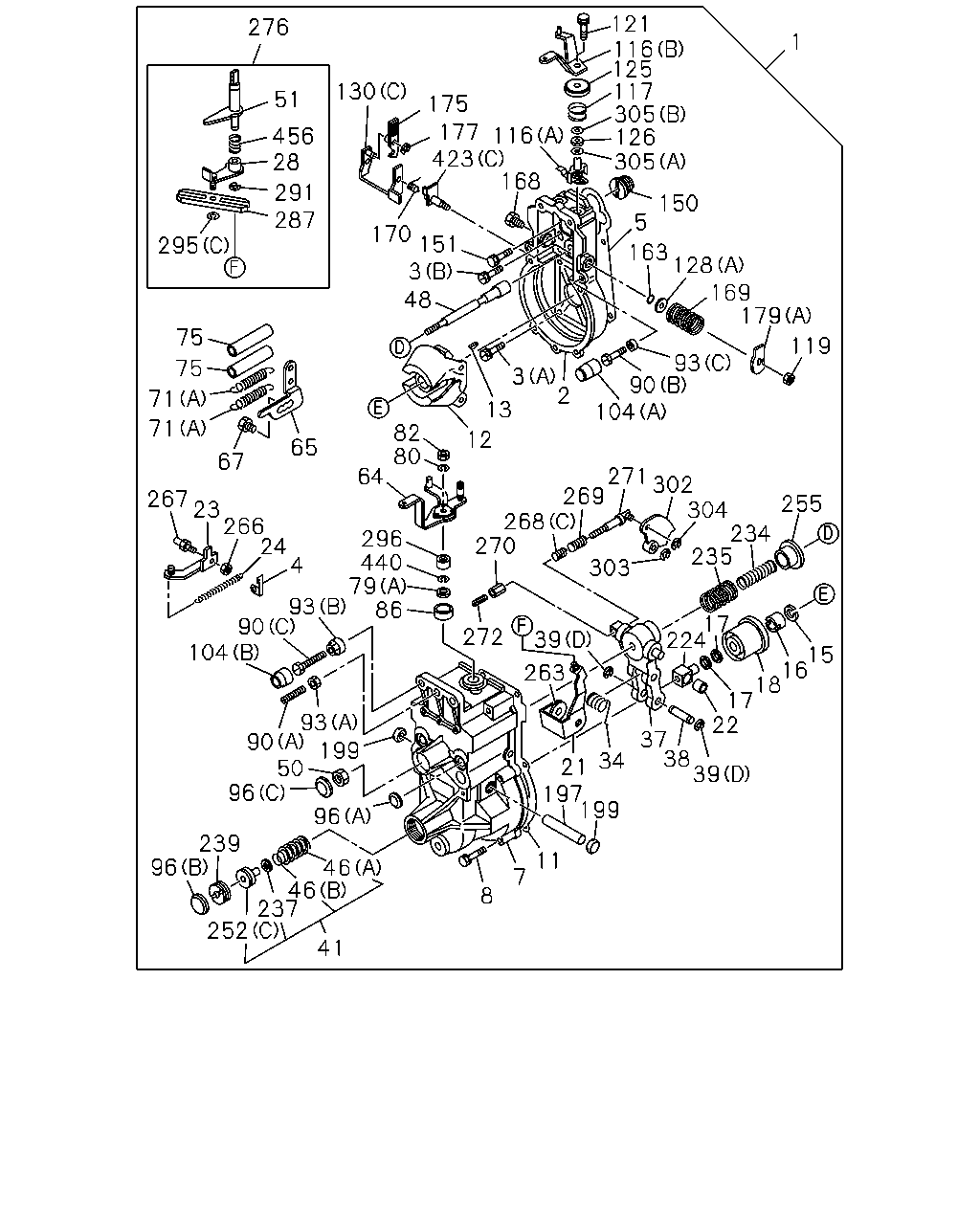

1 |
GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-94390-930-0
|
1-15750-917-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: G = 8-94395-901-1
|
1-15770-819-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: H = 8-94395-902-2
|
1-15770-820-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: I = 8-94395-904-1
|
1-15770-822-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: J = 8-94395-919-3
|
1-15770-825-2 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: K = 8-94395-920-3
|
1-15770-826-2 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: E = 8-94395-812-1
|
1-15770-846-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-94390-081-1
|
1-15770-850-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: F = 8-94395-813-1
|
1-15770-885-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15790-020-6 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: L = 8-97600-180-0
|
1-15790-042-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: C = 8-94392-219-3
|
1-15790-052-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: M = 8-97600-630-0
|
1-15790-072-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15721-209-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15721-265-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15721-278-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15721-343-0 |
01 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
(C) ASM PART: D = 8-94392-231-8
|
1-15779-226-0 |
08 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-027-0 |
05 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-071-0 |
01 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: B = 8-94390-930-0, I = 8-94395-904-1
|
1-15779-374-0 |
01 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-524-0 |
01 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: K = 8-94395-920-3
|
1-15779-591-0 |
01 |
1 |
9803- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: C = 8-94392-219-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15779-591-0 |
01 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: K = 8-94395-920-3
|
8-94472-265-0 |
01 |
1 |
-9802 |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: A = 8-94390-081-1, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, J = 8-94395-919-3
|
8-94472-265-0 |
01 |
1 |
- |
| |
5 |
GASKET; GOV TO INJ PUMP HSG
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
J = 8-94395-919-3, K = 8-94395-920-3
|
1-15779-093-0 |
01 |
1 |
- |
| |
5 |
GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15779-106-0 |
01 |
1 |
- |
| |
5 |
GASKET; GOV TO INJ PUMP HSG
ASM PART: D = 8-94392-231-8
|
1-15779-529-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15721-211-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-94390-081-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
M = 8-97600-630-0
|
1-15721-217-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: B = 8-94390-930-0, E = 8-94395-812-1,
F = 8-94395-813-1, L = 8-97600-180-0
|
1-15721-274-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: C = 8-94392-219-3
|
1-15721-355-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15721-356-0 |
01 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-033-0 |
07 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
ASM PART: D = 8-94392-231-8
|
5-15729-033-0 |
09 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15779-107-0 |
01 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-251-0 |
01 |
1 |
- |
| |
12 |
FLYWEIGHT ASM; GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15722-014-0 |
01 |
1 |
- |
| |
12 |
FLYWEIGHT ASM; GOV
ASM PART: D = 8-94392-231-8
|
1-15722-024-0 |
01 |
1 |
- |
| |
13 |
KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-19619-049-0 |
01 |
1 |
- |
| |
13 |
KEY; FLYWEIGHT,GOV
13MM ASM PART: D = 8-94392-231-8
|
9-81325-030-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-034-0 |
01 |
1 |
- |
| |
16 |
NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-086-0 |
01 |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-891-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-892-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-893-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-286-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-287-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-088-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-551-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-552-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-553-0 |
AR |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-372-0 |
01 |
1 |
- |
| |
21 |
LEVER ASM; GUIDE,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15725-291-0 |
01 |
1 |
- |
| |
21 |
LEVER ASM; GUIDE,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-899-0 |
01 |
1 |
- |
| |
21 |
LEVER ASM; GUIDE,GOV
ASM PART: C = 8-94392-219-3
|
1-15725-929-0 |
01 |
1 |
- |
| |
22 |
COLLAR; LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94368-298-1 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-900-0 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: K = 8-94395-920-3
|
1-15725-928-0 |
01 |
1 |
9803- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: C = 8-94392-219-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15725-928-0 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3
|
8-94171-149-0 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: K = 8-94395-920-3
|
8-94171-149-0 |
01 |
1 |
-9802 |
| |
24 |
SPRING; START,GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15723-450-0 |
01 |
1 |
- |
| |
24 |
SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15723-035-0 |
01 |
1 |
- |
| |
24 |
SPRING; START,GOV,INJ PUMP
ASM PART: B = 8-94390-930-0, C = 8-94392-219-3,
I = 8-94395-904-1
|
5-15723-044-0 |
01 |
1 |
- |
| |
28 |
LEVER; SUPPORTING,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-780-0 |
01 |
1 |
- |
| |
28 |
LEVER; SUPPORTING,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-152-0 |
01 |
1 |
- |
| |
34 |
SPRING; SPD CONT LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-549-0 |
01 |
1 |
- |
| |
34 |
SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-140-1 |
01 |
1 |
- |
| |
37 |
LEVER ASM; TENSION,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15725-515-0 |
01 |
1 |
- |
| |
37 |
LEVER ASM; TENSION,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-898-1 |
01 |
1 |
- |
| |
38 |
PIN; TENSION LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-370-0 |
01 |
1 |
- |
| |
38 |
PIN; TENSION LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-271-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-09588-170-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(A) ASM PART: D = 8-94392-231-8
|
8-94244-599-0 |
02 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(C), ID=4
ASM PART: D = 8-94392-231-8
|
9-09185-404-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(D) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-88410-201-0 |
02 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15723-301-0 |
01 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-484-0 |
01 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: C = 8-94392-219-3
|
1-15723-566-0 |
01 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: K = 8-94395-920-3
|
1-15723-584-0 |
01 |
1 |
9803- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: K = 8-94395-920-3
|
8-94171-143-0 |
01 |
1 |
-9802 |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: J = 8-94395-919-3
|
8-94171-143-0 |
01 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
I = 8-94395-904-1, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94173-991-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15723-473-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: D = 8-94392-231-8
|
1-15723-480-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: D = 8-94392-231-8
|
1-15723-481-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: C = 8-94392-219-3
|
8-97115-983-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
8-97115-984-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97115-987-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
I = 8-94395-904-1, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-97115-988-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
8-97120-735-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15779-240-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-146-1 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94171-147-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-528-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: C = 8-94392-219-3
|
1-15779-593-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94325-501-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: K = 8-94395-920-3
|
1-15725-667-0 |
01 |
1 |
-9802 |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3
|
1-15725-667-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: L = 8-97600-180-0
|
1-15725-673-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: K = 8-94395-920-3
|
1-15725-673-0 |
01 |
1 |
9803- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: M = 8-97600-630-0
|
1-15725-674-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-897-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: C = 8-94392-219-3
|
1-15725-927-1 |
01 |
1 |
- |
| |
65 |
BRACKET; RETURN SPRING,GOV
ASM PART: M = 8-97600-630-0
|
1-15779-548-0 |
01 |
1 |
- |
| |
65 |
BRACKET; RETURN SPRING,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0
|
8-94339-966-0 |
01 |
1 |
- |
| |
67 |
BOLT; SPRING BRKT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-046-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
1-15723-380-0 |
02 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(A) ASM PART: C = 8-94392-219-3
|
1-15723-474-0 |
02 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(A) ASM PART: M = 8-97600-630-0
|
1-15723-544-0 |
02 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(C) ASM PART: D = 8-94392-231-8
|
1-15723-552-0 |
02 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(B) ASM PART: K = 8-94395-920-3
|
8-94413-728-0 |
01 |
1 |
-9802 |
| |
75 |
TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-284-0 |
02 |
1 |
- |
| |
75 |
TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: C = 8-94392-219-3
|
5-15729-013-0 |
02 |
1 |
- |
| |
75 |
TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94433-757-0 |
02 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.95
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-076-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.20
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-077-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.25
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-078-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.30
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-079-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.35
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-080-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.40
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-081-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.50
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-082-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.70
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-617-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.90
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-618-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.80
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-619-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-822-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A), T=0.60
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-896-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A) ASM PART: C = 8-94392-219-3, D = 8-94392-231-8
|
1-15729-988-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15779-232-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-236-0 |
01 |
1 |
- |
| |
86 |
BUSHING; CONT SHAFT,GOV COVER
ASM PART: L = 8-97600-180-0
|
1-15729-831-0 |
01 |
1 |
- |
| |
86 |
BUSHING; CONT SHAFT,GOV COVER
ASM PART: C = 8-94392-219-3
|
1-15779-592-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M8X62
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-642-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M8X65
ASM PART: A = 8-94390-081-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-761-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X33
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-799-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X34
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-800-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X35
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-801-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X36
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-802-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X37
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-803-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X31
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-842-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X32
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-843-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X40
ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15779-103-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X42
ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15779-104-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M6X44
ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15779-105-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X45
ASM PART: D = 8-94392-231-8
|
1-15779-244-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X49
ASM PART: D = 8-94392-231-8
|
1-15779-245-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X53
ASM PART: D = 8-94392-231-8
|
1-15779-246-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15779-247-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M10X70
ASM PART: D = 8-94392-231-8
|
1-15779-248-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X31
ASM PART: C = 8-94392-219-3
|
1-15779-594-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X32
ASM PART: C = 8-94392-219-3
|
1-15779-595-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X33
ASM PART: C = 8-94392-219-3
|
1-15779-596-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X34
ASM PART: C = 8-94392-219-3
|
1-15779-597-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X35
ASM PART: C = 8-94392-219-3
|
1-15779-598-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X36
ASM PART: C = 8-94392-219-3
|
1-15779-599-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X37
ASM PART: C = 8-94392-219-3
|
1-15779-600-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M8X62
ASM PART: C = 8-94392-219-3
|
1-15779-601-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X55
ASM PART: C = 8-94392-219-3
|
1-15779-602-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-123-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: C = 8-94392-219-3
|
1-15729-236-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-643-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-807-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: D = 8-94392-231-8
|
1-15779-277-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15779-278-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: C = 8-94392-219-3
|
8-97201-153-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C), M10
ASM PART: D = 8-94392-231-8
|
9-09111-410-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-84410-027-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(D) ASM PART: D = 8-94392-231-8
|
9-88410-525-0 |
01 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15779-293-0 |
02 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-076-0 |
01 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(A) ASM PART: D = 8-94392-231-8
|
5-15729-076-0 |
02 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-145-0 |
01 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(C) ASM PART: D = 8-94392-231-8
|
8-94171-148-0 |
03 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-148-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97085-021-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97085-022-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: D = 8-94392-231-8
|
8-97085-022-0 |
02 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(B) ASM PART: B = 8-94390-930-0, C = 8-94392-219-3,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3
|
1-15725-733-0 |
01 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(C) ASM PART: D = 8-94392-231-8
|
1-15725-896-0 |
01 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15725-063-0 |
01 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-94390-081-1, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94396-977-0 |
01 |
1 |
- |
| |
117 |
SPRING; STOP LEVER,GOV
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15723-294-0 |
01 |
1 |
- |
| |
117 |
SPRING; STOP LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15723-439-0 |
01 |
1 |
- |
| |
117 |
SPRING; STOP LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-471-0 |
01 |
1 |
- |
| |
119 |
NUT; ENG STOP LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-236-0 |
01 |
1 |
- |
| |
119 |
NUT; ENG STOP LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15729-236-0 |
02 |
1 |
- |
| |
121 |
BOLT; ENG STOP LEVER,GOV
M6X16 W/LK WASHER
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-01900-616-0 |
01 |
1 |
- |
| |
125 |
CAP; STOP LEVER SPRING,GOV
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
8-94171-168-0 |
01 |
1 |
- |
| |
125 |
CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94336-926-0 |
01 |
1 |
- |
| |
126 |
GASKET; STOP LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-853-0 |
01 |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.60
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-897-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.80
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-898-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.90
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-899-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(B), T=0.50
ASM PART: D = 8-94392-231-8
|
1-15779-230-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(B), T=0.20
ASM PART: D = 8-94392-231-8
|
1-15779-231-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(C) ASM PART: D = 8-94392-231-8
|
1-15779-388-0 |
01 |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.50
ASM PART: M = 8-97600-630-0
|
9-81235-556-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A) ASM PART: M = 8-97600-630-0
|
9-81235-557-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.40
ASM PART: M = 8-97600-630-0
|
9-81235-558-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.25
ASM PART: M = 8-97600-630-0
|
9-81235-559-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.35
ASM PART: M = 8-97600-630-0
|
9-81235-560-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.50
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
9-81325-556-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.30
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
9-81325-557-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.40
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
9-81325-558-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.25
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
9-81325-559-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.35
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
9-81325-560-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.20
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-88410-421-0 |
AR |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(C) ASM PART: B = 8-94390-930-0, E = 8-94395-812-1,
F = 8-94395-813-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0
|
1-15725-496-0 |
01 |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(C) ASM PART: A = 8-94390-081-1, C = 8-94392-219-3,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, M = 8-97600-630-0
|
1-15725-527-0 |
01 |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15725-775-0 |
01 |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(A) ASM PART: D = 8-94392-231-8
|
1-15725-895-0 |
01 |
1 |
- |
| |
150 |
ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-81315-065-0 |
01 |
1 |
- |
| |
151 |
BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-01900-818-0 |
01 |
1 |
- |
| |
163 |
GASKET; CONT SHAFT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15629-859-0 |
01 |
1 |
- |
| |
163 |
GASKET; CONT SHAFT,GOV
ASM PART: G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1
|
1-15729-852-0 |
01 |
1 |
- |
| |
163 |
GASKET; CONT SHAFT,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-227-0 |
01 |
1 |
- |
| |
168 |
PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-796-0 |
01 |
1 |
- |
| |
168 |
PLUG; CONT SHAFT,GOV HSG
ASM PART: D = 8-94392-231-8
|
1-15779-285-0 |
01 |
1 |
- |
| |
169 |
SPRING; LEVER SET,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-548-0 |
01 |
1 |
- |
| |
169 |
SPRING; LEVER SET,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15723-032-0 |
01 |
1 |
- |
| |
170 |
SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15723-033-0 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15725-514-1 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: B = 8-94390-930-0, I = 8-94395-904-1
|
1-15725-808-0 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15725-893-0 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: C = 8-94392-219-3
|
8-97176-488-0 |
01 |
1 |
- |
| |
177 |
RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: D = 8-94392-231-8
|
8-94324-735-0 |
01 |
1 |
- |
| |
177 |
RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
179 |
LEVER; SPD ADJ,GOV
(B) ASM PART: J = 8-94395-919-3, K = 8-94395-920-3
|
1-15725-706-0 |
01 |
1 |
- |
| |
179 |
LEVER; SPD ADJ,GOV
(C) ASM PART: D = 8-94392-231-8
|
1-15725-894-0 |
01 |
1 |
- |
| |
179 |
LEVER; SPD ADJ,GOV
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-132-0 |
01 |
1 |
- |
| |
197 |
SHAFT; LEVER,GOV COVER
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15725-008-0 |
01 |
1 |
- |
| |
199 |
PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-076-0 |
02 |
1 |
- |
| |
224 |
SHIFTER; TENSION LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-334-0 |
01 |
1 |
- |
| |
224 |
SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-142-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: K = 8-94395-920-3
|
1-15723-300-0 |
01 |
1 |
-9802 |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15723-300-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15723-479-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: K = 8-94395-920-3
|
1-15723-516-0 |
01 |
1 |
9803- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: J = 8-94395-919-3
|
1-15723-516-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: C = 8-94392-219-3
|
8-94172-278-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
I = 8-94395-904-1, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94372-509-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-94390-081-1, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15723-236-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: C = 8-94392-219-3
|
1-15723-245-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: K = 8-94395-920-3
|
1-15723-259-0 |
01 |
1 |
9803- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: J = 8-94395-919-3
|
1-15723-259-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: H = 8-94395-902-2
|
1-15723-335-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15723-478-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: B = 8-94390-930-0, E = 8-94395-812-1,
G = 8-94395-901-1, I = 8-94395-904-1
|
5-15723-040-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: F = 8-94395-813-1
|
5-15723-041-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: K = 8-94395-920-3
|
8-94433-754-0 |
01 |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=2.00
ASM PART: D = 8-94392-231-8
|
1-15729-891-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=3.00
ASM PART: D = 8-94392-231-8
|
1-15729-892-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=4.00
ASM PART: D = 8-94392-231-8
|
1-15729-893-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-966-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: K = 8-94395-920-3
|
1-15729-966-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: K = 8-94395-920-3
|
1-15729-967-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-967-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15729-968-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80
ASM PART: K = 8-94395-920-3
|
1-15729-968-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: D = 8-94392-231-8
|
5-15729-286-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.50
ASM PART: D = 8-94392-231-8
|
5-15729-287-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94472-268-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: K = 8-94395-920-3
|
8-94472-269-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94472-269-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25
ASM PART: K = 8-94395-920-3
|
8-94472-270-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94472-270-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: K = 8-94395-920-3
|
8-94472-271-0 |
AR |
1 |
-9802 |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94472-271-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: D = 8-94392-231-8
|
9-81325-088-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: D = 8-94392-231-8
|
9-81325-551-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.40
ASM PART: D = 8-94392-231-8
|
9-81325-552-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: D = 8-94392-231-8
|
9-81325-553-0 |
AR |
1 |
- |
| |
239 |
SCREW; GOV
ASM PART: D = 8-94392-231-8
|
1-15779-239-0 |
01 |
1 |
- |
| |
239 |
SCREW; GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-144-0 |
01 |
1 |
- |
| |
252 |
SCREW; GUIDE
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15779-003-1 |
01 |
1 |
- |
| |
252 |
SCREW; GUIDE
(A) ASM PART: D = 8-94392-231-8
|
1-15779-238-0 |
01 |
1 |
- |
| |
252 |
SCREW; GUIDE
(B) ASM PART: D = 8-94392-231-8
|
1-15779-288-0 |
01 |
1 |
- |
| |
253 |
LIMITTER; GOV CONT
(B) ASM PART: B = 8-94390-930-0, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3
|
8-94167-792-0 |
01 |
1 |
- |
| |
253 |
LIMITTER; GOV CONT
(A) ASM PART: A = 8-94390-081-1, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-81325-435-0 |
01 |
1 |
- |
| |
255 |
SEAT; GOV SPRING,INJ PUMP
ASM PART: D = 8-94392-231-8
|
1-15779-241-0 |
01 |
1 |
- |
| |
255 |
SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-173-0 |
01 |
1 |
- |
| |
263 |
COLLAR; GUIDE LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-031-0 |
02 |
1 |
- |
| |
266 |
NUT; PIN TO LINK,CONT RACK,GOV
M5 ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-99110-405-0 |
01 |
1 |
- |
| |
267 |
BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-858-0 |
01 |
1 |
- |
| |
267 |
BOLT; CONN,CONT RACK,GOV
ASM PART: D = 8-94392-231-8
|
1-15749-747-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: D = 8-94392-231-8
|
1-15723-445-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: D = 8-94392-231-8
|
1-15723-446-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15723-056-0 |
01 |
1 |
- |
| |
269 |
SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-459-0 |
01 |
1 |
- |
| |
269 |
SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15723-070-1 |
01 |
1 |
- |
| |
270 |
NUT; TORQUE ROD LK,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-272-0 |
01 |
1 |
- |
| |
270 |
NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15729-051-0 |
01 |
1 |
- |
| |
271 |
ROD; TORQUE CAM,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-235-1 |
01 |
1 |
- |
| |
271 |
ROD; TORQUE CAM,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
5-15725-009-1 |
01 |
1 |
- |
| |
272 |
SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-289-0 |
01 |
1 |
- |
| |
272 |
SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-94171-138-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: D = 8-94392-231-8
|
1-15725-901-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: C = 8-94392-219-3
|
1-15725-926-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94325-500-0 |
01 |
1 |
- |
| |
287 |
LEVER; GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15725-542-0 |
01 |
1 |
- |
| |
287 |
LEVER; GOV
ASM PART: D = 8-94392-231-8
|
1-15725-781-0 |
01 |
1 |
- |
| |
291 |
RING; SNAP,CONT SHAFT,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-196-0 |
02 |
1 |
- |
| |
291 |
RING; SNAP,CONT SHAFT,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
295 |
RING; SNAP
(A) ASM PART: D = 8-94392-231-8
|
1-15779-273-0 |
02 |
1 |
- |
| |
295 |
RING; SNAP
(B) ASM PART: D = 8-94392-231-8
|
5-15729-023-0 |
01 |
1 |
- |
| |
295 |
RING; SNAP
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
296 |
SEAL; OIL,CONT SHAFT,GOV
ASM PART: B = 8-94390-930-0, C = 8-94392-219-3,
F = 8-94395-813-1, L = 8-97600-180-0
|
1-15729-855-0 |
01 |
1 |
- |
| |
296 |
SEAL; OIL,CONT SHAFT,GOV
ASM PART: D = 8-94392-231-8
|
8-97024-879-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: G = 8-94395-901-1
|
1-15779-097-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: H = 8-94395-902-2
|
1-15779-382-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: I = 8-94395-904-1
|
1-15779-383-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: A = 8-94390-081-1, L = 8-97600-180-0,
M = 8-97600-630-0
|
1-15779-408-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: E = 8-94395-812-1
|
1-15779-418-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: J = 8-94395-919-3
|
1-15779-420-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: K = 8-94395-920-3
|
1-15779-449-0 |
01 |
1 |
-9802 |
| |
302 |
PLATE; CAM,GOV
ASM PART: F = 8-94395-813-1
|
1-15779-466-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: B = 8-94390-930-0
|
1-15779-511-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: K = 8-94395-920-3
|
1-15779-613-0 |
01 |
1 |
9803- |
| |
302 |
PLATE; CAM,GOV
ASM PART: D = 8-94392-231-8
|
1-15779-619-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: C = 8-94392-219-3
|
1-15779-665-0 |
01 |
1 |
- |
| |
303 |
RING; SNAP,CAM PLATE,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
5-15729-023-0 |
01 |
1 |
- |
| |
304 |
RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, D = 8-94392-231-8,
E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2,
I = 8-94395-904-1, J = 8-94395-919-3,
K = 8-94395-920-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
9-09185-404-0 |
01 |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.951
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15729-115-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.950
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15729-116-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.70
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
1-15779-068-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.20
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97089-308-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.30
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97089-309-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.40
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97089-310-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.60
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97089-311-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.80
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
8-97089-312-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.50
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-268-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.40
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-269-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.30
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-270-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=0.25
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-271-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=1.00
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-272-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=1.10
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-310-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(B), T=2.00
ASM PART: E = 8-94395-812-1, F = 8-94395-813-1,
G = 8-94395-901-1, H = 8-94395-902-2
|
9-81325-447-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
(A), T=1.00
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
9-81325-553-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(C) ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, K = 8-94395-920-3,
L = 8-97600-180-0, M = 8-97600-630-0
|
1-15729-820-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(A) ASM PART: D = 8-94392-231-8
|
1-15779-525-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(B) ASM PART: D = 8-94392-231-8
|
1-15779-607-0 |
01 |
1 |
- |
| |
456 |
SPRING; LEVER,GOV
ASM PART: D = 8-94392-231-8
|
1-15723-551-0 |
01 |
1 |
- |
| |
456 |
SPRING; LEVER,GOV
ASM PART: A = 8-94390-081-1, B = 8-94390-930-0,
C = 8-94392-219-3, E = 8-94395-812-1,
F = 8-94395-813-1, G = 8-94395-901-1,
H = 8-94395-902-2, I = 8-94395-904-1,
J = 8-94395-919-3, L = 8-97600-180-0,
M = 8-97600-630-0
|
8-94413-728-0 |
01 |
1 |
- |
| |
456 |
SPRING; LEVER,GOV
ASM PART: K = 8-94395-920-3
|
8-94413-728-0 |
01 |
1 |
9803- |
