Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#64028) — 222 parça

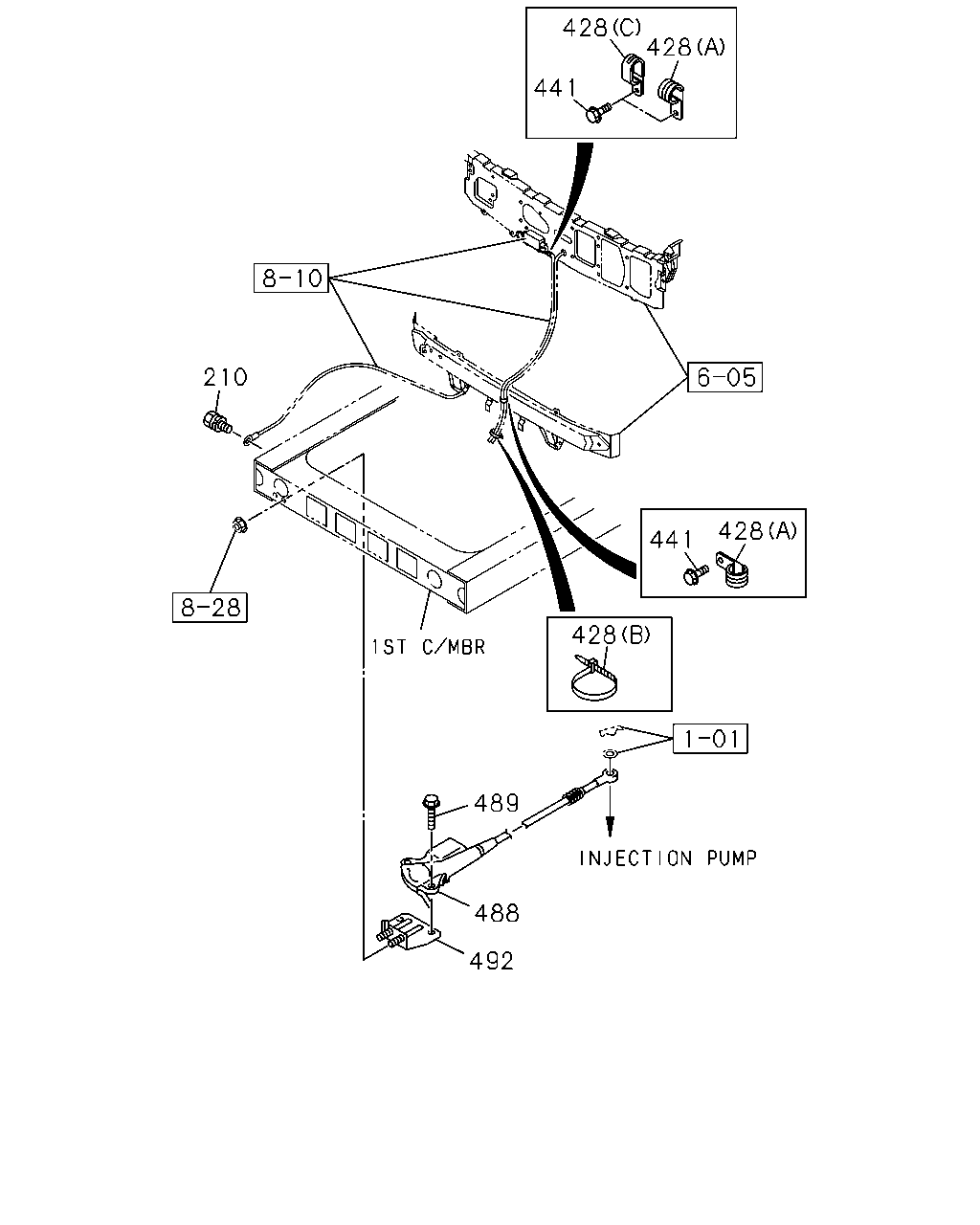

428 428 441 210 428 441 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9802	●	●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9803-9907	●	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-0004	●	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-1201		●	●		●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-		●	●		●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9510-9802	●	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9803-0004	●	●	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0005-0104		●	●		●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	0105-0302					●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	0303-					●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0303-					●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0105-		●	●
428	CLIP; HARNESS (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-0302					●
428	CLIP; HARNESS (C) ID=30X2 L=28	1-09701-266-0	01	1	0303-					●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28	1-09701-266-0	01	1	0303-					●
428	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=300	1-09707-001-1	05	1	0005-0302					●
428	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=300	1-09707-001-1	05	1	0303-					●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	05	1	0303-					●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9803-0004	●	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●	●		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●		●
488	STOPPER; ENG	1-82840-128-1	01	1	9510-9802	●	●	●
488	STOPPER; ENG	1-82840-128-2	01	1	9803-0004	●	●	●	●
488	STOPPER; ENG	1-82840-128-2	01	1	0005-0302		●	●		●
488	STOPPER; ENG	1-82840-128-2	01	1	0005-0302					●
488	STOPPER; ENG	1-82840-128-2	01	1	0303-0403		●	●		●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-2	01	1	0303-0403					●
488	STOPPER; ENG	1-82840-128-3	01	1	0404-		●	●		●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9510-9802	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9803-0004	●	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512		●	●		●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-		●	●		●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9510-9802	●	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9803-0004	●	●	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0005-		●	●		●

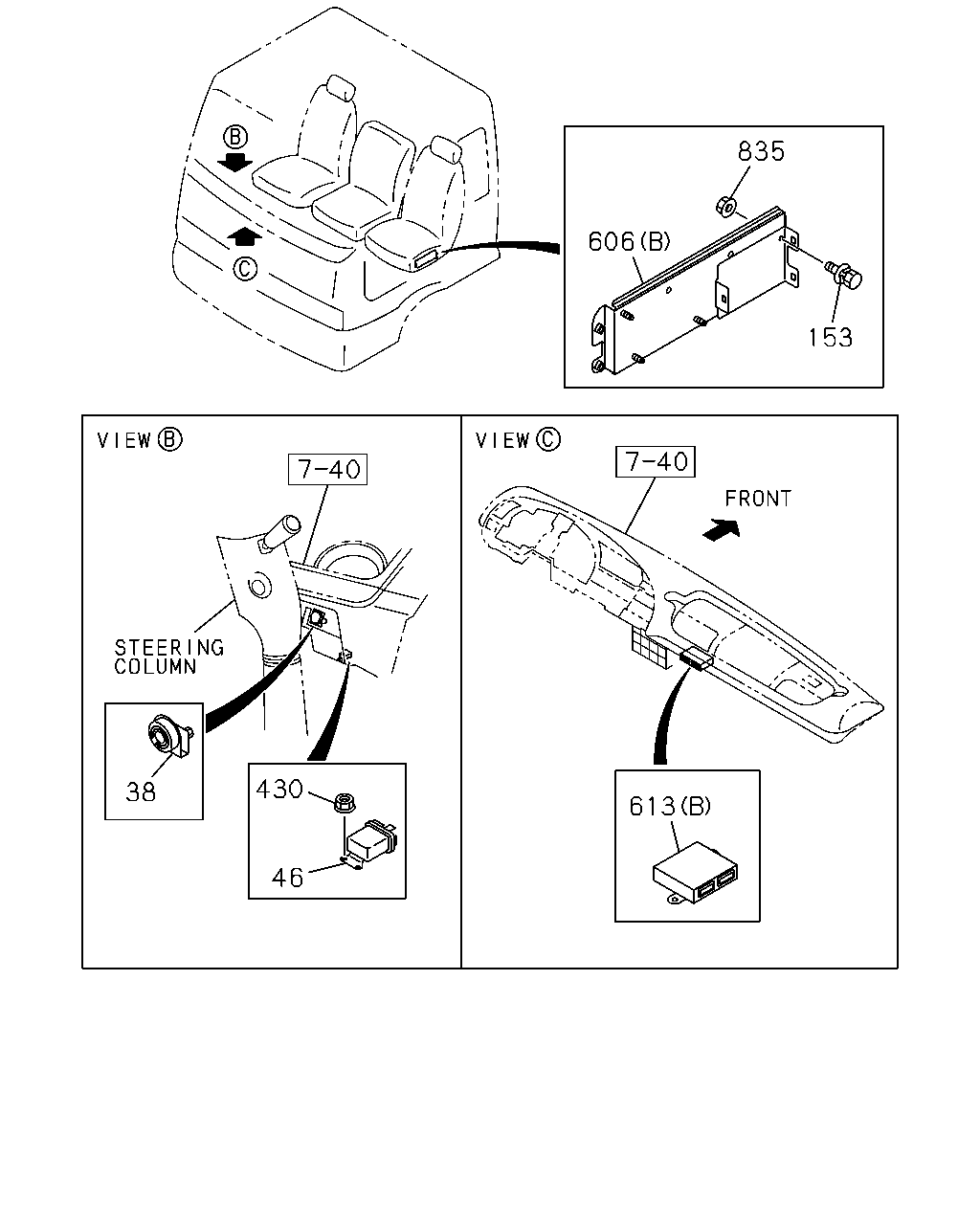

835 606 153 430 38 613 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9510-9802	●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9803-0004	●	●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0005-		●	●		●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9510-9802	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9803-0004	●	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0005-		●	●		●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0009-0210	●	●	●	●	●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0211-0703					●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	0-36230-612-0	02	1	0704-					●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9510-9601	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9602-9802	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9803-0004	●	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0603-		●	●		●

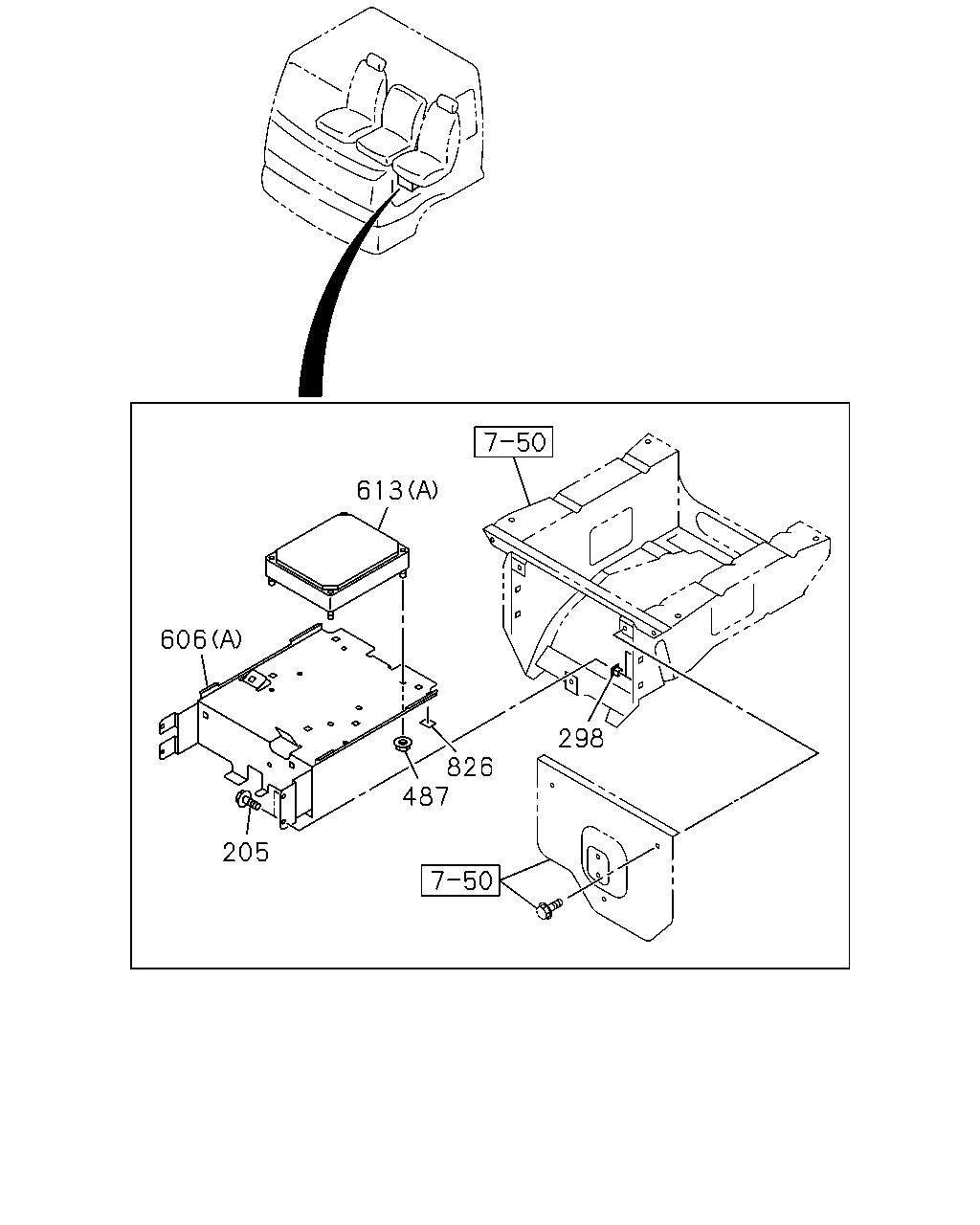

606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (A)	1-75558-534-9	01	1	0303-					●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0009-0210	●	●	●	●	●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0211-					●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	8-94392-232-2	01	1	0303-					●
613	CONTROL UNIT; ENG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97600-899-0	01	1	0005-					●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91150-106-0	02	1	0009-0210	●	●	●	●	●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91150-106-0	02	1	0211-0602					●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91180-106-0	02	1	0603-					●

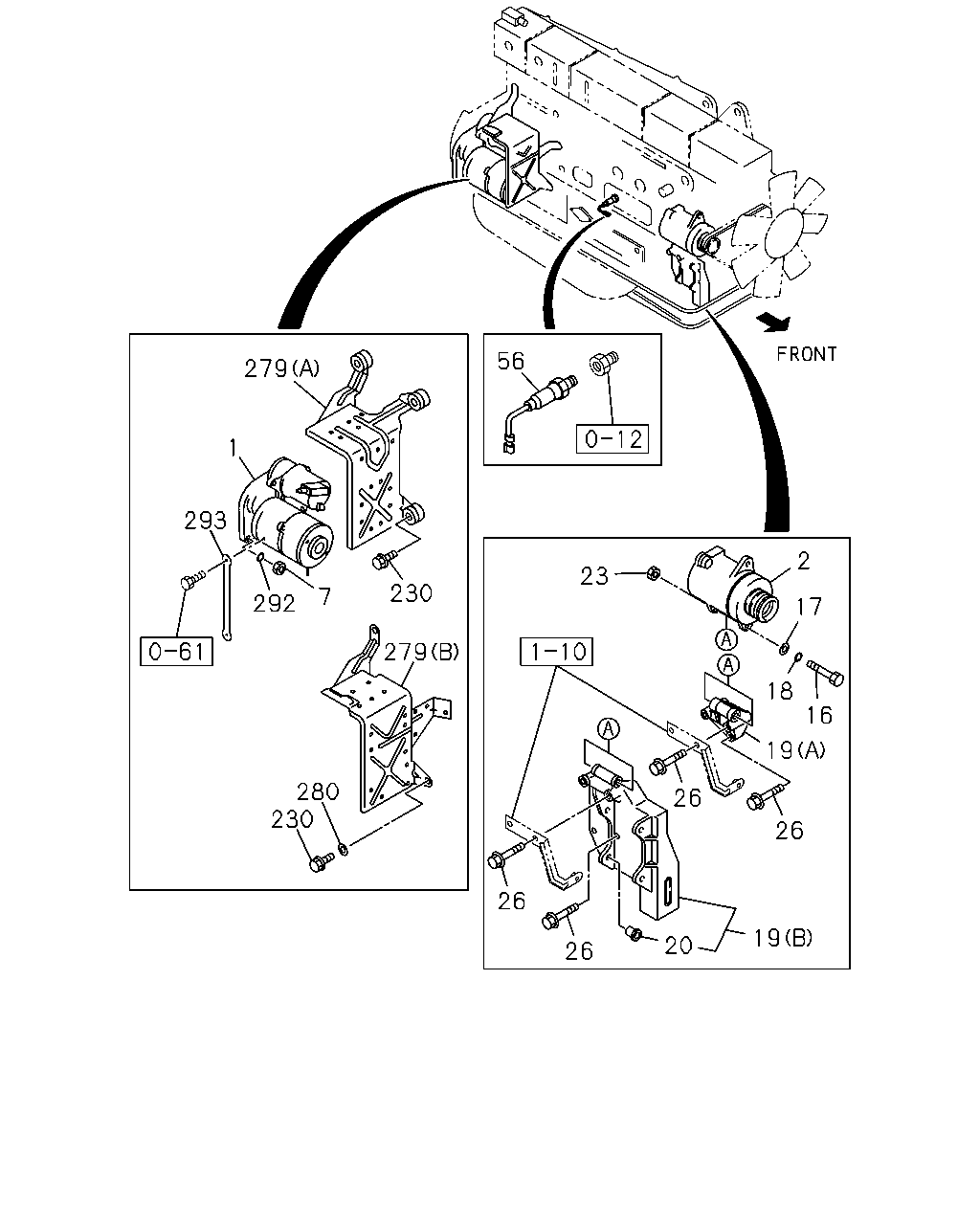

56 279 1 293 2 23 230 7 292 17 279 18 16 19 280 230 26 26 26 19 20 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-3	01	1	9510-9803	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9804-0004	●			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-307-0	01	1	9510-9708		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-0	01	1	9709-0004		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-1	01	1	0005-		●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9510-9803	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9804-0004	●	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0005-		●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●	●	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9510-9803	●	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9804-0004	●	●	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0005-0512		●	●		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-		●	●		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9510-9803	●	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9804-0004	●	●	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0005-		●	●		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9510-9803	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9804-0004	●	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0005-0605		●	●		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●	●		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9510-9803	●	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9804-0004	●	●	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0005-0603		●	●		●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-		●	●		●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9510-9804	●	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-297-0	01	1	9510-9804			●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-297-0	01	1	9805-0004	●		●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9805-0004		●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	0005-0101		●	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-297-0	01	1	0005-0101					●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-297-0	01	1	0102-0112			●		●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	0102-0112		●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97602-318-0	01	1	0201-			●		●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	0201-		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-2	01	1	9510-9803			●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-2	01	1	9804-0004	●		●	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-2	01	1	0005-0109					●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-3	01	1	0110-0411			●		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-5	01	1	0412-			●		●
19	BRACKET; GEN ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94395-470-5	01	1	0412-		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	9510-9803			●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	9804-0004	●		●	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0005-0109					●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0110-0411			●		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0412-1302			●		●
20	COLLAR; BRKT,GEN ANTI NOISE EQUIPMENT ECE<SLK>	8-94201-057-1	02	1	0412-1302		●
23	NUT; GEN M14	9-99110-414-0	01	1	9510-9803	●	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	9804-0004	●	●	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0005-0512		●	●		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-		●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9510-9803	●	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9804-0004	●	●	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0005-0512		●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-		●	●		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9510-9804	●	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	9510-9804			●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	9805-0004	●		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9805-0004		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0005-0007		●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0008-0101		●	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0008-0101					●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0102-0512			●		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0102-0512		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0601-			●		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9510-9803			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9804-0004	●		●	●
26	BOLT; GEN BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	02	1	0005-0007					●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0008-0109					●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0110-0411			●		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0412-0512			●		●
26	BOLT; GEN BRKT ANTI NOISE EQUIPMENT ECE<SLK> M10X40 FLANGE	0-28181-040-0	02	1	0412-0512		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0601-			●		●
26	BOLT; GEN BRKT ANTI NOISE EQUIPMENT ECE<SLK> M10X40 FLANGE	0-28151-040-0	02	1	0601-		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9510-9803	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9804-0004	●	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0005-		●	●		●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9510-9803	●	●	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9804-0004	●	●	●	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0005-0302		●	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0303-		●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M8X28 FLANGE	0-28080-828-0	01	1	0303-					●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9510-9803	●	●	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9804-0004	●	●	●	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0005-0302		●	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0303-0512		●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28181-030-0	01	1	0303-0512					●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	0601-		●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28151-030-0	01	1	0601-					●
230	BOLT; HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X14	0-20800-814-0	03	1	0005-0302					●
230	BOLT; HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X14	0-20800-814-0	03	1	0303-0411					●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M8X14	0-20800-814-0	03	1	0303-0411					●
230	BOLT; HEAT PROTECTOR ANTI NOISE EQUIPMENT ECE<SLK> M8X14	0-20800-814-0	03	1	0412-		●
230	BOLT; HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X14	0-20800-814-0	03	1	0412-					●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M8X14	0-20800-814-0	03	1	0412-					●
279	PROTECTOR; STARTER (B)	8-94394-501-0	01	1	9510-9803	●
279	PROTECTOR; STARTER (B)	8-94394-501-0	01	1	9804-0004	●			●
279	PROTECTOR; STARTER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-435-2	01	1	0005-0302					●
279	PROTECTOR; STARTER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-435-2	01	1	0303-0411					●
279	PROTECTOR; STARTER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-435-2	01	1	0303-0411					●
279	PROTECTOR; STARTER ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94394-435-2	01	1	0412-		●
279	PROTECTOR; STARTER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-435-2	01	1	0412-					●
279	PROTECTOR; STARTER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-435-2	01	1	0412-					●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	9510-0302		●	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0303-0407		●	●
279	PROTECTOR; STARTER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94394-952-1	01	1	0303-0407					●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0408-			●
279	PROTECTOR; STARTER EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94394-952-1	01	1	0408-		●
279	PROTECTOR; STARTER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94394-952-1	01	1	0408-					●
280	WASHER; PL,HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18	9-09160-608-0	03	1	0005-0302					●
280	WASHER; PL,HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18	9-09160-608-0	03	1	0303-0411					●
280	WASHER; PL,HEAT PROTECTOR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=18	9-09160-608-0	03	1	0303-0411					●
280	WASHER; PL,HEAT PROTECTOR ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=18	9-09160-608-0	03	1	0412-0605		●
280	WASHER; PL,HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18	9-09160-608-0	03	1	0412-0605					●
280	WASHER; PL,HEAT PROTECTOR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=18	9-09160-608-0	03	1	0412-0605					●
280	WASHER; PL,HEAT PROTECTOR ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=18	0-91610-608-0	03	1	0606-		●
280	WASHER; PL,HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18	0-91610-608-0	03	1	0606-					●
280	WASHER; PL,HEAT PROTECTOR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=18	0-91610-608-0	03	1	0606-					●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9510-9803	●	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9804-0004	●	●	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0005-0603		●	●		●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-		●	●		●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9510-9803	●	●	●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9804-0004	●	●	●	●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	0005-		●	●		●

613 606 298 826 487 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0303-					●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0303-					●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	0303-0602					●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91180-106-0	04	1	0603-					●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (A)	1-75558-534-9	01	1	0303-					●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0009-0210	●	●	●	●	●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0211-					●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	8-94392-232-2	01	1	0303-					●
613	CONTROL UNIT; ENG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97600-899-0	01	1	0005-					●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	0303-0309					●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0310-0908					●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-98142-344-0	03	1	0909-					●

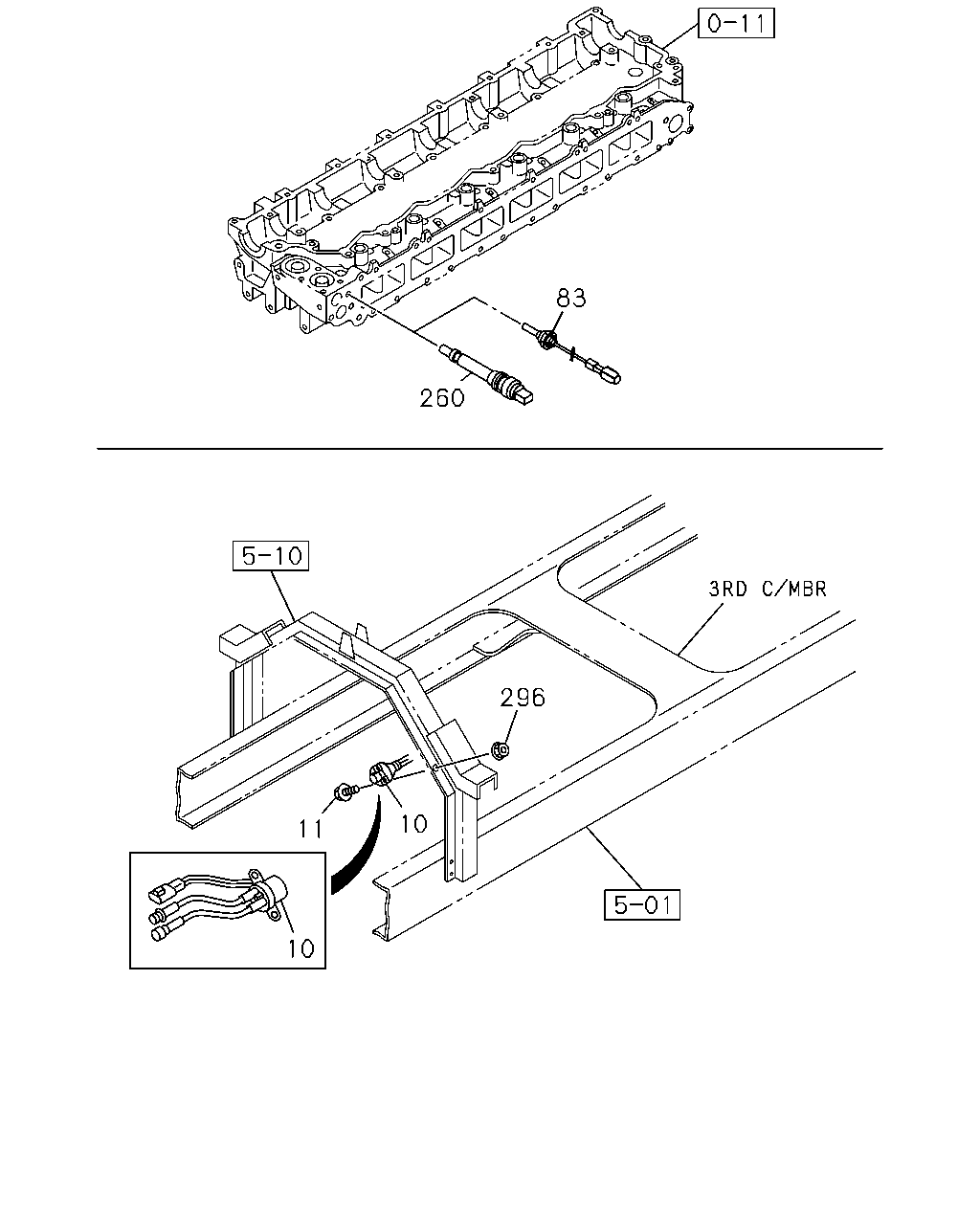

83 260 296 10 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	RELAY; STARTER STARTER DENSO(RC6) DENSO	1-81171-070-0	01	1	9510-9802	●
10	RELAY; STARTER STARTER DENSO(RC6) DENSO	1-81171-070-0	01	1	9803-0004	●			●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	9904-9907	●	●	●	●
10	RELAY; STARTER EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	9908-0004	●	●	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-067-0	01	1	9510-9608		●	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-075-0	01	1	9609-9802	●	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-075-0	01	1	9803-0004	●	●	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0005-0303		●	●		●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-		●	●		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9510-9803	●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9804-0004	●	●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0005-		●	●
260	SENSOR; WATER TEMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-80210-005-0	01	1	0005-0302					●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0303-					●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9510-9606	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
