0-52 — OIL AND VACUUM PIPING; ENGINE (#64027) — 198 parça

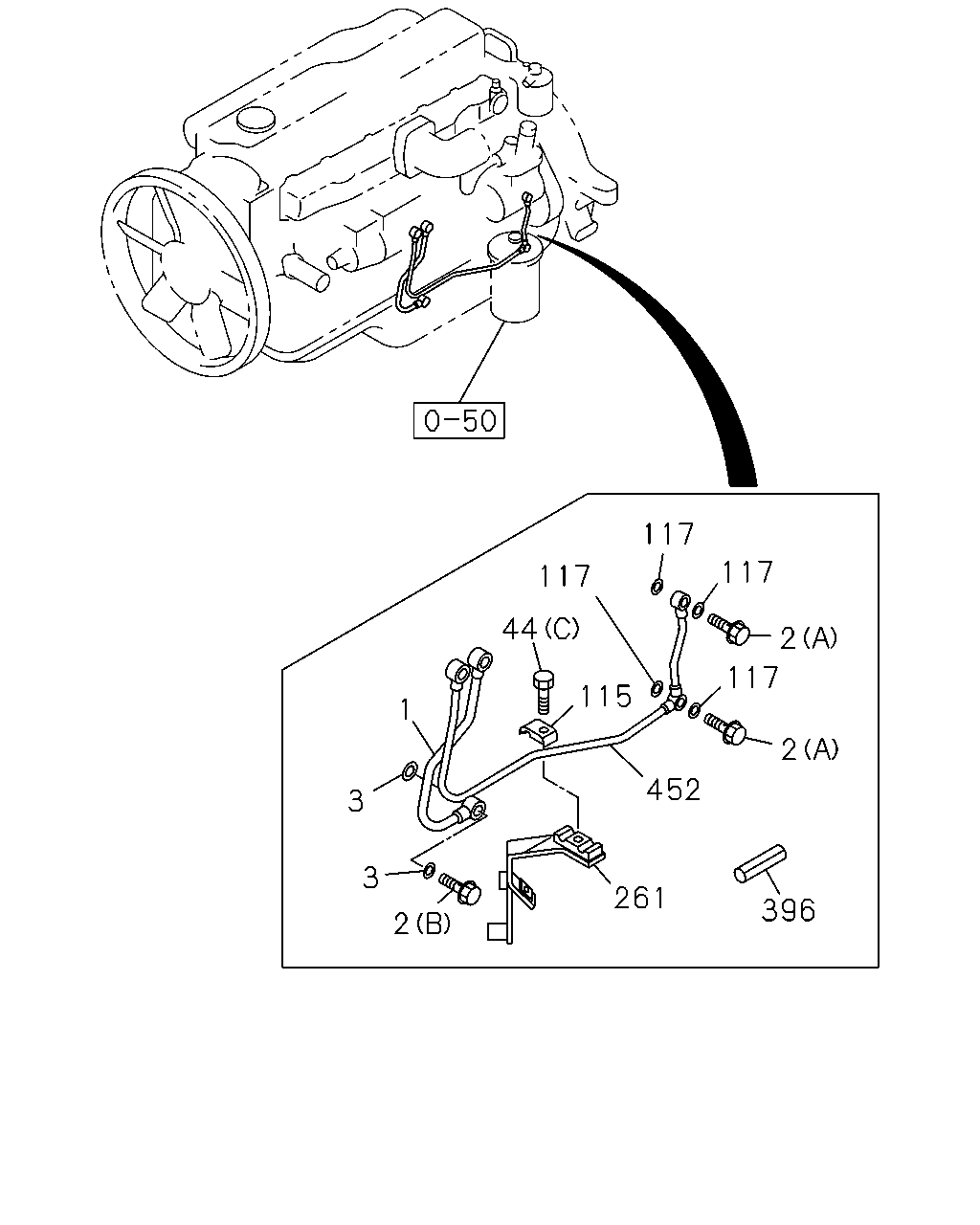

çizim 64392
117 117 117 117 44 2 2 452 261 396 2 3 3 1 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0303- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9803 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9804-0004 ● ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0302 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 04 1 9510-9803 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 04 1 9804-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9510-9803 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9804-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 02 1 1401- ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9803 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9804-0004 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0302 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9803 ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9804-0004 ● ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005-0302 ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0303- ● ●
115 CLIP; PIPE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-09701-091-0 01 1 0303- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		1-09630-084-0 01 1 0303-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-9803 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9804-0004 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9510-9803 ● ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9804-0004 ● ● ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 0005- ● ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0303- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9803 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9803 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9804-9906 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9804-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-0004 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●

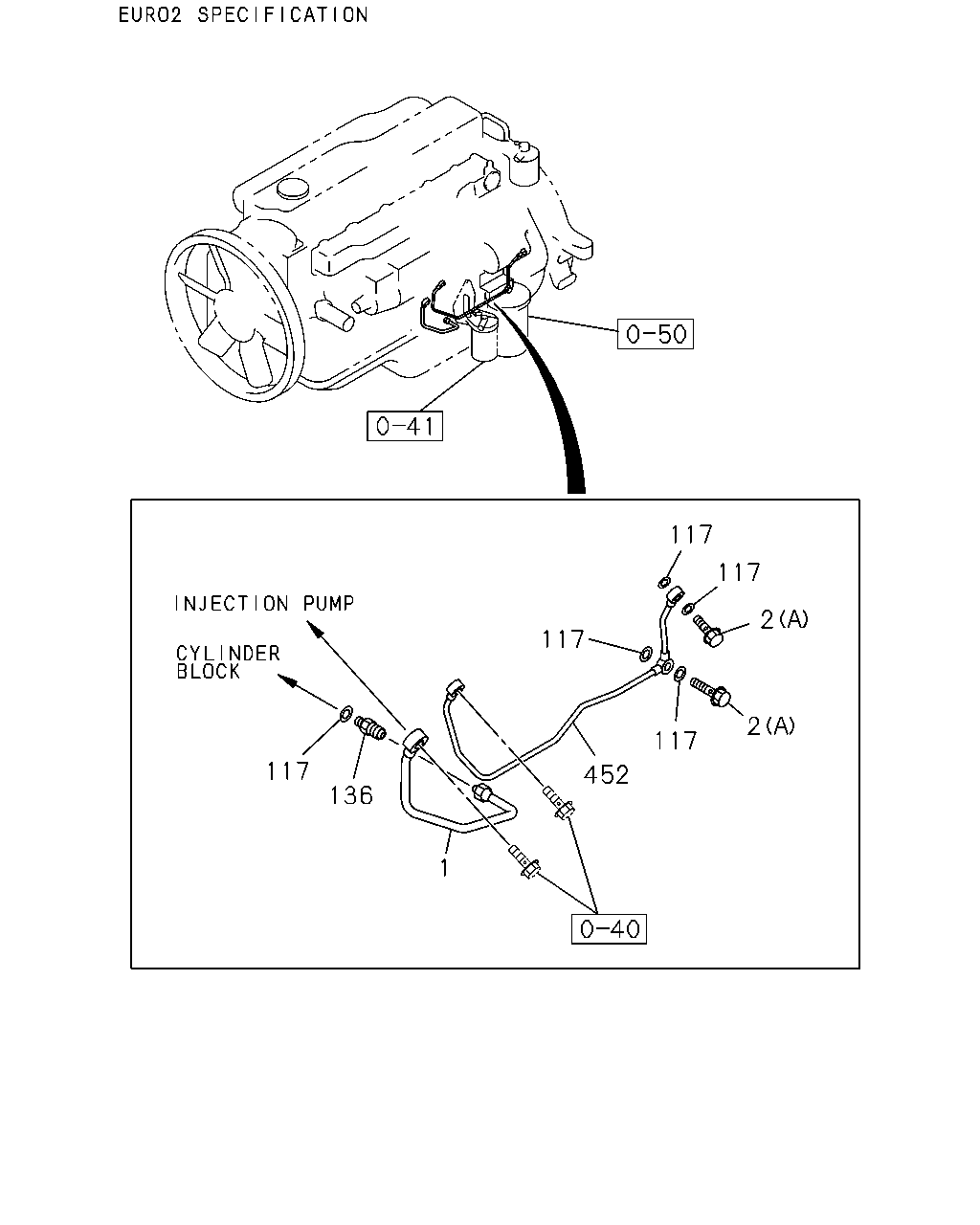

çizim 64762
117 117 2 117 2 117 117 452 136 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0303- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9803 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9804-0004 ● ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0302 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		1-09630-084-0 01 1 0303-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-9803 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9804-0004 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 0303- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0303- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9803 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9803 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9804-9906 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9804-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-0004 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●

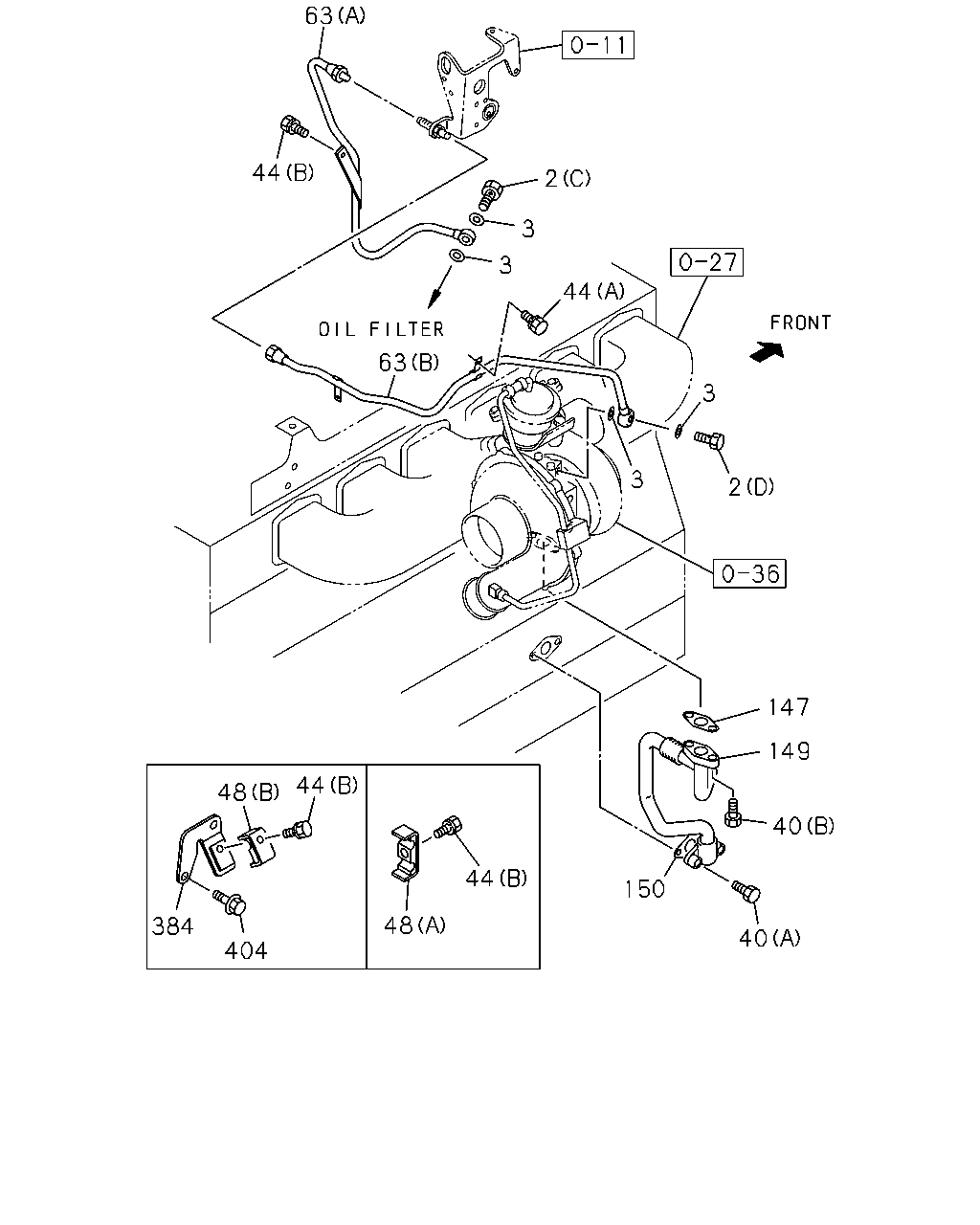

çizim 64912
2 3 3 44 63 63 44 3 3 2 147 149 40 40 150 44 48 44 48 404 384
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-9803 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9804-0004 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0302 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9803 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9804-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 04 1 9510-9803 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 04 1 9804-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9510-9803 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9804-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 02 1 1401- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9510-9803 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9804-0004 ● ●
40 BOLT; OIL PIPE
(B) M10X22 FLANGE 		0-28181-022-0 02 1 9510-9803 ●
40 BOLT; OIL PIPE
(B) M10X22 FLANGE 		0-28181-022-0 02 1 9804-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9803 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9804-0004 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0302 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ● ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0004 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9510-9803 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9804-9812 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 9901-0004 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9510-9803 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9804-0004 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9510-9803 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9804-0004 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9510-9803 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9804-0004 ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9510-9803 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9804-0004 ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 8-97600-199-0 01 1 9901-0004 ● ●
404 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9901-0004 ● ●

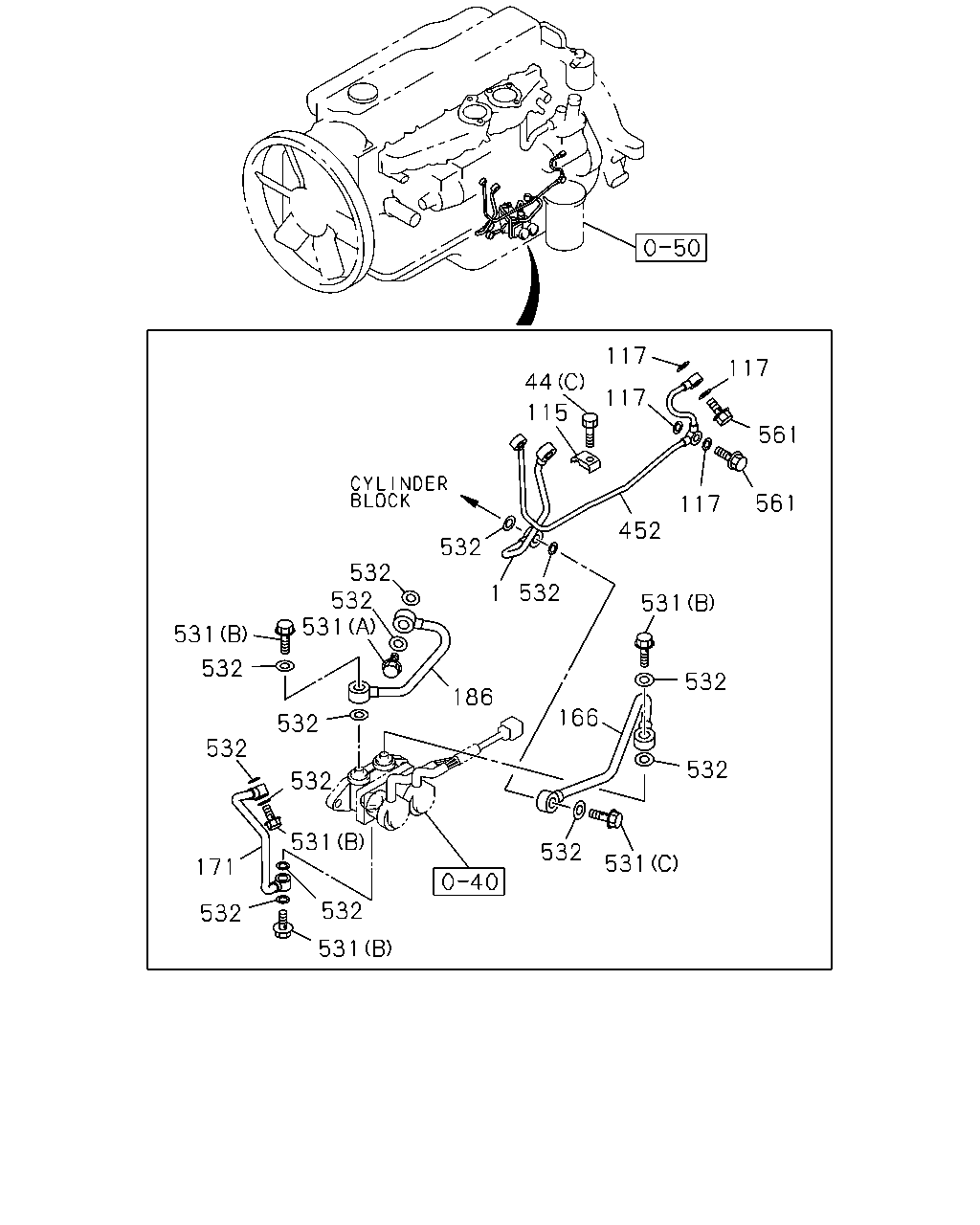

çizim 64922
117 117 44 117 115 561 561 117 452 532 532 532 531 532 1 531 531 532 532 186 166 532 532 532 532 531 532 531 171 532 532 531
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0303- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9803 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9804-0004 ● ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9803 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9804-9812 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9803 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9804-0004 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0302 ● ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0303- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9803 ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9804-0004 ● ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005-0302 ● ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0303- ● ●
115 CLIP; PIPE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-09701-091-0 01 1 0303- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		1-09630-084-0 01 1 0303-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-9803 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9804-0004 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ●
166 PIPE; OIL,C/BL TO SOLENOID VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-046-0 01 1 0005- ●
171 PIPE; OIL,SOLENOID VLV TO TIMER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-045-0 01 1 0005- ●
186 PIPE; OIL,SOLENOID VLV FEED
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-044-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0303- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9803 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9803 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9804-9906 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9804-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-0004 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 FLANGE 		1-09675-160-0 04 1 0005-0805 ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 04 1 0806- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M12X48 FLANGE 		8-94392-722-0 01 1 0005- ●
532 GASKET; JOINT,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2 		1-09630-084-0 11 1 0005-1312 ●
532 GASKET; JOINT,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2 		8-98251-344-0 11 1 1401- ●
561 BOLT; EYE,FILTER & AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE 		1-09675-077-0 02 1 0005-0805 ●
561 BOLT; EYE,FILTER & AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
