Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#64024) — 311 parça

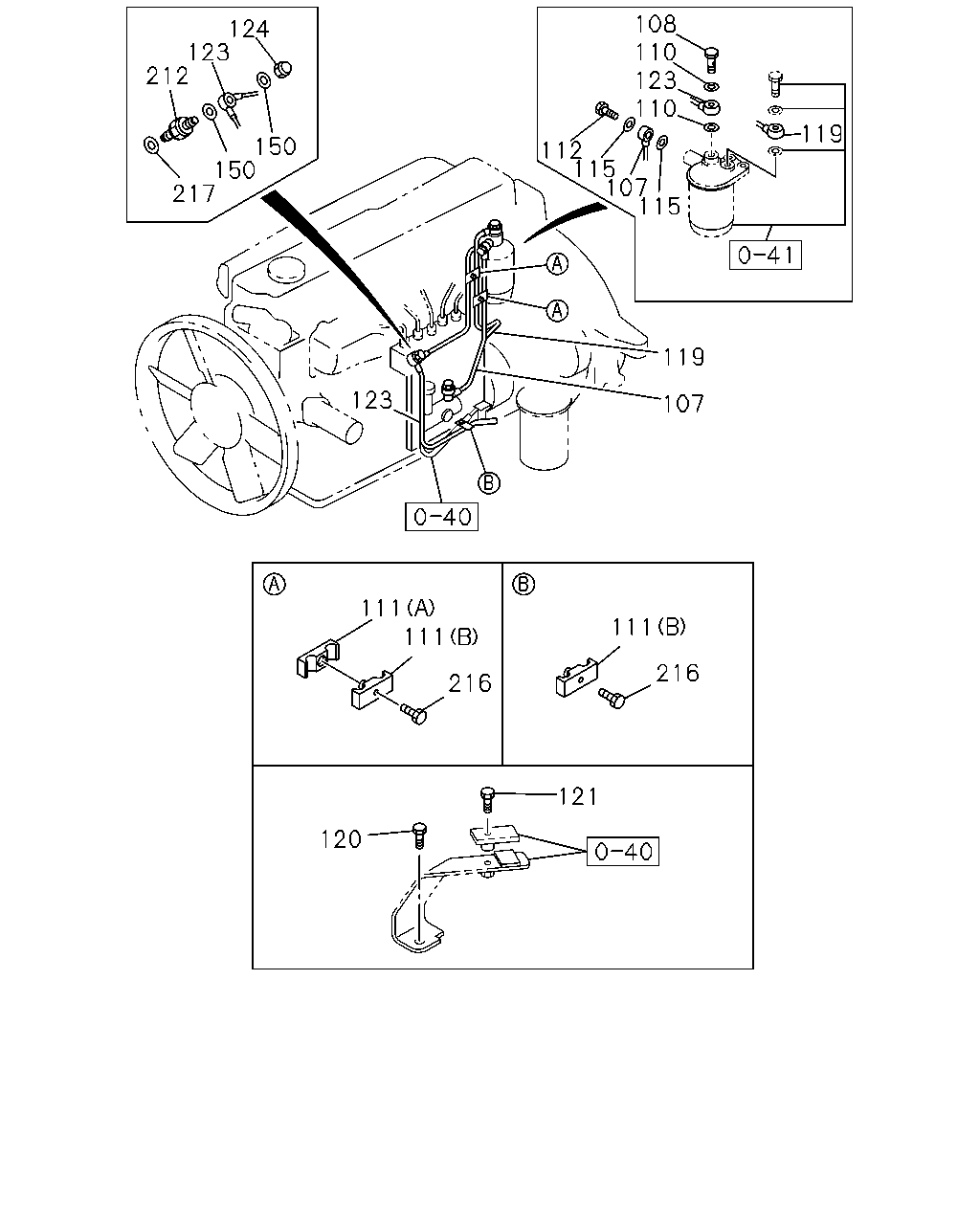

108 110 123 110 124 123 212 119 150 150 217 112 115 107 115 119 123 107 111 111 111 216 216 121 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0303-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9510-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9804-0004		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-703-1	01	1	0005-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-				●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0303-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9510-9803		●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9804-0004		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-9803		●		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0004		●	●	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0302	●			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0303-				●	●
111	CLIP; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=48	5-09709-103-0	03	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-				●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0303-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9510-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9804-0004		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-766-2	01	1	0005-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-				●	●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9510-9803		●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9804-0004		●	●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0303-	●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9510-9803		●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	8-94392-617-1	01	1	0303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9510-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-223-2	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9510-0004				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A>	8-94394-556-1	01	1	0005-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D>	8-94394-571-1	01	1	0102-				●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9803		●		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0004		●	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9510-9803		●		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9804-0004		●	●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-0302	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0303-				●	●
212	VALVE; OVERFLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-087-0	01	1	0303-	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0303-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9803		●		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9804-0004		●	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0512				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0512	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-9803		●		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0004		●	●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0302	●			●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●

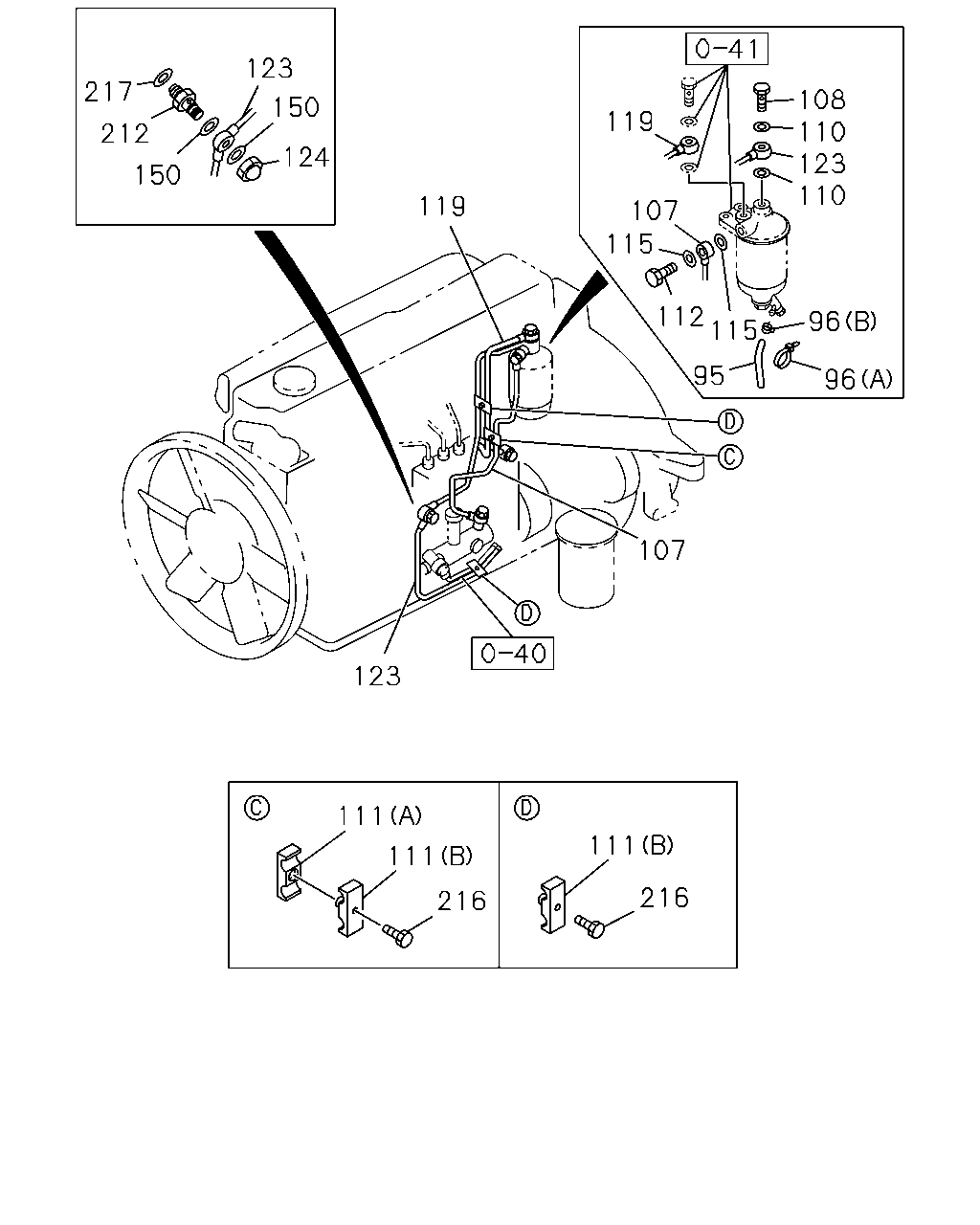

123 217 108 110 123 110 150 119 212 124 150 119 107 115 112 115 96 95 96 107 123 111 111 111 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
95	PIPE; VINYL PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9510-					●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	9510-1205					●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	8-98216-432-0	01	1	1206-					●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	9510-					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0303-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9510-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9804-0004		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-703-1	01	1	0005-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-				●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0303-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9510-9803		●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9804-0004		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-9803		●		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0004		●	●	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0302	●			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0303-				●	●
111	CLIP; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=48	5-09709-103-0	03	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-				●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0303-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9510-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9804-0004		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-766-2	01	1	0005-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	8-94392-617-1	01	1	0303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9510-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-223-2	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9510-0004				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A>	8-94394-556-1	01	1	0005-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D>	8-94394-571-1	01	1	0102-				●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9803		●		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0004		●	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9510-9803		●		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9804-0004		●	●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-0302	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0303-				●	●
212	VALVE; OVERFLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-087-0	01	1	0303-	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0303-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9803		●		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9804-0004		●	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0512				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0512	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-9803		●		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0004		●	●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0302	●			●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●

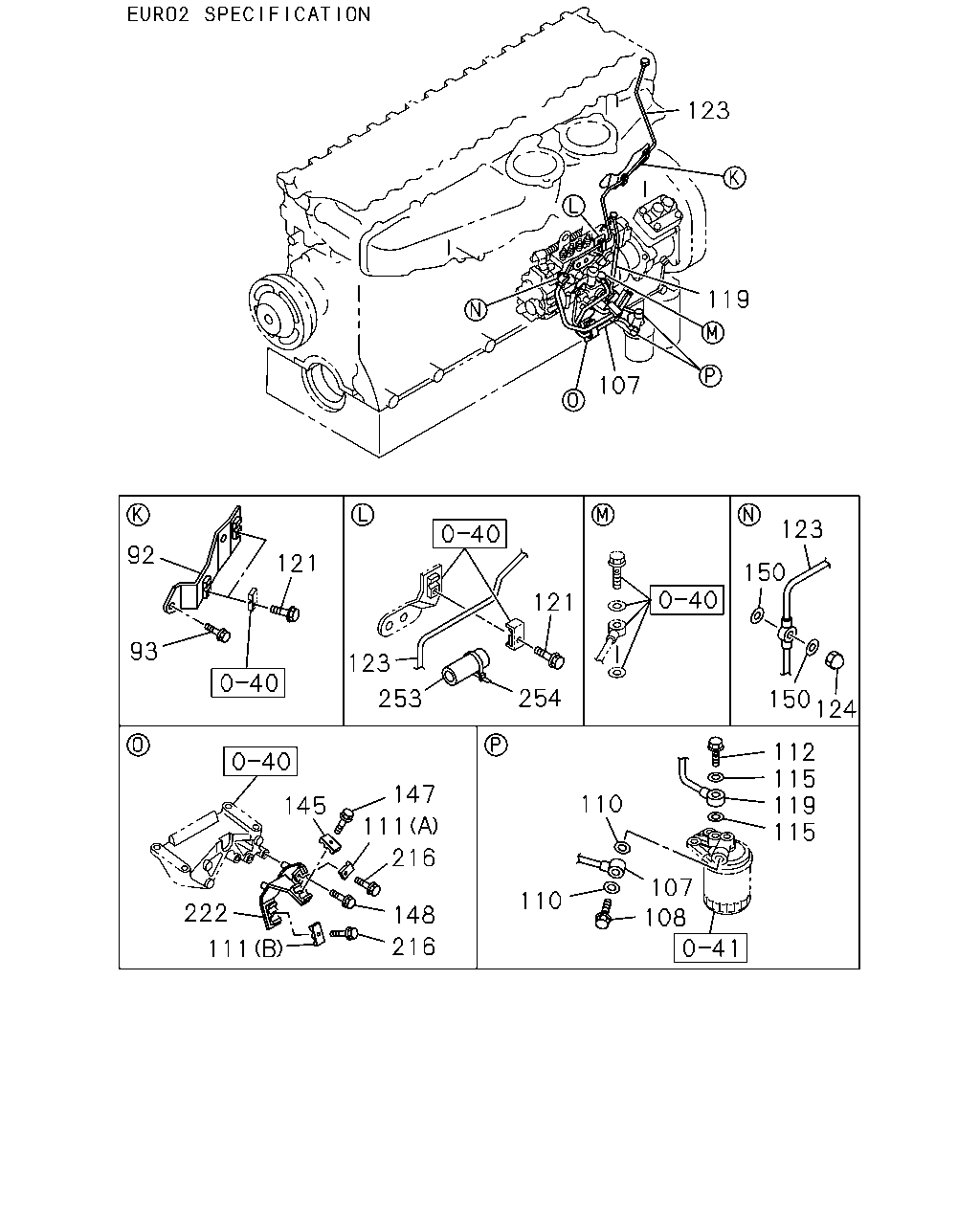

123 119 107 123 217 212 108 92 123 110 150 107 150 254 253 93 110 124 148 111 115 107 119 111 216 115 222 148 112 216 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN>	8-94391-980-0	01	1	0303-	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-710-1	01	1	0005-	●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	0303-	●
93	BOLT; PIPE BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
93	BOLT; PIPE BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0303-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9510-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9804-0004		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-703-1	01	1	0005-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-				●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0303-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9510-9803		●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9804-0004		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-9803		●		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0004		●	●	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0302	●			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0303-				●	●
111	CLIP; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=48	5-09709-103-0	03	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-				●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0303-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9510-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9804-0004		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-766-2	01	1	0005-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	8-94392-617-1	01	1	0303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9510-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-223-2	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9510-0004				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A>	8-94394-556-1	01	1	0005-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D>	8-94394-571-1	01	1	0102-				●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9803		●		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0004		●	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●			●	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X50 FLANGE	0-28080-850-0	02	1	0005-0302	●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0303-0512	●
148	BOLT; BRKT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9510-9803		●		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9804-0004		●	●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-0302	●			●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0303-				●	●
212	VALVE; OVERFLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-087-0	01	1	0303-	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0303-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9803		●		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9804-0004		●	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0512				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0512	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-9803		●		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0004		●	●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0302	●			●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-1	01	1	0303-	●
222	BRACKET; CLIP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-043-0	01	1	0005-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0303-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0303-	●
253	COVER; RUBBER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=10 OD=14 L=30	9-09956-682-0	02	1	0005-	●
254	CLIP EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=250	5-09707-030-1	02	1	0005-0302	●
254	CLIP L=250	5-09707-030-1	02	1	0303-1205	●
254	CLIP L=250	8-98216-430-0	02	1	1206-	●

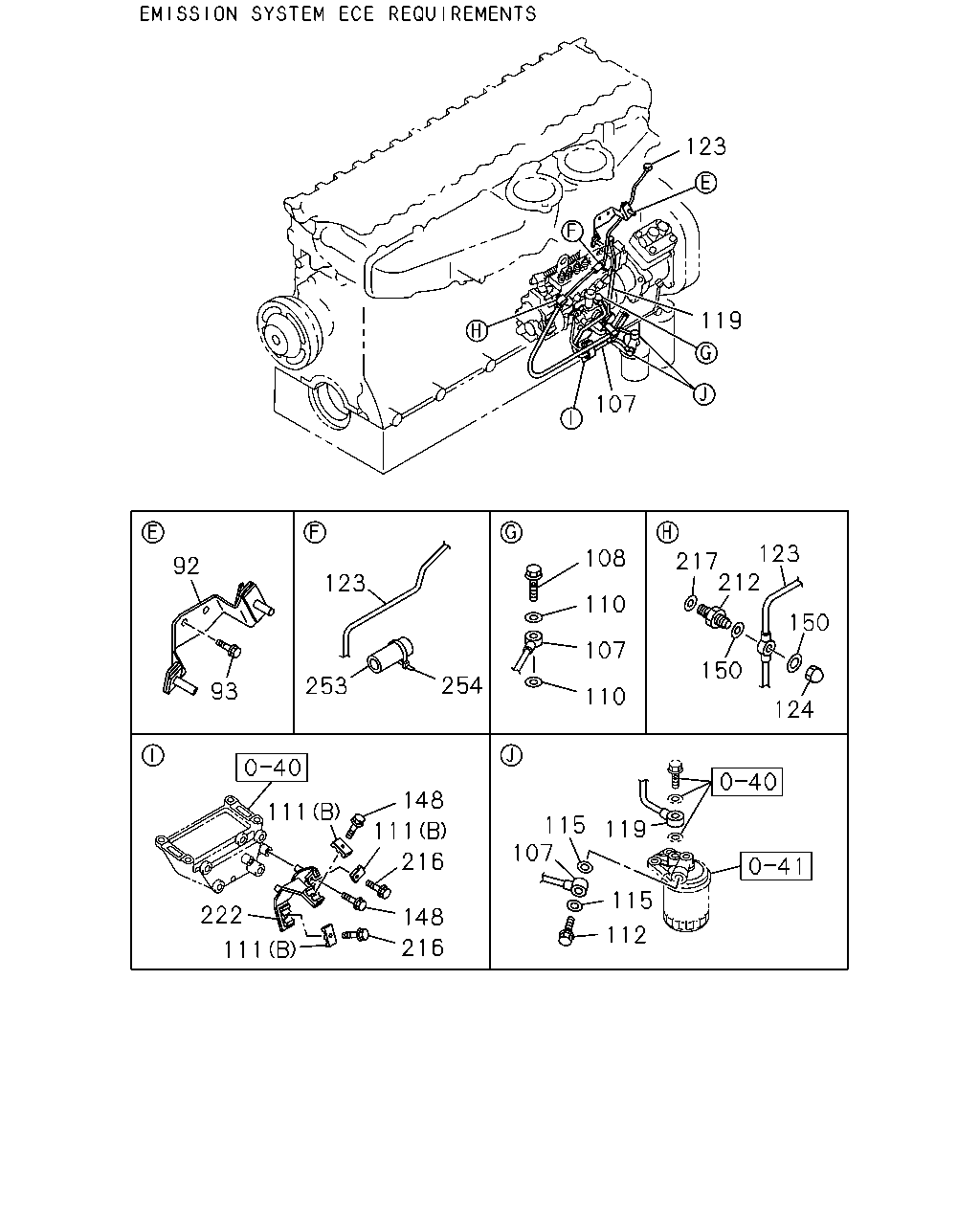

123 119 107 123 92 121 150 121 93 123 254 253 150 124 112 115 119 115 147 110 145 111 216 107 108 110 222 148 216 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN>	8-94391-980-0	01	1	0303-	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-710-1	01	1	0005-	●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	0303-	●
93	BOLT; PIPE BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
93	BOLT; PIPE BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0303-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9510-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9804-0004		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-703-1	01	1	0005-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-				●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0303-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9510-9803		●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9804-0004		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-9803		●		●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0004		●	●	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0302	●			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0303-				●	●
111	CLIP; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=48	5-09709-103-0	03	1	0303-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-				●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-9803		●		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0303-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9510-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9804-0004		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-766-2	01	1	0005-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-				●	●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0303-	●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9510-9803		●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	8-94392-617-1	01	1	0303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9510-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9804-0004		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-223-2	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9510-0004				●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A>	8-94394-556-1	01	1	0005-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D>	8-94394-571-1	01	1	0102-				●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9803		●		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0004		●	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●			●	●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0303-	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0303-0512	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X50 FLANGE	0-28080-850-0	02	1	0005-0302	●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0303-0512	●
148	BOLT; BRKT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●			●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0303-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9803		●		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9804-0004		●	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0512				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0512	●
216	BOLT; CLIP,FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-1	01	1	0303-	●
222	BRACKET; CLIP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-043-0	01	1	0005-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0303-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0303-	●
253	COVER; RUBBER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=10 OD=14 L=30	9-09956-682-0	02	1	0005-	●
254	CLIP EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=250	5-09707-030-1	02	1	0005-0302	●
254	CLIP L=250	5-09707-030-1	02	1	0303-1205	●
254	CLIP L=250	8-98216-430-0	02	1	1206-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
