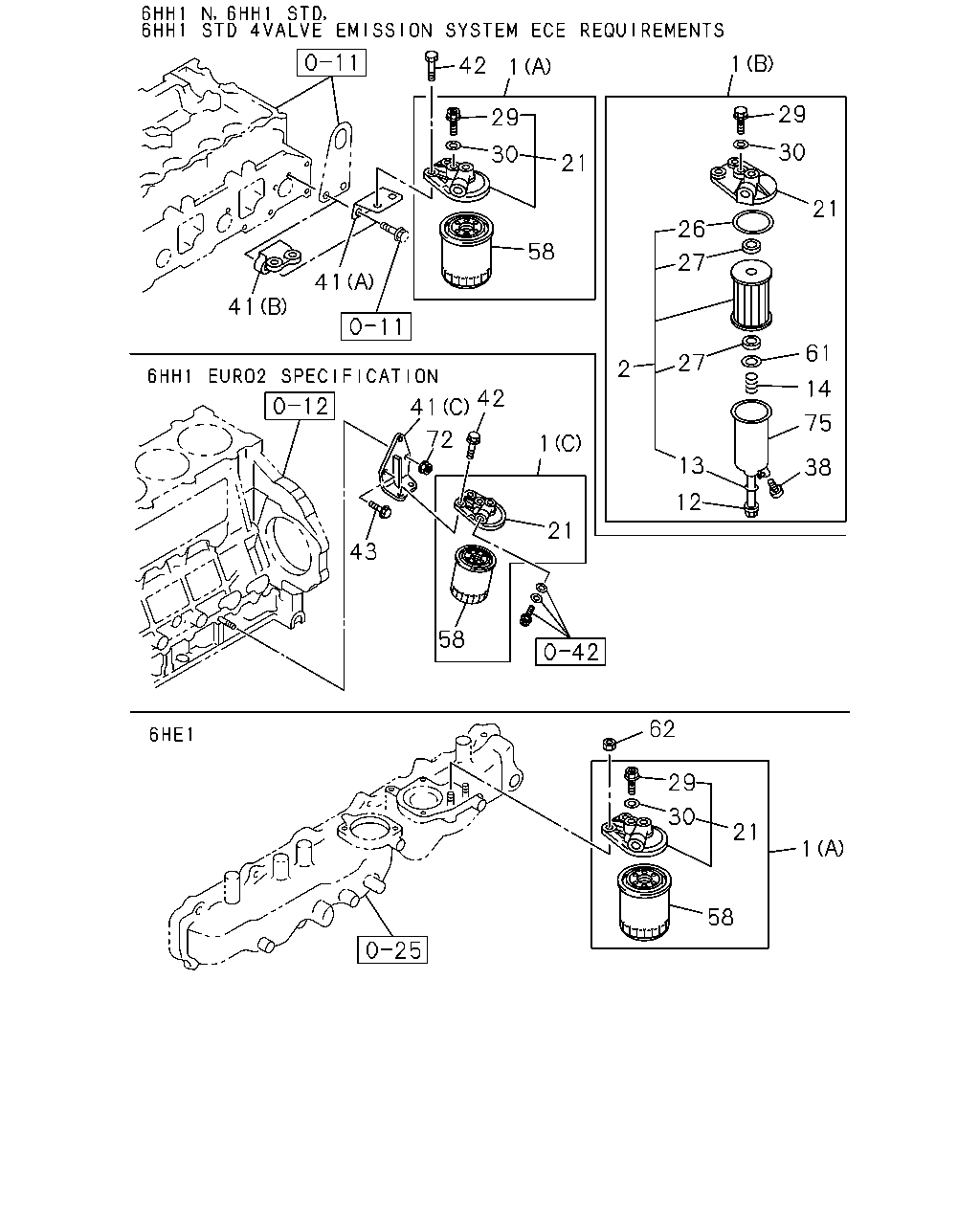

0-41 — FUEL FILTER AND BRACKET (#64023) — 74 parça

1 42 1 29 29 30 30 21 21 26 58 27 41 41 61 27 2 14 42 41 75 72 1 13 38 12 21 43 58 62 29 30 21 1 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	FILTER ASM; FUEL EURO2 SPECIFICATION<THN> (C)	1-13200-890-4	01	1	0303-	●
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9510-9803		●	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-449-1	01	1	9510-9803				●
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9804-9804		●	●		●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-449-1	01	1	9804-9804				●
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9805-0004		●	●		●
1	FILTER ASM; FUEL EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-449-1	01	1	9805-0004				●
1	FILTER ASM; FUEL EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-449-3	01	1	0005-0302				●
1	FILTER ASM; FUEL (A)	8-94393-449-3	01	1	0005-0302	●		●
1	FILTER ASM; FUEL EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-449-3	01	1	0303-				●
1	FILTER ASM; FUEL (A)	8-94393-449-3	01	1	0303-			●
1	FILTER ASM; FUEL EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94393-449-3	01	1	0303-	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94397-113-3	01	1	9510-				●
2	ELEMENT KIT; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-88511-191-1	01	1	9510-				●
12	BOLT; CENTER,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13231-053-0	01	1	9510-				●
13	GASKET; CENTER BOLT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-541-0	01	1	9510-				●
14	SPRING; ELEMENT SUPPORT,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09742-109-0	01	1	9510-				●
21	COVER; UPR,FUEL FILTER	8-94396-669-0	01	1	9510-9803		●	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-669-0	01	1	9510-9803				●
21	COVER; UPR,FUEL FILTER	8-94396-669-0	01	1	9804-0004		●	●		●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-669-0	01	1	9804-0004				●
21	COVER; UPR,FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94396-669-1	01	1	0005-0302				●
21	COVER; UPR,FUEL FILTER	8-94396-669-1	01	1	0005-0302	●		●
21	COVER; UPR,FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94396-669-1	01	1	0303-				●
21	COVER; UPR,FUEL FILTER	8-94396-669-1	01	1	0303-			●
21	COVER; UPR,FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-669-1	01	1	0303-	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13212-804-0	01	1	9510-				●
26	GASKET; COVER TO BODY PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13213-601-0	01	1	9510-				●
27	GASKET; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-542-0	02	1	9510-				●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9510-9803		●	●	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9804-0004		●	●	●	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0005-0302	●		●	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0303-			●	●
29	VALVE; OVERFLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94399-170-0	01	1	0303-	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9803		●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004		●	●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0302	●		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
38	PLUG; DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-052-0	01	1	9510-				●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION<THN> (C)	8-94392-067-2	01	1	0303-	●
41	BRACKET; FUEL FILTER (A)	8-94399-441-0	01	1	9510-			●	●
41	BRACKET; FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94390-944-1	01	1	0005-	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9510-9709			●	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-0004			●	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0005-0512	●		●	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●	●
43	BOLT; BRKT EURO2 SPECIFICATION<THN> M10X20 FLANGE	0-28181-020-0	02	1	0303-0512	●
43	BOLT; BRKT EURO2 SPECIFICATION<THN> M10X20 FLANGE	0-28151-020-0	02	1	0601-	●
58	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<THN>	1-13240-079-1	01	1	0303-0711	●
58	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<THN>	8-98036-654-0	01	1	0712-	●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9510-9803		●	●
58	ELEMENT; FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-079-1	01	1	9510-9803				●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9804-0004		●	●		●
58	ELEMENT; FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-079-1	01	1	9804-0004				●
58	ELEMENT; FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94394-079-2	01	1	0005-0302				●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	0005-0302	●		●
58	ELEMENT; FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94394-079-2	01	1	0303-				●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	0303-			●
58	ELEMENT; FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-079-2	01	1	0303-	●
58	ELEMENT; FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> BEST VALUE PARTS	1-87610-054-1	01	1	0005-0302				●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	0005-0302	●		●
58	ELEMENT; FUEL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> BEST VALUE PARTS	1-87610-054-1	01	1	0303-				●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	0303-			●
58	ELEMENT; FUEL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV> BEST VALUE PARTS	1-87610-054-1	01	1	0303-	●
58	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<THN> BEST VALUE PARTS	1-87610-053-1	01	1	0712-	●
61	SEAT; SPR ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09651-068-0	01	1	9510-				●
62	NUT; FUEL FILTER	0-91150-110-0	02	1	9510-9803		●
62	NUT; FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	9804-0004		●			●
72	NUT; BRKT,FUEL FILTER EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-208-0	01	1	0303-0602	●
72	NUT; BRKT,FUEL FILTER EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-208-0	01	1	0603-	●
75	BODY; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-518-1	01	1	9510-				●
