Sayfa 0-39 - Isuzu EPC

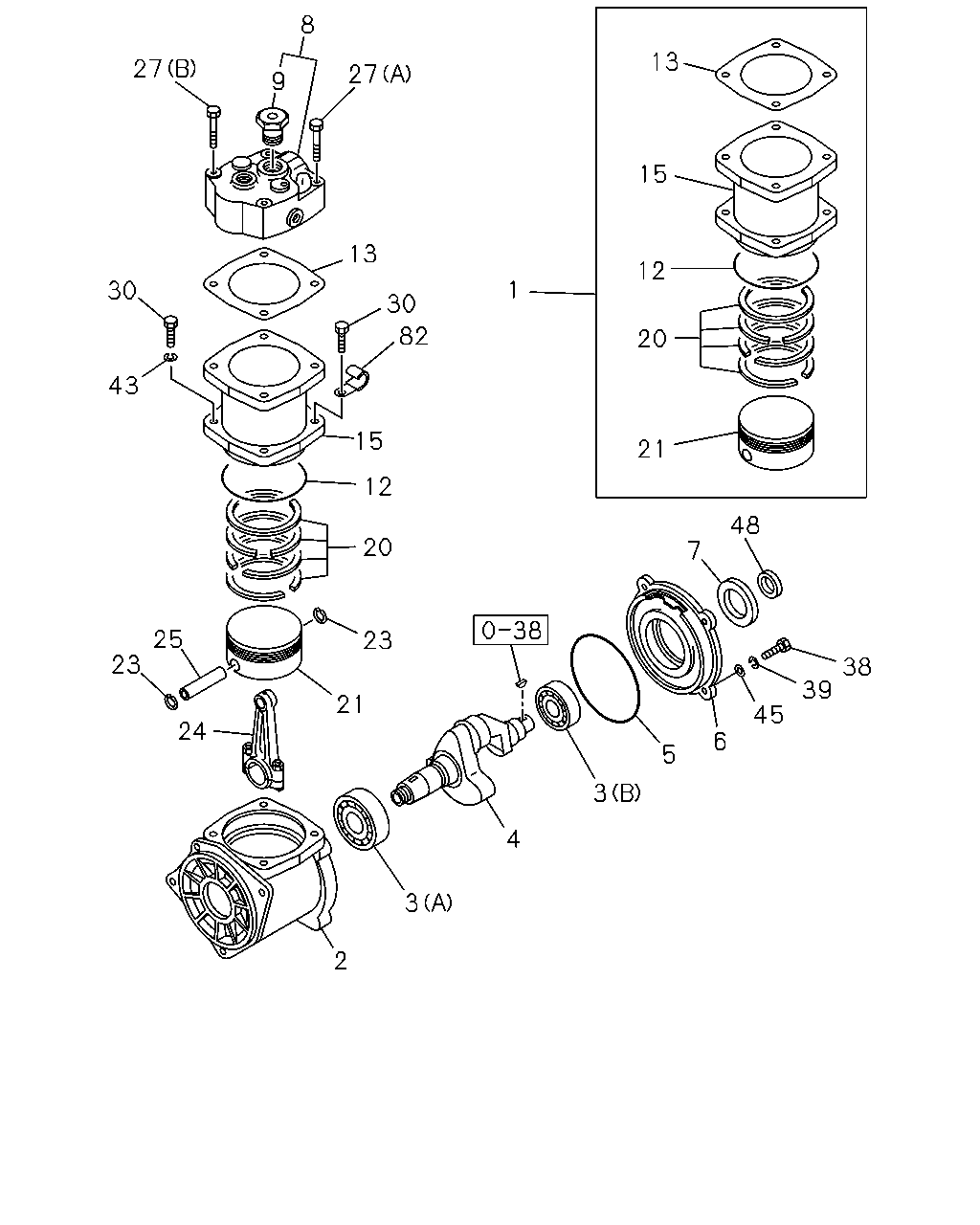

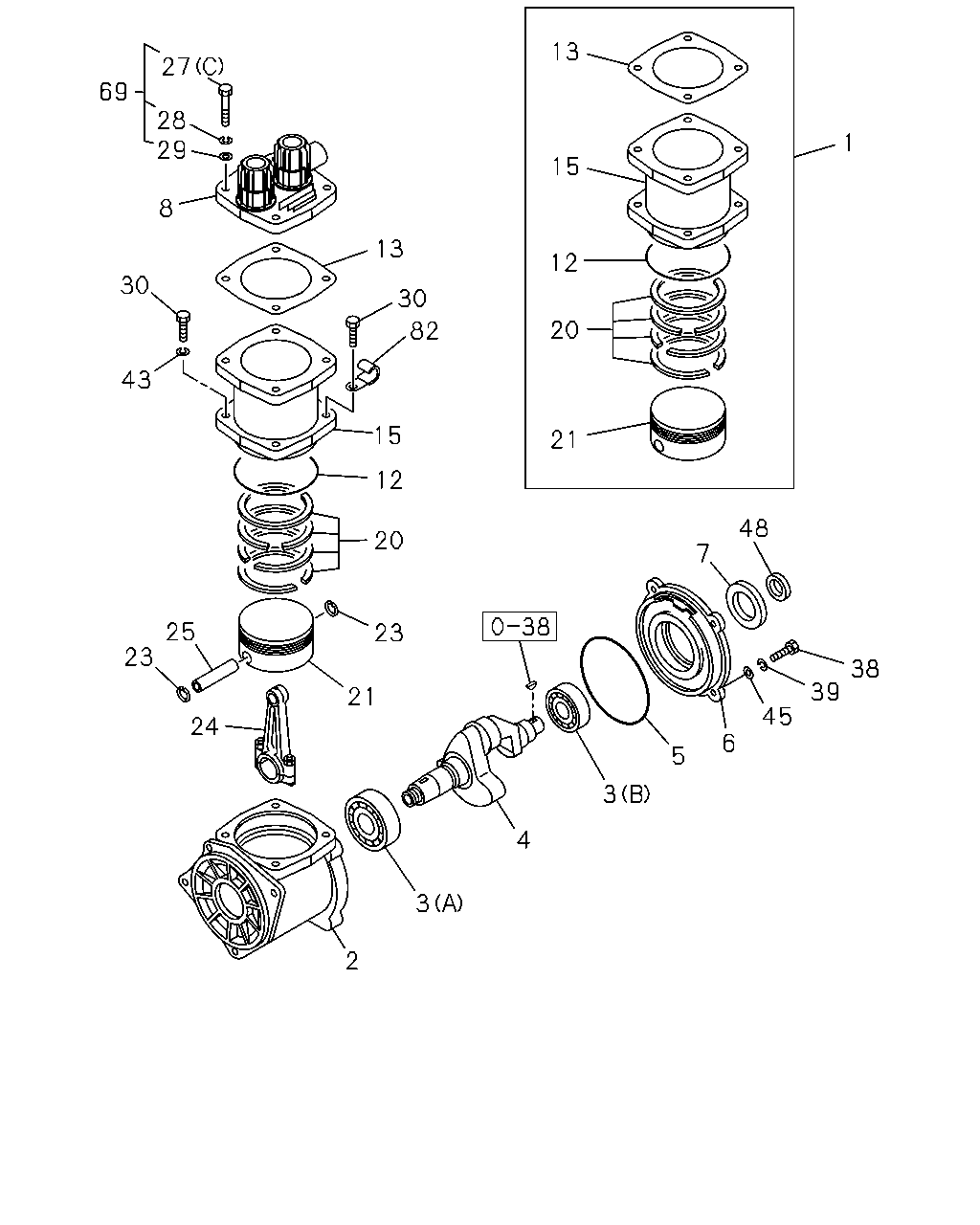

0-39 — AIR COMPRESSOR; BRAKE (#64021) — 488 parça

1 13 15 12 20 21 27 28 69 29 8 13 30 82 15 12 20 23 21 24 25 23 43 30 2 3 4 3 5 6 45 39 38 48 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-063-0	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-0	01	1	9510-9802		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-0	01	1	9510-9802				●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-0	01	1	9803-9803		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-0	01	1	9803-9803			●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9804-0004		●			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9804-0004			●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0005-0302			●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	0005-0302	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0303-			●	●
1	LINER KIT; CYL,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19163-050-1	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-1	01	1	9510-9802				●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9803-0812			●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-074-0	01	1	0901-			●	●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-282-2	01	1	0303-	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-9803		●	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9804-0004		●	●	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0005-0302	●		●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0303-			●	●
2	CRANKCASE; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19151-266-1	01	1	0303-	●
3	BEARING; AIR CMPR EURO2 SPECIFICATION<THN> (A)	1-19177-009-0	01	1	0303-	●
3	BEARING; AIR CMPR EURO2 SPECIFICATION<THN> (B)	1-19177-010-0	01	1	0303-	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-9803		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9804-0004		●	●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0005-0302	●		●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0303-			●	●
3	BEARING; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	9-00006-206-0	01	1	0303-	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-9803		●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9804-0004		●	●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0005-0302	●		●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0303-			●	●
3	BEARING; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	9-00090-152-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-077-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9510-9802		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-9802				●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9803-9803		●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9803-9803			●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9804-0004		●			●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9804-0004			●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0005-0302			●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	0005-0302	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0303-			●	●
4	CRANKSHAFT; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19171-047-1	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-9802				●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9803-			●	●
5	GASKET; AIR CMPR EURO2 SPECIFICATION<THN>	1-09623-627-0	01	1	0303-1107	●
5	GASKET; AIR CMPR EURO2 SPECIFICATION<THN>	8-98192-464-0	01	1	1108-	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-9803		●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9804-0004		●	●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-0302	●		●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0303-1107			●	●
5	GASKET; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09623-361-0	01	1	0303-1107	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-			●	●
5	GASKET; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98192-460-0	01	1	1108-	●
6	COVER ASM; BRG,AIR CMPR EURO2 SPECIFICATION<THN>	1-19156-075-1	01	1	0303-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-9803		●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9804-0004		●	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0005-0302	●		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0303-			●	●
6	COVER ASM; BRG,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19156-058-1	01	1	0303-	●
7	SEAL; OIL,BRG COVER,AIR CMPR EURO2 SPECIFICATION<THN>	1-09625-534-0	01	1	0303-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-9803		●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9804-0004		●	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0005-0302	●		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0303-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19158-026-0	01	1	0303-	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-051-0	01	1	0303-1107	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9510-9802		●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-9802				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9803-9803		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9803-9803			●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9804-0004		●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9804-0004			●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0005-0302			●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	0005-0302	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0303-	●		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-9802				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9803-1107			●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-			●	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9510-9802				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9803-0302			●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0303-			●	●
9	VALVE ASM; UNLOADER,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0303-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-9803		●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9804-0004		●	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-1107	●		●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-	●		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0005-0302			●	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	0005-0302	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0303-	●		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0005-0302			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0303-			●	●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0303-	●
13	GASKET; AIR CMPR	1-19115-006-0	01	1	9510-9802		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9510-9802				●
13	GASKET; AIR CMPR	1-19115-006-0	01	1	9803-9803		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9803-9803			●	●
13	GASKET; AIR CMPR	1-19115-006-1	01	1	9804-0004		●			●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-1	01	1	9804-0004			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9510-9802				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9803-9805			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-626-0	01	1	9806-0004			●	●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0303-	●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-285-0	01	1	0303-	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9510-9802		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-9802				●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9803-9803		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9803-9803			●	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9804-0004		●			●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9804-0004			●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0005-0302			●	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	0005-0302	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0303-			●	●
15	CYLINDER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19151-250-0	01	1	0303-	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-9802				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9803-			●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	0901-			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9510-9802		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9803-9803		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9803-9803			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9804-0004		●			●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9804-0004			●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0005-0302			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	0005-0302	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0303-	●		●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9803-0302			●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0303-0812			●	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0303-0812	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0901-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-027-0	01	1	0901-			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9510-9802		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-9802				●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9803-9803		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9803-9803			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9804-0004		●			●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9804-0004			●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0005-0302			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	0005-0302	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0303-	●		●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-9802				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9803-0302			●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0303-0812			●	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0303-0812	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0901-	●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0303-0812	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0901-1107	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1108-	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-9803		●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9804-0004		●	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0302	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0303-0812			●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0303-0812	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107	●		●	●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-020-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9510-9802		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9803-9803		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9803-9803			●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9804-0004		●			●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9804-0004			●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0005-0302			●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	0005-0302	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0303-			●	●
24	ROD ASM; CONN,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19173-017-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9803-			●	●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0303-0812	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0901-	●		●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9510-9802		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9803-9803		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9803-9803			●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9804-0004		●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9804-0004			●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0005-0302			●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	0005-0302	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0303-	●		●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9803-0812			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-031-0	04	1	0303-	●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9510-9802		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9802				●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9803-9803		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9803-9803			●	●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9804-9805		●			●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9804-9805			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9803-0302			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0303-			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0303-	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9803-0302			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0303-			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0303-	●
28	WASHER; LK,HD BOLT ID=10.2	9-09150-610-0	04	1	9510-9802		●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9510-9802				●
28	WASHER; LK,HD BOLT ID=10.2	9-09150-610-0	04	1	9803-9803		●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9803-9803			●	●
28	WASHER; LK,HD BOLT ID=10.2	9-09150-610-0	04	1	9804-9805		●			●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9804-9805			●	●
29	WASHER; PL,HD BOLT ID=10.5	9-09164-510-0	04	1	9510-9802		●	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9510-9802				●
29	WASHER; PL,HD BOLT ID=10.5	9-09164-510-0	04	1	9803-9803		●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9803-9803			●	●
29	WASHER; PL,HD BOLT ID=10.5	9-09164-510-0	04	1	9804-9805		●			●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9804-9805			●	●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9510-9802		●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9803-9803		●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9803-9803			●	●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9804-9805		●			●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9804-9805			●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9803-9805			●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0004		●	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-	●		●	●
38	BOLT; COVER FIX EURO2 SPECIFICATION<THN>	1-09100-018-0	02	1	0303-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-9803		●	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9804-0004		●	●	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0005-0302	●		●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0303-			●	●
38	BOLT; COVER FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-81385-023-0	04	1	0303-	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-9803		●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9804-0004		●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-0302	●		●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0303-			●	●
39	WASHER; LK,COVER FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.2	9-09150-608-0	04	1	0303-	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9803		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9804-9805		●	●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-9803		●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9804-0004		●	●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0005-0302	●		●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0303-			●	●
45	WASHER; PL,COVER FIX,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4	9-09160-508-0	04	1	0303-	●
48	SLEEVE; CR/SHF EURO2 SPECIFICATION<THN>	1-19179-024-0	01	1	0303-	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-9803		●	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9804-0004		●	●	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0005-0302	●		●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0303-			●	●
48	SLEEVE; CR/SHF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19179-014-0	01	1	0303-	●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	9806-0004		●			●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	9806-0004			●	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	0005-0302			●	●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	0005-0302	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	0303-			●	●
69	BOLT ASM; AIR COMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19119-031-0	04	1	0303-	●
82	CLIP; AIR COMPRESSOR EURO2 SPECIFICATION<THN>	1-19159-017-0	01	1	0303-	●

13 15 12 20 21 1 8 27 13 30 82 15 12 20 23 21 24 23 25 43 30 27 48 7 38 39 45 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-063-0	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-0	01	1	9510-9802		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-0	01	1	9510-9802				●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-0	01	1	9803-9803		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-0	01	1	9803-9803			●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9804-0004		●			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9804-0004			●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0005-0302			●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	0005-0302	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0303-			●	●
1	LINER KIT; CYL,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19163-050-1	01	1	0303-	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-1	01	1	9510-9802				●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9803-0812			●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-074-0	01	1	0901-			●	●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-282-2	01	1	0303-	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-9803		●	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9804-0004		●	●	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0005-0302	●		●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0303-			●	●
2	CRANKCASE; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19151-266-1	01	1	0303-	●
3	BEARING; AIR CMPR EURO2 SPECIFICATION<THN> (A)	1-19177-009-0	01	1	0303-	●
3	BEARING; AIR CMPR EURO2 SPECIFICATION<THN> (B)	1-19177-010-0	01	1	0303-	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-9803		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9804-0004		●	●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0005-0302	●		●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0303-			●	●
3	BEARING; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	9-00006-206-0	01	1	0303-	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-9803		●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9804-0004		●	●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0005-0302	●		●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0303-			●	●
3	BEARING; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	9-00090-152-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-077-0	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9510-9802		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-9802				●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9803-9803		●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9803-9803			●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9804-0004		●			●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9804-0004			●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0005-0302			●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	0005-0302	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0303-			●	●
4	CRANKSHAFT; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19171-047-1	01	1	0303-	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-9802				●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9803-			●	●
5	GASKET; AIR CMPR EURO2 SPECIFICATION<THN>	1-09623-627-0	01	1	0303-1107	●
5	GASKET; AIR CMPR EURO2 SPECIFICATION<THN>	8-98192-464-0	01	1	1108-	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-9803		●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9804-0004		●	●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-0302	●		●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0303-1107			●	●
5	GASKET; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09623-361-0	01	1	0303-1107	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-			●	●
5	GASKET; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98192-460-0	01	1	1108-	●
6	COVER ASM; BRG,AIR CMPR EURO2 SPECIFICATION<THN>	1-19156-075-1	01	1	0303-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-9803		●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9804-0004		●	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0005-0302	●		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0303-			●	●
6	COVER ASM; BRG,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19156-058-1	01	1	0303-	●
7	SEAL; OIL,BRG COVER,AIR CMPR EURO2 SPECIFICATION<THN>	1-09625-534-0	01	1	0303-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-9803		●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9804-0004		●	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0005-0302	●		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0303-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19158-026-0	01	1	0303-	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-051-0	01	1	0303-1107	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9510-9802		●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-9802				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9803-9803		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9803-9803			●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9804-0004		●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9804-0004			●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0005-0302			●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	0005-0302	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0303-	●		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-9802				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9803-1107			●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-			●	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9510-9802				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9803-0302			●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0303-			●	●
9	VALVE ASM; UNLOADER,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0303-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-9803		●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9804-0004		●	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-1107	●		●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-	●		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0005-0302			●	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	0005-0302	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98113-036-0	01	1	0303-	●		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0005-0302			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0303-			●	●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98112-947-0	01	1	0303-	●
13	GASKET; AIR CMPR	1-19115-006-0	01	1	9510-9802		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9510-9802				●
13	GASKET; AIR CMPR	1-19115-006-0	01	1	9803-9803		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-0	01	1	9803-9803			●	●
13	GASKET; AIR CMPR	1-19115-006-1	01	1	9804-0004		●			●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19115-006-1	01	1	9804-0004			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9510-9802				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8	1-19139-004-0	01	1	9803-9805			●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-626-0	01	1	9806-0004			●	●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0303-	●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-285-0	01	1	0303-	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9510-9802		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-9802				●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9803-9803		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9803-9803			●	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9804-0004		●			●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9804-0004			●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0005-0302			●	●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	0005-0302	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0303-			●	●
15	CYLINDER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19151-250-0	01	1	0303-	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-9802				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9803-			●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	0901-			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9510-9802		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9803-9803		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9803-9803			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9804-0004		●			●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9804-0004			●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0005-0302			●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	0005-0302	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0303-	●		●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9803-0302			●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0303-0812			●	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0303-0812	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0901-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-027-0	01	1	0901-			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9510-9802		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-9802				●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9803-9803		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9803-9803			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9804-0004		●			●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9804-0004			●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0005-0302			●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	0005-0302	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0303-	●		●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-9802				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9803-0302			●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0303-0812			●	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0303-0812	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0901-	●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0303-0812	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0901-1107	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1108-	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-9803		●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9804-0004		●	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0302	●		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0303-0812			●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0303-0812	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107	●		●	●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-020-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9510-9802		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9803-9803		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9803-9803			●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9804-0004		●			●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9804-0004			●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0005-0302			●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	0005-0302	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0303-			●	●
24	ROD ASM; CONN,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19173-017-0	01	1	0303-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9803-			●	●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0303-0812	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0901-	●		●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9510-9802		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9803-9803		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9803-9803			●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9804-0004		●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9804-0004			●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0005-0302			●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	0005-0302	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0303-	●		●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9803-0812			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-031-0	04	1	0303-	●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9510-9802		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9802				●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9803-9803		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9803-9803			●	●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9804-9805		●			●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9804-9805			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9803-0302			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0303-			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0303-	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9803-0302			●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0303-			●	●
27	BOLT; HD EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0303-	●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9510-9802		●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9803-9803		●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9803-9803			●	●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9804-9805		●			●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9804-9805			●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9803-9805			●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0004		●	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-	●		●	●
38	BOLT; COVER FIX EURO2 SPECIFICATION<THN>	1-09100-018-0	02	1	0303-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-9803		●	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9804-0004		●	●	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0005-0302	●		●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0303-			●	●
38	BOLT; COVER FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-81385-023-0	04	1	0303-	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-9803		●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9804-0004		●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-0302	●		●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0303-			●	●
39	WASHER; LK,COVER FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.2	9-09150-608-0	04	1	0303-	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9803		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9804-9805		●	●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-9803		●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9804-0004		●	●	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0005-0302	●		●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0303-			●	●
45	WASHER; PL,COVER FIX,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4	9-09160-508-0	04	1	0303-	●
48	SLEEVE; CR/SHF EURO2 SPECIFICATION<THN>	1-19179-024-0	01	1	0303-	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-9803		●	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9804-0004		●	●	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0005-0302	●		●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0303-			●	●
48	SLEEVE; CR/SHF EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-19179-014-0	01	1	0303-	●
82	CLIP; AIR COMPRESSOR EURO2 SPECIFICATION<THN>	1-19159-017-0	01	1	0303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
