Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#64020) — 1011 parça

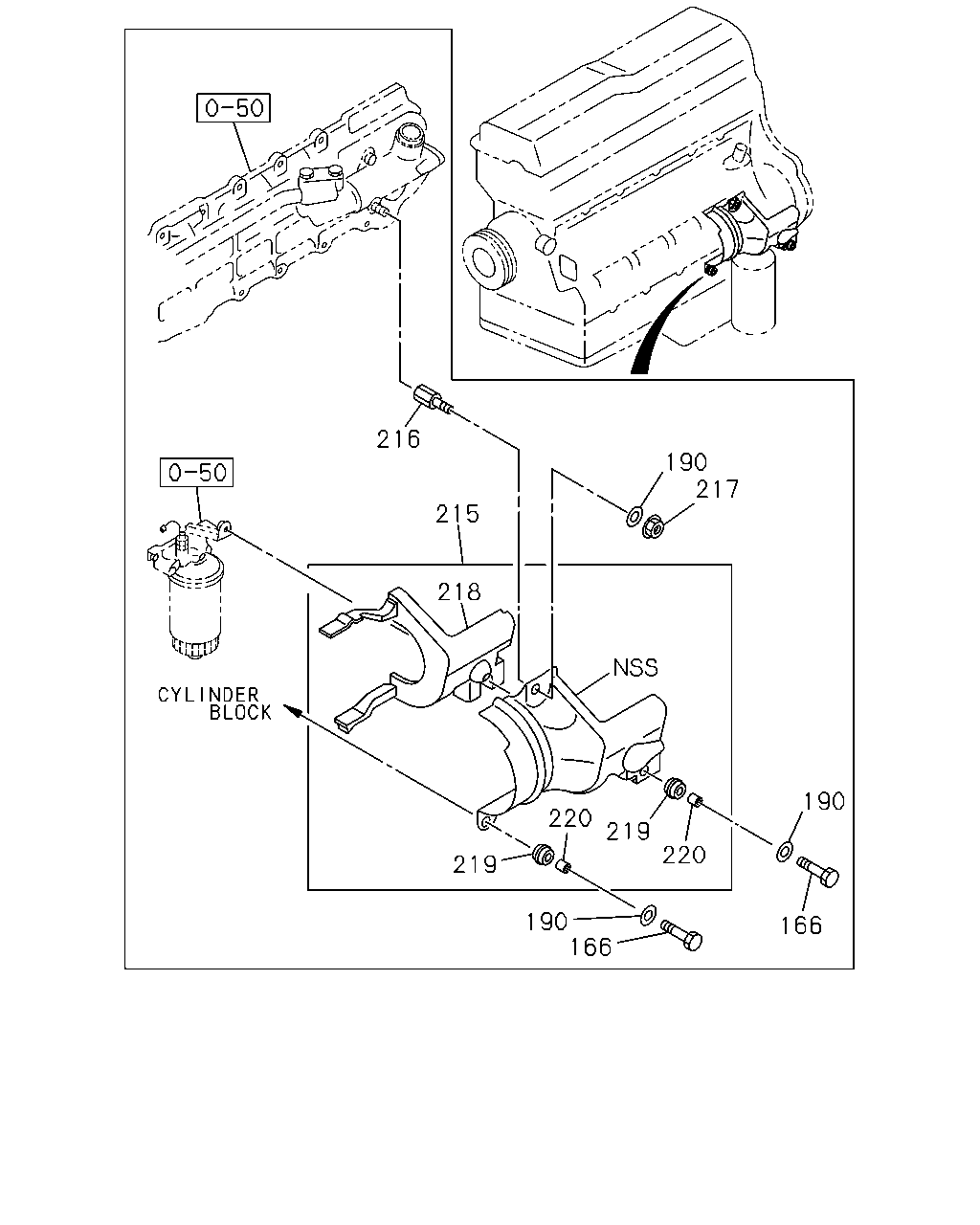

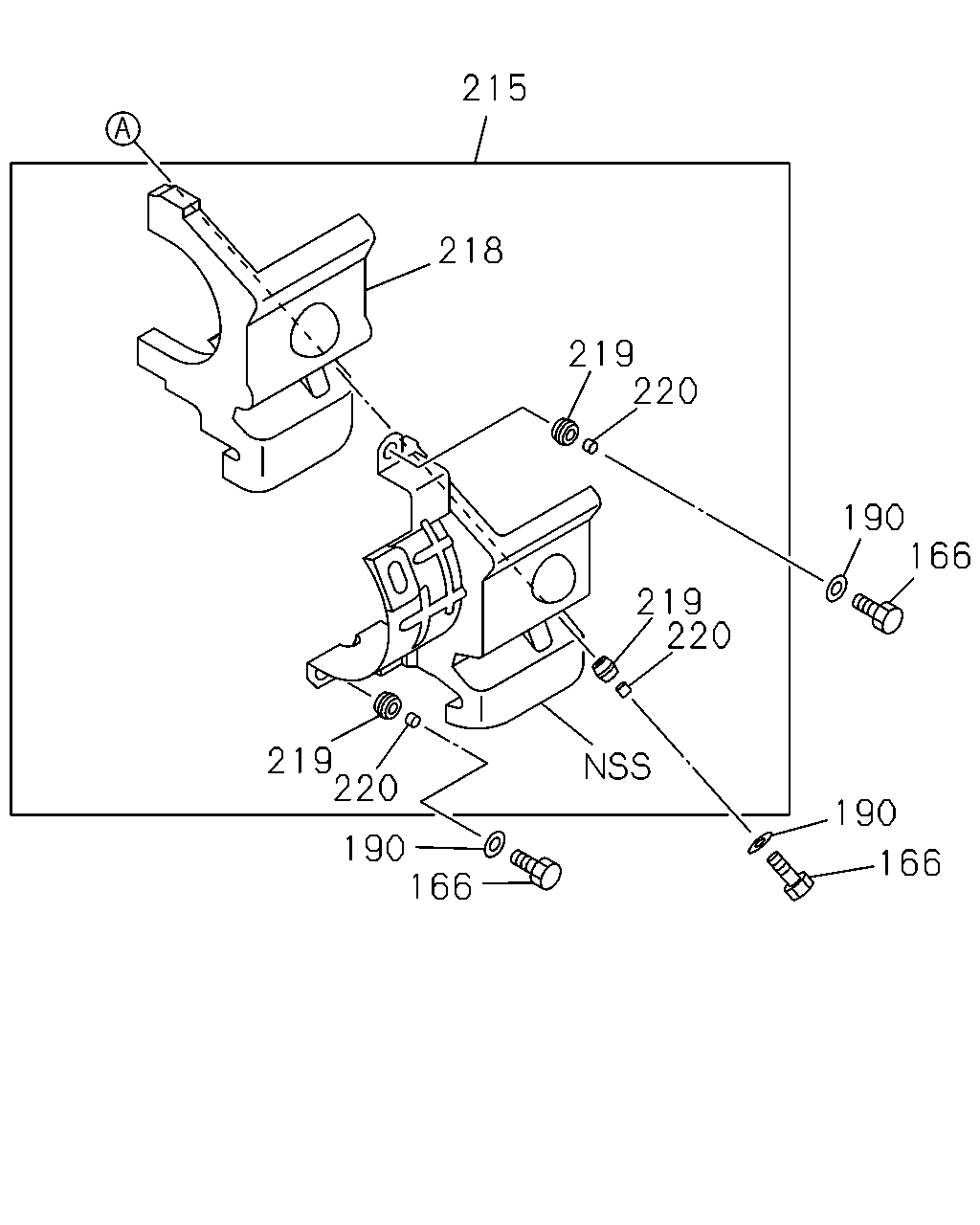

216 190 217 215 218 190 220 219 220 219 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28781-025-0	02	1	0412-0512	●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 FLANGE	0-28781-025-0	03	1	0303-0307		●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9510-9802	●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9510-9802				●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9803-9803			●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9803-9803				●
166	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 FLANGE	0-28181-025-0	02	1	9803-9803	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9804-9805			●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9804-9805				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28181-025-0	02	1	9804-9805	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	9806-0004			●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28781-025-0	02	1	9806-0004				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	0412-	●
190	WASHER; PL,COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26	9-09160-710-0	03	1	0303-0307		●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9510-9802	●		●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9510-9802				●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803			●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803				●
190	WASHER; PL,COVER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004			●		●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004				●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004	●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	0412-	●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-627-0	01	1	0303-0307		●
215	COVER; AIR CMPR	8-94394-993-2	01	1	9510-9608	●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-993-2	01	1	9510-9608				●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9609-9802	●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9609-9802				●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9803-9803			●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9803-9803				●
215	COVER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-408-0	01	1	9803-9803	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9804-0004			●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9804-0004				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-408-0	01	1	9804-0004	●
216	SPACER; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-990-1	01	1	0412-	●
216	SPACER; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-990-1	01	1	9510-0004				●
216	SPACER; COVER	8-94394-990-1	01	1	9510-0004	●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	9-09110-410-0	01	1	0412-0512	●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	0-91110-510-0	01	1	0601-	●
217	NUT; COVER M10	9-09110-410-0	01	1	9510-9802	●		●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	9-09110-410-0	01	1	9510-9802				●
217	NUT; COVER M10	9-09110-410-0	01	1	9803-9803			●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	9-09110-410-0	01	1	9803-9803				●
217	NUT; COVER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10	9-09110-410-0	01	1	9803-9803	●
217	NUT; COVER M10	9-09110-410-0	01	1	9804-0004			●		●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	9-09110-410-0	01	1	9804-0004				●
217	NUT; COVER ANTI NOISE EQUIPMENT VAR2<TAK> M10	9-09110-410-0	01	1	9804-0004	●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	0412-	●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-628-0	01	1	0303-0307		●
218	INSULATOR; COVER	8-94394-995-2	01	1	9510-9802	●		●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9510-9802				●
218	INSULATOR; COVER	8-94394-995-2	01	1	9803-9803			●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9803-9803				●
218	INSULATOR; COVER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-995-2	01	1	9803-9803	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9804-0004			●		●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9804-0004				●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-94394-995-2	01	1	9804-0004	●
219	RUBBER; MTG EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-472-0	03	1	0303-0307		●
219	RUBBER; MTG OD=22	8-94140-428-1	03	1	9510-9608	●		●
219	RUBBER; MTG ANTI NOISE EQUIPMENT ECE<SLK> OD=22	8-94140-428-1	03	1	9510-9608				●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	0412-	●
220	TUBE; DIST EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) OD=13 T=9.5	8-94140-427-1	03	1	0303-0307		●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9510-9802	●		●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9510-9802				●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9803-9803			●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9803-9803				●
220	TUBE; DIST EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) OD=13 T=9.5	8-94140-427-1	03	1	9803-9803	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9804-0004			●		●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9804-0004				●
220	TUBE; DIST ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	9804-0004	●

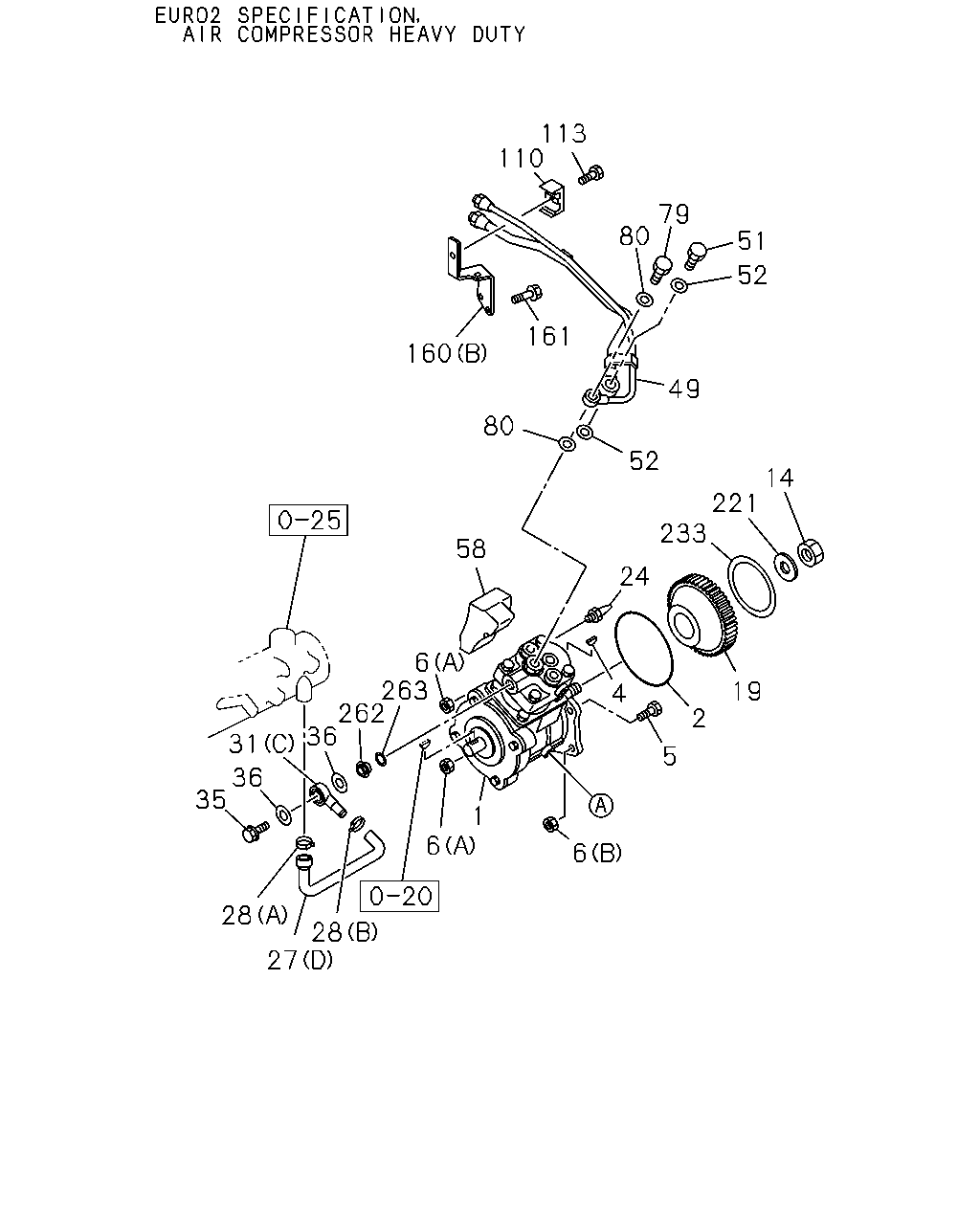

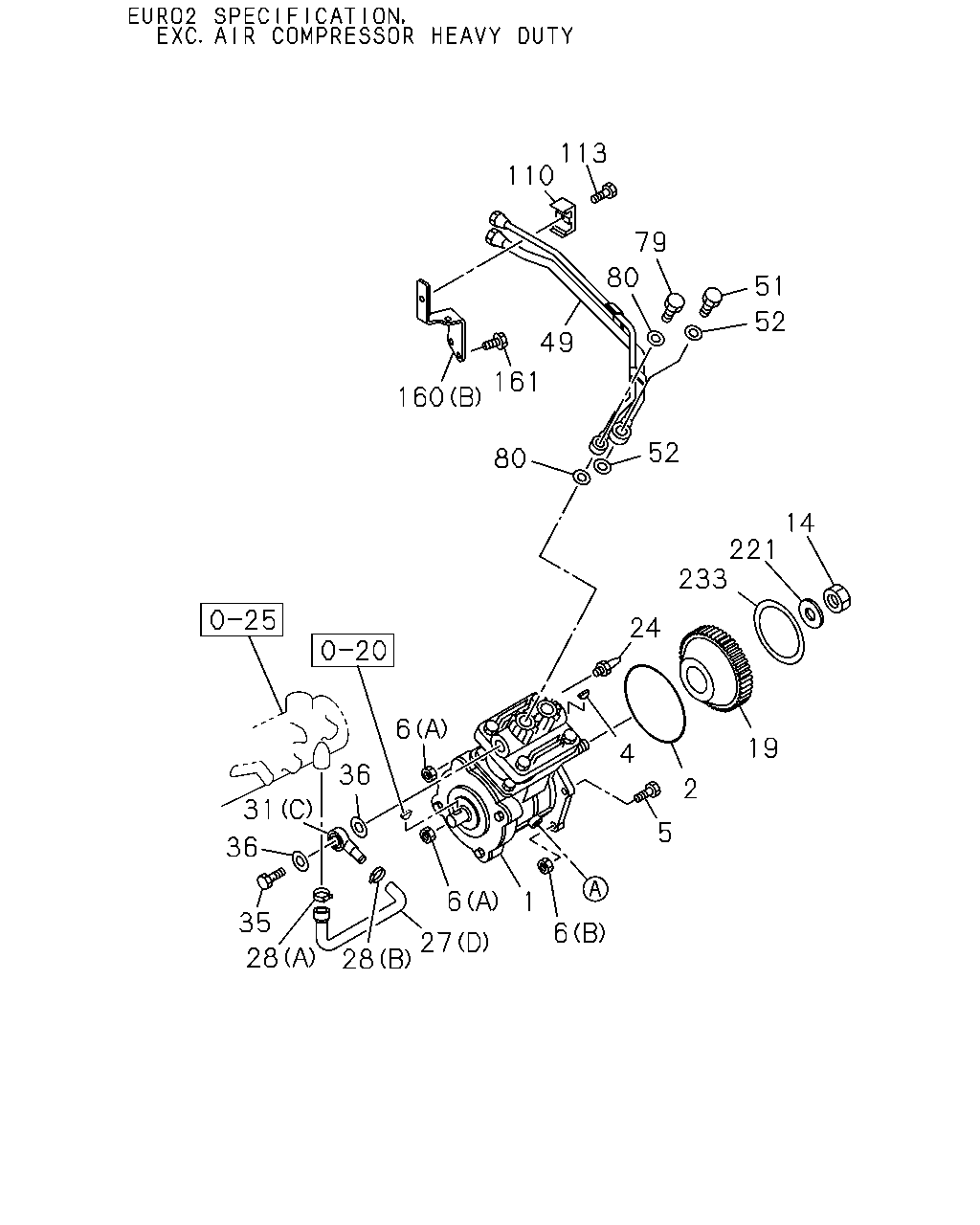

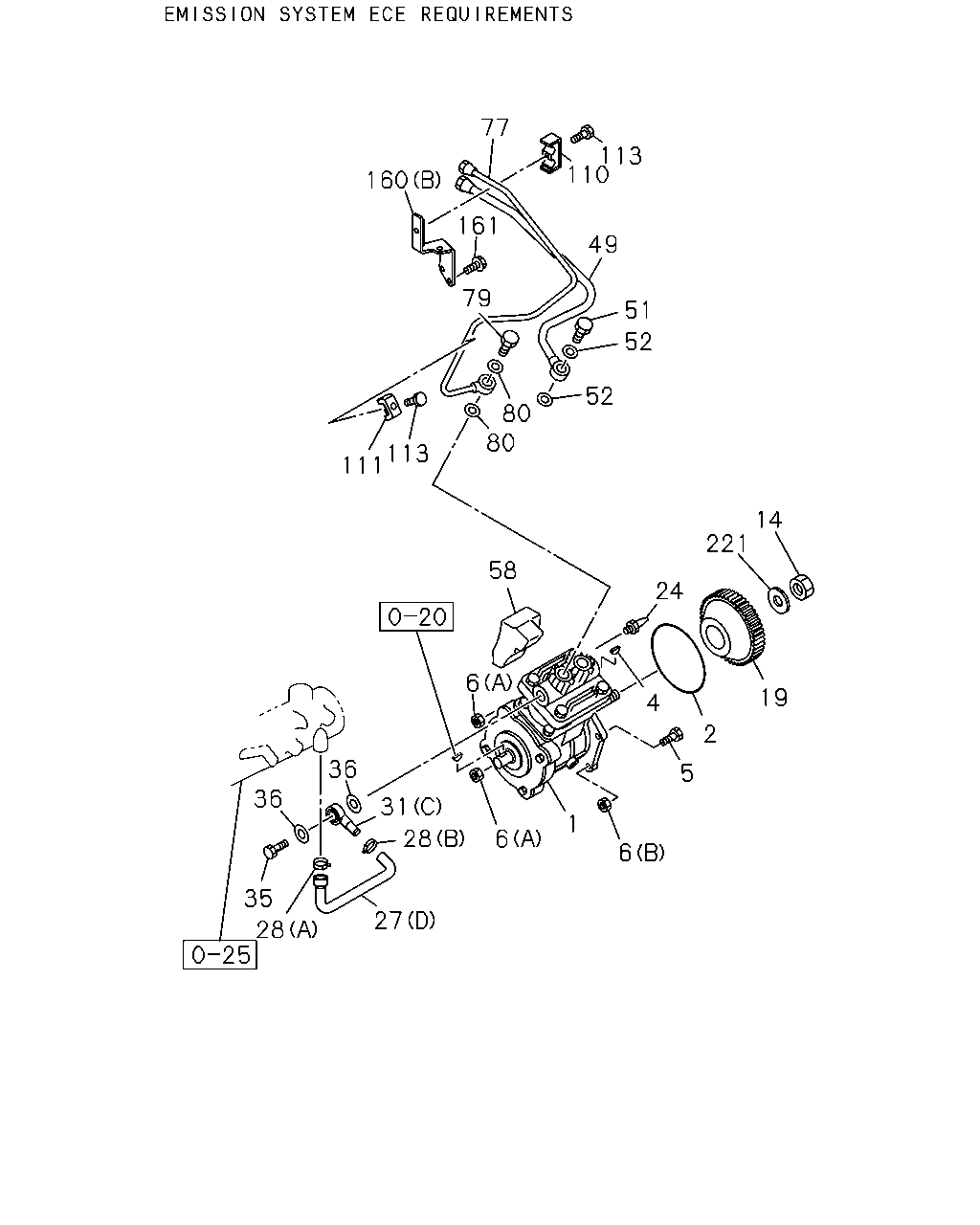

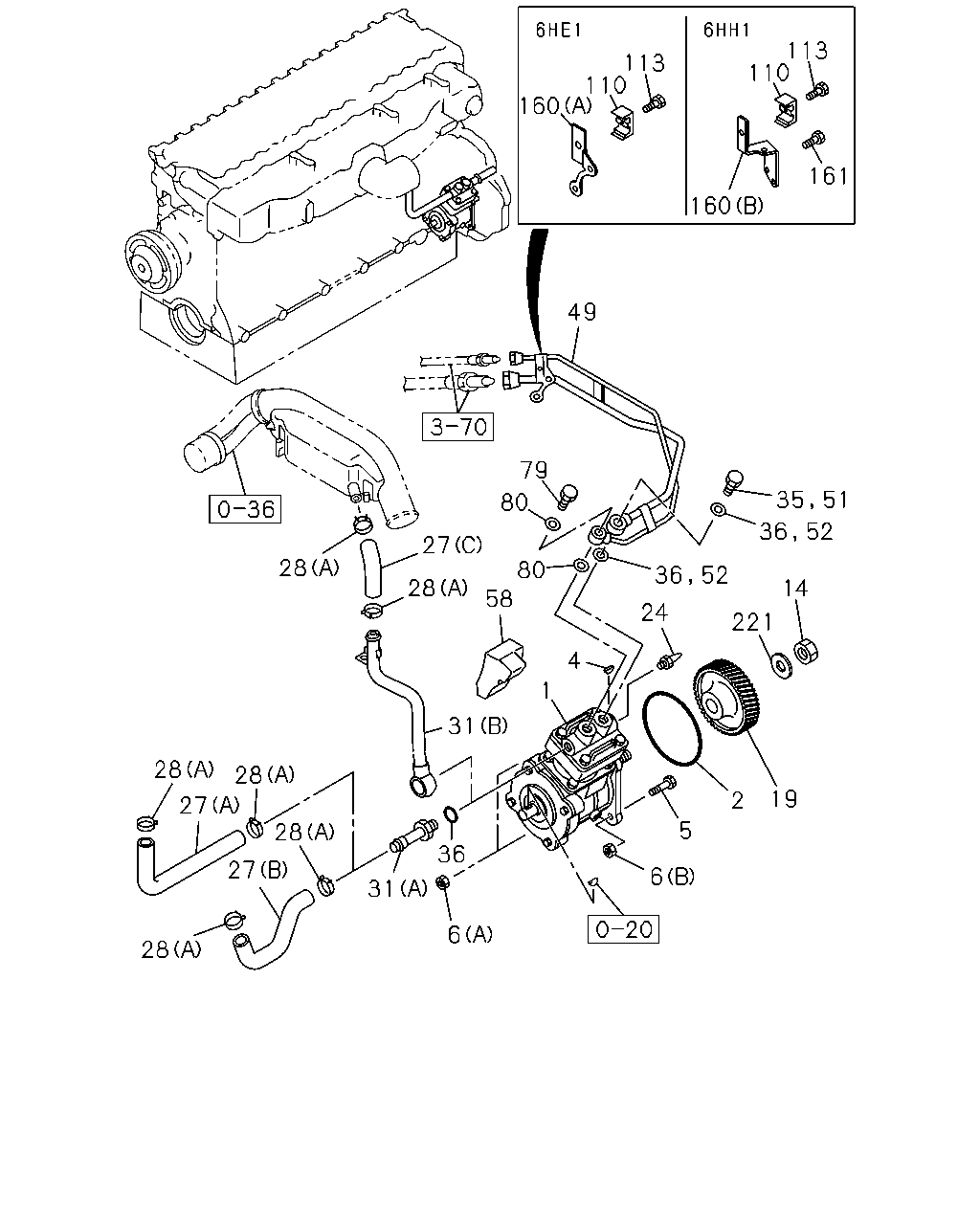

113 110 79 80 51 52 161 160 49 80 52 14 221 233 58 24 6 263 262 36 31 19 4 2 5 36 35 1 6 6 28 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9510-9802	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9803-9803			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9803-9803	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9804-0004			●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9804-0004	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-0302	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0005-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0303-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-891-4	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98187-309-1	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-7	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9803-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-9803	●		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9804-0004	●		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-	●	●		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0303-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9803	●		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9804-0004	●		●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0302	●	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0303-	●			●
4	KEY; INJ PUMP GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0303-		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0303-0512		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9803	●		●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9804-0004	●		●	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0109	●	●		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0110-0302	●			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0110-0302		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0303-0907	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0303-0907		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0908-	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0908-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-9803	●		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0602	●	●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-9803	●		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0602	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0303-0512		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	0-91110-524-0	01	1	0601-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9803	●		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0004	●		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0302	●	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	9-99110-520-0	01	1	0303-0512		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	0-91110-520-0	01	1	0601-		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0303-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9803	●		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9804-0004	●		●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0302	●	●		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0303-	●			●
19	GEAR; INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> Z=35	8-94336-157-4	01	1	0303-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-9803	●		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9804-0004	●		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-	●	●		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9510-9803			●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9804-0004			●		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0005-0302		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9803-	●			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9510-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION 14" CLUTCH(WF6) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94395-082-0	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	0005-				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-809-1	01	1	9510-9802	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION 13" CLUTCH(WD4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-809-1	01	1	0005-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9510-9803	●		●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9804-0004	●		●	●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-	●			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=26	1-09707-091-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0303-		●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=22.7	8-94466-382-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9510-9803			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9804-0004			●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-	●			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9803-0004	●			●
31	PIPE; AIR,AIR CMPR SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94390-949-0	01	1	0005-0302		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9510-9802	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9803-	●			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9510-9803			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9804-0004			●		●
35	BOLT; EYE,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M24X39	1-09675-132-0	01	1	0005-0302		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0303-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9803			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0004			●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0302		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0303-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0303-		●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9510-9802	●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9802				●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9803-9803			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9803-9803	●			●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9804-0004			●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9804-0004	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-	●			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9802				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97601-026-0	01	1	0005-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9510-9802	●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9803-9803			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9803-9803	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9804-0004			●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9804-0004	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	0005-0302		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0303-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9510-9802	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9803-9803			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9803-9803	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9804-0004			●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9804-0004	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9803-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
58	SPACER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-440-1	01	1	0303-0307		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9510-9802	●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9510-9802				●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9803-9803			●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9803-9803				●
58	SPACER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-675-1	01	1	9803-9803	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9804-0004			●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9804-0004				●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-675-1	01	1	9804-0004	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0005-0411		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	0412-	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0412-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9510-9802	●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9803-9803			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9803-9803	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9804-0004			●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9804-0004	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0005-0302		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0303-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004			●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-9803	●		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9804-0004	●		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9804-0004	●		●	●	●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28680-625-0	01	1	0005-0512		●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●		●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9510-9803			●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9804-0004			●		●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	9510-0004	●			●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0303-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9803	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0004	●		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0302	●	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	9-09160-520-0	01	1	0303-0605		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	0-91610-520-0	01	1	0606-		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0303-0311		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-		●
262	ADAPTER; AIR SUCTION PIPE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-995-0	01	1	0303-		●
263	GASKET; ADAPTER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=30.5 OD=38.0	9-09571-430-0	01	1	0303-		●

77 113 110 160 161 49 79 51 52 80 80 52 113 111 14 221 58 24 6 19 4 2 36 5 36 31 1 28 6 6 35 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9510-9802	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9803-9803			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9803-9803	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9804-0004			●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9804-0004	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-0302	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0005-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0303-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-891-4	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98187-309-1	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-7	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9803-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-9803	●		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9804-0004	●		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-	●	●		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0303-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9803	●		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9804-0004	●		●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0302	●	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0303-	●			●
4	KEY; INJ PUMP GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0303-		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0303-0512		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9803	●		●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9804-0004	●		●	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0109	●	●		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0110-0302	●			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0110-0302		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0303-0907	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0303-0907		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0908-	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0908-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-9803	●		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0602	●	●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-9803	●		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0602	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0303-0512		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	0-91110-524-0	01	1	0601-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9803	●		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0004	●		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0302	●	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	9-99110-520-0	01	1	0303-0512		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	0-91110-520-0	01	1	0601-		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0303-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9803	●		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9804-0004	●		●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0302	●	●		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0303-	●			●
19	GEAR; INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> Z=35	8-94336-157-4	01	1	0303-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-9803	●		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9804-0004	●		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-	●	●		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9510-9803			●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9804-0004			●		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0005-0302		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9803-	●			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9510-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION 14" CLUTCH(WF6) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94395-082-0	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	0005-				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-809-1	01	1	9510-9802	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION 13" CLUTCH(WD4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-809-1	01	1	0005-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9510-9803	●		●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9804-0004	●		●	●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-	●			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=26	1-09707-091-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0303-		●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=22.7	8-94466-382-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9510-9803			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9804-0004			●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-	●			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9803-0004	●			●
31	PIPE; AIR,AIR CMPR SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94390-949-0	01	1	0005-0302		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9510-9802	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9803-	●			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9510-9803			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9804-0004			●		●
35	BOLT; EYE,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M24X39	1-09675-132-0	01	1	0005-0302		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0303-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9803			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0004			●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0302		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0303-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0303-		●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9510-9802	●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9802				●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9803-9803			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9803-9803	●			●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9804-0004			●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9804-0004	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-	●			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9802				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97601-026-0	01	1	0005-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9510-9802	●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9803-9803			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9803-9803	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9804-0004			●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9804-0004	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	0005-0302		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0303-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9510-9802	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9803-9803			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9803-9803	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9804-0004			●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9804-0004	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9803-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
58	SPACER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-440-1	01	1	0303-0307		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9510-9802	●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9510-9802				●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9803-9803			●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9803-9803				●
58	SPACER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-675-1	01	1	9803-9803	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9804-0004			●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9804-0004				●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-675-1	01	1	9804-0004	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0005-0411		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	0412-	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0412-		●
77	PIPE; AIR,GOV EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97601-027-0	01	1	0005-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9510-9802	●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9803-9803			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9803-9803	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9804-0004			●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9804-0004	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0005-0302		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0303-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004			●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-9803	●		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9804-0004	●		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-	●	●		●
111	CLIP; AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0005-		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9804-0004	●		●	●	●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28680-625-0	01	1	0005-0512		●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●		●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9510-9803			●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9804-0004			●		●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	9510-0004	●			●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0303-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9803	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0004	●		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0302	●	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	9-09160-520-0	01	1	0303-0605		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	0-91610-520-0	01	1	0606-		●

113 110 79 80 51 52 49 161 160 52 80 14 221 233 24 6 19 4 36 2 31 5 36 6 1 35 6 27 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9510-9802	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9803-9803			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9803-9803	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9804-0004			●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9804-0004	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-0302	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0005-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0303-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-891-4	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98187-309-1	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-7	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9803-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-9803	●		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9804-0004	●		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-	●	●		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0303-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9803	●		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9804-0004	●		●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0302	●	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0303-	●			●
4	KEY; INJ PUMP GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0303-		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0303-0512		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9803	●		●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9804-0004	●		●	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0109	●	●		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0110-0302	●			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0110-0302		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0303-0907	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0303-0907		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0908-	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0908-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-9803	●		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0602	●	●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-9803	●		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0602	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0303-0512		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	0-91110-524-0	01	1	0601-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9803	●		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0004	●		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0302	●	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	9-99110-520-0	01	1	0303-0512		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	0-91110-520-0	01	1	0601-		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0303-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9803	●		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9804-0004	●		●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0302	●	●		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0303-	●			●
19	GEAR; INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> Z=35	8-94336-157-4	01	1	0303-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-9803	●		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9804-0004	●		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-	●	●		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9510-9803			●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9804-0004			●		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0005-0302		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9803-	●			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9510-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION 14" CLUTCH(WF6) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94395-082-0	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	0005-				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-809-1	01	1	9510-9802	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION 13" CLUTCH(WD4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-809-1	01	1	0005-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9510-9803	●		●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9804-0004	●		●	●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-	●			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=26	1-09707-091-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0303-		●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=22.7	8-94466-382-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9510-9803			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9804-0004			●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-	●			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9803-0004	●			●
31	PIPE; AIR,AIR CMPR SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94390-949-0	01	1	0005-0302		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9510-9802	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9803-	●			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9510-9803			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9804-0004			●		●
35	BOLT; EYE,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M24X39	1-09675-132-0	01	1	0005-0302		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0303-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9803			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0004			●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0302		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0303-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0303-		●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9510-9802	●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9802				●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9803-9803			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9803-9803	●			●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9804-0004			●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9804-0004	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-	●			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9802				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97601-026-0	01	1	0005-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9510-9802	●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9803-9803			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9803-9803	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9804-0004			●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9804-0004	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	0005-0302		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0303-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9510-9802	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9803-9803			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9803-9803	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9804-0004			●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9804-0004	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9803-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9510-9802	●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9803-9803			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9803-9803	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9804-0004			●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9804-0004	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0005-0302		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0303-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004			●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-9803	●		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9804-0004	●		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9804-0004	●		●	●	●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28680-625-0	01	1	0005-0512		●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●		●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9510-9803			●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9804-0004			●		●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	9510-0004	●			●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0303-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9803	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0004	●		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0302	●	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	9-09160-520-0	01	1	0303-0605		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	0-91610-520-0	01	1	0606-		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0303-0311		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-		●

215 218 219 220 190 166 219 220 219 220 190 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28781-025-0	02	1	0412-0512	●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 FLANGE	0-28781-025-0	03	1	0303-0307		●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9510-9802	●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9510-9802				●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9803-9803			●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9803-9803				●
166	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 FLANGE	0-28181-025-0	02	1	9803-9803	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9804-9805			●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9804-9805				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28181-025-0	02	1	9804-9805	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	9806-0004			●		●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28781-025-0	02	1	9806-0004				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	0412-	●
190	WASHER; PL,COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26	9-09160-710-0	03	1	0303-0307		●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9510-9802	●		●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9510-9802				●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803			●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803				●
190	WASHER; PL,COVER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26	9-09160-710-0	03	1	9803-9803	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004			●		●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004				●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	9804-0004	●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	0412-	●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-627-0	01	1	0303-0307		●
215	COVER; AIR CMPR	8-94394-993-2	01	1	9510-9608	●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-993-2	01	1	9510-9608				●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9609-9802	●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9609-9802				●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9803-9803			●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9803-9803				●
215	COVER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-408-0	01	1	9803-9803	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9804-0004			●		●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	9804-0004				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-408-0	01	1	9804-0004	●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	0412-	●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-628-0	01	1	0303-0307		●
218	INSULATOR; COVER	8-94394-995-2	01	1	9510-9802	●		●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9510-9802				●
218	INSULATOR; COVER	8-94394-995-2	01	1	9803-9803			●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9803-9803				●
218	INSULATOR; COVER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-995-2	01	1	9803-9803	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9804-0004			●		●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	9804-0004				●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-94394-995-2	01	1	9804-0004	●
219	RUBBER; MTG EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97602-472-0	03	1	0303-0307		●
219	RUBBER; MTG OD=22	8-94140-428-1	03	1	9510-9608	●		●
219	RUBBER; MTG ANTI NOISE EQUIPMENT ECE<SLK> OD=22	8-94140-428-1	03	1	9510-9608				●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	0412-	●
220	TUBE; DIST EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) OD=13 T=9.5	8-94140-427-1	03	1	0303-0307		●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9510-9802	●		●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9510-9802				●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9803-9803			●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9803-9803				●
220	TUBE; DIST EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) OD=13 T=9.5	8-94140-427-1	03	1	9803-9803	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9804-0004			●		●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	9804-0004				●
220	TUBE; DIST ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	9804-0004	●

113 110 113 110 160 161 160 49 79 80 27 28 80 58 28 14 24 221 4 1 31 28 28 19 2 27 5 28 36 27 6 31 6 28 35 51 36 52 36 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9510-9802	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9803-9803			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9803-9803	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9804-0004			●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9804-0004	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-0302	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0005-0302		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0303-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-891-4	01	1	0303-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-98187-309-1	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-7	01	1	9510-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9803-1107	●			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-9803	●		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9804-0004	●		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-	●	●		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0303-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9803	●		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9804-0004	●		●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0302	●	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0303-	●			●
4	KEY; INJ PUMP GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0303-		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0303-0512		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9803	●		●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9804-0004	●		●	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0109	●	●		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0110-0302	●			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0110-0302		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M12X95 FLANGE	8-94396-485-1	01	1	0303-0907	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0303-0907		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0908-	●			●
5	BOLT; AIR CMPR FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X95 FLANGE	8-94396-485-1	01	1	0908-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-9803	●		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0602	●	●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-9803	●		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9804-0004	●		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0602	●	●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0303-0512		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	0-91110-524-0	01	1	0601-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9803	●		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0004	●		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0302	●	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	9-99110-520-0	01	1	0303-0512		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●			●
14	NUT; GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M20	0-91110-520-0	01	1	0601-		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0303-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9803	●		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9804-0004	●		●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0302	●	●		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0303-	●			●
19	GEAR; INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> Z=35	8-94336-157-4	01	1	0303-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-9803	●		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9804-0004	●		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-	●	●		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9510-9803			●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9804-0004			●		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0005-0302		●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0303-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	9803-	●			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9510-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION 14" CLUTCH(WF6) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94395-082-0	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-082-0	01	1	0005-				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-809-1	01	1	9510-9802	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9803-9907	●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT ECE<SLK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94394-809-1	01	1	9908-0004				●
27	HOSE; AIR CMPR,SUCTION ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION 13" CLUTCH(WD4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94394-809-1	01	1	9908-0004	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-809-1	01	1	0005-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9510-9803	●		●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	9804-0004	●		●	●	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-	●			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=26	1-09707-091-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0303-		●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=22.7	8-94466-382-0	01	1	0005-0302		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9510-9803			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9804-0004			●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-	●			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9803-0004	●			●
31	PIPE; AIR,AIR CMPR SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94390-949-0	01	1	0005-0302		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0303-		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9510-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9510-9802	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9803-	●			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9510-9803			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9804-0004			●		●
35	BOLT; EYE,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M24X39	1-09675-132-0	01	1	0005-0302		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0303-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9803			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0004			●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0302		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	9510-9802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0303-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0303-		●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9510-9802	●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9802				●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9803-9803			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9803-9803	●			●
49	PIPE; AIR,CHARGE	8-94390-063-0	01	1	9804-0004			●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9804-0004	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112	●			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-	●			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9802				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9803-	●			●
49	PIPE; AIR,CHARGE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97601-026-0	01	1	0005-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9510-9802	●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9803-9803			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9803-9803	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9804-0004			●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9804-0004	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	0005-0302		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0303-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0302	●			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0303-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9510-9802	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9803-9803			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9803-9803	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9804-0004			●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9804-0004	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0302		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9803-0302	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0303-		●
58	SPACER; AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-440-1	01	1	0303-0307		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9510-9802	●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9510-9802				●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9803-9803			●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9803-9803				●
58	SPACER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-675-1	01	1	9803-9803	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9804-0004			●		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	9804-0004				●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-675-1	01	1	9804-0004	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0005-0411		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	0412-	●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-675-1	01	1	0412-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9510-9802	●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9803-9803			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9803-9803	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9804-0004			●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9804-0004	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0005-0302		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0303-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0302	●			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0303-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9803-9803	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004			●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9804-0004	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0302		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0302	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-9803	●		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9804-0004	●		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9804-0004	●		●	●	●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28680-625-0	01	1	0005-0512		●
113	BOLT; CLIP,AIR PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512	●	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●		●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9510-9803			●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9804-0004			●		●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	9510-0004	●			●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0303-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9803	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0004	●		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0302	●	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	9-09160-520-0	01	1	0303-0605		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●			●
221	WASHER; PL,GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=21	0-91610-520-0	01	1	0606-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
