0-36 — TURBOCHARGER SYSTEM (#64018) — 50 parça

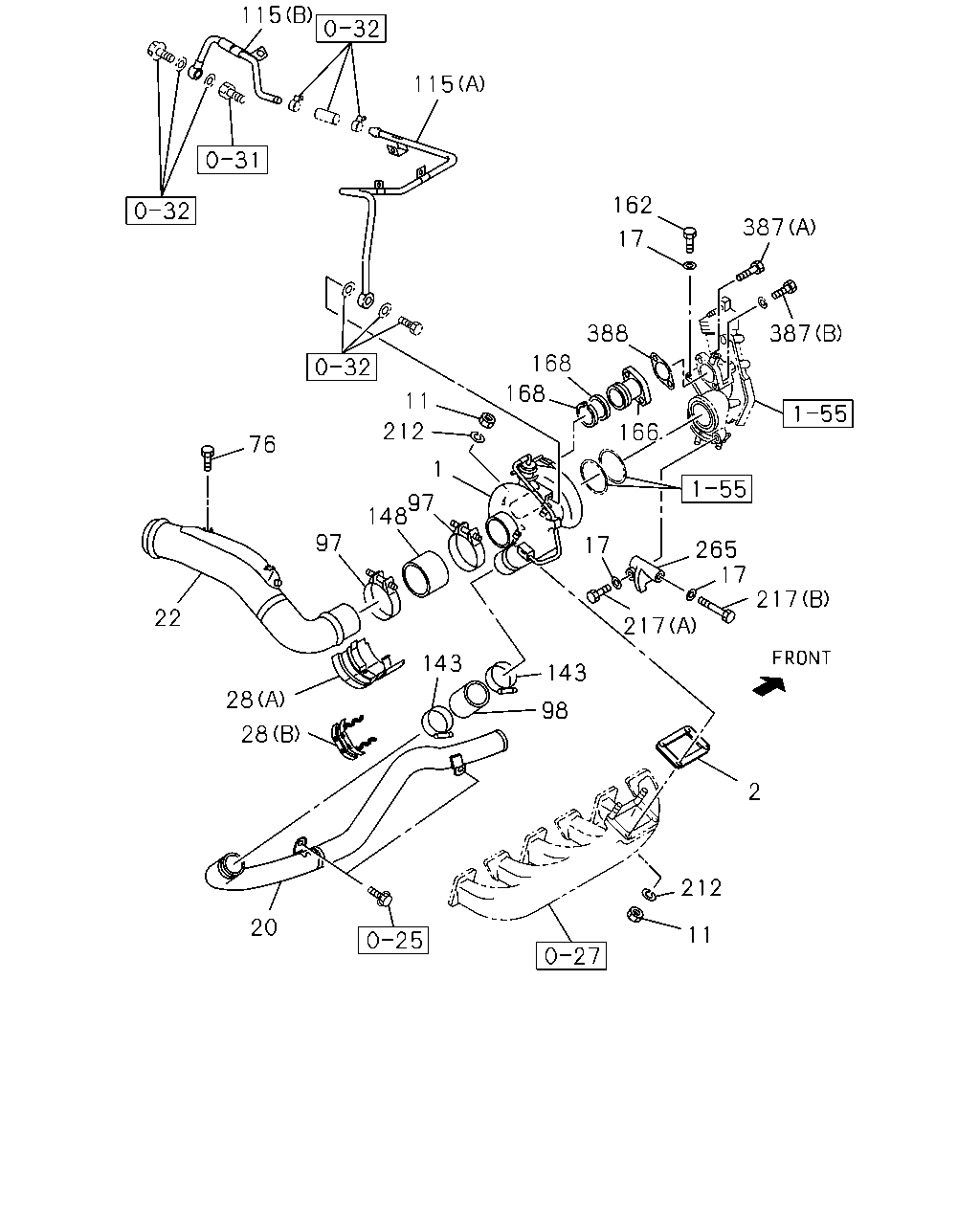

çizim 60684
115 115 162 387 17 388 387 168 168 11 212 166 76 1 97 148 97 17 265 17 217 22 217 143 143 28 98 28 2 212 20 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-283-1 01 1 9510-0004 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-457-2 01 1 9804-0004 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-121-0 01 1 9510-9803 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-121-0 01 1 9804-0004 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9510-9803 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9804-0004 ● ●
17 WASHER; PL,ADAPTER
ID=12.2 		9-09851-933-0 04 1 9510-9803 ●
17 WASHER; PL,ADAPTER
ID=12.2 		9-09851-933-0 04 1 9804-0004 ● ●
20 PIPE; INL,TURBOCHARGER OUT 8-94394-399-0 01 1 9510-9803 ●
20 PIPE; INL,TURBOCHARGER OUT 8-94394-399-1 01 1 9804-0004 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94394-401-1 01 1 9510-9803 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94394-401-1 01 1 9804-0004 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-220-0 01 1 9510-9803 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-220-0 01 1 9804-0004 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		8-94393-182-0 01 1 9510-9803 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		8-94393-182-0 01 1 9804-0004 ● ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9510-9803 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9804-0004 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=86 		9-09915-592-0 02 1 9510-9803 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=86 		9-09915-592-0 02 1 9804-0004 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 9510-9803 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 9804-0004 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-94394-691-0 01 1 9510-9803 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-94394-691-0 01 1 9804-0004 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-3 01 1 9510-9803 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 9804-0004 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9510-9803 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9804-0004 ● ●
148 HOSE; TURBOCHARGER,INL 1-09360-600-0 01 1 9510-9803 ●
148 HOSE; TURBOCHARGER,INL 1-09360-600-0 01 1 9804-0004 ● ●
162 BOLT; ADAPTER
M12X30 		8-94394-324-0 02 1 9510-9803 ●
162 BOLT; ADAPTER
M12X30 		8-94394-324-0 02 1 9804-0004 ● ●
166 PIPE; EXH 8-94393-151-0 01 1 9510-9803 ●
166 PIPE; EXH 8-94393-151-0 01 1 9804-0004 ● ●
168 RING; SEAL,EXH PIPE 1-14149-083-1 02 1 9510-9803 ●
168 RING; SEAL,EXH PIPE 1-14149-083-1 02 1 9804-0004 ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9510-9803 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9804-0004 ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 01 1 9510-9803 ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 01 1 9804-0004 ● ●
217 BOLT; BRKT
(B) M12X85 		8-94394-514-0 01 1 9510-9803 ●
217 BOLT; BRKT
(B) M12X85 		8-94394-514-0 01 1 9804-0004 ● ●
265 BRACKET; EXH PIPE 8-94394-373-0 01 1 9510-9803 ●
265 BRACKET; EXH PIPE 8-94394-373-0 01 1 9804-0004 ● ●
387 BOLT; EXH PIPE
(A) M10X40 		8-94393-700-0 01 1 9510-9803 ●
387 BOLT; EXH PIPE
(A) M10X40 		8-94393-700-0 01 1 9804-0004 ● ●
387 BOLT; EXH PIPE
(B) M10X70 		8-94394-698-0 01 1 9510-9803 ●
387 BOLT; EXH PIPE
(B) M10X70 		8-94394-698-0 01 1 9804-0004 ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-139-0 01 1 9510-9803 ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-139-0 01 1 9804-0004 ● ●
