◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#64016) — 111 parça

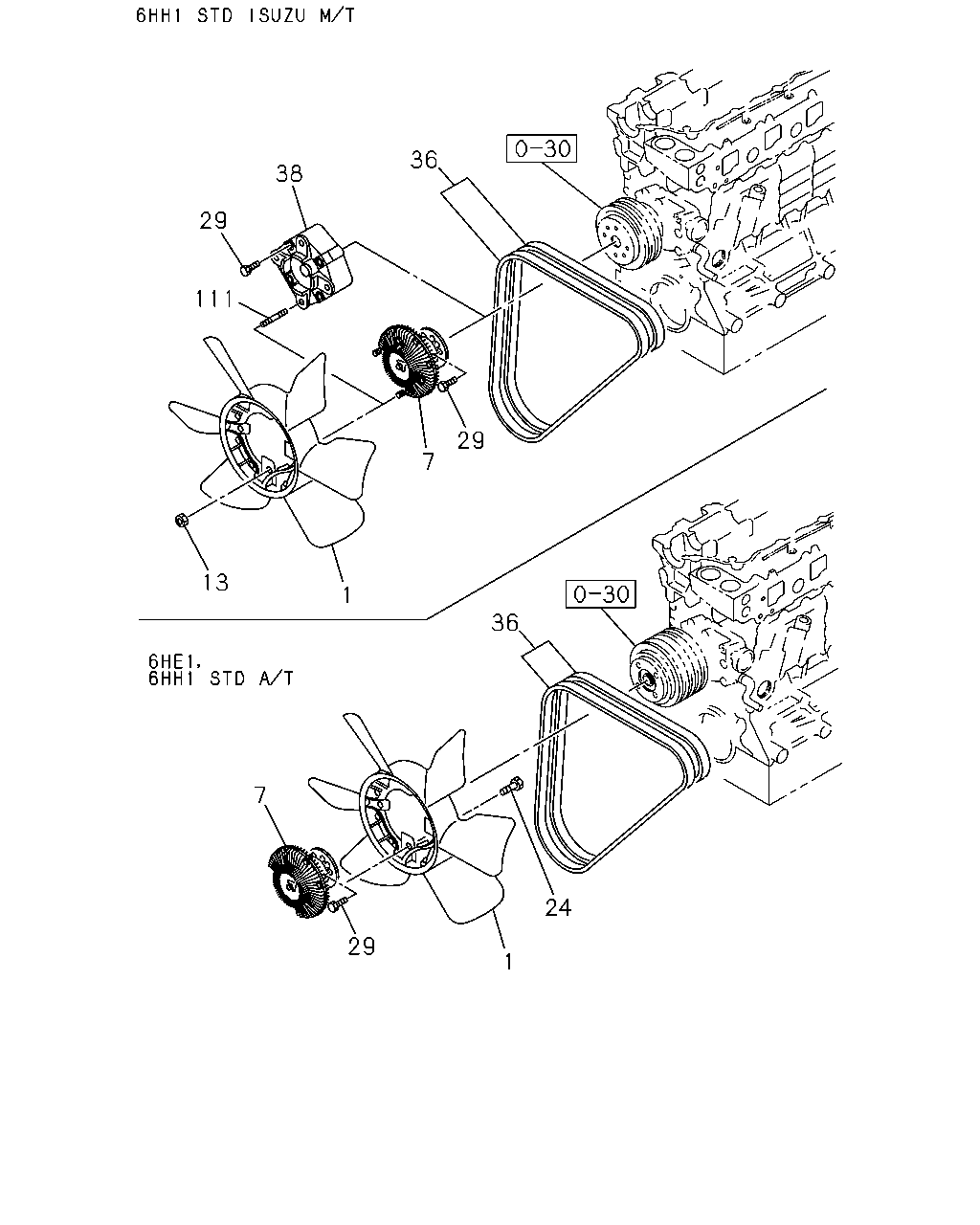

çizim 60710
36 38 29 111 29 7 13 1 36 7 24 29 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 FAN; COOLING
OD=520 		8-94393-117-0 01 1 9510-9803 ●
1 FAN; COOLING
OD=520 		8-94393-117-0 01 1 9804-0004 ● ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 9510-0004 ● ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 0005-0407 ● ●
1 FAN; COOLING
ISUZU M/T<X9A> OD=500 		8-94399-286-1 01 1 0005-0407 ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 0408- ● ●
1 FAN; COOLING
ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT ECE<SLK> OD=500 		8-94399-286-1 01 1 0408- ●
1 FAN; COOLING
A/T<X9D> OD=520 		8-94393-117-0 01 1 0102-0411 ●
1 FAN; COOLING
A/T<X9D> OD=520 		8-94393-117-0 01 1 0412-0506 ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONTROL(C60) OD=520 		8-94393-117-0 01 1 0412-0506 ●
1 FAN; COOLING
A/T<X9D> OD=520 		8-94393-117-0 01 1 0507- ●
1 FAN; COOLING
ANTI NOISE EQUIPMENT ECE<SLK> OD=520 		8-94393-117-0 01 1 0507- ●
7 COUPLING; FAN 8-94394-009-2 01 1 9510-9803 ●
7 COUPLING; FAN 8-94394-009-2 01 1 9804-0004 ● ●
7 COUPLING; FAN 8-94395-253-0 01 1 9510-9706 ●
7 COUPLING; FAN 8-94391-701-0 01 1 9707-0004 ●
7 COUPLING; FAN 8-94391-701-0 01 1 0005- ●
7 COUPLING; FAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94391-701-0 01 1 0005- ●
7 COUPLING; FAN 8-94395-254-1 01 1 9511-0004 ●
7 COUPLING; FAN
ISUZU M/T<X9A> 		8-94395-254-1 01 1 0005-0302 ●
7 COUPLING; FAN
ISUZU M/T<X9A> 		8-94395-254-1 01 1 0303-0707 ●
7 COUPLING; FAN
EURO2 SPECIFICATION<THN> 		8-94395-254-1 01 1 0303-0707 ●
7 COUPLING; FAN
ISUZU M/T<X9A> 		8-94395-254-1 01 1 0708-0708 ●
7 COUPLING; FAN
ISUZU M/T<X9A> 		8-94395-254-1 01 1 0709- ●
7 COUPLING; FAN
EURO2 SPECIFICATION<THN> 		8-94395-254-1 01 1 0709- ●
7 COUPLING; FAN
A/T<X9D> 		8-94394-009-2 01 1 0102-0411 ●
7 COUPLING; FAN
A/T<X9D> 		8-94394-009-2 01 1 0412-0506 ●
7 COUPLING; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94394-009-2 01 1 0412-0506 ●
7 COUPLING; FAN
A/T<X9D> 		8-94394-009-2 01 1 0507- ●
7 COUPLING; FAN
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-009-2 01 1 0507- ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 9510-0004 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 0005-0109 ● ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 0110-0407 ● ●
13 NUT; COOLING FAN
ISUZU M/T<X9A> M6 FLANGE 		0-91150-106-0 04 1 0110-0407 ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 0408-0602 ● ●
13 NUT; COOLING FAN
ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT ECE<SLK> M6 FLANGE 		0-91150-106-0 04 1 0408-0602 ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
13 NUT; COOLING FAN
ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT ECE<SLK> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 9510-9803 ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 9804-0004 ● ●
24 BOLT; FAN
A/T<X9D> M8X14 FLANGE 		0-28080-814-0 04 1 0102-0411 ●
24 BOLT; FAN
A/T<X9D> M8X14 FLANGE 		0-28080-814-0 04 1 0412-0506 ●
24 BOLT; FAN
AIR CONDITIONER MANUAL CONTROL(C60) M8X14 FLANGE 		0-28080-814-0 04 1 0412-0506 ●
24 BOLT; FAN
A/T<X9D> M8X14 FLANGE 		0-28080-814-0 04 1 0507- ●
24 BOLT; FAN
ANTI NOISE EQUIPMENT ECE<SLK> M8X14 FLANGE 		0-28080-814-0 04 1 0507- ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 04 1 0709- ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 04 1 0303-0512 ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 04 1 0601-0707 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9510-9803 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9804-0004 ● ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 9510-9904 ●
29 BOLT; COUPLING TO WATER PUMP
M8X14 FLANGE 		8-94399-451-1 04 1 9510-9904 ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 9912-0004 ● ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> ISUZU M/T<X9A> M8X14 FLANGE 		8-94399-451-1 04 1 0005- ● ●
29 BOLT; COUPLING TO WATER PUMP
M8X14 FLANGE 		8-94399-451-1 04 1 0005- ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 9510-9911 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 9912-0512 ● ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28050-870-0 04 1 0601-0707 ● ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28050-870-0 04 1 0708-0708 ● ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X70 FLANGE 		0-28050-870-0 04 1 0708-0708 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28050-870-0 04 1 0709- ● ●
29 BOLT; COUPLING TO WATER PUMP
A/T<X9D> M10X22 FLANGE 		0-28181-022-0 04 1 0102-0411 ●
29 BOLT; COUPLING TO WATER PUMP
A/T<X9D> M10X22 FLANGE 		0-28181-022-0 04 1 0412-0506 ●
29 BOLT; COUPLING TO WATER PUMP
AIR CONDITIONER MANUAL CONTROL(C60) M10X22 FLANGE 		0-28181-022-0 04 1 0412-0506 ●
29 BOLT; COUPLING TO WATER PUMP
A/T<X9D> M10X22 FLANGE 		0-28181-022-0 04 1 0507- ●
29 BOLT; COUPLING TO WATER PUMP
ANTI NOISE EQUIPMENT ECE<SLK> M10X22 FLANGE 		0-28181-022-0 04 1 0507- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-0 01 1 9510-9803 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-0 01 1 9804-0004 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9510-0004 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 0005-1402 ● ●
36 BELT; COOLING FAN
ISUZU M/T<X9A> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 0005-1402 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI 		8-98253-275-0 01 1 1403- ● ●
36 BELT; COOLING FAN
ISUZU M/T<X9A> 1 SET=2 PIECE(8982534550) MITSUBOSHI 		8-98253-275-0 01 1 1403- ●
36 BELT; COOLING FAN
A/T<X9D> 1 SET=2 PIECE(8941528120) MITSUBOSHI 		1-13671-344-0 01 1 0102-1402 ●
36 BELT; COOLING FAN
A/T<X9D> 1 SET=2 PIECE(8982534580) MITSUBOSHI 		8-98253-274-0 01 1 1403- ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 9510-9911 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 9912-0707 ● ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 0708-0708 ● ●
38 SPACER; FAN
EURO2 SPECIFICATION<THN> 		8-94393-896-0 01 1 0708-0708 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 0709-1104 ● ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-98167-649-0 01 1 1105- ● ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		9-04110-612-0 04 1 9510-9911 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		9-04110-612-0 04 1 9912-0604 ● ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		0-41010-612-0 04 1 0605-0707 ● ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		0-41010-612-0 04 1 0708-0708 ● ●
111 STUD; FAN DRIVE
EURO2 SPECIFICATION<THN> M6X12 L=21 		0-41010-612-0 04 1 0708-0708 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		0-41010-612-0 04 1 0709- ● ●

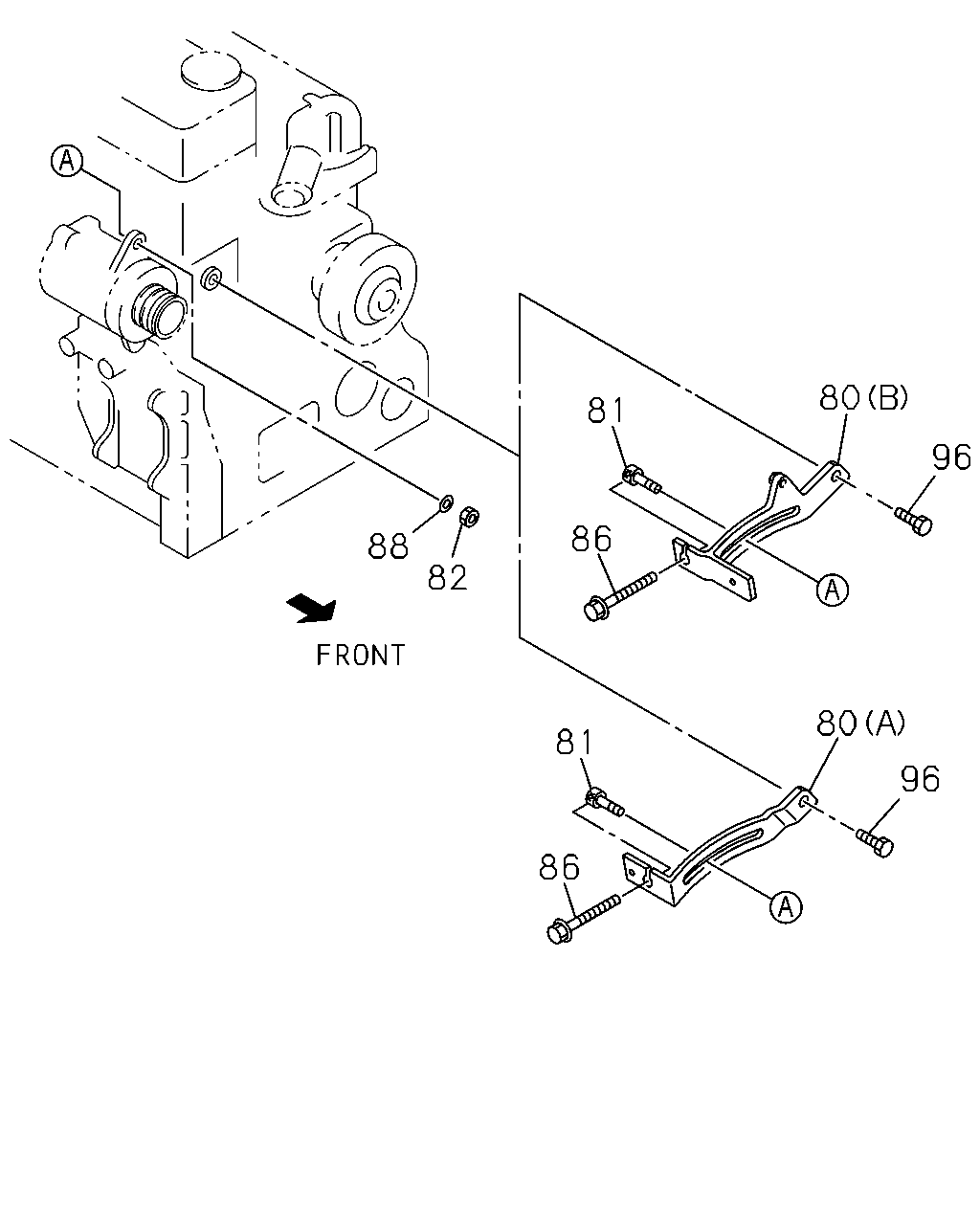

çizim 183802
80 81 96 86 88 82 80 81 96 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 PLATE; ADJ
(B) 		8-94394-492-1 01 1 9510-9803 ●
80 PLATE; ADJ
(B) 		8-94394-492-1 01 1 9804-0001 ● ●
80 PLATE; ADJ
(B) 		8-97601-020-0 01 1 0002-0004 ● ●
80 PLATE; ADJ
(A) 		8-94390-021-1 01 1 9510-0001 ● ●
80 PLATE; ADJ
(A) 		8-97601-021-0 01 1 0002-0004 ● ●
80 PLATE; ADJ
(A) 		8-97601-021-0 01 1 0005- ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9510-9803 ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9804-0004 ● ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0005- ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9510-9803 ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9804-0004 ● ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0005-0602 ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9510-9803 ● ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9804-0004 ● ● ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0005- ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9510-9803 ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9804-0004 ● ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 0005-0605 ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0606- ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9510-9803 ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9804-0004 ● ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 0005-0512 ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
