0-32 — WATER PIPING; ENGINE (#64015) — 105 parça

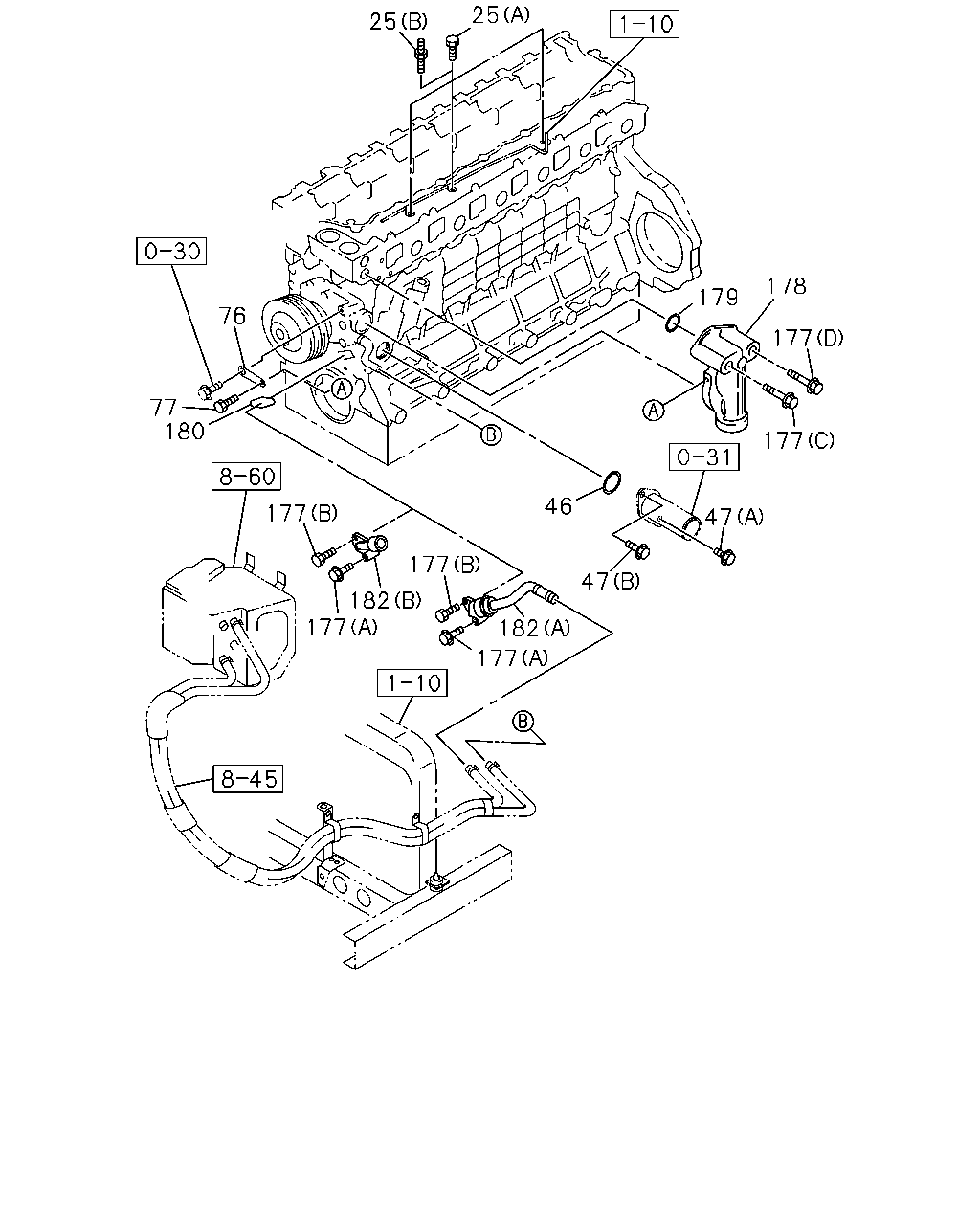

25 25 178 179 76 177 77 180 177 46 177 47 177 47 182 177 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	9510-0512	●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-	●	●
25	BOLT; WATER PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0005-0302			●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0303-			●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9510-9803	●	●		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9804-0004	●	●		●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9611	●	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9611	●	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9612-9803	●	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9804-0004	●	●		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0005-0512	●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9612-9803	●	●		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9804-0004	●	●		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9510-9803	●	●		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9804-0004	●	●		●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9510-9803	●	●		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9804-0004	●	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0512	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9510-9709	●	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-9803	●	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9804-0004	●	●		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9510-9803	●	●		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9804-0004	●	●		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-	●	●	●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9510-9611	●	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9612-9803	●	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9804-0004	●	●		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0512	●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-0	01	1	9510-9803	●	●		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9804-0004	●	●		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-	●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9510-9803	●	●		●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9804-0004	●	●		●	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0005-	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9510-9803	●	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9804-0004	●	●		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-1408	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9510-9803	●	●		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9804-0004	●	●		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-	●	●	●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9510-9803				●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9804-0004				●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	9510-9911		●
182	DUCT; WATER,HTR (A)	8-94396-724-4	01	1	9510-9911	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	9912-0004		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	9912-0004	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	0005-	●	●
182	DUCT; WATER,HTR (A)	8-94396-724-4	01	1	0005-			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	9510-9901		●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	9901-0004		●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0005-0302	●	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0303-	●	●
182	DUCT; WATER,HTR EURO2 SPECIFICATION<THN> (B)	8-94390-283-0	01	1	0303-			●
182	DUCT; WATER,HTR A/T<X9D> (A)	8-94394-348-5	01	1	0102-	●

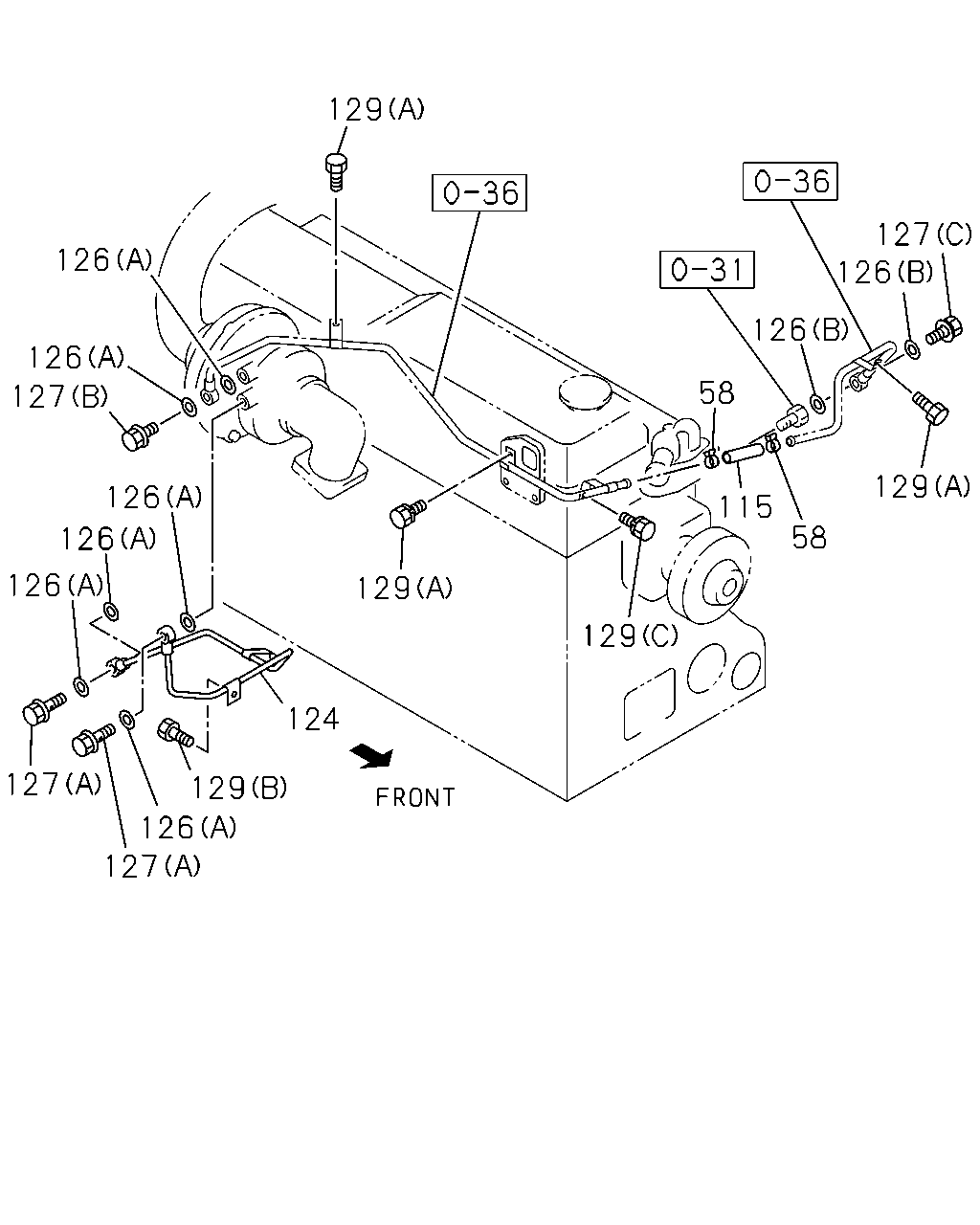

129 127 126 126 126 126 58 127 129 126 115 58 126 126 129 129 124 127 129 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9510-9803	●
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9804-9808	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9809-0004	●	●
115	HOSE; RUBBER L=60	0-03211-060-0	01	1	9510-9802	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9803-9803	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9804-0004	●	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9510-9803	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9804-0004	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9510-9803	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9804-0004	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9510-9803	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9804-0004	●	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9510-9803	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9804-0004	●	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9510-9803	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9804-0004	●	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9510-9803	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9804-0004	●	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9510-9803	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9804-0004	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9510-9803	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9804-0004	●	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9510-9803	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9804-0004	●	●

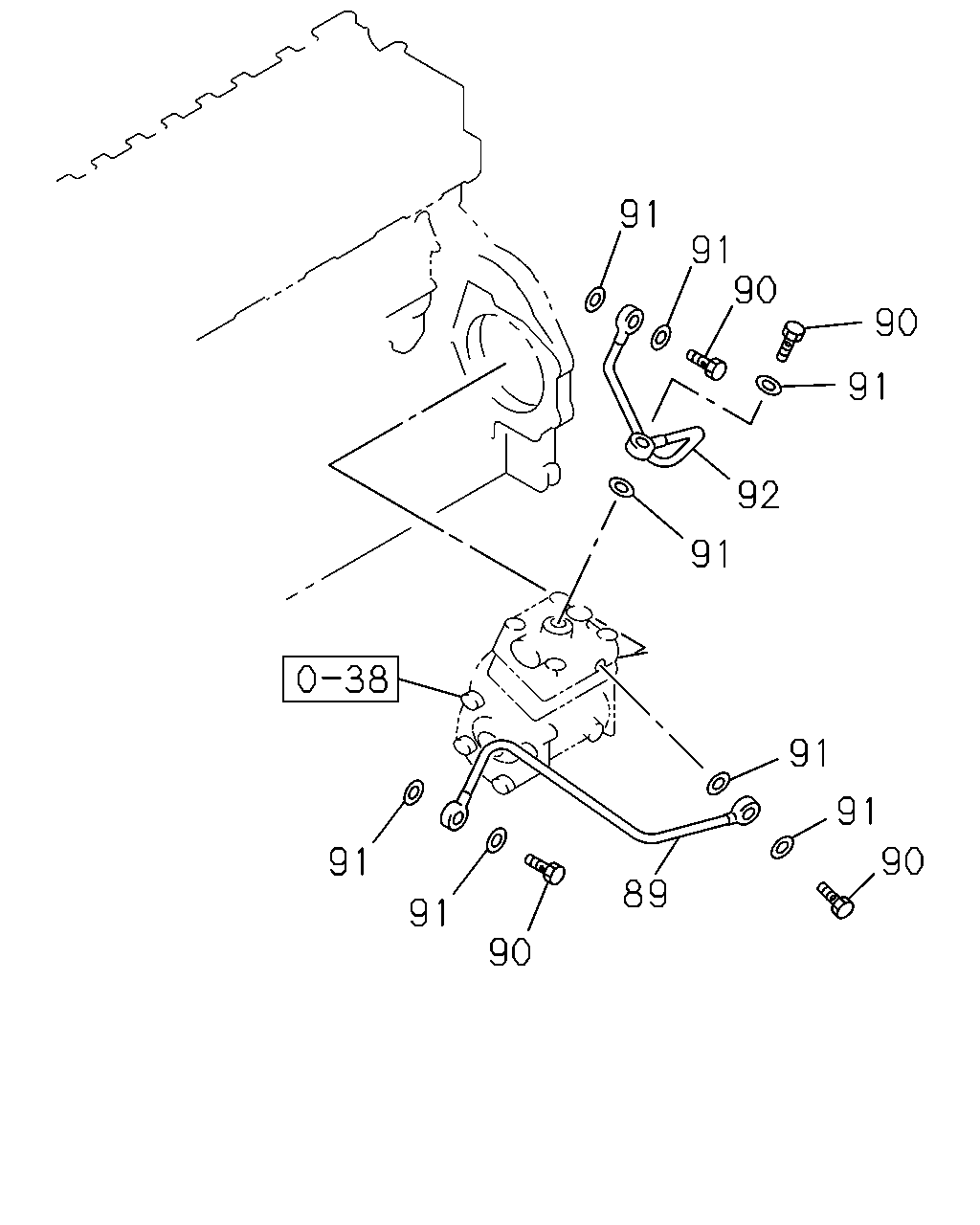

91 91 90 90 91 92 91 91 91 90 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-037-0	01	1	0303-			●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-178-1	01	1	9510-9802		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-178-1	01	1	9803-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-9802		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	9803-0302	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0303-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0303-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-9802		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	9803-0302	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	0303-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	0303-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-952-1	01	1	0303-0307			●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97603-546-0	01	1	0308-			●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-742-1	01	1	9510-9802		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-742-1	01	1	9803-	●	●
