◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#64014) — 98 parça

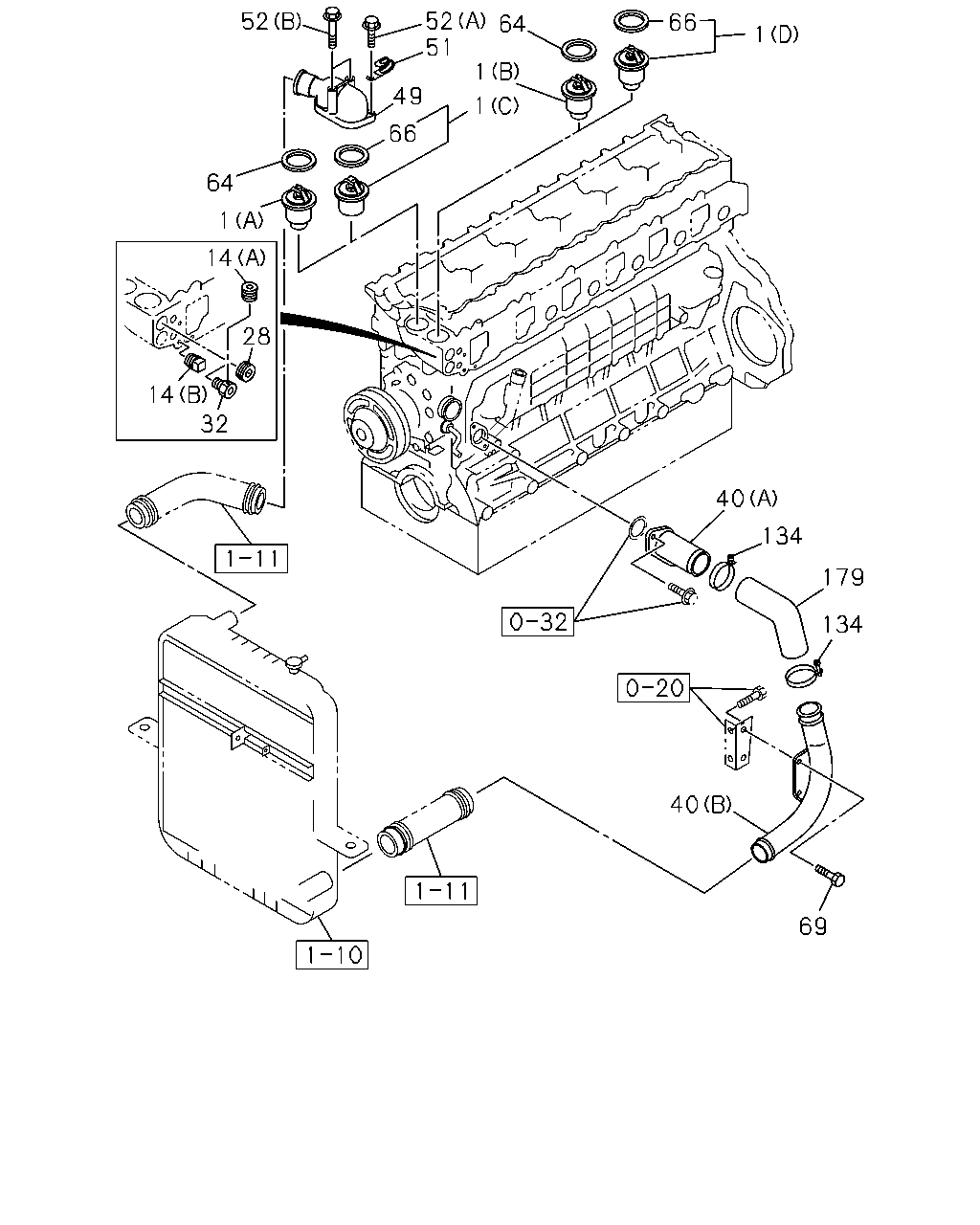

çizim 41656
52 51 52 66 64 1 1 49 1 66 64 1 14 28 14 32 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9510-9803 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9804-9904 ● ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9905-9911 ● ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) ENGINE NO PLATE<E6D> FLUID DRIVE FAN<KA3> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 82 CELSIUS 		8-94397-310-0 01 1 9905-9911 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE NO PLATE<E6D>,FLUID DRIVE FAN<KA3> (A) 82 CELSIUS 		8-94397-310-0 01 1 9905-9911 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) FLUID DRIVE FAN<KA3> EXC. ENGINE NO PLATE<E6D> (A) 82 CELSIUS 		8-94397-310-0 01 1 9905-9911 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9912-0004 ● ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (A) 82 CELSIUS 		8-94397-310-0 01 1 9912-0004 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94397-310-0 01 1 9912-0004 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-0 01 1 0106-0109 ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (C) 82 CELSIUS 		8-97602-048-0 01 1 0106-0109 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (C) 82 CELSIUS 		8-97602-048-0 01 1 0106-0109 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0110- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-3 01 1 0110- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9510-9803 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9804-9807 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-9904 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9905-9911 ● ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) ENGINE NO PLATE<E6D> FLUID DRIVE FAN<KA3> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 82 CELSIUS 		8-94392-817-0 01 1 9905-9911 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE NO PLATE<E6D>,FLUID DRIVE FAN<KA3> (B) 82 CELSIUS 		8-94392-817-0 01 1 9905-9911 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) FLUID DRIVE FAN<KA3> EXC. ENGINE NO PLATE<E6D> (B) 82 CELSIUS 		8-94392-817-0 01 1 9905-9911 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9912-0004 ● ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B) 82 CELSIUS 		8-94392-817-0 01 1 9912-0004 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 82 CELSIUS 		8-94392-817-0 01 1 9912-0004 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0109 ● ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0109 ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0109 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0110-0112 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-037-0 01 1 0110-0112 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE NO PLATE<E6D>,FLUID DRIVE FAN<KA3> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9905-0004 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 76.5 CELSIUS 		8-94392-816-0 01 1 0005-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (D) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE NO PLATE<E6D>,FLUID DRIVE FAN<KA3> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9905-0004 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 76.5 CELSIUS 		8-94393-349-1 01 1 0005-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 76.5 CELSIUS 		8-97602-392-0 01 1 0201-0210 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		8-97602-392-2 01 1 0211- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9510-9803 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9804-0004 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9510-9803 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9804-0004 ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005- ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9510-0004 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0005- ● ● ●
32 CONNECTOR; HTR 8-94393-847-0 01 1 9510-9604 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9605-9803 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9804-0004 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9510-9611 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9803 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9804-0004 ● ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0005- ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9510-9802 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9803-0004 ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005- ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9510-9803 ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9804-0004 ● ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9510-9803 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9804-0004 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9510-9709 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9803 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9510-9611 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9803 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9804-0004 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9510-9803 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9804-0004 ● ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9712 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9801-9802 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9803-0004 ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9510-9802 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9803-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005- ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9510-9802 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9803-0004 ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005- ● ● ●
