◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#64012) — 31 parça

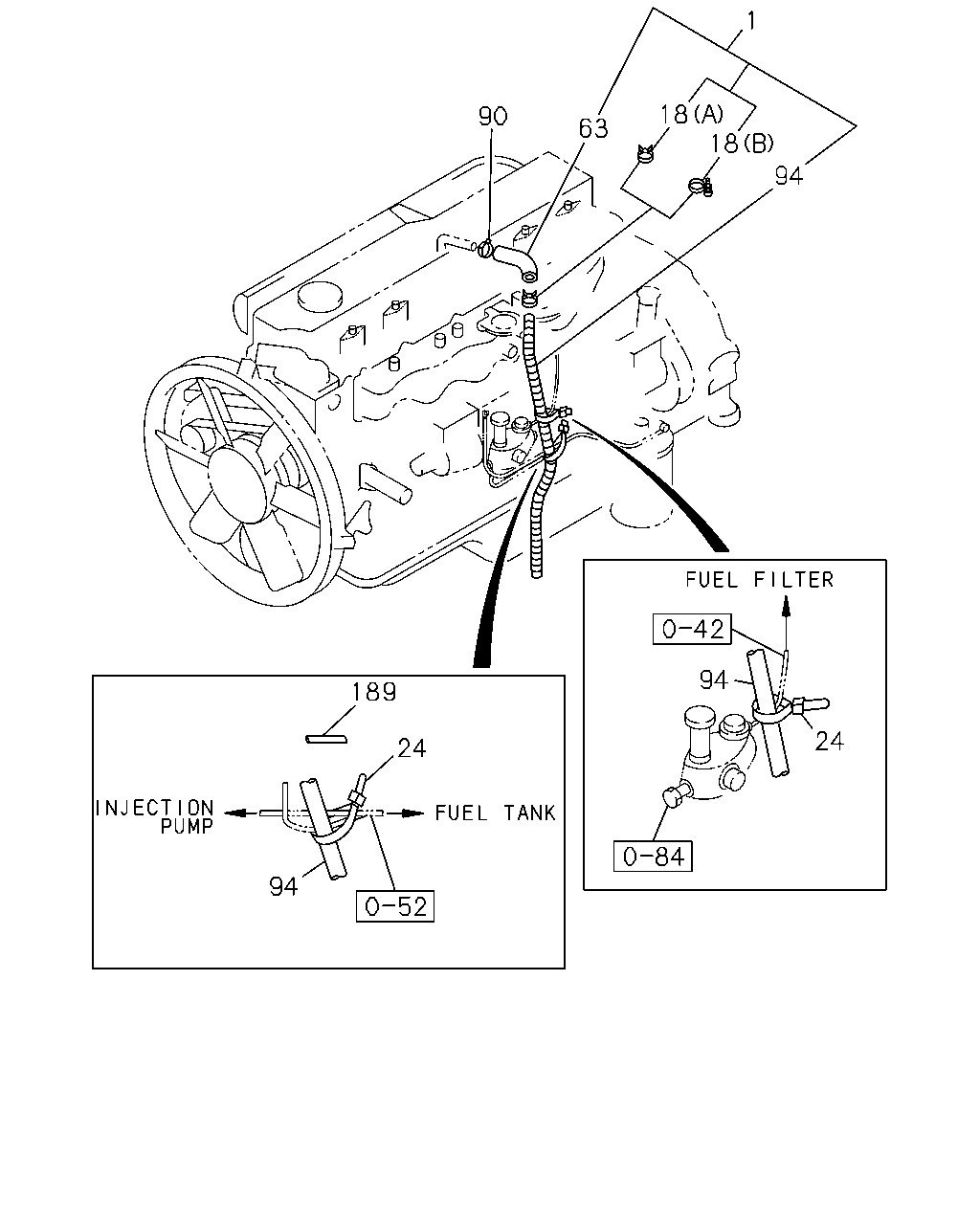

çizim 183800
1 18 18 90 63 94 94 189 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BREATHER; AIR 8-94394-777-1 01 1 9510-9803 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9804-0004 ● ●
1 BREATHER; AIR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-083-0 01 1 0005-0302 ●
1 BREATHER; AIR 8-94392-083-3 01 1 0303- ●
1 BREATHER; AIR 8-94394-859-4 01 1 9510- ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9510-9803 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9804-0004 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9510-9803 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9804-0004 ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0303-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 01 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9510-9803 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9804-0004 ● ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0005-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ● ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9510-9803 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9804-0004 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9510-9809 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9510-9803 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9804-0004 ● ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005- ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9510-9803 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9804-0004 ● ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-1 01 1 0005- ● ●
94 HOSE; BREATHER TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1260 		8-94392-082-0 01 1 0005-0302 ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 0303- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0004 ● ● ● ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0005- ● ●
