◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#64011) — 184 parça

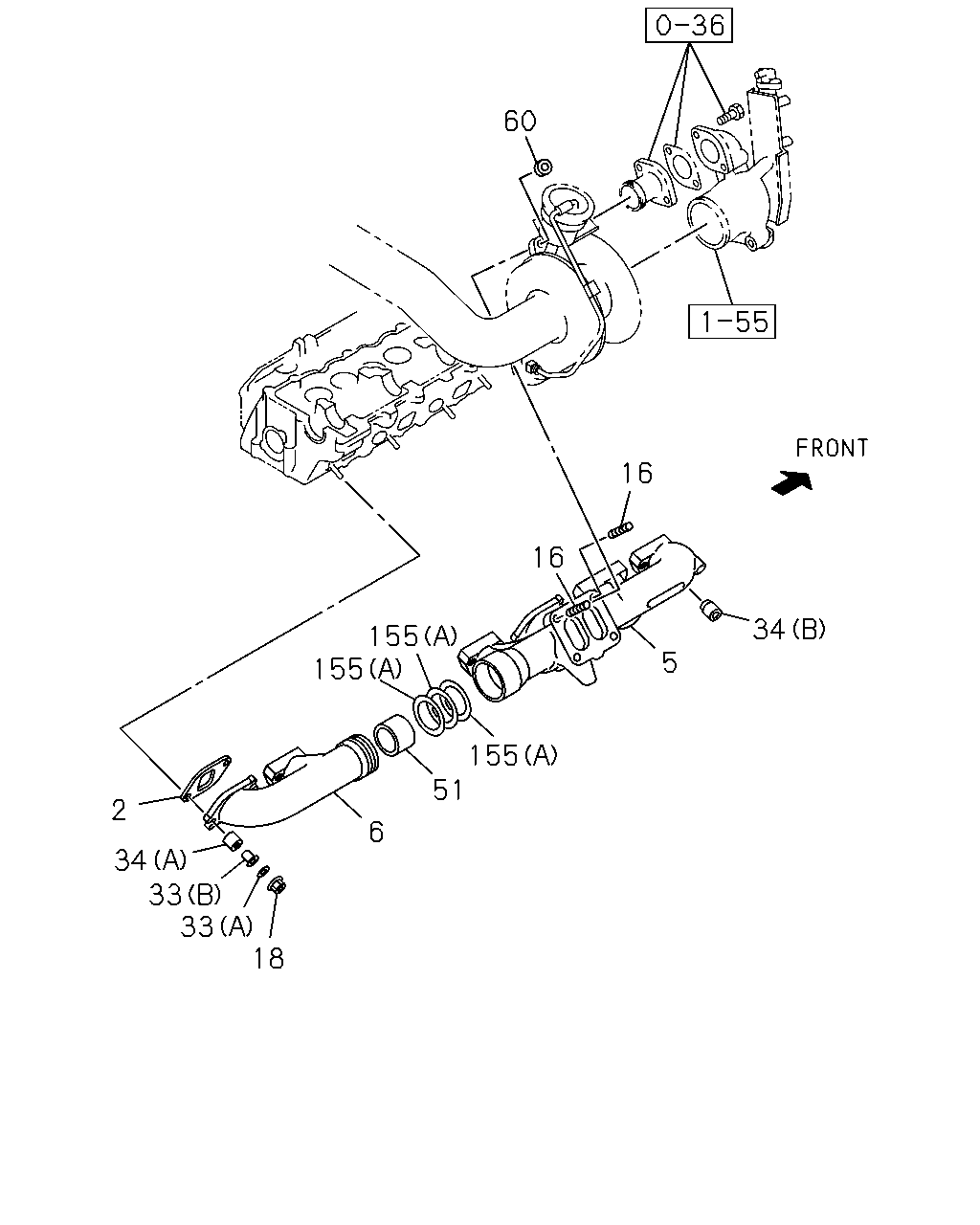

çizim 39533
60 16 16 34 155 155 5 155 51 2 6 34 33 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9510-9803 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9804-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 9510-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0005- ● ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9510-9803 ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9804-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 9510-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 0005- ● ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9510-9803 ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9804-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 9510-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 0005- ● ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9510-9803 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9804-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9510-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 0005- ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9510-9803 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9804-0004 ● ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 0005-0602 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91180-210-0 12 1 0603- ● ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9510-9803 ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9804-0004 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9510-9803 ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9804-0004 ● ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 0005- ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 0005-0209 ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210- ● ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 9510-0004 ● ●
51 PIPE; SEAL
OD=49.5 L=43 		1-14149-131-1 01 1 9510-9803 ●
51 PIPE; SEAL
OD=49.5 L=43 		1-14149-131-1 01 1 9804-0004 ● ●
60 WASHER; PL,EXH PIPE
ID=10 		1-09503-033-1 02 1 9510-9803 ●
60 WASHER; PL,EXH PIPE
ID=10 		1-09503-033-1 02 1 9804-0004 ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9510-9803 ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9804-0004 ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 0005- ● ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0005- ● ● ●

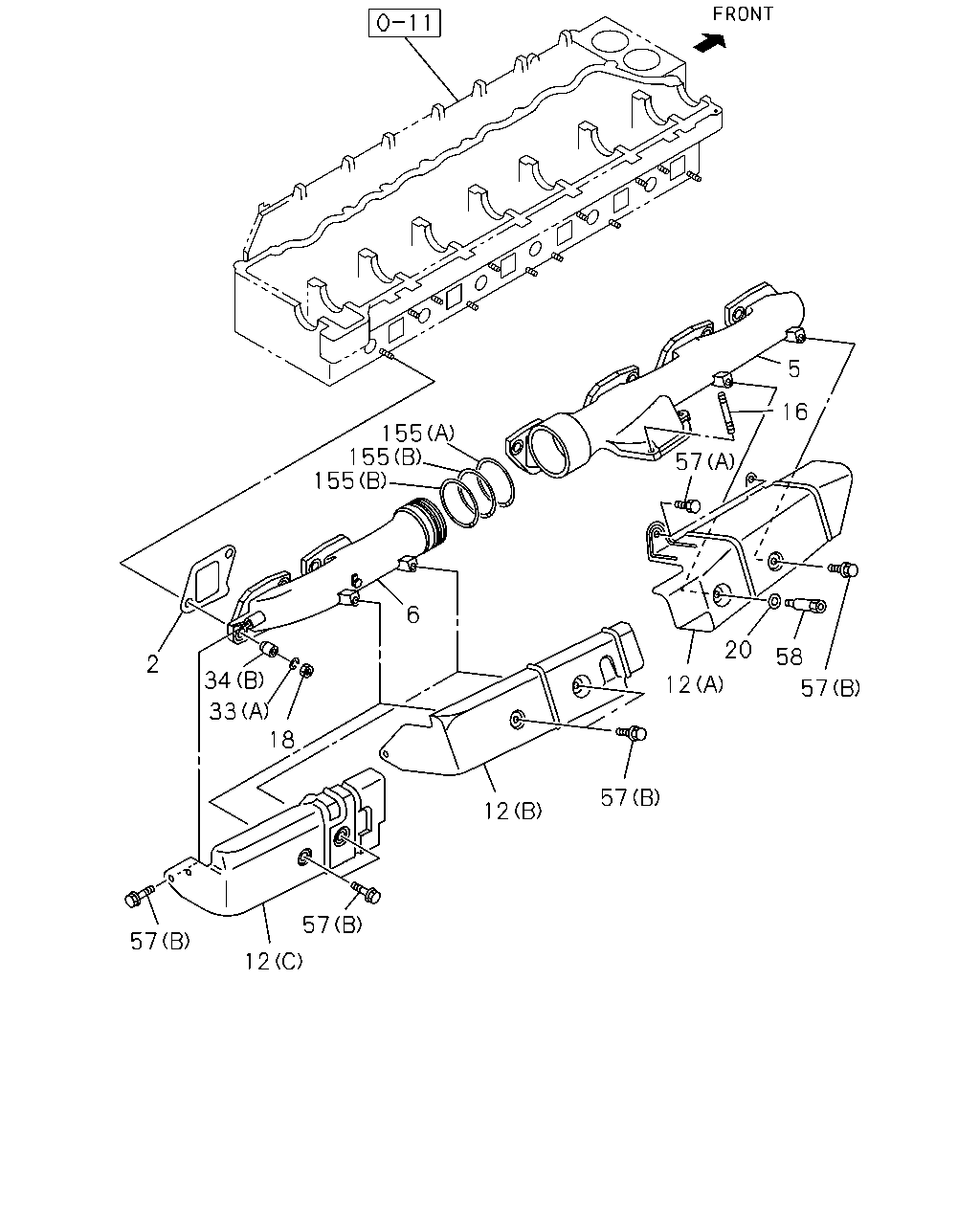

çizim 40257
5 16 155 155 155 57 6 20 58 2 34 12 57 33 18 57 12 57 57 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9510-9803 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9804-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 9510-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0005- ● ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9510-9803 ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9804-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 9510-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 0005- ● ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9510-9803 ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9804-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 9510-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 0005- ● ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 9510-0302 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 0303- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<THN> (A) 		8-94395-204-0 01 1 0303- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94395-413-1 01 1 9510-9609 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94391-040-0 01 1 9610-9809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 9810-0004 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-94391-190-1 01 1 0005-0407 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-97604-919-0 01 1 0408-0608 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-97611-120-0 01 1 0609- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(C) 		8-94392-947-0 01 1 0005- ● ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9510-9803 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9804-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9510-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 0005- ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9510-9803 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9804-0004 ● ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 0005-0602 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91180-210-0 12 1 0603- ● ● ●
20 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 01 1 9510-9803 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9510-9803 ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9804-0004 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9510-9803 ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9804-0004 ● ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 0005- ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 0005-0209 ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210- ● ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 9510-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0005-0302 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X14 FLANGE 		8-94312-699-1 03 1 0005-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 03 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 04 1 9510-9803 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 9804-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0005-0302 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 03 1 0005-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 03 1 0409- ●
58 STUD; HEAT PROTECTOR 8-94396-828-2 01 1 9510-9803 ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9510-9803 ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9804-0004 ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 0005- ● ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0005- ● ● ●

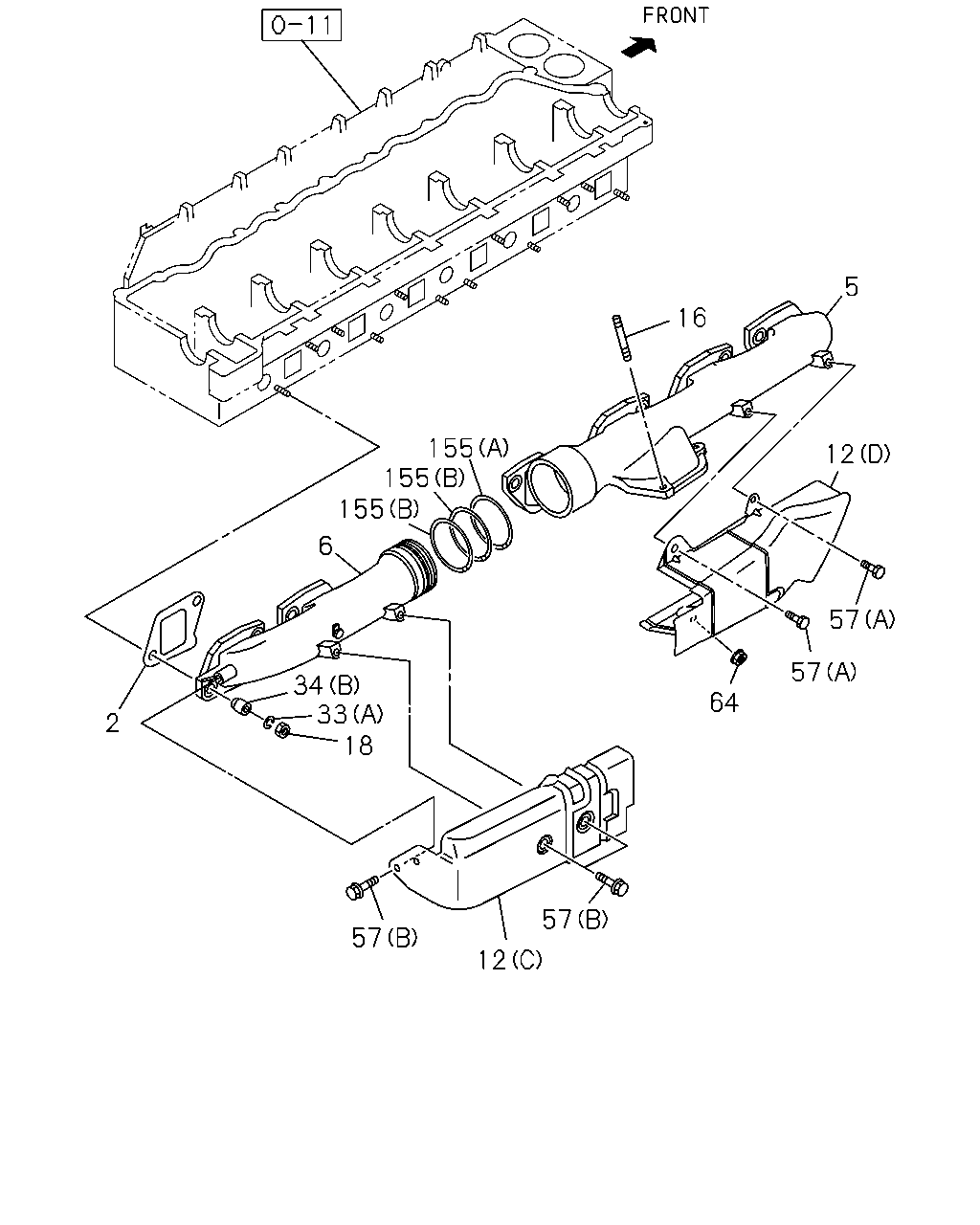

çizim 40510
5 16 155 155 155 12 6 57 57 34 33 18 64 2 57 57 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9510-9803 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9804-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 9510-0004 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0005- ● ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9510-9803 ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9804-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 9510-0004 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 0005- ● ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9510-9803 ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9804-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 9510-0004 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 0005- ● ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 9510-0302 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 0303- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<THN> (A) 		8-94395-204-0 01 1 0303- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94395-413-1 01 1 9510-9609 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94391-040-0 01 1 9610-9809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 9810-0004 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-94391-190-1 01 1 0005-0407 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-97604-919-0 01 1 0408-0608 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) 		8-97611-120-0 01 1 0609- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(C) 		8-94392-947-0 01 1 0005- ● ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9510-9803 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9804-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9510-0004 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 0005- ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9510-9803 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9804-0004 ● ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 0005-0602 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91180-210-0 12 1 0603- ● ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9510-9803 ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9804-0004 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9510-9803 ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9804-0004 ● ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 0005- ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 0005-0209 ● ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210- ● ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9510-9803 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9804-0004 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 9510-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0005-0302 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X14 FLANGE 		8-94312-699-1 03 1 0005-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 03 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 04 1 9510-9803 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 9804-0004 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0005-0302 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-94312-699-1 05 1 0303-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 03 1 0005-0408 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 03 1 0409- ●
64 NUT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
64 NUT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9510-9803 ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 03 1 9804-0004 ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 0005- ● ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 9510-0004 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
