Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#64008) — 245 parça

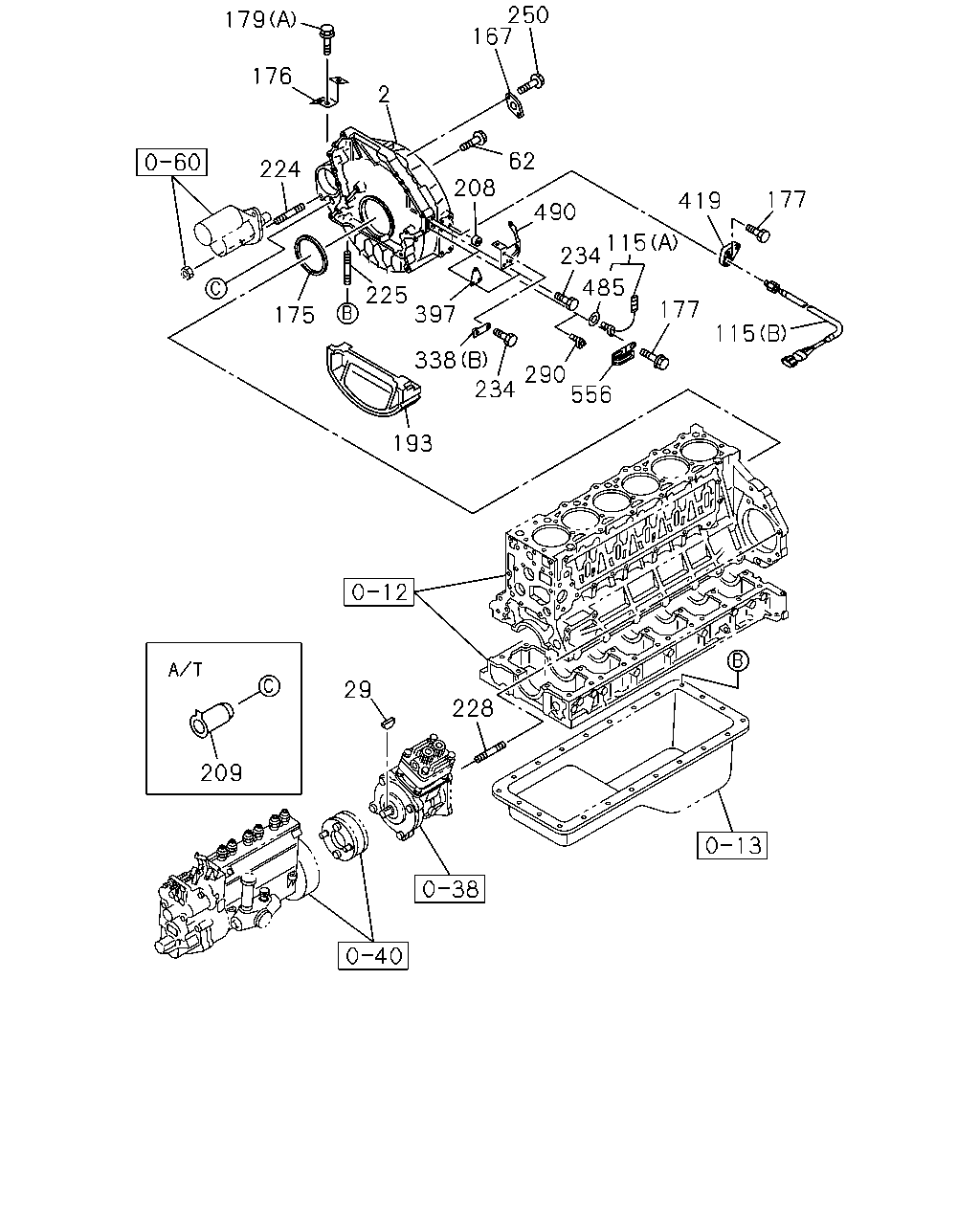

250 167 179 176 2 62 224 208 177 419 490 115 234 485 225 397 177 175 115 338 290 234 556 193 29 228 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

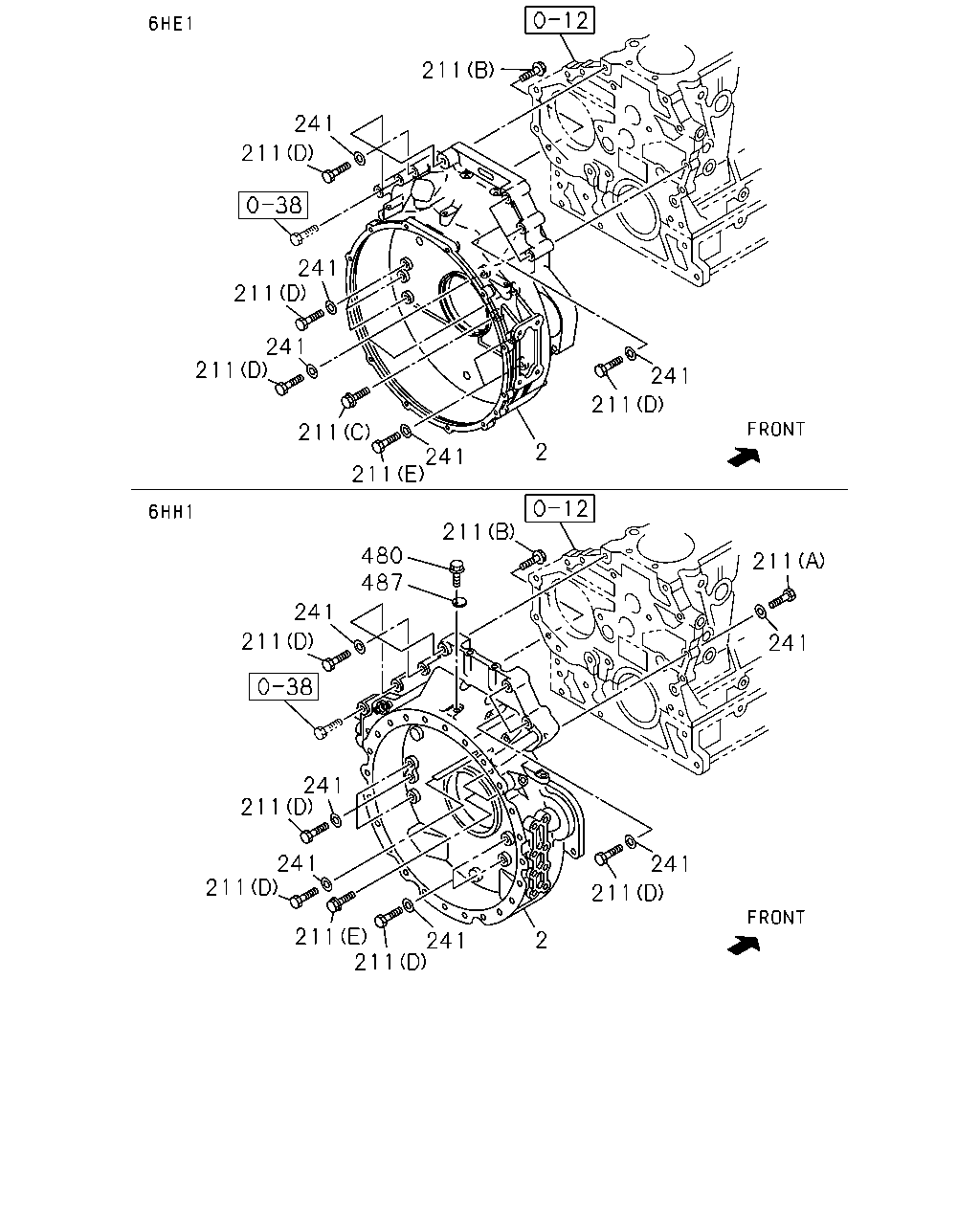

2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-5	01	1	0303-	●
2	HOUSING; FLYWHEEL	8-94393-404-2	01	1	9510-9803		●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9804-0004		●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0004				●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	0005-0302	●				●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-4	01	1	0005-0302				●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0303-					●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-8	01	1	0303-				●
2	HOUSING; FLYWHEEL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-757-8	01	1	0303-	●
2	HOUSING; FLYWHEEL A/T<X9D>	8-94394-759-5	01	1	0102-1111				●
2	HOUSING; FLYWHEEL A/T<X9D>	8-98175-843-4	01	1	1112-				●
29	KEY; COUPLING EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0303-	●
29	KEY; COUPLING	9-08055-416-0	01	1	9510-9803		●		●	●
29	KEY; COUPLING	9-08055-416-0	01	1	9804-0004		●	●	●	●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0302	●			●	●
29	KEY; COUPLING	9-08055-416-0	01	1	0303-				●	●
29	KEY; COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-416-0	01	1	0303-	●
62	BOLT; COVER EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	03	1	0303-0512	●
62	BOLT; COVER EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28050-820-0	03	1	0601-	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN> (B)	8-97600-829-2	01	1	0303-	●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-81510-561-0	01	1	9510-9803		●		●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> (A)	1-81510-561-0	01	1	9510-9803					●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-81510-561-0	01	1	9804-0004		●	●	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> (A)	1-81510-561-0	01	1	9804-0004					●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> (A)	1-81510-561-0	01	1	0005-				●	●
167	COVER; OIL	1-11219-163-0	01	1	9510-0004				●	●
167	COVER; OIL	1-11219-163-0	01	1	0005-	●			●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9510-9803		●		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9804-0004		●	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0005-0112	●			●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-	●			●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9510-9803		●		●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9804-0004		●	●	●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	0005-	●			●	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0303-0512	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9510-9803		●		●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9804-0004		●	●	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0302	●			●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0303-0512				●	●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28080-616-0	01	1	0303-0512	●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-				●	●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9803		●		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9804-0004		●	●	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●			●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●			●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9803		●		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512	●			●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●			●	●
193	SPACER; STAY TO OIL,PAN ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-674-0	01	1	9510-0004					●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	9510-0004				●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0005-0302	●
193	SPACER; STAY TO OIL,PAN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-674-0	01	1	0303-0307	●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0303-0307	●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0308-0411	●
193	SPACER; STAY TO OIL,PAN ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-674-0	01	1	0412-0504				●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0412-0504	●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0505-	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9510-9803		●		●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9804-0004		●	●	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-	●			●	●
209	COVER; CONV HOLE A/T<X9D>	8-94396-842-0	01	1	0102-				●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9510-9803		●		●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9804-0004		●	●	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0604	●			●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-	●			●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9510-9803		●		●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9804-0004		●	●	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-	●			●	●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X77 L=95	9-09831-161-0	01	1	0303-	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9510-9803		●		●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9804-0004		●	●	●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0302	●			●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0303-0604				●	●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	9-94411-260-0	01	1	0303-0604	●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-				●	●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	0-44011-260-0	01	1	0605-	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9510-9803		●		●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9510-9803					●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9804-0004		●	●	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9804-0004					●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0005-0101				●	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0102-0109					●
234	BOLT; BRKT ISUZU M/T<X9A> M8X12 FLANGE	0-28080-812-0	02	1	0102-0109				●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0110-0512					●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0110-0512				●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
234	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
234	BOLT; BRKT A/T<X9D> M8X16 FLANGE	0-28080-816-0	01	1	0102-0512				●
234	BOLT; BRKT A/T<X9D> M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9510-0004				●	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-	●			●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	9510-0004					●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	0005-0101					●
290	PLUG; SENSOR HOLE THERMOSTAT VAR 1<Q1U>	1-11349-157-0	01	1	0005-0101				●
290	PLUG; SENSOR HOLE	1-11349-157-0	01	1	0005-0101	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	0102-0205				●	●
290	PLUG; SENSOR HOLE	1-11349-157-0	01	1	0102-0205	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0206-0302				●	●
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0206-0302	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0303-				●	●
290	PLUG; SENSOR HOLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97101-974-0	01	1	0303-	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9510-9803		●		●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9804-0004		●	●	●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0005-0109	●				●
338	BRACKET; CLIP,HARNESS ISUZU M/T<X9A> (A)	1-82699-889-0	01	1	0005-0109				●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0110-	●			●	●
338	BRACKET; CLIP,HARNESS A/T<X9D> (B)	1-82699-182-0	01	1	0102-				●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9510-0004					●
397	BRACKET; CONNECTOR	8-94394-411-1	01	1	9510-0004				●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	0005-				●	●
419	BRACKET; SENSOR EURO2 SPECIFICATION<THN>	8-94394-773-1	01	1	0303-	●
485	GASKET; SENSOR	9-09565-212-0	01	1	9510-9803		●		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9510-9803					●
485	GASKET; SENSOR	9-09565-212-0	01	1	9804-0004		●	●	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9804-0004					●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0005-				●	●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	9510-9803		●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	9804-9910		●	●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	0001-0004		●	●
490	BRACKET; AIR PIPE,VSS A/T<X9D>	8-94394-857-0	01	1	0102-				●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0303-0801	●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-97367-985-1	01	1	0802-	●

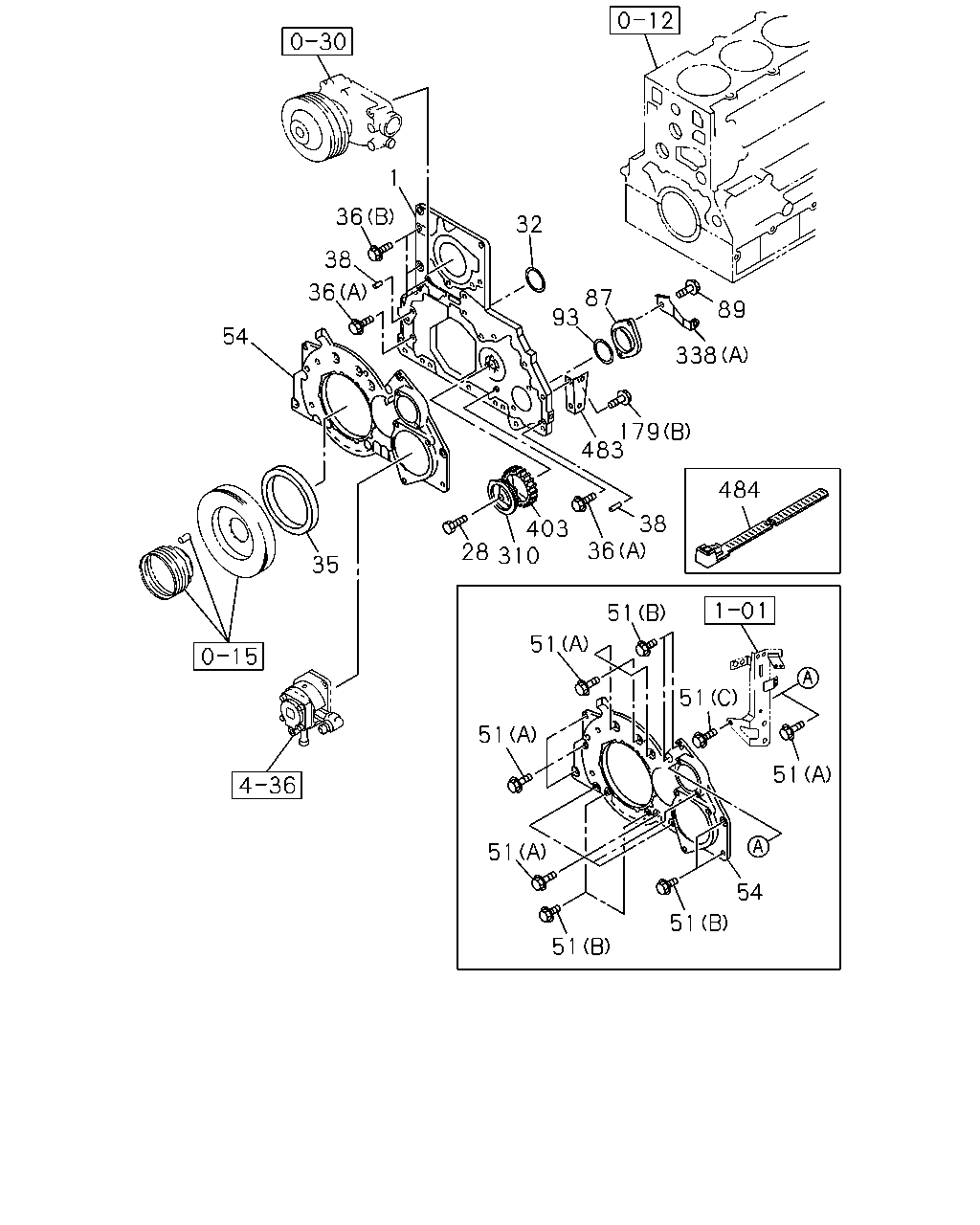

54 36 38 36 1 32 93 87 483 403 28 310 35 179 338 89 484 51 51 51 51 51 51 51 54 51 36 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9510-9803		●		●	●
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9804-0004		●	●	●	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0005-	●			●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9510-9803		●		●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9804-0004		●	●	●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0005-	●			●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9510-9803		●		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9804-9805		●	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0004		●	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-	●			●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9510-9803		●		●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9804-0004		●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112	●			●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-	●			●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9510-9803		●		●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9804-0004		●	●	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0005-0801	●			●	●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-	●			●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9510-9803		●		●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9804-0004		●	●	●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0005-0801	●			●	●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-	●			●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9510-9803		●		●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9804-0004		●	●	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-	●			●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0303-0512				●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28080-840-0	10	1	0303-0512	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-				●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-9803		●		●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9804-0004		●	●	●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0302	●			●	●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	11	1	0303-0512	●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9510-9803		●		●	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9804-0004		●	●	●	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0302	●			●	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0303-0512				●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28080-845-0	01	1	0303-0512	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-				●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9510-9803		●		●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9804-0004		●	●	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0512	●			●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●			●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9510-9803		●		●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9804-0004		●	●	●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0005-	●			●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9510-9803		●		●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9804-0004		●	●	●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0005-	●			●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9510-9803		●		●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9804-0004		●	●	●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0005-	●			●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9510-9803		●		●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9804-0004		●	●	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0005-	●			●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9803		●		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9804-0004		●	●	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●			●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●			●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9803		●		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512	●			●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●			●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9510-9803		●		●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9804-0004		●	●	●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0005-	●			●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9510-9803		●		●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9804-0004		●	●	●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0005-0109	●				●
338	BRACKET; CLIP,HARNESS ISUZU M/T<X9A> (A)	1-82699-889-0	01	1	0005-0109				●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0110-	●			●	●
338	BRACKET; CLIP,HARNESS A/T<X9D> (B)	1-82699-182-0	01	1	0102-				●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9510-9803		●		●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9804-0004		●	●	●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0005-	●			●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9510-9803		●		●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9804-0004		●	●	●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0005-	●			●	●
484	CLIP; BAND TACHOMETER<UD7> L=250	5-09707-030-1	01	1	1201-1205				●	●
484	CLIP; BAND TACHOMETER<UD7> L=250	8-98216-430-0	01	1	1206-				●	●

211 241 211 38 241 211 241 211 241 211 211 2 241 211 211 480 487 211 241 211 241 241 211 241 211 241 211 211 241 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-5	01	1	0303-	●
2	HOUSING; FLYWHEEL	8-94393-404-2	01	1	9510-9803		●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9804-0004		●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0004				●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	0005-0302	●				●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-4	01	1	0005-0302				●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0303-					●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-8	01	1	0303-				●
2	HOUSING; FLYWHEEL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-757-8	01	1	0303-	●
2	HOUSING; FLYWHEEL A/T<X9D>	8-94394-759-5	01	1	0102-1111				●
2	HOUSING; FLYWHEEL A/T<X9D>	8-98175-843-4	01	1	1112-				●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9510-9803		●		●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9804-0004		●	●	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-	●			●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9510-9803		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9804-0004		●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0512	●			●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●			●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9510-9803		●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9804-0004		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-	●			●	●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	9510-9803		●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	9804-0004		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9510-9803		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9804-0004		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0005-0512	●			●	●
211	BOLT; HSG (D) M12X70	0-16956-270-0	12	1	0601-	●			●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9510-0004				●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9510-0004				●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	9510-0004				●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9608-0004				●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0512	●			●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-	●			●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9510-9803		●		●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9804-0004		●	●	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-	●			●	●
480	BOLT; COVER A/T<X9D> M6X12 FLANGE	0-28050-612-0	01	1	1112-				●
487	COVER; HOLE A/T<X9D>	8-97600-831-0	01	1	1112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
