0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#64007) — 174 parça

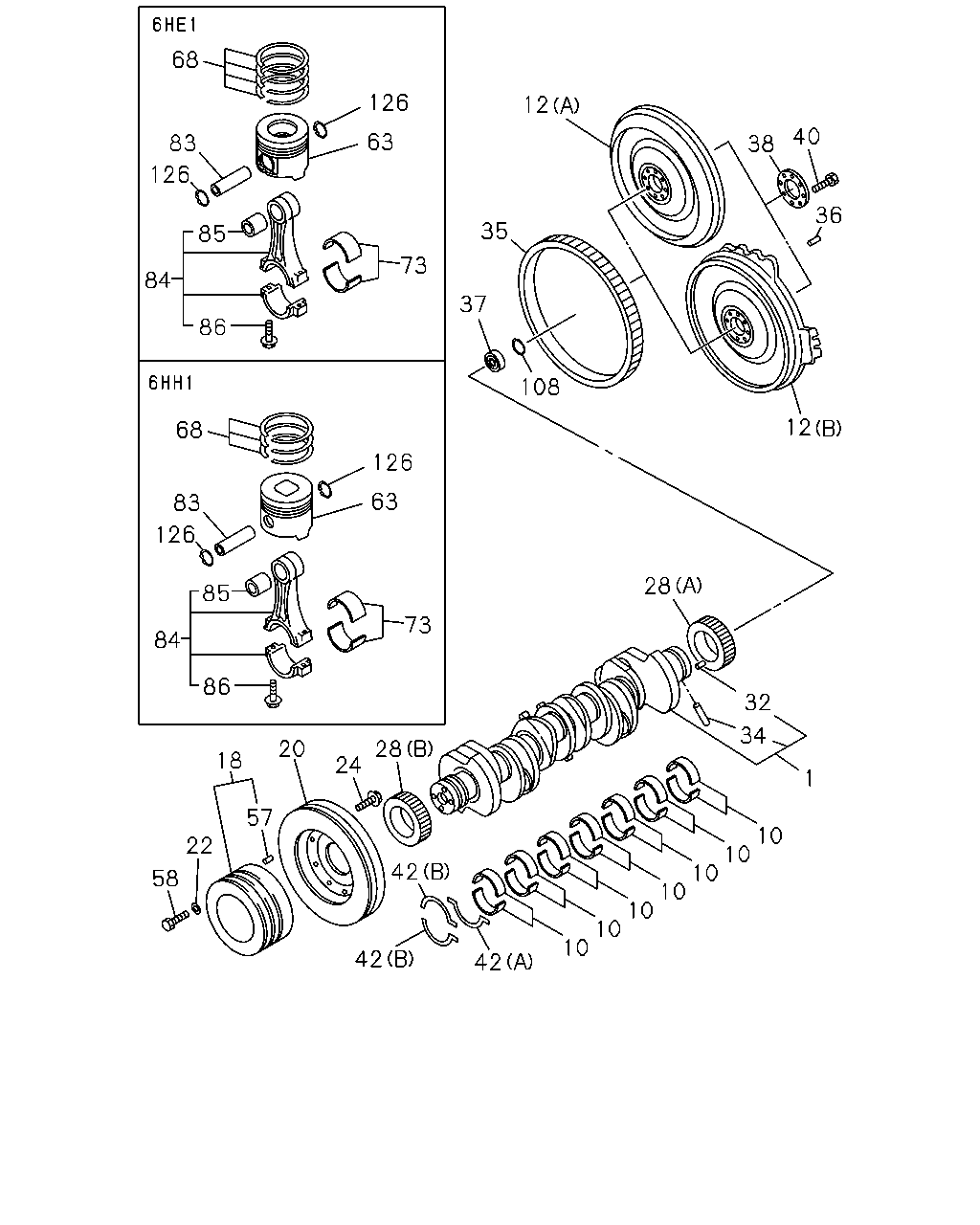

çizim 183797
68 126 63 73 86 84 85 126 83 68 126 63 73 86 84 85 126 83 18 57 20 24 28 42 42 22 58 42 32 28 34 1 10 10 10 10 10 10 10 12 36 40 38 12 35 37 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CRANKSHAFT 8-94396-737-3 01 1 9510-9803 ●
1 CRANKSHAFT 8-94396-737-3 01 1 9804-0004 ● ●
1 CRANKSHAFT 8-94393-291-3 01 1 9510-0004 ● ●
1 CRANKSHAFT 8-94393-291-4 01 1 0005-0305 ● ● ●
1 CRANKSHAFT 8-97603-003-1 01 1 0306- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 07 1 0309- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 07 1 0309- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 07 1 0309- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 9510-9803 ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 9510-9803 ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 9510-9803 ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 9804-0004 ● ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 9804-0004 ● ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 9804-0004 ● ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 0005-0305 ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 0005-0305 ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 0005-0305 ● ● ●
12 FLYWHEEL
(B) 		8-94393-849-1 01 1 9510-9803 ●
12 FLYWHEEL
(B) 		8-94393-849-1 01 1 9804-0004 ● ●
12 FLYWHEEL
(A) 		8-94396-052-2 01 1 9510-9802 ●
12 FLYWHEEL
(A) 		8-94396-052-2 01 1 9803-0004 ●
12 FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94396-052-2 01 1 9803-0004 ●
12 FLYWHEEL
(A) 		8-94396-052-3 01 1 0005- ● ●
12 FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94396-052-3 01 1 0005- ●
12 FLYWHEEL
(B) 		8-94395-604-1 01 1 9511-9608 ●
12 FLYWHEEL
(B) 		8-94390-131-0 01 1 9609-9802 ●
12 FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94390-131-0 01 1 9803-0004 ●
12 FLYWHEEL
A/T<X9D> (A) 		8-94397-007-3 01 1 0102- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 9510-9803 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 9804-0004 ● ●
18 PULLEY; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94394-296-3 01 1 9510-9802 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94394-296-3 01 1 9510-9802 ●
18 PULLEY; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94394-296-3 01 1 9803-0004 ●
18 PULLEY; CR/SHF
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 3-GROOVE 		8-94394-296-3 01 1 9803-0004 ●
18 PULLEY; CR/SHF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 3-GROOVE 		8-94394-296-3 01 1 0005-0411 ●
18 PULLEY; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94394-296-3 01 1 0412- ●
18 PULLEY; CR/SHF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 3-GROOVE 		8-94394-296-3 01 1 0412- ●
18 PULLEY; CR/SHF
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94395-286-3 01 1 9510-9802 ●
18 PULLEY; CR/SHF
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94395-286-3 01 1 9803-0004 ●
18 PULLEY; CR/SHF
AIR COMPRESSOR HEAVY DUTY(E1Q) 3-GROOVE 		8-94395-286-3 01 1 9803-0004 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94395-286-3 01 1 0005-0302 ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> 3-GROOVE 		8-94395-286-3 01 1 0005-0302 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94395-286-3 01 1 0303-0407 ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> 3-GROOVE 		8-94395-286-3 01 1 0303-0407 ●
18 PULLEY; CR/SHF
EURO2 SPECIFICATION<THN> 3-GROOVE 		8-94395-286-3 01 1 0303-0407 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94395-286-3 01 1 0408- ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94395-286-3 01 1 0408- ●
18 PULLEY; CR/SHF
EURO2 SPECIFICATION<THN> 3-GROOVE 		8-94395-286-3 01 1 0408- ●
18 PULLEY; CR/SHF
A/T<X9D> 3-GROOVE 		8-94390-166-2 01 1 0102- ●
20 DAMPER; CR/SHF 8-94394-354-4 01 1 9510-9802 ● ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-354-4 01 1 9510-9802 ●
20 DAMPER; CR/SHF 8-94394-354-4 02 1 9803-9904 ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-354-4 02 1 9803-9904 ● ●
20 DAMPER; CR/SHF 8-94394-354-4 02 1 9912-0004 ● ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-354-4 02 1 9912-0004 ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT VAR2<TAK> 14" CLUTCH(WF6) 		8-94394-354-4 02 1 9912-0004 ●
20 DAMPER; CR/SHF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-354-5 01 1 0005-0411 ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-354-7 01 1 0412-1110 ●
20 DAMPER; CR/SHF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-354-7 01 1 0412-1110 ●
20 DAMPER; CR/SHF
ANTI NOISE EQUIPMENT ECE<SLK> 		8-94392-276-3 01 1 1111- ●
20 DAMPER; CR/SHF
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-276-3 01 1 1111- ●
20 DAMPER; CR/SHF
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-559-1 01 1 9510-9802 ●
20 DAMPER; CR/SHF
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-559-1 01 1 9803-9904 ● ●
20 DAMPER; CR/SHF
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94394-559-1 01 1 9912-0004 ●
20 DAMPER; CR/SHF
13" CLUTCH(WD4) 		8-94394-559-1 01 1 9912-0004 ●
20 DAMPER; CR/SHF 8-94394-559-1 01 1 0005-0302 ●
20 DAMPER; CR/SHF
ISUZU M/T<X9A> 		8-94394-559-1 01 1 0005-0302 ●
20 DAMPER; CR/SHF 8-94394-559-1 01 1 0303- ●
20 DAMPER; CR/SHF
ISUZU M/T<X9A> 		8-94394-559-1 01 1 0303- ●
20 DAMPER; CR/SHF
EURO2 SPECIFICATION<THN> 		8-94394-559-1 01 1 0303- ●
20 DAMPER; CR/SHF
A/T<X9D> 		8-94396-846-4 01 1 0102- ●
20 DAMPER; CR/SHF
14" CLUTCH(WF6) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94395-314-2 01 1 9912-0004 ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 9510-9803 ● ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 9804-0004 ● ● ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0005- ● ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 9510-9803 ● ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 9804-0004 ● ● ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 0005-0512 ● ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28151-016-0 06 1 0601- ● ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 9510-9803 ● ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 9804-0004 ● ● ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 0005- ● ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 9510-9803 ● ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 9804-0004 ● ● ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0005- ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 9510-9803 ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 9804-0004 ● ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0005- ● ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9510-9803 ● ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9804-0004 ● ● ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0005- ● ● ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 9510-9803 ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 9804-0004 ● ●
35 GEAR; RING
ID=361 Z=129 		8-94393-132-0 01 1 9510-0004 ● ●
35 GEAR; RING
ID=361 Z=129 		8-94393-132-0 01 1 0005- ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9510-9803 ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9804-0004 ● ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0005-0205 ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0206- ● ●
36 PIN; FLYWHEEL
ISUZU M/T<X9A> OD=10 L=22 		9-08151-022-0 02 1 0206- ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 9510-9803 ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 9804-9901 ● ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 9902-0004 ● ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0005- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-157-0 01 1 0005- ● ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9510-9803 ● ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9804-0004 ● ● ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0005- ● ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-0 08 1 9510-9803 ● ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 9804-0004 ● ● ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 0005- ● ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9510-9803 ● ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9804-0004 ● ● ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0005-0703 ● ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9510-9803 ● ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9804-0004 ● ● ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0005-0703 ● ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ● ●
57 PIN; PULLEY
OD=8 L=16 		9-08150-816-0 01 1 9510-9612 ● ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 9701-9803 ● ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 9804-0004 ● ● ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0005- ● ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 9510-9803 ● ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 9804-0004 ● ● ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 0005-0512 ● ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		0-20951-650-0 04 1 0601- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94393-398-0 06 1 9510-9510 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-594-0 06 1 9511-9803 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-594-0 06 1 9804-0004 ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM ECE REQUIREMENTS<SFV> NON GRADE 		8-97600-242-0 06 1 0005-0302 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97600-242-1 06 1 0303- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-599-0 06 1 9510-9608 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-598-0 06 1 9511-9608 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-606-1 06 1 9609- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94394-418-1 06 1 9510-9510 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-5 06 1 9511-9803 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-5 06 1 9804-0004 ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-128-2 06 1 0005-0302 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94392-128-3 06 1 0303- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-468-2 06 1 9510-9606 ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94390-799-2 06 1 9607- ● ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 06 1 9510-9803 ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 06 1 9804-0004 ● ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 06 1 9510-9803 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 06 1 9804-0004 ● ●
73 METAL SET; CONN ROD,STANDARD 8-94393-328-0 06 1 9510-0004 ● ●
73 METAL SET; CONN ROD,STANDARD 8-94393-328-0 06 1 0005- ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-0 06 1 9510-9803 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 06 1 9804-0004 ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 06 1 9510-0004 ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 06 1 0005- ● ● ●
84 ROD ASM; CONN 8-94399-661-1 06 1 9510-9803 ●
84 ROD ASM; CONN 8-94399-661-1 06 1 9804-0004 ● ●
84 ROD ASM; CONN 8-94396-394-2 06 1 9510-0004 ● ●
84 ROD ASM; CONN 8-94396-394-8 06 1 0005- ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 06 1 0906- ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 9510-9803 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 9804-0004 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 06 1 9510-0004 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 06 1 0005-0805 ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98075-233-0 06 1 0806-0905 ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0906-1004 ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 12 1 1005- ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 9510-9803 ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 9804-0004 ● ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0005-0905 ● ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 9510-9803 ● ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 9804-0004 ● ● ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0005- ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 9510-9803 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 9804-0004 ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 12 1 9510-0004 ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 12 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
