Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#64004) — 465 parça

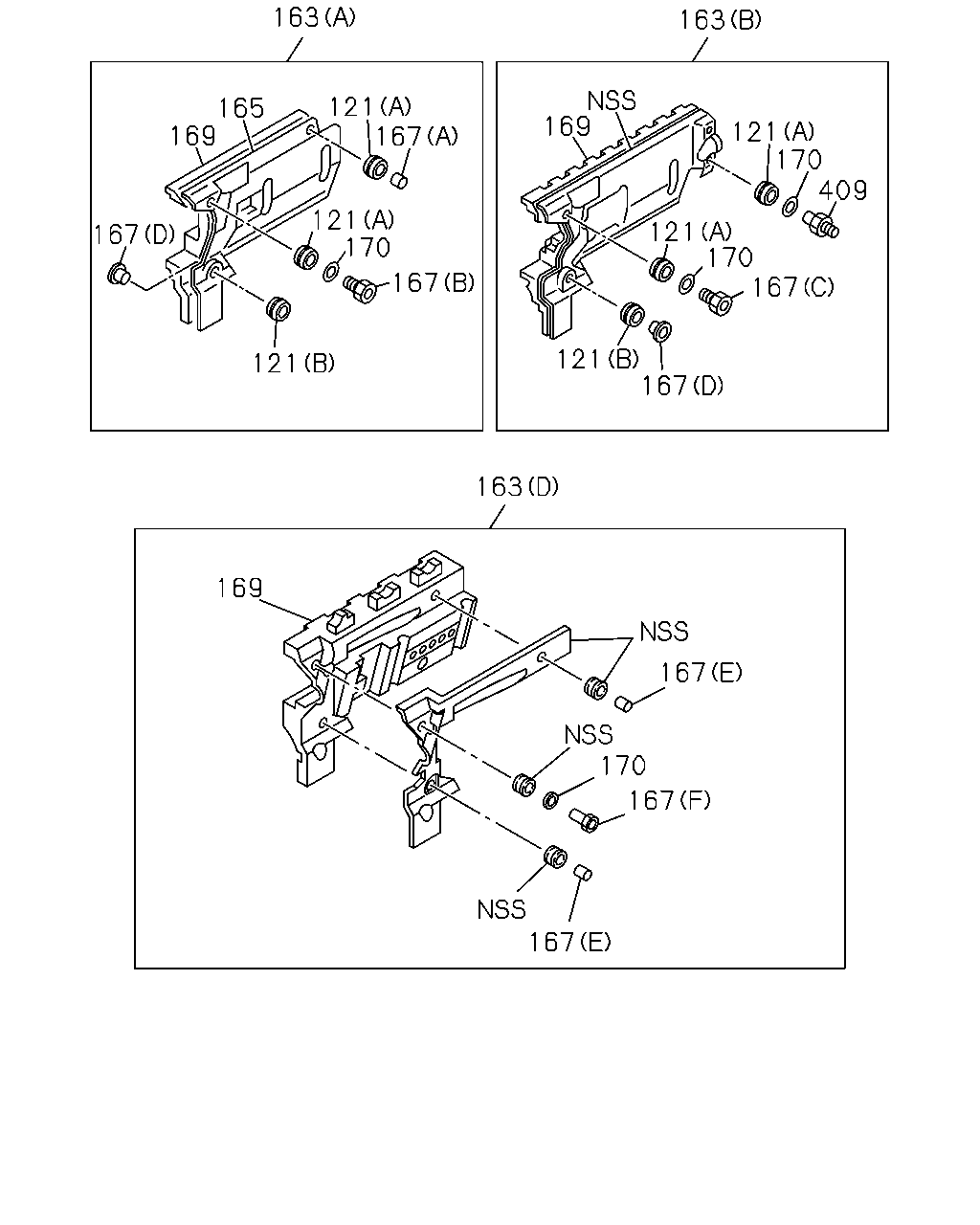

163 163 169 121 167 165 169 121 170 409 121 170 121 170 167 167 167 121 167 121 163 169 167 170 167 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=22	8-94140-428-1	02	1	0412-	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	0412-	●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9510-9803		●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9804-0004		●	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	9510-9803	●	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	9510-9803				●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	9804-0004	●	●	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	9804-0004				●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=22	8-94140-428-1	02	1	9510-0004				●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	9510-0004	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	0412-	●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-894-0	01	1	0303-0411					●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0303-0411					●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-894-0	01	1	0412-	●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-894-0	01	1	0412-					●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0412-					●
163	COVER ASM; C/BL SKIRT (B)	8-94394-989-1	01	1	9510-9803		●
163	COVER ASM; C/BL SKIRT (B)	8-94394-989-1	01	1	9804-0004		●	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	9510-0004				●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	9510-0004	●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0005-0302					●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-97600-524-0	01	1	0303-0307					●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-694-1	01	1	0412-	●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-694-1	01	1	9510-0004				●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	9510-0004	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=13 T=9.5	8-94140-427-1	05	1	0412-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) M10	8-94393-791-2	01	1	0412-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	0412-	●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) OD=13 T=9.5	8-94140-427-1	06	1	0303-0307					●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) OD=13 T=9.5	8-94140-427-1	04	1	0308-					●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (E) OD=13 T=9.5	8-94140-427-1	04	1	0308-					●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M10	8-94393-791-2	01	1	0303-0307					●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	03	1	9510-9803		●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	03	1	9804-0004		●	●
167	TUBE; DIST,SIDE COVER (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9510-9803	●	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9510-9803				●
167	TUBE; DIST,SIDE COVER (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9804-0004	●	●	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9804-0004				●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=13 T=9.5	8-94140-427-1	01	1	9510-0004				●
167	TUBE; DIST,SIDE COVER (A) OD=13 T=9.5	8-94140-427-1	01	1	9510-0004	●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (E) OD=13 T=9.5	8-94140-427-1	04	1	0005-0307					●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) M10	8-94393-791-2	01	1	9510-0004				●
167	TUBE; DIST,SIDE COVER (B) M10	8-94393-791-2	01	1	9510-0004	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-173-0	01	1	0412-	●
169	INSULATOR; SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-525-0	01	1	0303-0307					●
169	INSULATOR; SIDE COVER	8-94394-121-0	01	1	9510-9803		●
169	INSULATOR; SIDE COVER	8-94394-121-0	01	1	9804-0004		●	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-173-0	01	1	9510-0004				●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	9510-0004	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=14 OD=22	9-47515-014-0	01	1	0412-	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	9-09160-708-0	04	1	0303-0411					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0303-0411					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22	0-91610-708-0	04	1	0606-	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	0-91610-708-0	04	1	0606-					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	0-91610-708-0	04	1	0606-					●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	04	1	9510-9803		●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	04	1	9804-0004		●	●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0005-0302					●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14 OD=22	9-47515-014-0	01	1	0303-0307					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=14 OD=22	9-47515-014-0	01	1	9510-0004				●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	01	1	9510-0004	●
409	SPACER; COVER	8-94394-990-1	01	1	9510-9803		●
409	SPACER; COVER	8-94394-990-1	01	1	9804-0004		●	●

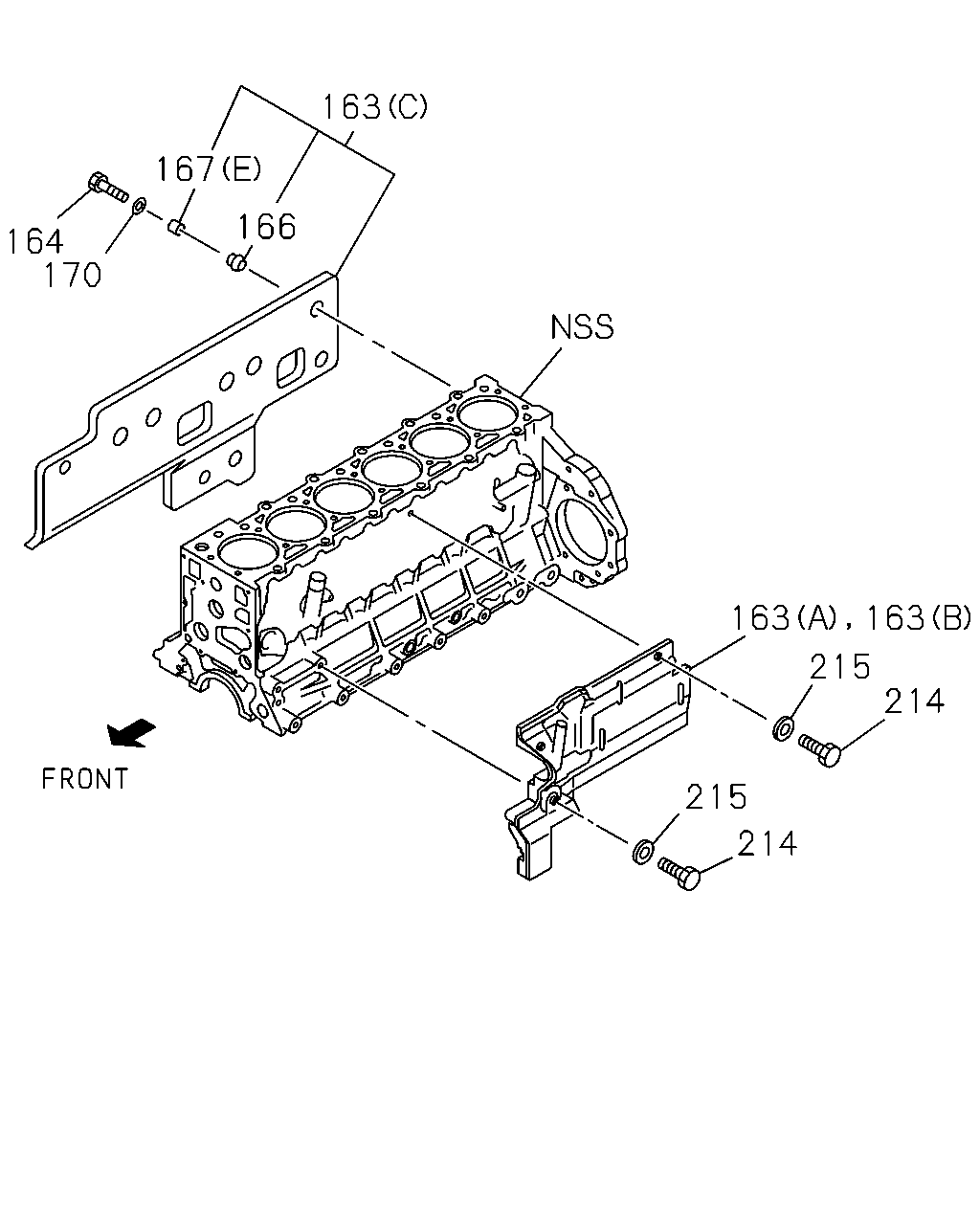

163 167 166 164 170 163 163 215 214 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	0412-	●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-894-0	01	1	0303-0411					●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0303-0411					●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-894-0	01	1	0412-	●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-894-0	01	1	0412-					●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0412-					●
163	COVER ASM; C/BL SKIRT (B)	8-94394-989-1	01	1	9510-9803		●
163	COVER ASM; C/BL SKIRT (B)	8-94394-989-1	01	1	9804-0004		●	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	9510-0004				●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	9510-0004	●
163	COVER ASM; C/BL SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-894-0	01	1	0005-0302					●
163	COVER ASM; C/BL SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-97600-524-0	01	1	0303-0307					●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X25 FLANGE	0-28680-825-0	04	1	0005-0302					●
164	BOLT; COVER BLOCK SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M8X25 FLANGE	0-28680-825-0	04	1	0303-0411					●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X25 FLANGE	0-28680-825-0	04	1	0303-0411					●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	04	1	0412-0512	●
164	BOLT; COVER BLOCK SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512					●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X25 FLANGE	0-28680-825-0	04	1	0412-0512					●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
164	BOLT; COVER BLOCK SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M8X25 FLANGE	0-28650-825-0	04	1	0601-					●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X25 FLANGE	0-28650-825-0	04	1	0601-					●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=22	8-94140-428-1	04	1	0005-0302					●
166	MOUNT; COVER BLOCK SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) OD=22	8-94140-428-1	04	1	0303-0411					●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=22	8-94140-428-1	04	1	0303-0411					●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> OD=22	8-94140-428-1	04	1	0412-	●
166	MOUNT; COVER BLOCK SKIRT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) OD=22	8-94140-428-1	04	1	0412-					●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=22	8-94140-428-1	04	1	0412-					●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=13 T=9.5	8-94140-427-1	05	1	0412-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) M10	8-94393-791-2	01	1	0412-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	0412-	●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) OD=13 T=9.5	8-94140-427-1	06	1	0303-0307					●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) OD=13 T=9.5	8-94140-427-1	04	1	0308-					●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (E) OD=13 T=9.5	8-94140-427-1	04	1	0308-					●
167	TUBE; DIST,SIDE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M10	8-94393-791-2	01	1	0303-0307					●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	03	1	9510-9803		●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	03	1	9804-0004		●	●
167	TUBE; DIST,SIDE COVER (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9510-9803	●	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9510-9803				●
167	TUBE; DIST,SIDE COVER (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9804-0004	●	●	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (D) OD=32 W/FLANGE	8-94397-356-1	01	1	9804-0004				●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=13 T=9.5	8-94140-427-1	01	1	9510-0004				●
167	TUBE; DIST,SIDE COVER (A) OD=13 T=9.5	8-94140-427-1	01	1	9510-0004	●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (E) OD=13 T=9.5	8-94140-427-1	04	1	0005-0307					●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) M10	8-94393-791-2	01	1	9510-0004				●
167	TUBE; DIST,SIDE COVER (B) M10	8-94393-791-2	01	1	9510-0004	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=14 OD=22	9-47515-014-0	01	1	0412-	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	9-09160-708-0	04	1	0303-0411					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0303-0411					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0412-0605					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22	0-91610-708-0	04	1	0606-	●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=22	0-91610-708-0	04	1	0606-					●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	0-91610-708-0	04	1	0606-					●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	04	1	9510-9803		●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	04	1	9804-0004		●	●
170	WASHER; COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=22	9-09160-708-0	04	1	0005-0302					●
170	WASHER; COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14 OD=22	9-47515-014-0	01	1	0303-0307					●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=14 OD=22	9-47515-014-0	01	1	9510-0004				●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	01	1	9510-0004	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	0412-0512	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28151-025-0	02	1	0601-	●
214	BOLT; NOISE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 FLANGE	0-28181-025-0	02	1	0303-0307					●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	01	1	9510-9803		●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	01	1	9804-0004		●	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9510-0004				●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	9510-0004	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=22	9-09164-610-0	01	1	0412-0605	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32	9-09164-810-0	01	1	0412-0605	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●
215	WASHER; PL,NOISE COVER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=22	9-09164-610-0	02	1	0303-0307					●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	9-09164-810-0	01	1	9510-9803	●	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32	9-09164-810-0	01	1	9510-9803				●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	9-09164-810-0	01	1	9804-0004		●	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32	9-09164-810-0	01	1	9804-0004				●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=32	9-09164-810-0	01	1	9804-0004	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=22	9-09164-610-0	01	1	9510-0004				●
215	WASHER; PL,NOISE COVER ID=10.5 OD=22	9-09164-610-0	01	1	9510-0004	●

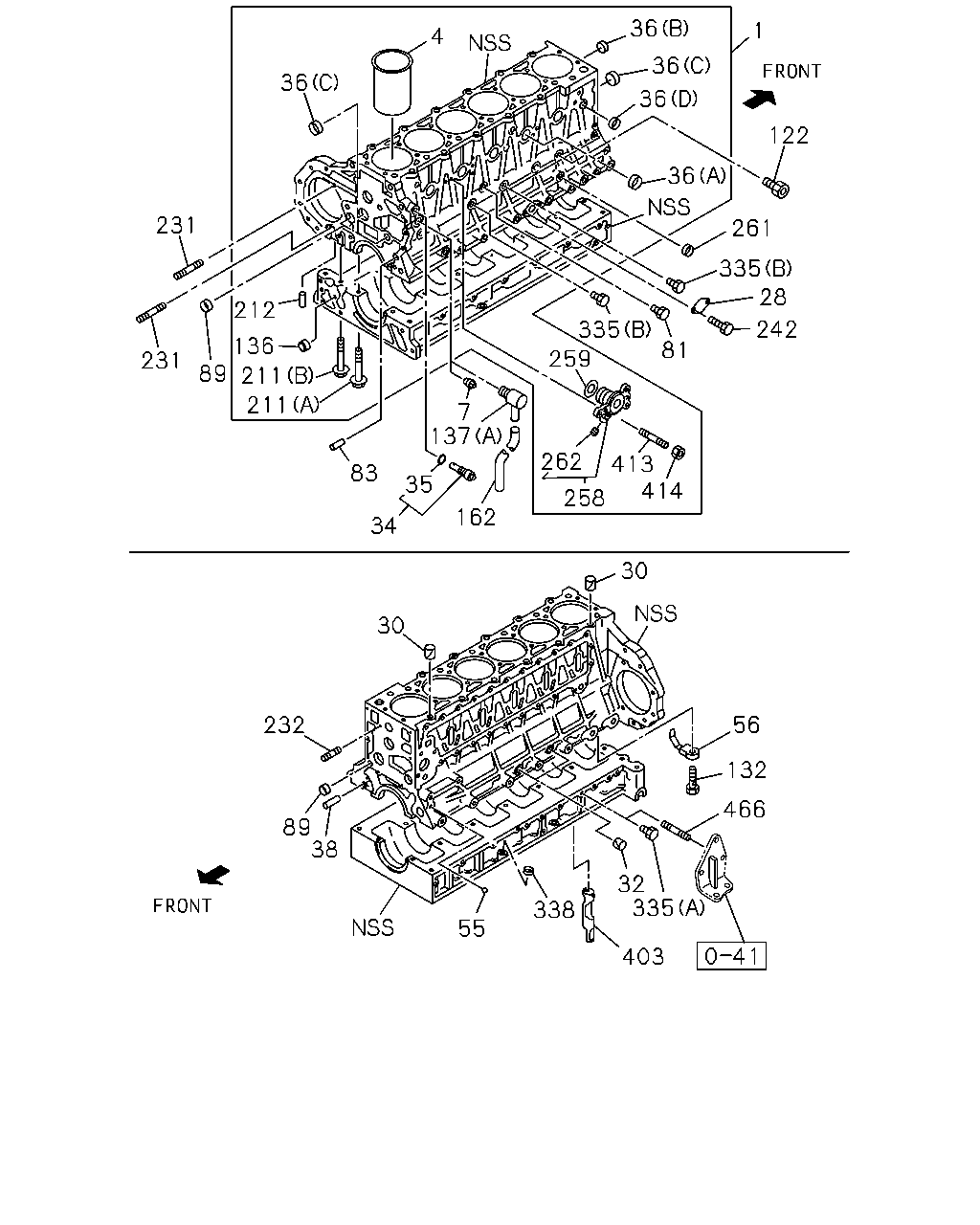

36 4 231 36 1 36 231 36 55 36 122 89 261 212 335 83 10 137 211 211 10 35 34 30 30 232 56 132 335 89 38 55 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BLOCK ASM; CYL	8-94393-958-8	01	1	9510-9803		●
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9804-0001		●	●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	0002-0004		●	●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9510-9807	●			●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001	●			●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0002-0004	●			●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0005-0504	●			●	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012	●			●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209	●			●	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0005-	●			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0005-	●			●	●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9510-9803		●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9804-0004		●	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9510-9803		●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9804-0004		●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9510-9803	●	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9804-0004	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-	●			●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9510-9803	●	●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9804-0004	●	●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-	●			●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9510-9803	●	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9804-0004	●	●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-	●			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9510-9803	●	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9804-0004	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0502	●			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9510-9803	●	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-	●			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9510-9803	●	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9804-0004	●	●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0302	●			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-	●			●
55	PLUG; OIL GALLERY EURO2 SPECIFICATION<THN> 3/8" BALL	9-00097-011-0	02	1	0303-					●
55	PLUG; OIL GALLERY EMISSION SYSTEM ECE REQUIREMENTS<SFV> 3/8" BALL	9-00097-011-0	01	1	0005-					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9510-9803		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9804-0004		●	●
56	JET; OIL,PISTON COOLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-194-0	06	1	0005-0302					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703					●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007					●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-					●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9510-	●			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9510-9803	●	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0306	●			●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9510-9803	●	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9804-0004	●	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0005-0908	●			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9510-9803	●	●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0004	●	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-	●			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9510-9803		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9804-0004		●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9510-0004	●			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0704	●			●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-	●			●	●
137	COCK; DRAIN,WATER (B)	8-94393-716-1	01	1	9510-9803		●
137	COCK; DRAIN,WATER (B)	8-94393-716-1	01	1	9804-0004		●	●
137	COCK; DRAIN,WATER (A)	1-09680-024-0	01	1	9510-0004	●			●
137	COCK; DRAIN,WATER (A)	1-09680-024-0	01	1	0005-1012	●			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9510-9803	●	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9804-0004	●	●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0905	●			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9510-9803	●	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9804-0004	●	●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-	●			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9510-9803	●	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0306	●			●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-	●			●	●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0303-					●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9510-9803	●	●		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9804-0004	●	●	●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0106	●			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0107-0301	●			●	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0302	●			●	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0303-0512	●			●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=40	0-49841-025-0	02	1	0303-0512					●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-	●			●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=48.5	0-49241-025-0	02	1	0601-					●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X46.5 L=58.5	8-97066-386-1	02	1	0005-0106					●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9510-9803	●	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9804-0004	●	●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0604	●			●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9510-9803	●	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9804-0004	●	●	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0307	●			●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9510-9803	●	●		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9804-0004	●	●	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0703	●			●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-	●			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9510-9803	●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9510-9803				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9804-0004	●	●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9804-0004				●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	0005-0101				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0101	●				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0102-0302	●			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0303-0501	●			●
335	PLUG; C/BL,SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X6	8-94399-421-0	01	1	0303-0501					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●			●
335	PLUG; C/BL,SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X10	8-98003-416-0	01	1	0502-					●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9510-9803	●	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9804-0004	●	●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0607	●			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●			●	●

36 1 4 36 36 36 122 36 231 261 335 28 212 242 335 136 89 81 259 231 211 211 7 137 262 413 414 83 35 258 162 34 30 30 56 232 132 466 89 38 32 335 338 55 403

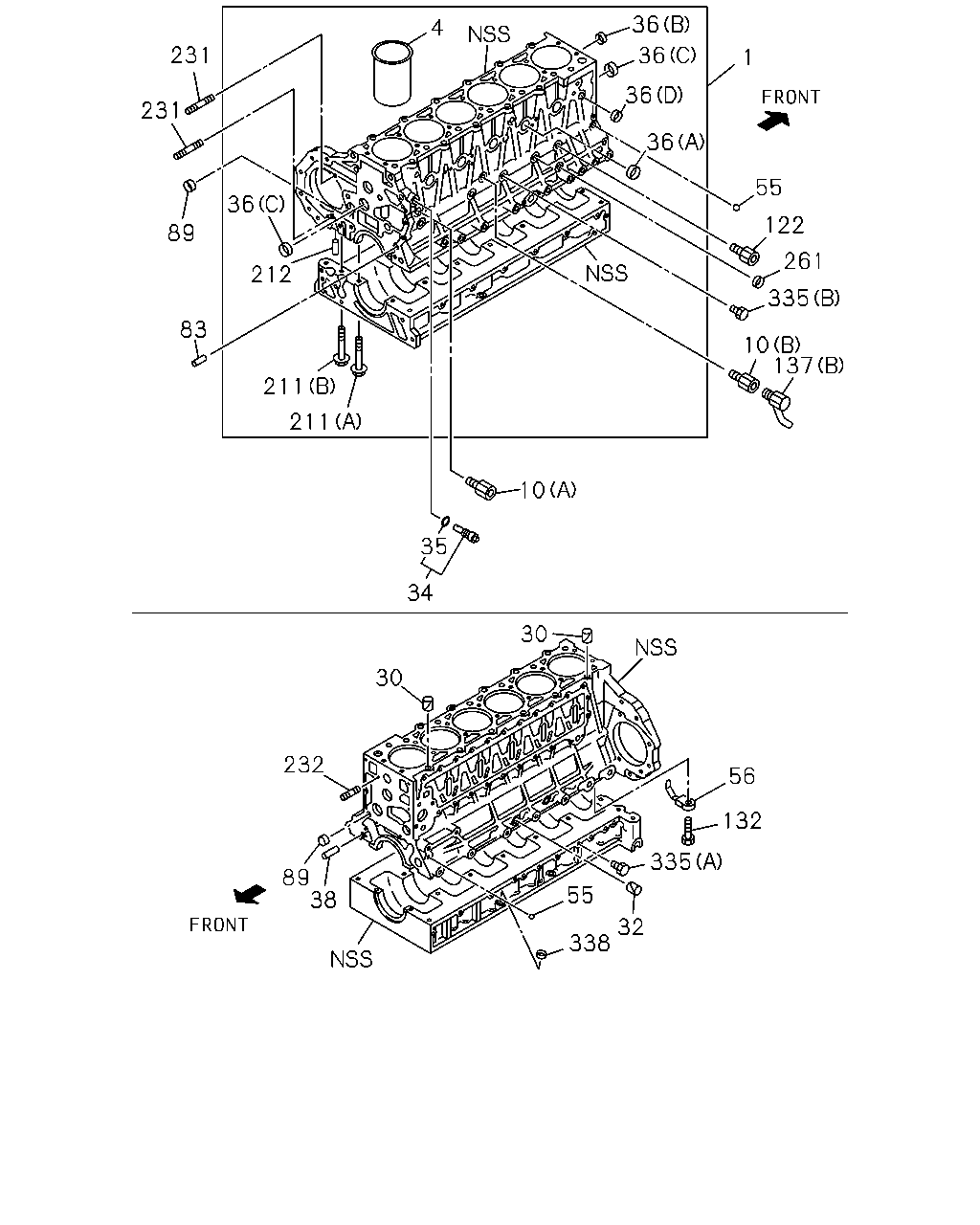

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BLOCK ASM; CYL	8-94393-958-8	01	1	9510-9803		●
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9804-0001		●	●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	0002-0004		●	●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9510-9807	●			●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001	●			●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0002-0004	●			●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0005-0504	●			●	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012	●			●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209	●			●	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●			●	●

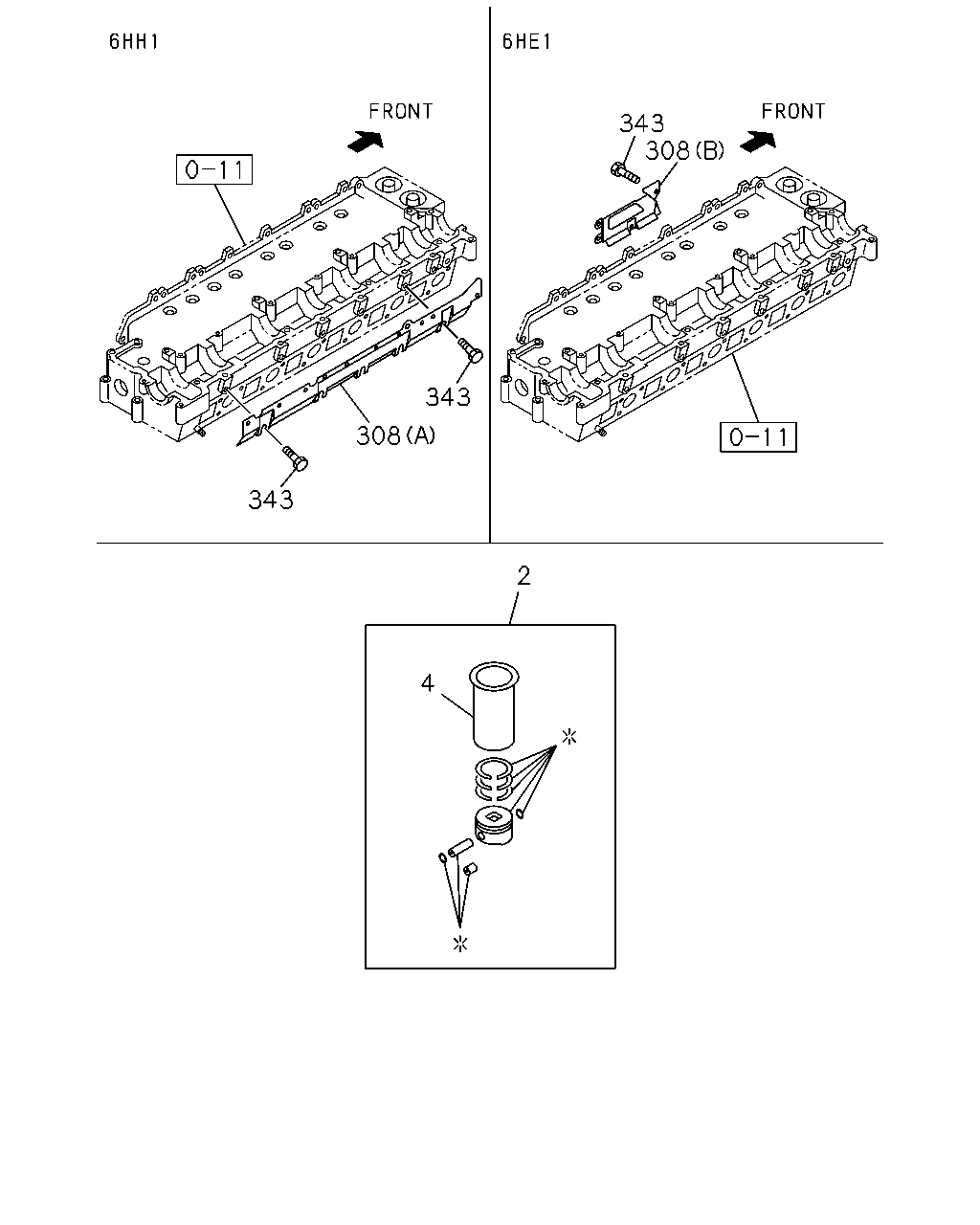

4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0005-	●			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0005-	●			●	●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-	●			●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9510-0004	●			●
28	COVER; OIL PORT	1-11219-163-0	01	1	0005-	●			●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9510-9803	●	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9804-0004	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-	●			●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9510-9803	●	●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9804-0004	●	●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-	●			●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9510-9803	●	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9804-0004	●	●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-	●			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9510-9803	●	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9804-0004	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-	●			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9510-9803	●	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9804-0004	●	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0502	●			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9510-9803	●	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-	●			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9510-9803	●	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9804-0004	●	●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0302	●			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-	●			●
55	PLUG; OIL GALLERY EURO2 SPECIFICATION<THN> 3/8" BALL	9-00097-011-0	02	1	0303-					●
55	PLUG; OIL GALLERY EMISSION SYSTEM ECE REQUIREMENTS<SFV> 3/8" BALL	9-00097-011-0	01	1	0005-					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9510-9803		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9804-0004		●	●
56	JET; OIL,PISTON COOLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-194-0	06	1	0005-0302					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703					●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007					●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-					●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9510-	●			●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9510-0004	●			●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0005-0703	●			●	●
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-	●			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9510-9803	●	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0306	●			●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9510-9803	●	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9804-0004	●	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0005-0908	●			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9510-9803	●	●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0004	●	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-	●			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9510-9803		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9804-0004		●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9510-0004	●			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0704	●			●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-	●			●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0005-0812	●			●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●			●	●
137	COCK; DRAIN,WATER (B)	8-94393-716-1	01	1	9510-9803		●
137	COCK; DRAIN,WATER (B)	8-94393-716-1	01	1	9804-0004		●	●
137	COCK; DRAIN,WATER (A)	1-09680-024-0	01	1	9510-0004	●			●
137	COCK; DRAIN,WATER (A)	1-09680-024-0	01	1	0005-1012	●			●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9510-0004	●			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0005-0206	●			●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-1012	●			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9510-9803	●	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9804-0004	●	●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0905	●			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9510-9803	●	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9804-0004	●	●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-	●			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9510-9803	●	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9804-0004	●	●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0306	●			●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-	●			●	●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0303-					●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9510-9803	●	●		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9804-0004	●	●	●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0106	●			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0107-0301	●			●	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0302	●			●	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0303-0512	●			●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=40	0-49841-025-0	02	1	0303-0512					●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-	●			●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=48.5	0-49241-025-0	02	1	0601-					●
231	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X46.5 L=58.5	8-97066-386-1	02	1	0005-0106					●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9510-9803	●	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9804-0004	●	●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0604	●			●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●			●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●			●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●			●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●			●	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507	●			●	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507	●			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9510-9803	●	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9804-0004	●	●	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0307	●			●	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507	●			●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9510-9803	●	●		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9804-0004	●	●	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0703	●			●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-	●			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9510-9803	●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9510-9803				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9804-0004	●	●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9804-0004				●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	0005-0101				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0101	●				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0102-0302	●			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0303-0501	●			●
335	PLUG; C/BL,SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X6	8-94399-421-0	01	1	0303-0501					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●			●
335	PLUG; C/BL,SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X10	8-98003-416-0	01	1	0502-					●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9510-9803	●	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9804-0004	●	●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0607	●			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●			●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9510-0004	●			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0005-	●			●	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507	●			●	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507	●			●	●
466	STUD; FUEL FILTER BRKT EURO2 SPECIFICATION<THN> M8X20 L=32	1-09305-005-0	01	1	0303-					●

343 308 343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9510-9803		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-1	06	1	9804-0004		●	●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X	1-87811-917-3	06	1	0005-0302					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-8	06	1	0303-					●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9510-9803		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-1	06	1	9804-0004		●	●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X	1-87811-918-3	06	1	0005-0302					●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-8	06	1	0303-					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-436-0	06	1	9510-9608				●
2	LINER SET; ENG CYL GRADE=3X	1-87811-437-0	06	1	9510-9608				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-434-0	06	1	9511-9608	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9609-	●			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-435-0	06	1	9511-9608	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9609-	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9510-9803		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9804-0004		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0005-	●			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9510-0004	●			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0005-	●			●	●
308	PROTECTOR; HEAT,HD COVER (A)	8-98171-339-0	01	1	1006-				●
308	PROTECTOR; HEAT,HD COVER EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-98171-339-0	01	1	1006-	●
308	PROTECTOR; HEAT,HD COVER EURO2 SPECIFICATION<THN> (A)	8-98171-339-0	01	1	1006-					●
308	PROTECTOR; HEAT,HD COVER (B)	8-94395-748-0	01	1	9510-9803		●
308	PROTECTOR; HEAT,HD COVER (B)	8-94395-748-0	01	1	9804-0004		●	●
308	PROTECTOR; HEAT,HD COVER (A)	8-94395-205-0	01	1	9510-9603	●			●
308	PROTECTOR; HEAT,HD COVER (A)	8-94390-548-0	01	1	9604-9901	●			●
308	PROTECTOR; HEAT,HD COVER (A)	8-94391-759-2	01	1	9902-0004	●			●
308	PROTECTOR; HEAT,HD COVER (A)	8-94391-759-2	01	1	0005-1005	●			●	●
308	PROTECTOR; HEAT,HD COVER ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94391-759-2	01	1	1006-	●
308	PROTECTOR; HEAT,HD COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94391-759-2	01	1	1006-					●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9510-9803		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9804-0004		●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0005-0512	●			●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-	●			●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9510-0004	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
