Sayfa 0-11 - Isuzu EPC

0-11 — CYLINDER HEAD (#64003) — 398 parça

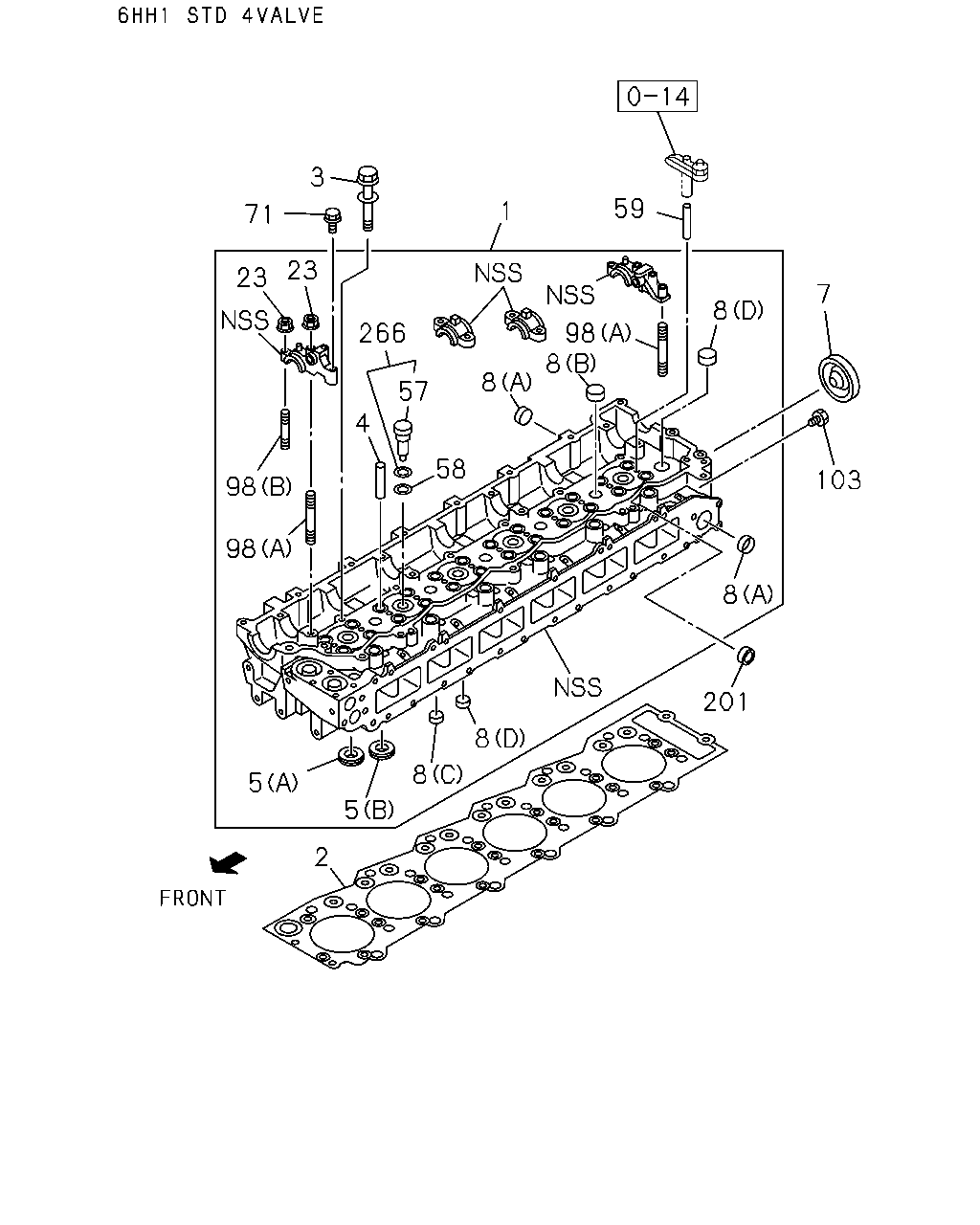

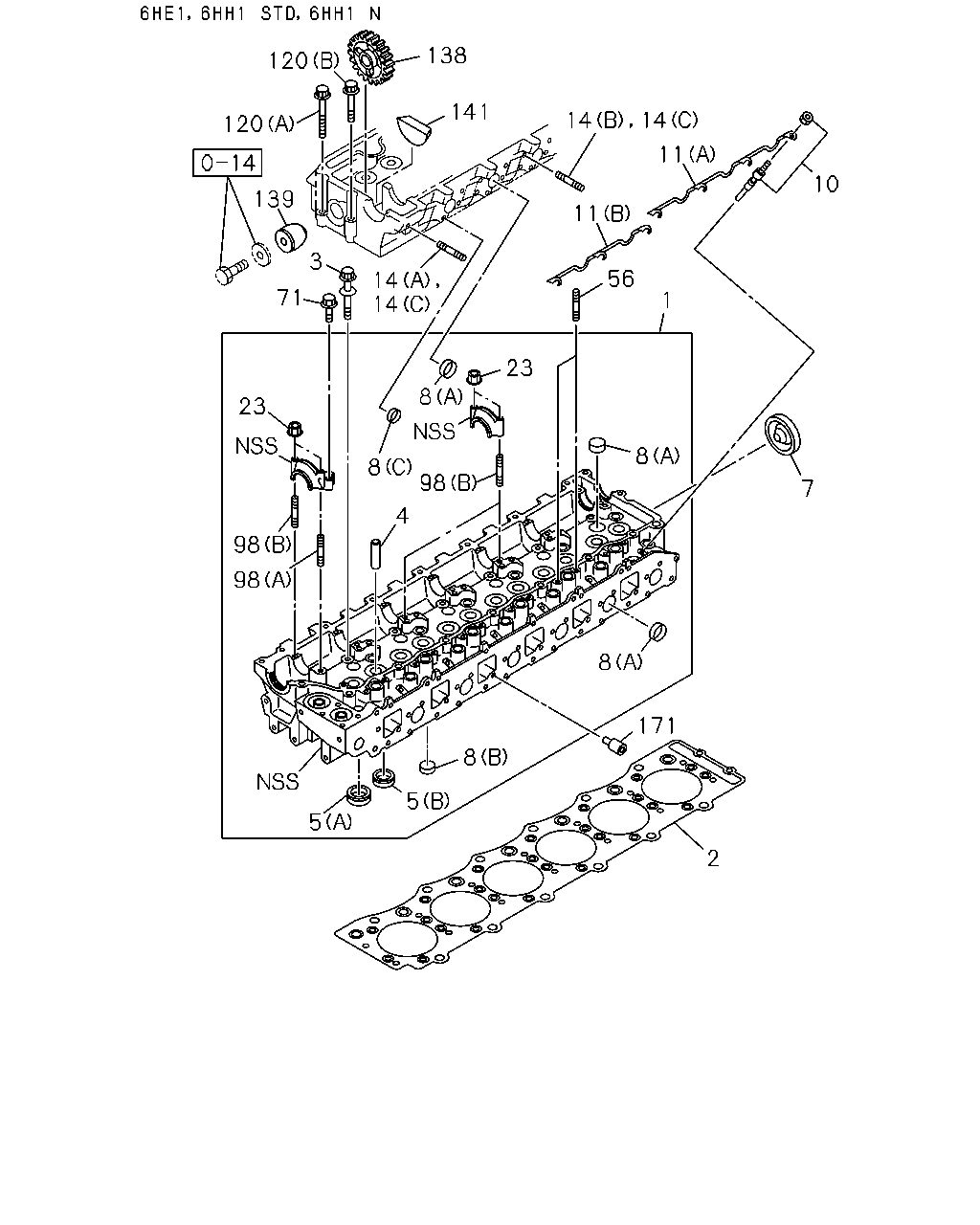

120 120 139 3 71 14 14 11 14 14 141 138 11 1 56 10 7 8 23 8 8 4 23 98 98 5 5 8 8 171 2 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-807-5	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9803	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9804-0004	●	●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-455-9	01	1	0005-0207			●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97602-584-1	01	1	0208-0302			●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0303-0406			●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507			●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004			●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012			●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305			●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-			●
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608				●	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012				●	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-				●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9510-9803	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9804-0004	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-787-3	01	1	0005-0302			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0303-0407			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-3	01	1	9510-				●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-1	26	1	9510-9803	●			●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	9804-0004	●	●		●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0901			●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407			●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-98260-005-0	26	1	1408-			●	●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9510-9803	●			●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9804-0004	●	●		●	●
4	GUIDE; VLV	8-94396-598-0	12	1	0005-				●	●
4	GUIDE; VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=57	8-94390-780-0	24	1	0005-0302			●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0303-0707			●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-			●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9510-9803	●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9804-0004	●	●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) EXHAUST OD=38	8-94395-625-0	12	1	0005-0106			●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) EXHAUST OD=38	8-97216-511-0	12	1	0107-0302			●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0303-0703			●
5	SEAT; VLV INSERT (A) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0704-			●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9510-9803	●			●	●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9804-0004	●	●		●	●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	0005-				●	●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	9510-				●	●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) INLET OD=40	8-94395-624-0	12	1	0005-0106			●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) INLET OD=40	8-97216-510-0	12	1	0107-0302			●
5	SEAT; VLV INSERT (B) INLET OD=40	8-97216-510-0	12	1	0303-			●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	9510-9803	●			●	●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	9804-0004	●	●		●	●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0005-0303			●	●	●
7	CUP; SEALING,CYL HEAD OD=51	8-97096-826-0	01	1	0304-			●	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0303-				●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0303-			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9510-9512	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9510-9512				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9601-9606	●			●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9601-9606					●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9607-9803	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9607-9803				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9804-0004	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9804-0004				●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	0005-0302				●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0303-			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	0005-				●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-				●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0005-				●	●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) OD=32	1-09600-012-2	07	1	0005-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) OD=25	1-09600-016-0	06	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0303-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) OD=16	5-11129-006-0	07	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0303-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) OD=20	9-11129-128-0	11	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0303-			●
10	PLUG; GLOW	9-82513-928-9	06	1	9510-9803	●			●	●
10	PLUG; GLOW	9-82513-928-9	06	1	9804-9809	●	●		●	●
10	PLUG; GLOW	1-82513-043-0	06	1	9810-0004	●	●		●	●
10	PLUG; GLOW	1-82513-043-2	06	1	0005-				●	●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-815-3	06	1	0005-0302			●
10	PLUG; GLOW	8-94392-815-4	06	1	0303-			●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9510-9803	●			●	●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9804-0004	●	●		●	●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	0005-0206				●	●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-				●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-2	01	1	9510-9803	●			●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-2	01	1	9804-0004	●	●		●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	0005-				●	●
11	CONNECTOR; GLOW PLUG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94391-925-3	01	1	0005-0302			●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0303-0804			●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0805-			●
11	CONNECTOR; GLOW PLUG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94392-843-1	01	1	0005-0302			●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0303-0804			●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0805-			●
14	STUD; EXH MANIF (A) M10X93 L=108	8-94396-123-0	11	1	9510-9803	●
14	STUD; EXH MANIF (A) M10X93 L=108	8-94396-123-0	11	1	9804-0004	●	●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M10X68 L=83	8-94392-483-0	02	1	0005-0608			●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M10X85 L=100	8-98037-215-0	02	1	0609-			●
14	STUD; EXH MANIF (B) M10X60 L=75	8-94397-286-0	01	1	9510-9803	●
14	STUD; EXH MANIF (B) M10X60 L=75	8-94397-286-0	01	1	9804-0004	●	●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X60 L=75	8-94397-286-0	10	1	0005-			●
14	STUD; EXH MANIF (C) M10X60 L=75	8-94397-286-0	12	1	9510-0302				●	●
14	STUD; EXH MANIF (C) M10X60 L=75	8-94397-286-0	12	1	0303-				●	●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> (C) M10X60 L=75	8-94397-286-0	12	1	0303-			●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	14	1	9510-9608	●			●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9609-9803	●			●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9804-0004	●	●		●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0602			●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-			●	●	●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	9510-9803	●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	9804-0004	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9510-9803	●			●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9804-0004	●	●		●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0512			●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-			●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9510-9803	●			●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9804-0004	●	●		●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-			●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	12	1	9510-9608	●			●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9609-9803	●			●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9804-0004	●	●		●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-			●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9510-9803	●			●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9804-0004	●	●		●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-			●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9510-9803	●			●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9804-0004	●	●		●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-			●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9510-9803	●			●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9804-0004	●	●		●	●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0005-			●	●	●
139	SHAFT; IDLE GEAR	8-97065-555-1	01	1	9510-9711	●			●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9712-9803	●			●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9804-0004	●	●		●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0005-			●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9510-9803	●			●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9804-0004	●	●		●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-1005			●	●	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-			●	●	●
171	SEAT; VLV	8-94395-571-1	06	1	9510-9803	●			●	●
171	SEAT; VLV	8-94395-571-1	06	1	9804-0004	●	●		●	●
171	SEAT; VLV	8-94395-571-1	06	1	0005-				●	●

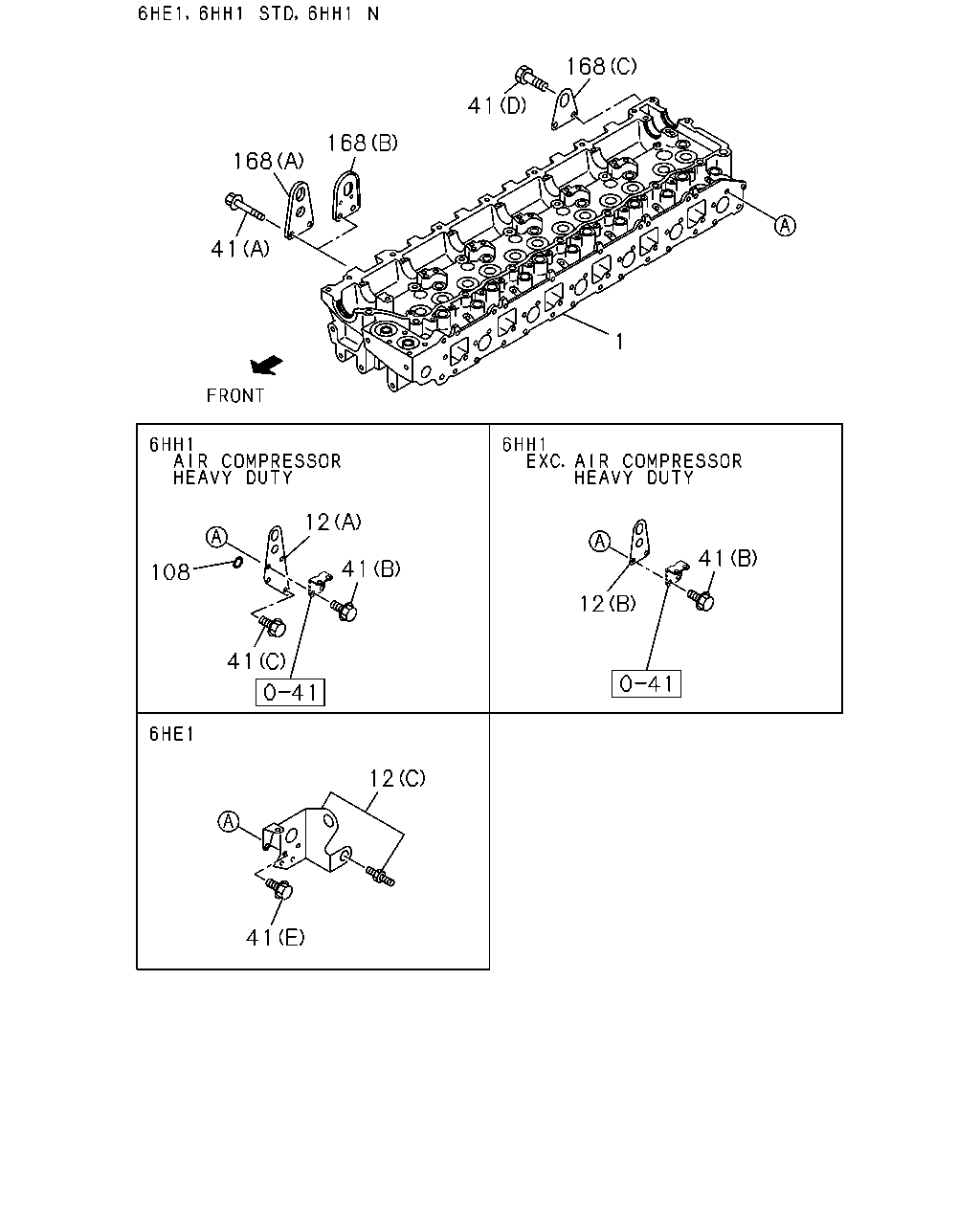

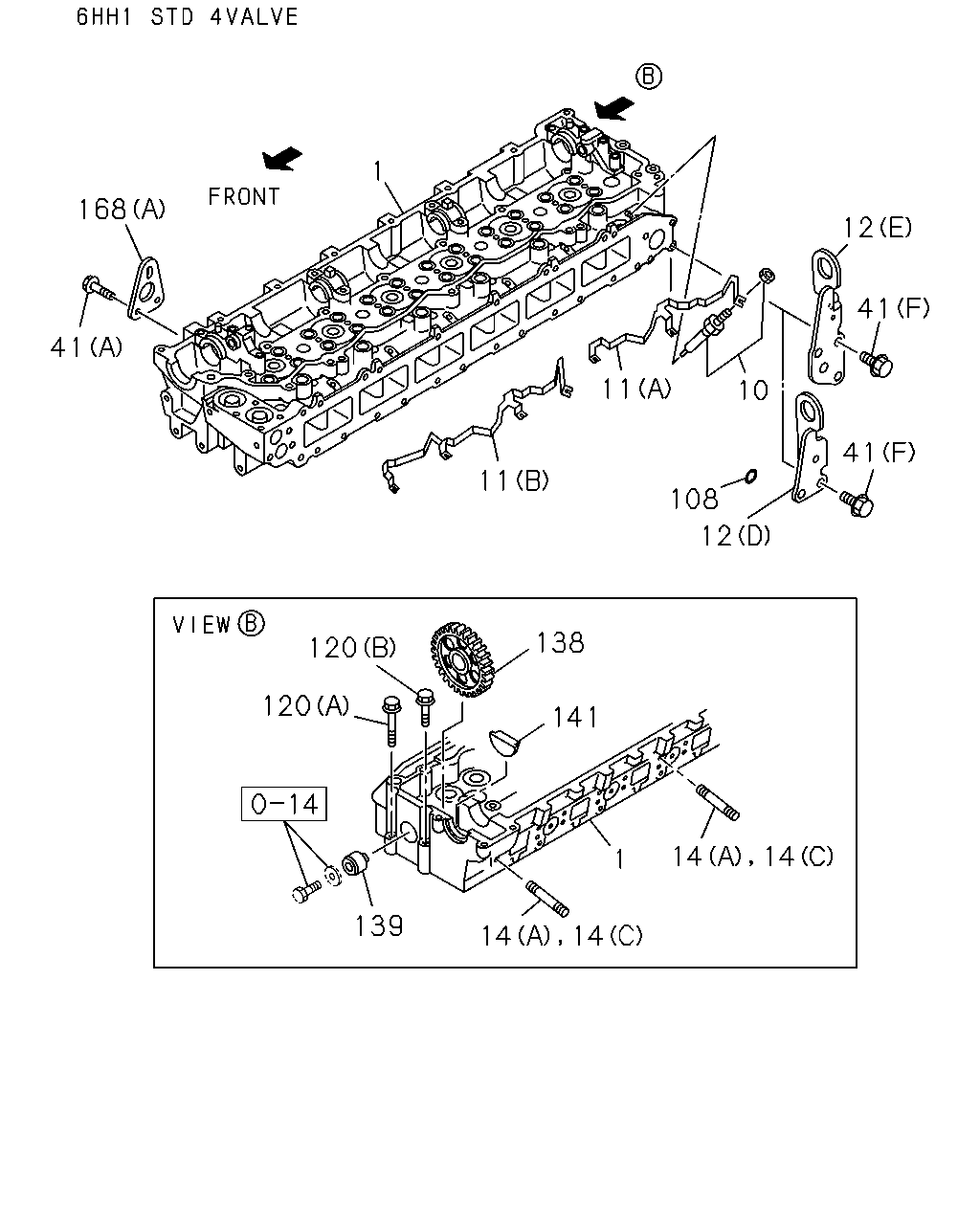

168 41 168 168 41 1 12 41 41 108 12 41 12 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-807-5	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9803	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9804-0004	●	●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-455-9	01	1	0005-0207			●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97602-584-1	01	1	0208-0302			●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0303-0406			●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507			●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004			●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012			●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305			●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-			●
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608				●	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012				●	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-				●	●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E)	8-94392-080-0	01	1	0303-			●
12	HANGER; ENG,RR (C)	8-94394-553-1	01	1	9510-9803	●
12	HANGER; ENG,RR (C)	8-94394-553-1	01	1	9804-0004	●	●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94392-081-0	01	1	0005-0302			●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94392-081-1	01	1	0303-			●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94392-081-1	01	1	0303-			●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9510-9802					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9803-				●	●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-2	01	1	9510-9802					●
12	HANGER; ENG,RR (B)	8-94399-404-2	01	1	9510-9802				●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-3	01	1	9803-				●	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	03	1	0303-			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0303-			●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9510-9803	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9804-0004	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0512			●	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●	●	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	9510-9803	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	9804-0004	●	●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F) M12X50 FLANGE	0-28181-250-0	02	1	0005-0512			●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F) M12X50 FLANGE	0-28151-250-0	02	1	0601-			●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9510-9803	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9804-0004	●	●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9510-9802					●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9803-				●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9510-0004				●	●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	9510-				●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9510-9802					●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9803-0302				●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0303-				●	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0303-			●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9510-9803	●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9804-0004	●	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9510-9803	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9804-0004	●	●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	9510-0004				●	●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0005-			●	●	●

3 71 23 23 1 59 98 98 4 57 266 8 58 5 5 2 8 8 201 8 103 7 8 98 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-807-5	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9803	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9804-0004	●	●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-455-9	01	1	0005-0207			●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97602-584-1	01	1	0208-0302			●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0303-0406			●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507			●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004			●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012			●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305			●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-			●
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608				●	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012				●	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-				●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9510-9803	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9804-0004	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-787-3	01	1	0005-0302			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0303-0407			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-3	01	1	9510-				●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-1	26	1	9510-9803	●			●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	9804-0004	●	●		●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0901			●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407			●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-98260-005-0	26	1	1408-			●	●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9510-9803	●			●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9804-0004	●	●		●	●
4	GUIDE; VLV	8-94396-598-0	12	1	0005-				●	●
4	GUIDE; VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=57	8-94390-780-0	24	1	0005-0302			●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0303-0707			●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-			●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9510-9803	●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9804-0004	●	●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) EXHAUST OD=38	8-94395-625-0	12	1	0005-0106			●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) EXHAUST OD=38	8-97216-511-0	12	1	0107-0302			●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0303-0703			●
5	SEAT; VLV INSERT (A) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0704-			●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9510-9803	●			●	●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9804-0004	●	●		●	●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	0005-				●	●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	9510-				●	●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) INLET OD=40	8-94395-624-0	12	1	0005-0106			●
5	SEAT; VLV INSERT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) INLET OD=40	8-97216-510-0	12	1	0107-0302			●
5	SEAT; VLV INSERT (B) INLET OD=40	8-97216-510-0	12	1	0303-			●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	9510-9803	●			●	●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	9804-0004	●	●		●	●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0005-0303			●	●	●
7	CUP; SEALING,CYL HEAD OD=51	8-97096-826-0	01	1	0304-			●	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0303-				●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0303-			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9510-9512	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9510-9512				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9601-9606	●			●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9601-9606					●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9607-9803	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9607-9803				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	9804-0004	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9804-0004				●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	0005-0302				●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0303-			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	0005-				●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-				●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9510-9803	●			●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9804-0004	●	●		●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0005-				●	●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) OD=32	1-09600-012-2	07	1	0005-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) OD=25	1-09600-016-0	06	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0303-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) OD=16	5-11129-006-0	07	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0303-			●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) OD=20	9-11129-128-0	11	1	0005-0302			●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0303-			●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	14	1	9510-9608	●			●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9609-9803	●			●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9804-0004	●	●		●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0602			●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-			●	●	●
57	SLEEVE; NOZZLE HOLDER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-972-0	06	1	0005-0109			●
57	SLEEVE; NOZZLE HOLDER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97602-301-1	06	1	0110-0302			●
57	SLEEVE; NOZZLE HOLDER	8-97602-301-1	06	1	0303-0507			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=27	1-09623-355-0	06	1	0005-0302			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27	1-09623-355-0	06	1	0303-0406			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	0407-			●
59	GUIDE; BRIDGE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-889-1	12	1	0005-0302			●
59	GUIDE; BRIDGE	8-94395-889-1	12	1	0303-0409			●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0410-			●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9510-9803	●			●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9804-0004	●	●		●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0512			●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-			●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9510-9803	●			●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9804-0004	●	●		●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-			●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	12	1	9510-9608	●			●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9609-9803	●			●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9804-0004	●	●		●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-			●	●	●
103	PLUG; HD EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X6	8-94399-421-0	01	1	0005-0302			●
103	PLUG; HD M8X6	8-94399-421-0	01	1	0303-0501			●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0502-			●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=30	1-09639-034-0	06	1	0005-0302			●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	0303-			●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	0508-			●

1 41 168 11 11 10 12 41 41 108 12 138 141 120 120 139 14 1 14 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-807-5	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9803	●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9804-0004	●	●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-455-9	01	1	0005-0207			●
1	HEAD ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97602-584-1	01	1	0208-0302			●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0303-0406			●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507			●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004			●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012			●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305			●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-			●
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608				●	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012				●	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-				●	●
10	PLUG; GLOW	9-82513-928-9	06	1	9510-9803	●			●	●
10	PLUG; GLOW	9-82513-928-9	06	1	9804-9809	●	●		●	●
10	PLUG; GLOW	1-82513-043-0	06	1	9810-0004	●	●		●	●
10	PLUG; GLOW	1-82513-043-2	06	1	0005-				●	●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-815-3	06	1	0005-0302			●
10	PLUG; GLOW	8-94392-815-4	06	1	0303-			●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9510-9803	●			●	●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9804-0004	●	●		●	●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	0005-0206				●	●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-				●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-2	01	1	9510-9803	●			●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-2	01	1	9804-0004	●	●		●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	0005-				●	●
11	CONNECTOR; GLOW PLUG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94391-925-3	01	1	0005-0302			●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0303-0804			●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0805-			●
11	CONNECTOR; GLOW PLUG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94392-843-1	01	1	0005-0302			●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0303-0804			●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0805-			●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E)	8-94392-080-0	01	1	0303-			●
12	HANGER; ENG,RR (C)	8-94394-553-1	01	1	9510-9803	●
12	HANGER; ENG,RR (C)	8-94394-553-1	01	1	9804-0004	●	●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94392-081-0	01	1	0005-0302			●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94392-081-1	01	1	0303-			●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94392-081-1	01	1	0303-			●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9510-9802					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9803-				●	●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-2	01	1	9510-9802					●
12	HANGER; ENG,RR (B)	8-94399-404-2	01	1	9510-9802				●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-3	01	1	9803-				●	●
14	STUD; EXH MANIF (A) M10X93 L=108	8-94396-123-0	11	1	9510-9803	●
14	STUD; EXH MANIF (A) M10X93 L=108	8-94396-123-0	11	1	9804-0004	●	●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M10X68 L=83	8-94392-483-0	02	1	0005-0608			●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M10X85 L=100	8-98037-215-0	02	1	0609-			●
14	STUD; EXH MANIF (B) M10X60 L=75	8-94397-286-0	01	1	9510-9803	●
14	STUD; EXH MANIF (B) M10X60 L=75	8-94397-286-0	01	1	9804-0004	●	●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X60 L=75	8-94397-286-0	10	1	0005-			●
14	STUD; EXH MANIF (C) M10X60 L=75	8-94397-286-0	12	1	9510-0302				●	●
14	STUD; EXH MANIF (C) M10X60 L=75	8-94397-286-0	12	1	0303-				●	●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> (C) M10X60 L=75	8-94397-286-0	12	1	0303-			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	03	1	0303-			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0303-			●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9510-9803	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9804-0004	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0512			●	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●	●	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	9510-9803	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	9804-0004	●	●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F) M12X50 FLANGE	0-28181-250-0	02	1	0005-0512			●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F) M12X50 FLANGE	0-28151-250-0	02	1	0601-			●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9510-9803	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9804-0004	●	●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9510-9802					●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9803-				●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9510-0004				●	●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	9510-				●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9510-9802					●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9803-0302				●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0303-				●	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0303-			●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9510-9803	●			●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9804-0004	●	●		●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-			●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9510-9803	●			●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9804-0004	●	●		●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-			●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9510-9803	●			●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9804-0004	●	●		●	●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0005-			●	●	●
139	SHAFT; IDLE GEAR	8-97065-555-1	01	1	9510-9711	●			●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9712-9803	●			●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9804-0004	●	●		●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0005-			●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9510-9803	●			●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9804-0004	●	●		●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-1005			●	●	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-			●	●	●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9510-9803	●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9804-0004	●	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9510-9803	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9804-0004	●	●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	9510-0004				●	●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0005-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
