2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#63996) — 124 parça
çizim 114013
386 385 385 460 387 441 386
BalonParca AdiParca NoAdetTipApplied Date A B
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 9609-0004 ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 9609-0004 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 07 1 9601-9606 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9607-9804 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 9805-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 9604-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 9609-0004 ●
387 GROMMET; CONT TUBE,FULLER 1-09333-126-0 01 1 9601-0004 ● ●
441 CONNECTOR; NYLON TUBE 1-09660-911-0 01 1 9601-9804 ● ●
441 CONNECTOR; NYLON TUBE 1-09660-961-0 01 1 9805-0004 ● ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 9601-0004 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●

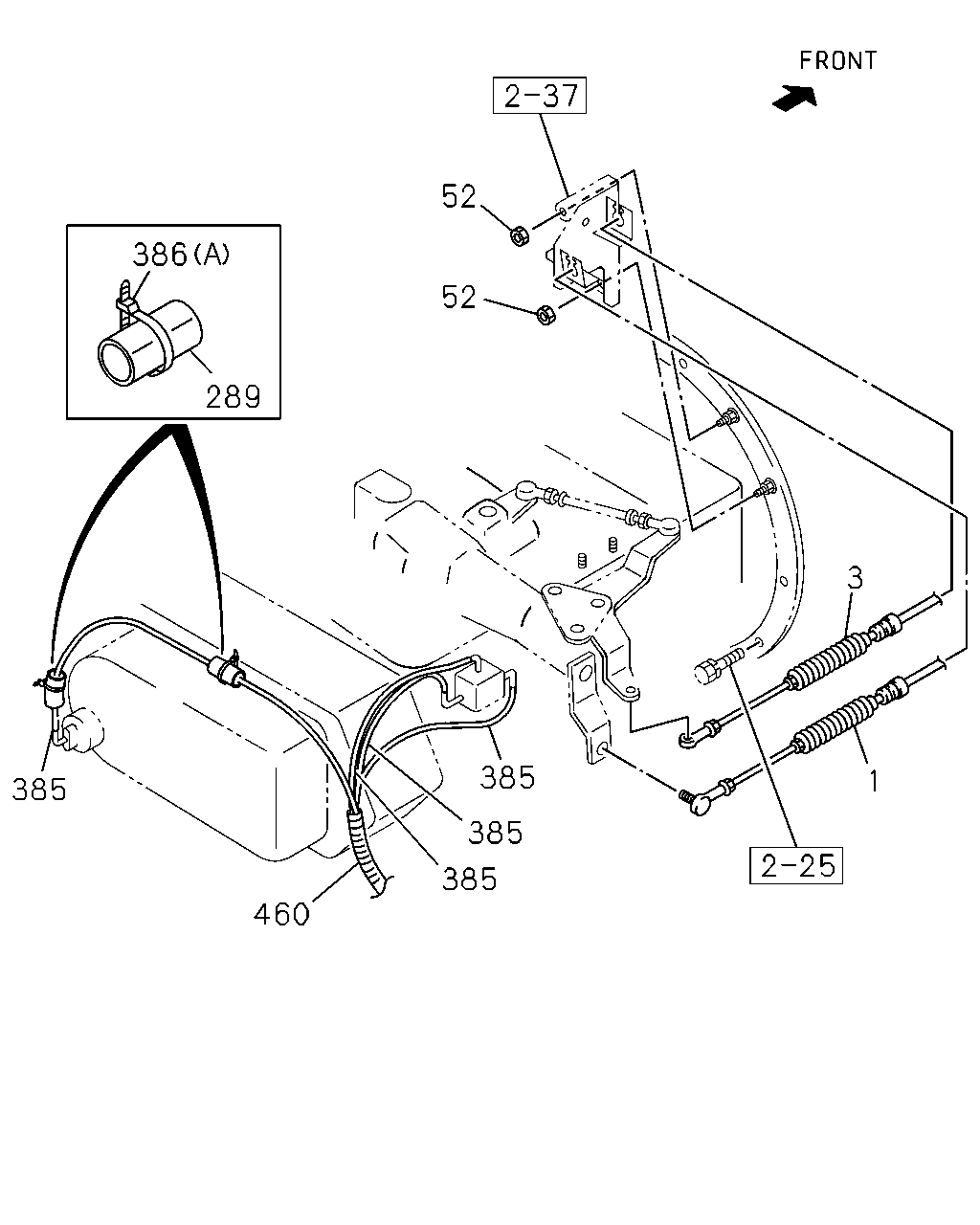

çizim 114043
52 386 52 289 3 385 1 385 385 385 460
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3738 		1-33670-913-0 01 1 9601-9602 ●
1 CABLE; SHIFT,TRANS CONT
L=3668 		1-33670-974-0 01 1 9603-9605 ●
1 CABLE; SHIFT,TRANS CONT
L=3578 		1-33671-002-0 01 1 9606-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3590 		1-33671-185-1 01 1 9710-0004 ●
1 CABLE; SHIFT,TRANS CONT
L=3632 		1-33671-003-0 01 1 9609-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3645 		1-33671-186-1 01 1 9710-0004 ●
3 CABLE; SELECT,TRANS CONT
L=3597 		1-33670-914-0 01 1 9601-9602 ●
3 CABLE; SELECT,TRANS CONT
L=3527 		1-33670-977-0 01 1 9603-9605 ●
3 CABLE; SELECT,TRANS CONT
L=3457 		1-33671-004-0 01 1 9606-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3470 		1-33671-190-1 01 1 9710-0004 ●
3 CABLE; SELECT,TRANS CONT
L=3553 		1-33671-005-0 01 1 9609-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3565 		1-33671-191-1 01 1 9710-0004 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609-9804 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ●
289 SLEEVE; RUBBER
L=1300 		1-09360-677-1 02 1 9609-0004 ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 9609-0004 ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 9609-0004 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 07 1 9601-9606 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9607-9804 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 9805-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 9604-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 9609-0004 ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 9601-0004 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●

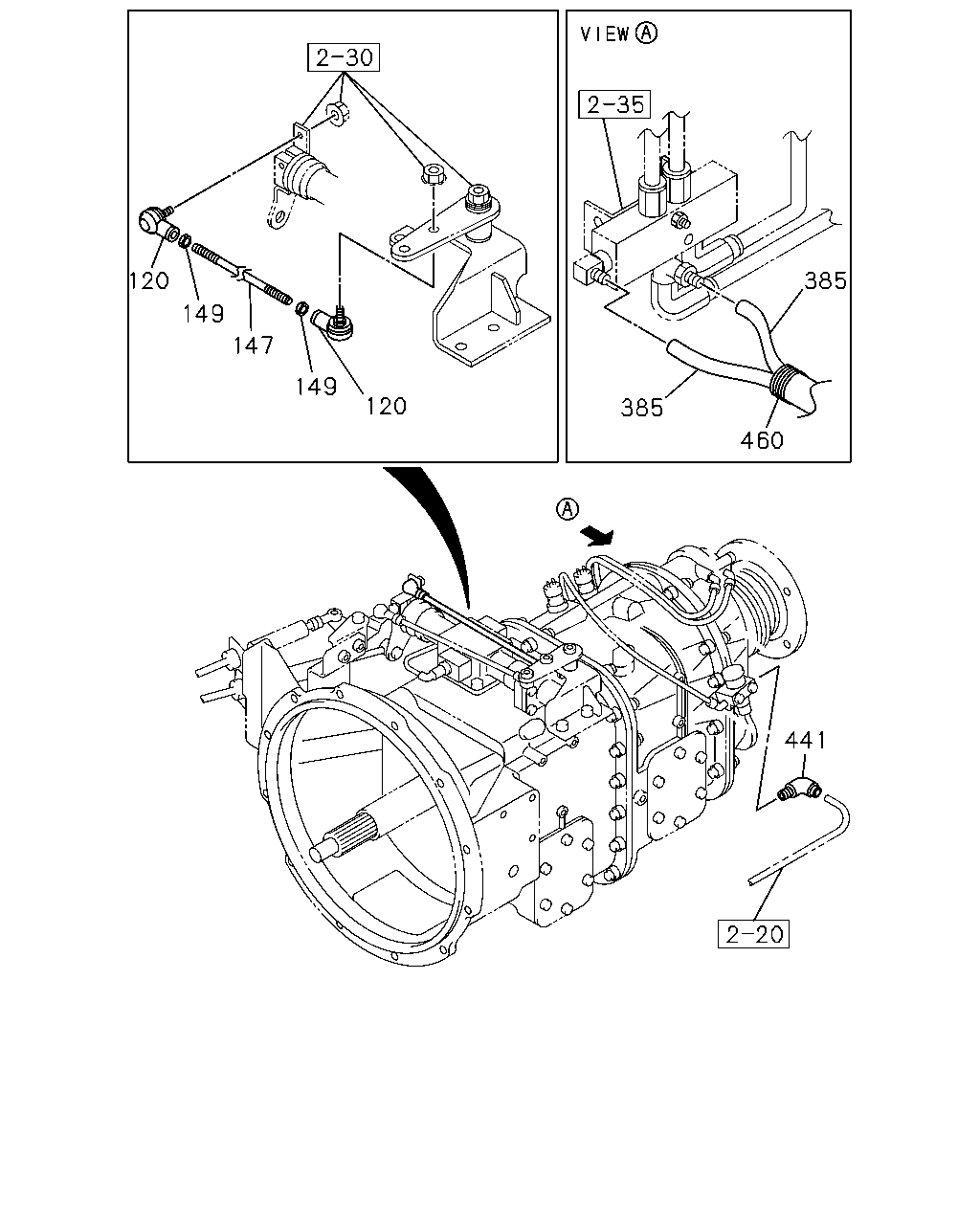

çizim 114045
385 120 149 147 149 120 385 460 441
BalonParca AdiParca NoAdetTipApplied Date A B
120 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 9601-0004 ●
147 ROD; LINK 1-09765-227-0 01 1 9601-0004 ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 9601-0004 ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 9601-0004 ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 9609-0004 ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 9609-0004 ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 9609-0004 ●
441 CONNECTOR; NYLON TUBE 1-09660-911-0 01 1 9601-9804 ● ●
441 CONNECTOR; NYLON TUBE 1-09660-961-0 01 1 9805-0004 ● ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 9601-0004 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●

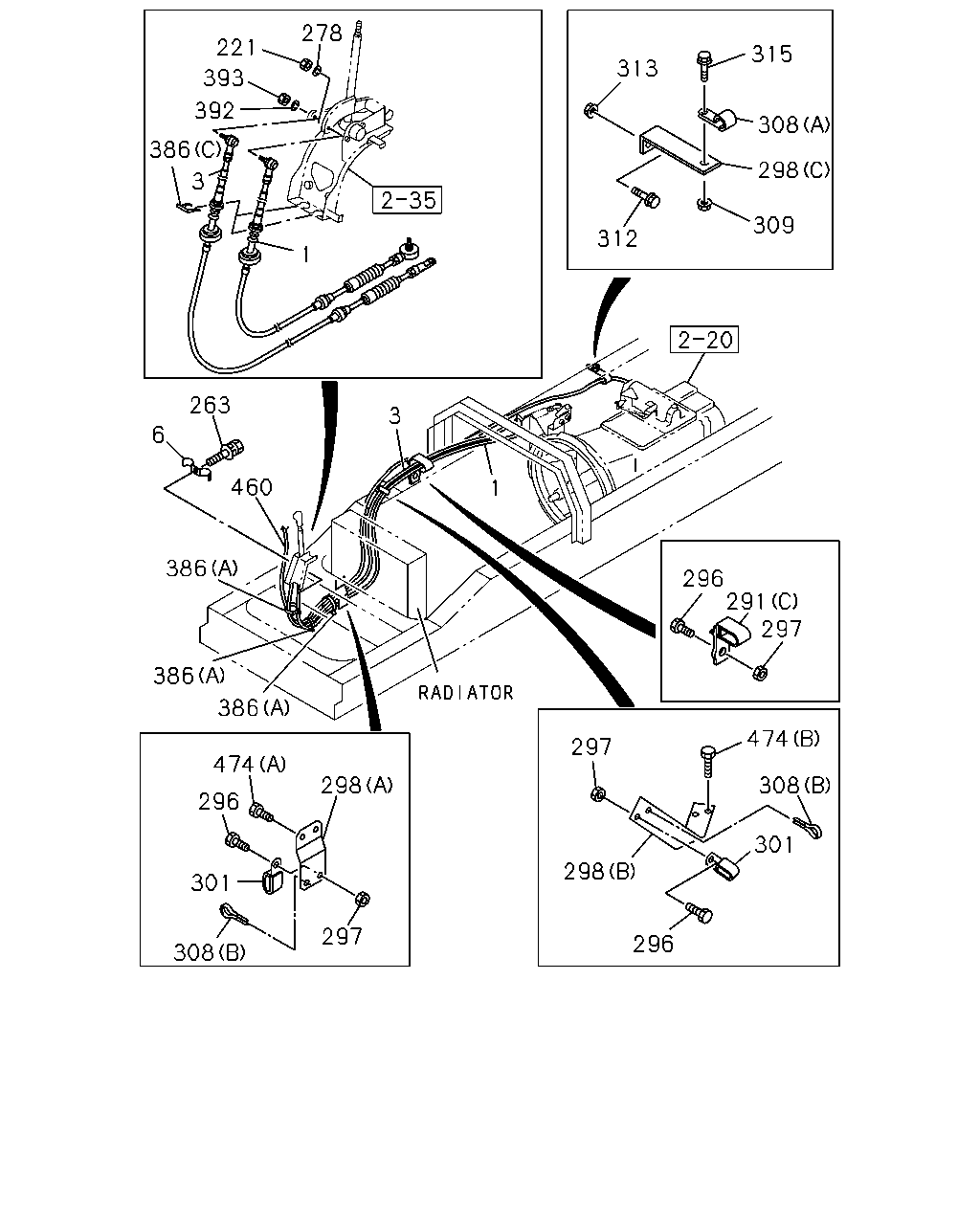

çizim 184516
278 221 315 313 393 392 308 386 298 3 309 312 1 263 3 6 460 1 386 296 291 297 386 386 474 297 474 298 308 296 301 298 301 297 296 308
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3738 		1-33670-913-0 01 1 9601-9602 ●
1 CABLE; SHIFT,TRANS CONT
L=3668 		1-33670-974-0 01 1 9603-9605 ●
1 CABLE; SHIFT,TRANS CONT
L=3578 		1-33671-002-0 01 1 9606-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3590 		1-33671-185-1 01 1 9710-0004 ●
1 CABLE; SHIFT,TRANS CONT
L=3632 		1-33671-003-0 01 1 9609-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3645 		1-33671-186-1 01 1 9710-0004 ●
3 CABLE; SELECT,TRANS CONT
L=3597 		1-33670-914-0 01 1 9601-9602 ●
3 CABLE; SELECT,TRANS CONT
L=3527 		1-33670-977-0 01 1 9603-9605 ●
3 CABLE; SELECT,TRANS CONT
L=3457 		1-33671-004-0 01 1 9606-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3470 		1-33671-190-1 01 1 9710-0004 ●
3 CABLE; SELECT,TRANS CONT
L=3553 		1-33671-005-0 01 1 9609-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3565 		1-33671-191-1 01 1 9710-0004 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-0004 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9804 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9812 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9804 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9804 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9805-0004 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
297 NUT; CLIP
M8 		9-09110-408-0 01 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-0004 ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601-0004 ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 9607-0004 ● ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0004 ● ●
308 CLIP; PIPE
(A) ID=16 L=28 		9-09525-556-0 01 1 9601-0004 ● ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 03 1 9603-9606 ● ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 04 1 9607-0004 ● ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9601-9606 ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
312 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-0004 ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
315 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9606 ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 07 1 9601-9606 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9607-9804 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 9805-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 9604-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 9609-0004 ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9804 ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9804 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 9601-0004 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 9609-0004 ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9601-9610 ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9611-0004 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-0004 ● ●
