2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#63995) — 70 parça

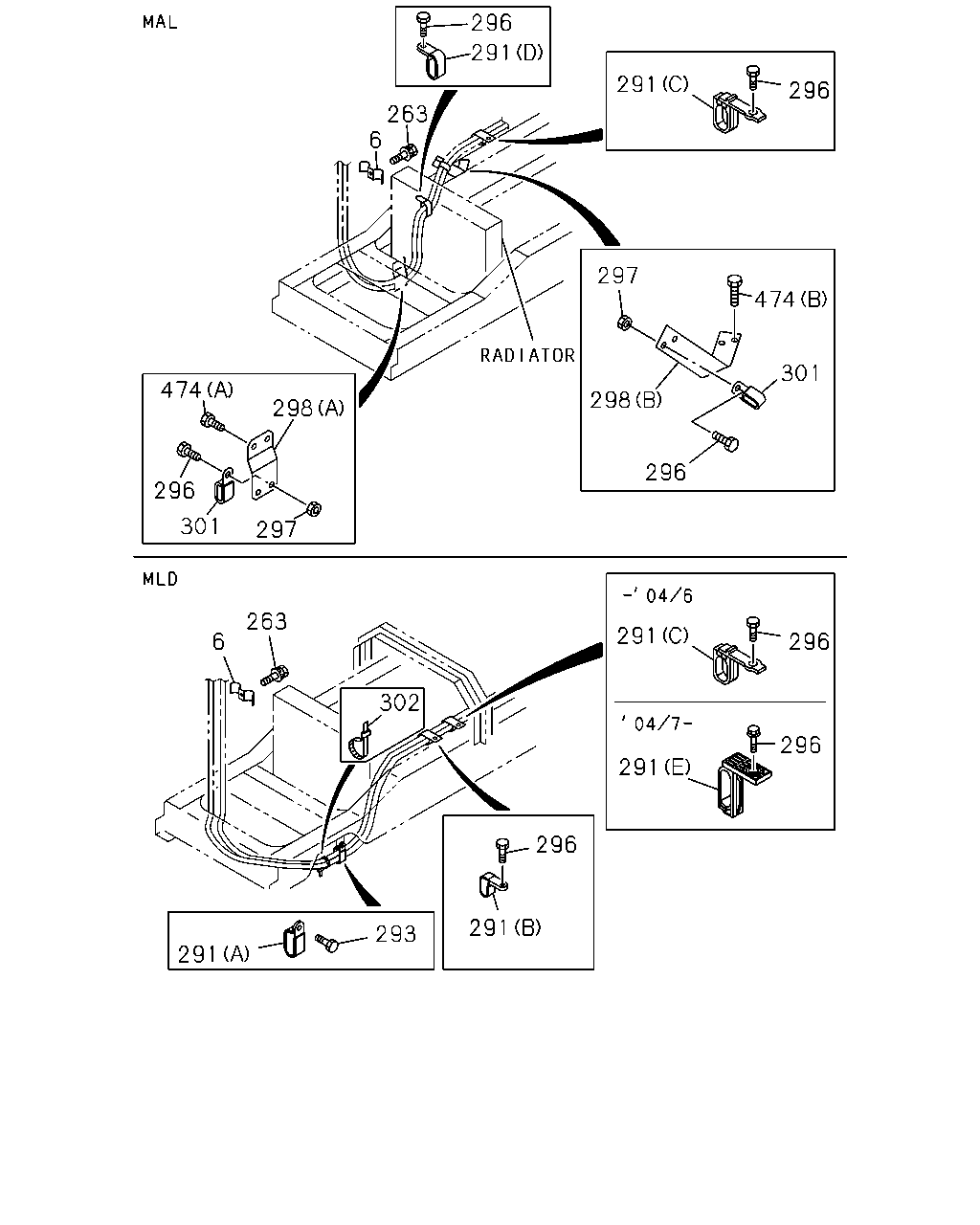

çizim 114195
296 291 291 296 263 6 297 474 301 474 298 298 296 296 301 297 263 291 6 296 302 296 291 296 291 293 291
BalonParca AdiParca NoAdetTipApplied Date A B
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-0004 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005- ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9812 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0407- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9804 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9805-0004 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0406 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		8-97028-508-2 01 1 9805- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9805-0506 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9805-0606 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9805-0512 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9805-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
297 NUT; CLIP
M8 		9-09110-408-0 01 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-0004 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0005- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601-0004 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005- ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0004 ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 0005-0606 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 02 1 0607- ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9805-0103 ●
302 CLIP; BAND
L=300 		1-09707-001-1 02 1 0104- ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9601-9610 ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9611-0004 ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0005-0512 ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28050-825-0 02 1 0601- ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-0004 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005- ●

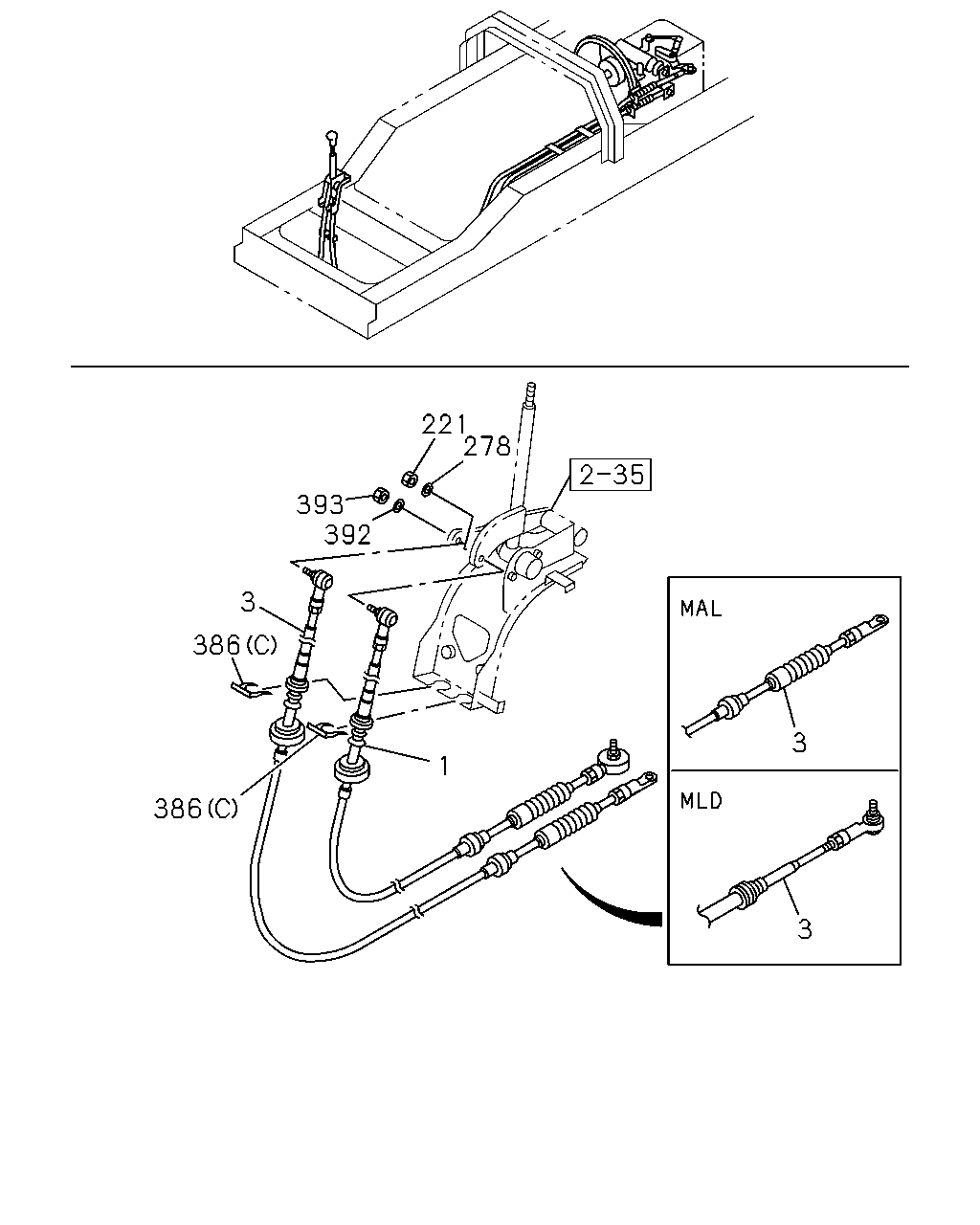

çizim 184517
221 278 393 392 3 386 3 1 386 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3417.5 		1-33670-953-1 01 1 9601- ●
1 CABLE; SHIFT,TRANS CONT
L=3560 		1-33671-147-0 01 1 9805- ●
3 CABLE; SELECT,TRANS CONT
L=3348.5 		1-33670-957-1 01 1 9601- ●
3 CABLE; SELECT,TRANS CONT
L=3670 		1-33671-156-0 01 1 9805- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9804 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9804 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005- ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9804 ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9804 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-1011 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●

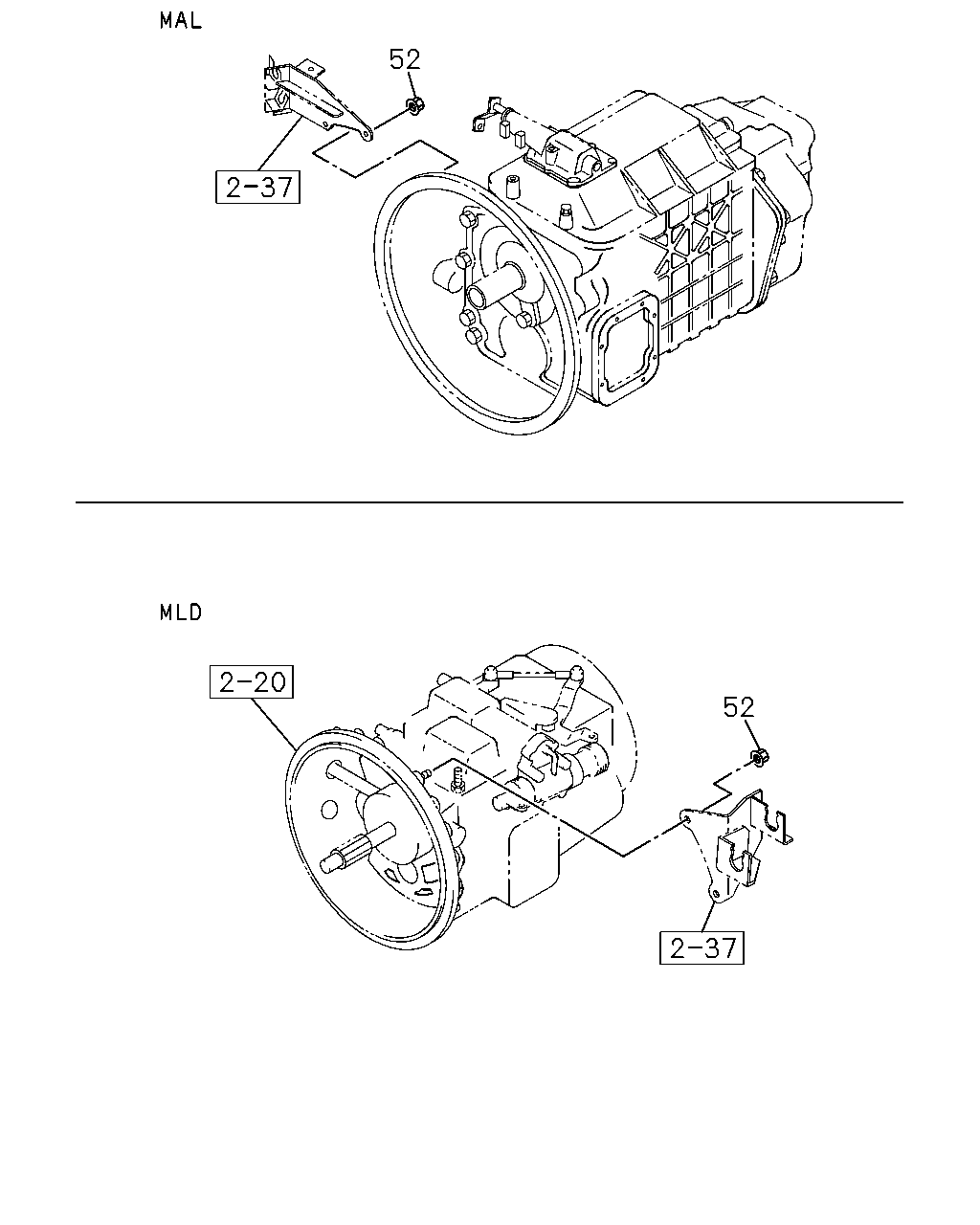

çizim 184521
52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9601-9608 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609-9804 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
