◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#63993) — 63 parça

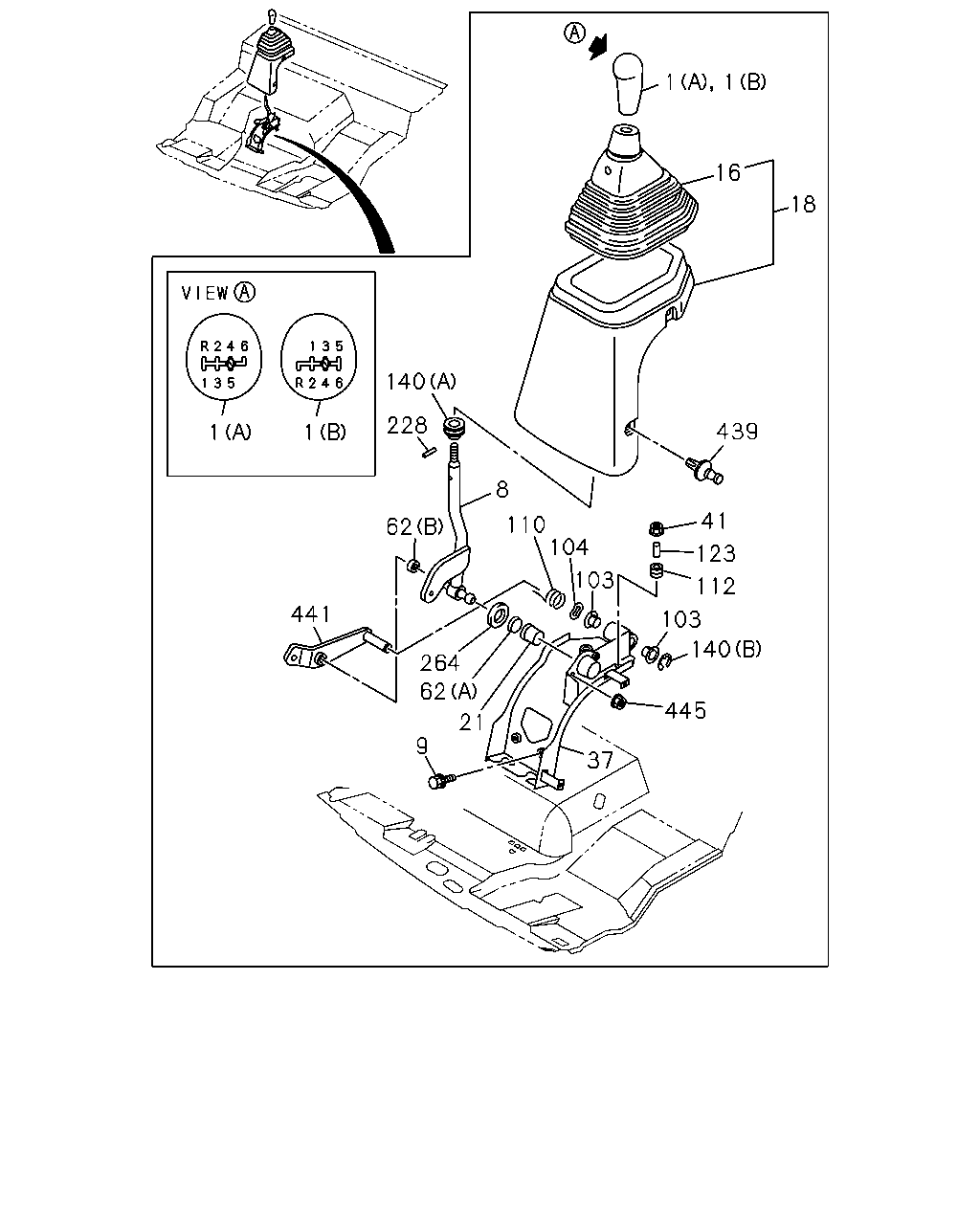

çizim 114213
1 1 16 18 140 228 439 1 1 8 41 110 104 62 123 103 112 441 103 140 264 62 445 21 9 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
(A) 		1-33611-068-1 01 1 9601- ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-1 01 1 9805- ●
8 LEVER; CHANGE 1-33619-502-0 01 1 9601-9605 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9606-9804 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9805- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9601-0004 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0512- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9601-0004 ● ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0512- ● ●
18 BOOT; CHANGE LEVER 1-79998-761-5 01 1 9601-0004 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9601-9804 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9805-0004 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 9601-9603 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 9604-9804 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 9805- ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9601-9804 ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9805-0004 ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0107 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0805 ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9804 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9805-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9804 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9805-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9804 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9805-0004 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9601-9804 ●
104 WASHER; WAVED 1-09550-009-0 01 1 9805-0004 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0005- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9601-9804 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9805-0004 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0005- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9601-9804 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9805-0004 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0005- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9601-9804 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9805-0004 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0005- ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9601-9804 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9805- ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9601-9804 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9805-0004 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0005-0604 ● ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605- ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9601-9804 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9805- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9601-9804 ●
264 PLATE; COVER 1-33619-430-0 01 1 9805-0004 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0005- ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9601-0004 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005- ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9601-9804 ●
441 LEVER; SELECT 1-33619-437-2 01 1 9805-0004 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0005- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9601-9804 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9805-0004 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
