2-30B — GEAR SHIFTER AND QUADRANT BOX (#63992) — 337 parça

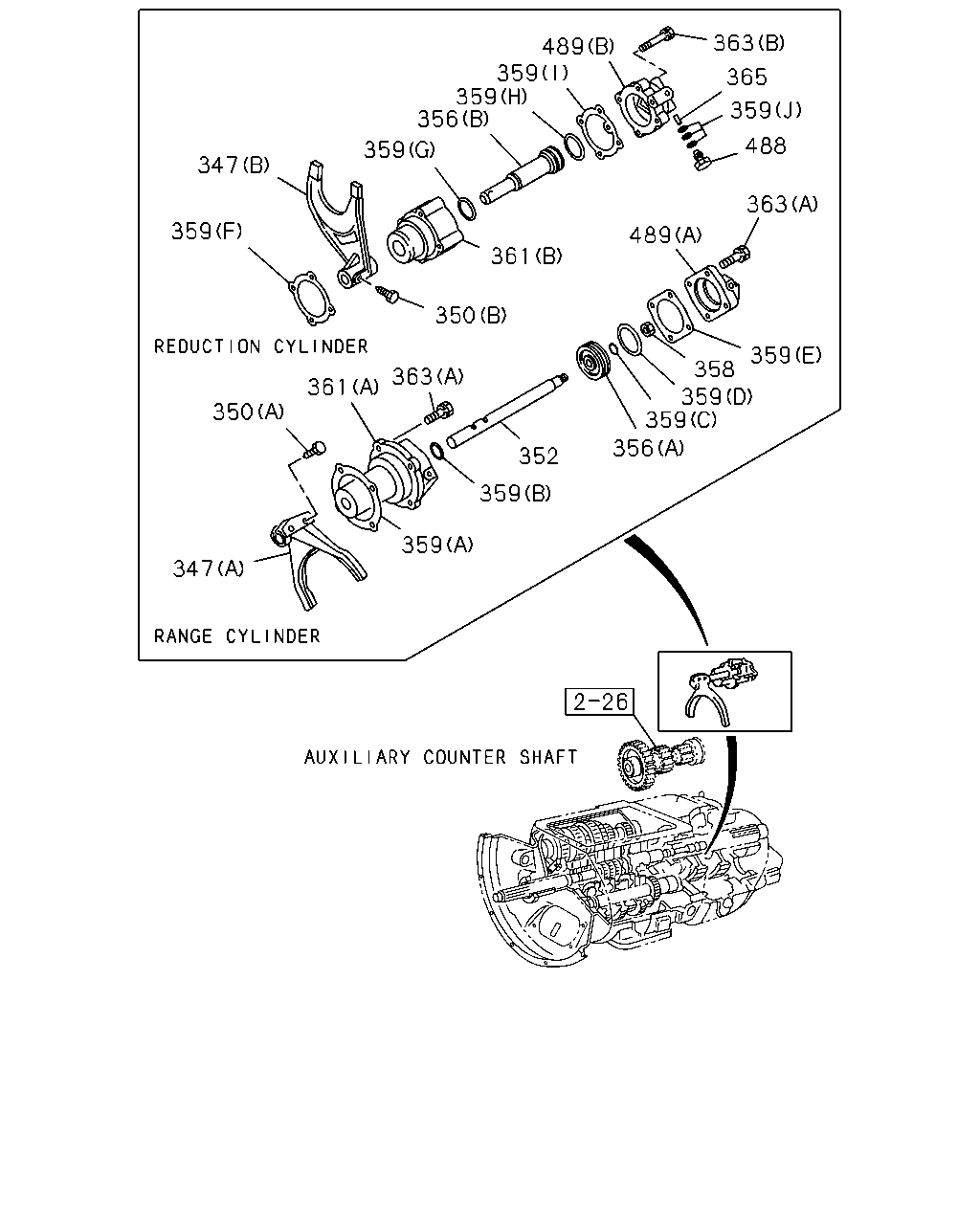

çizim 113909
363 489 359 359 356 365 359 488 359 347 363 359 489 361 350 359 358 359 359 363 361 350 356 352 359 359 347
BalonParca AdiParca NoAdetTipApplied Date A B
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9609-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9609-0004 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609-0004 ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609-0004 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 9601-0004 ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-261-0 01 1 9609-0004 ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 9601-0004 ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9609-0004 ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9609-0004 ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 9601-0004 ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9601-9608 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9609-0004 ● ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9609-0004 ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(I) 		1-87061-268-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9609-0004 ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 9601-0004 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9609-0004 ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9609-0004 ●
363 BOLT; AIR CYL
(C) M10X60 		1-33119-326-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9609-0004 ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9609-0004 ●
365 VALVE; AIR CYL 1-87060-997-0 01 1 9609-0004 ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 9609-0004 ●
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 9609-0004 ●
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 9609-0004 ●
çizim 113966
492 492 485 486 486 492 485 486
BalonParca AdiParca NoAdetTipApplied Date A B
485 TROUGH; OIL
(A) 		1-87061-489-0 01 1 9609-0004 ●
485 TROUGH; OIL
(B) 		1-87061-490-0 01 1 9609-0004 ●
486 BOLT; OIL TROUGH
(A) 		1-87061-527-0 02 1 9609-0004 ●
486 BOLT; OIL TROUGH
(B) 		1-87061-528-0 01 1 9609-0004 ●
492 SPACER; OIL TROUGH 1-87061-494-0 03 1 9609-0004 ●

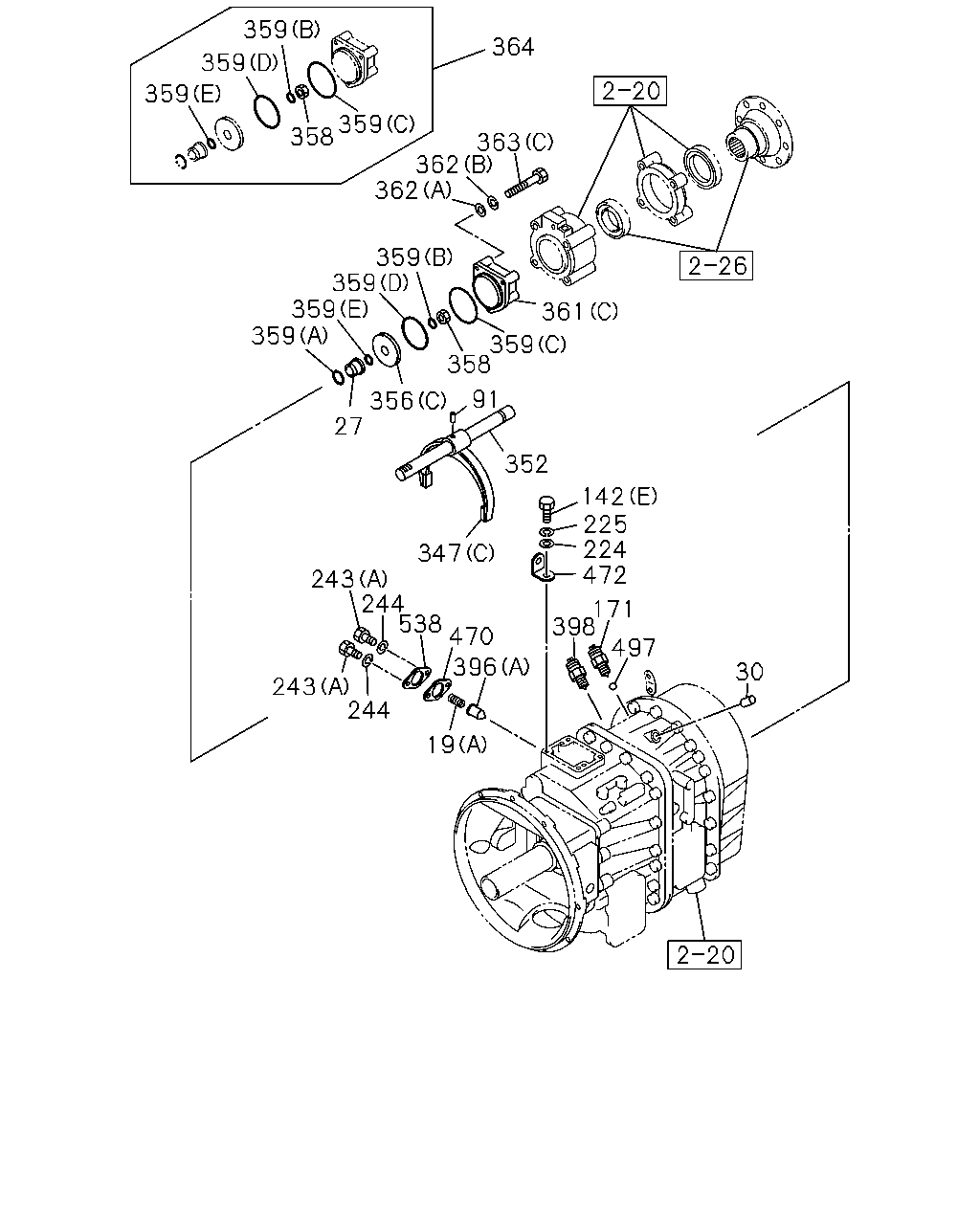

çizim 184503
359 364 359 359 359 358 363 362 362 359 359 359 359 361 359 358 91 356 27 352 142 225 224 472 347 243 244 538 470 171 39 497 396 30 243 244 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 9601-0004 ●
30 PIN; INTER LK 1-33119-309-0 01 1 9601-0004 ●
39 BALL; DETENT 1-87060-789-0 03 1 9609-0004 ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 9601-0004 ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0004 ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609-0004 ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609-0004 ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609-0004 ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9601-0004 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9609-0004 ●
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9601-0004 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9609-0004 ●
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9601-0004 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9609-0004 ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0004 ●
244 WASHER; LK,COVER 1-33119-323-0 06 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9609-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9609-0004 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 9601-0004 ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-261-0 01 1 9609-0004 ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 9601-0004 ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9609-0004 ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9609-0004 ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 9601-0004 ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9601-9608 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9609-0004 ● ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9609-0004 ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(I) 		1-87061-268-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9609-0004 ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9609-0004 ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 9601-0004 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9609-0004 ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9609-0004 ●
362 WASHER; AIR CYL
(A) 		1-33119-318-0 03 1 9601-0004 ●
362 WASHER; AIR CYL
(B) 		1-34159-066-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(C) M10X60 		1-33119-326-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9609-0004 ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9609-0004 ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609-0004 ●
472 EYE; LIFTING 1-87060-783-0 01 1 9601-0004 ●
472 EYE; LIFTING 1-87060-783-0 02 1 9609-0004 ●
497 BALL; SWITCH 1-33119-308-0 01 1 9601-0004 ●
538 COVER; DETENT 1-33119-320-0 01 1 9601-0004 ●

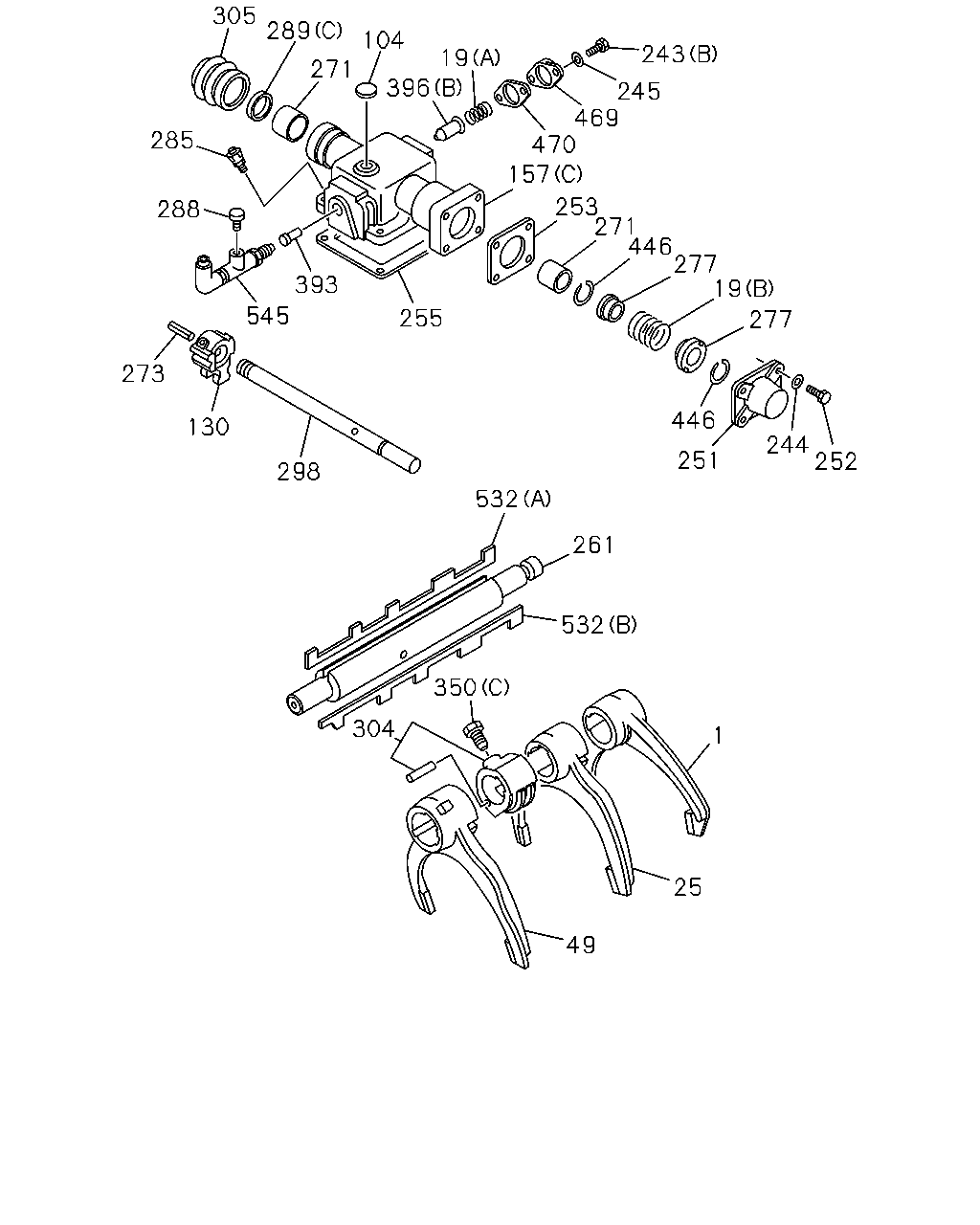

çizim 184506
305 289 104 243 19 396 271 245 469 470 157 285 253 271 446 277 19 288 393 545 255 277 273 446 130 244 252 251 298 532 261 532 350 304 1 25 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-535-0 01 1 9601-0004 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-536-0 01 1 9601-0004 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 9601-0004 ●
104 PLUG; PLATE 1-33549-231-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9609-0004 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609-0004 ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609-0004 ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0004 ●
244 WASHER; LK,COVER 1-33119-323-0 06 1 9601-0004 ●
245 WASHER; PL,COVER 1-33119-323-0 02 1 9601-0004 ●
251 COVER; SIDE 1-33545-009-0 01 1 9601-0004 ●
252 BOLT; SIDE COVER 1-33549-228-0 04 1 9601-0004 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-235-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9609-0004 ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 9601-0004 ●
271 BUSHING; QUAD BOX 1-33119-303-0 02 1 9601-0004 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9609-0004 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9601-0004 ●
277 PLATE; SPRING SEAT 1-33549-224-0 02 1 9601-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9609-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9601-0004 ●
288 PLUG; AIR BREATHER 1-33549-237-0 01 1 9601-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9609-9804 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9805-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9609-9804 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9805-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9609-0004 ●
304 BLOCK; SHIFT SHAFT 1-33511-575-0 01 1 9601-0004 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609-0004 ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609-0004 ●
393 PIN; SW 1-33549-234-0 01 1 9601-0004 ●
393 PIN; SW 1-87061-139-0 01 1 9609-0004 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9609-0004 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609-0004 ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 9601-0004 ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 9601-0004 ●
545 VALVE; POPPET 1-33549-236-0 01 1 9601-0004 ●

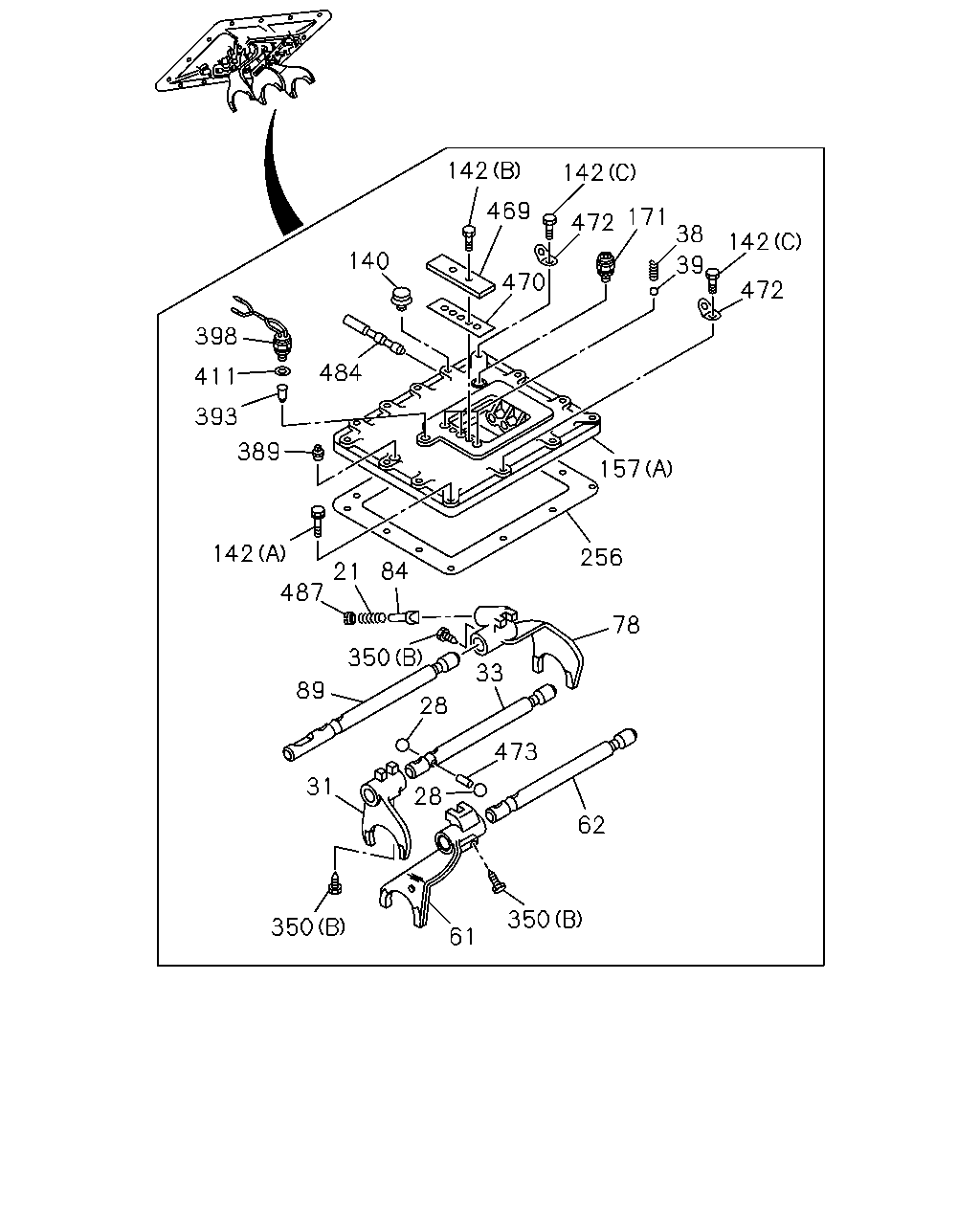

çizim 184510
142 142 469 171 472 38 142 470 140 39 472 398 484 411 393 389 157 142 84 256 21 487 78 33 350 89 28 473 31 28 62 350 350 61
BalonParca AdiParca NoAdetTipApplied Date A B
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 9609-0004 ●
28 BALL; INTER LK 1-87061-224-0 02 1 9609-0004 ●
31 ARM; SHIFT,LOW & 2ND 1-87061-463-0 01 1 9609-0004 ●
33 ROD; SHIFT,LOW & 2ND 1-87061-417-0 01 1 9609-0004 ●
38 SPRING; DETENT 1-87060-785-0 03 1 9609-0004 ●
39 BALL; DETENT 1-87060-789-0 03 1 9609-0004 ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 9609-0004 ●
62 ROD; SHIFT,3RD & 4TH 1-87061-418-0 01 1 9609-0004 ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 9609-0004 ●
84 SLEEVE; REV 1-87061-112-0 01 1 9609-0004 ●
89 ROD; SHIFT,REV 1-87061-424-0 01 1 9609-0004 ●
140 BREATHER; AIR,TRANS 1-87060-780-0 01 1 9609-0004 ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0004 ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609-0004 ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609-0004 ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609-0004 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609-0004 ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609-0004 ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9601-0004 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9609-0004 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 9609-0004 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609-0004 ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609-0004 ●
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-091-0 01 1 9609-0004 ●
393 PIN; SW 1-33549-234-0 01 1 9601-0004 ●
393 PIN; SW 1-87061-139-0 01 1 9609-0004 ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 9601-0004 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9609-0004 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-781-0 01 1 9609-0004 ●
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9609-0004 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609-0004 ●
472 EYE; LIFTING 1-87060-783-0 01 1 9601-0004 ●
472 EYE; LIFTING 1-87060-783-0 02 1 9609-0004 ●
473 PIN; ROLL 1-87060-808-0 01 1 9609-0004 ●
484 SHAFT; AIR VALVE 1-87061-164-0 01 1 9609-0004 ●
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 9609-0004 ●

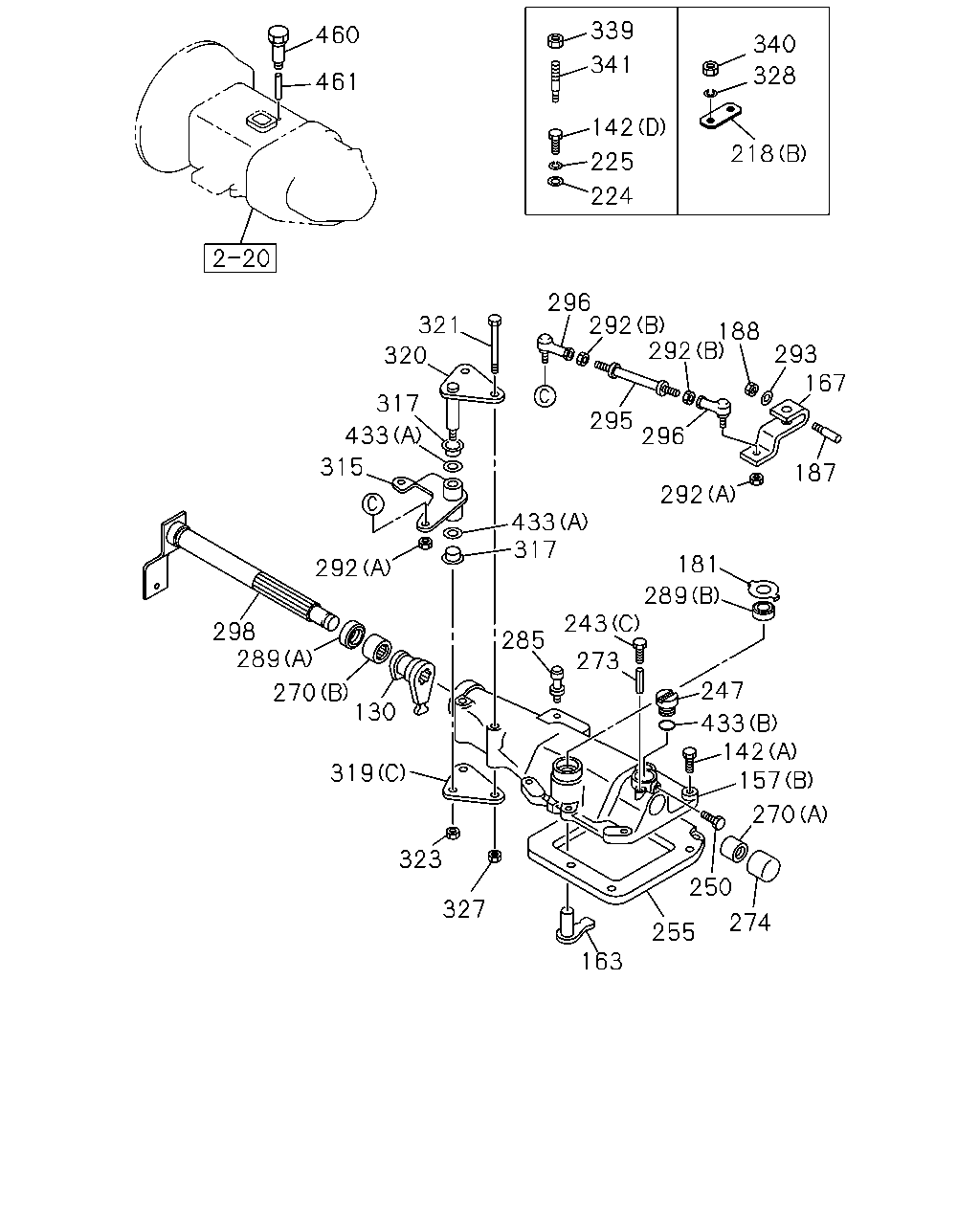

çizim 184512
339 460 340 341 328 461 142 218 225 224 296 292 188 292 321 293 167 320 317 295 296 433 315 187 292 433 317 181 292 289 243 298 289 285 273 247 270 130 433 142 157 319 270 323 250 327 274 255 163
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9609-0004 ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0004 ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609-0004 ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609-0004 ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609-0004 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609-0004 ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609-0004 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9609-9804 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9805-0004 ●
167 LEVER; SELECT,EXTERNAL 1-33521-070-0 01 1 9609-0004 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9609-9804 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9805-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9609-9804 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9805-0004 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9609-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0004 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-9804 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9805-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9609-0004 ●
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9601-0004 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9609-0004 ●
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9601-0004 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9609-0004 ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0004 ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9609-0004 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9609-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-235-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9609-0004 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9609-0004 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9609-0004 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9609-0004 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9609-0004 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9601-0004 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9609-9804 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9805-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9609-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9601-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9609-9804 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9805-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9609-9804 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9805-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 9601-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9601-9804 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9805-0004 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-0004 ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-0004 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9609-9804 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9805-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9609-9804 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9805-0004 ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 9601-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9804 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9805-0004 ● ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9609-0004 ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9601-0004 ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9601-0004 ●
315 LEVER; SELECT 1-33651-670-0 01 1 9609-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9609-9804 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9805-0004 ●
317 BUSHING; LEVER 1-09330-119-0 04 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 9609-0004 ●
320 SHAFT; LEVER 1-33619-511-0 01 1 9609-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9609-9804 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9805-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9609-9804 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9805-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-0004 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9609-9804 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9609-0004 ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9609-0004 ●
340 NUT; BRKT
M10 		9-09110-510-0 01 1 9609-0004 ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9609-0004 ●
433 GASKET; BUSHING
(A) 		1-09623-594-0 02 1 9609-9804 ●
433 GASKET; BUSHING
(A) 		1-09623-594-0 02 1 9805-0004 ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-130-0 01 1 9609-0004 ●
460 ADAPTER; NEUTRAL SW 1-09660-460-2 01 1 9609-0004 ●
461 ROD; ADAPTER 1-82446-001-0 01 1 9609-0004 ●

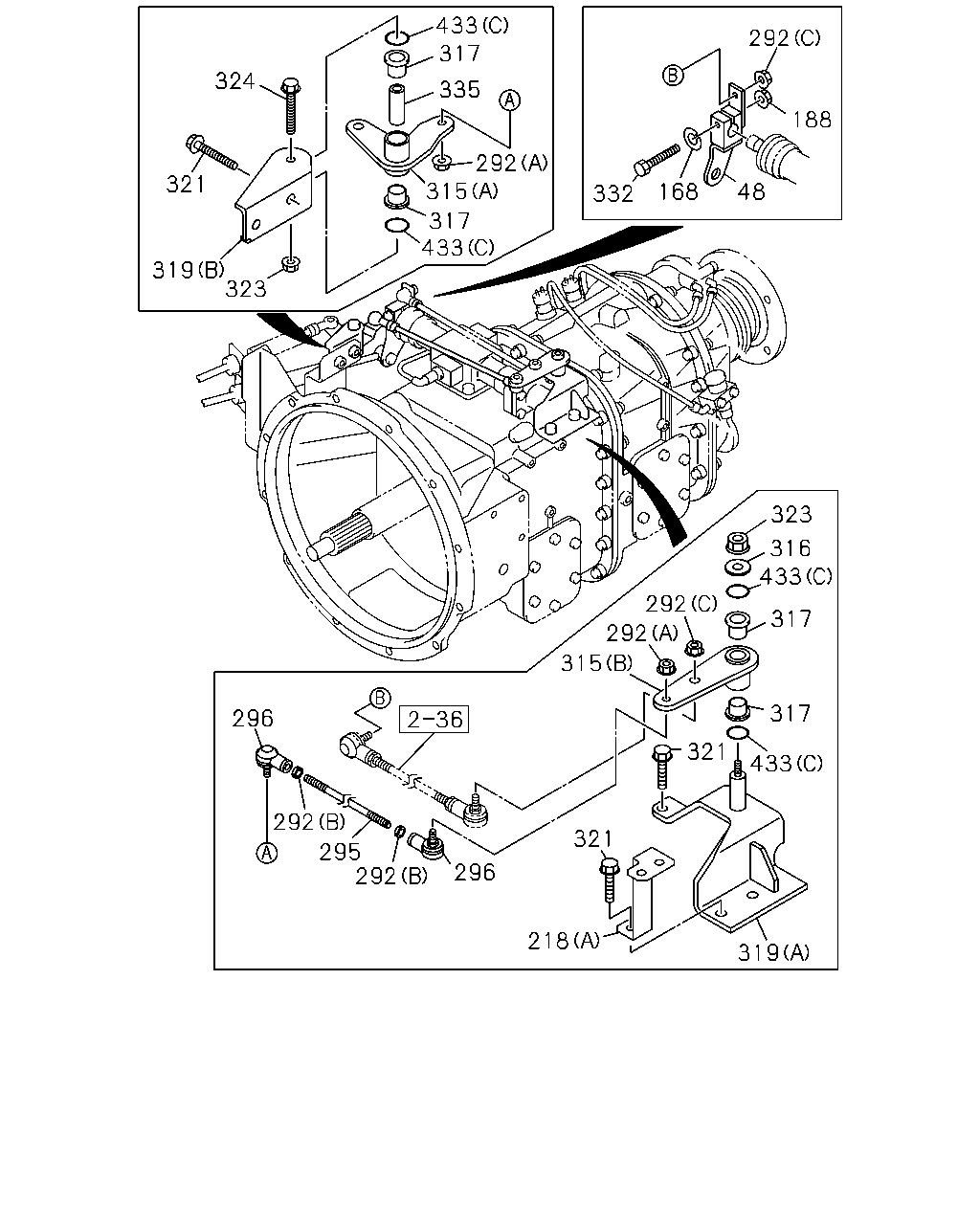

çizim 184515
433 317 292 324 335 188 292 315 321 168 48 332 317 433 319 323 323 316 433 292 317 292 315 317 296 321 433 292 321 295 292 296 218 319
BalonParca AdiParca NoAdetTipApplied Date A B
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 9601-0004 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 9601-0004 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9609-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0004 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-9804 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9805-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9609-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9601-9804 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9805-0004 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-0004 ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9609-9804 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9805-0004 ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 9601-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9804 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9805-0004 ● ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9601-0004 ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9601-0004 ●
315 LEVER; SELECT 1-33651-670-0 01 1 9609-0004 ●
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9601-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9609-9804 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9805-0004 ●
317 BUSHING; LEVER 1-09330-119-0 04 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 9609-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9609-9804 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9805-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9609-9804 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9805-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-0004 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9601-0004 ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 9601-0004 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 9601-0004 ●
433 GASKET; BUSHING
(A) 		1-09623-594-0 02 1 9609-9804 ●
433 GASKET; BUSHING
(A) 		1-09623-594-0 02 1 9805-0004 ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-130-0 01 1 9609-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
