Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#63991) — 478 parça

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	9805-	●
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9805-	●

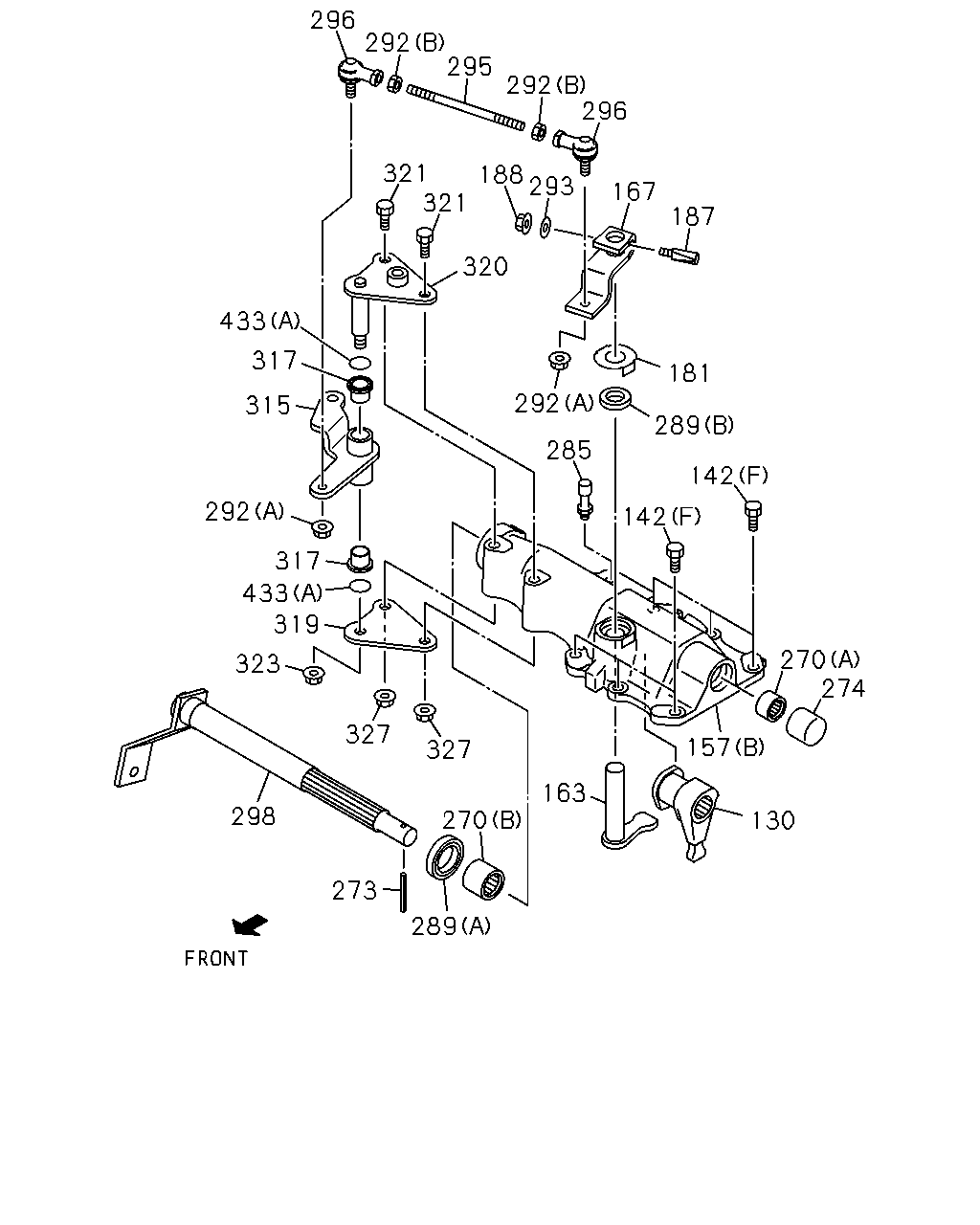

296 292 295 292 296 321 321 188 293 167 187 320 433 317 181 292 315 289 285 142 292 142 317 433 319 270 274 323 327 157 327 163 298 270 130 273 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-		●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9805-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0805		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9601-9804		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9805-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0805		●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9805-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9805-0512	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9805-	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-		●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9805-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9805-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9601-9608		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9609-9804		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9805-0004	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-9804		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9805-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9608		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9609-9804		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9805-0004	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9601-9608		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9609-9804		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9805-0004	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9601-9608		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9609-9804		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0004	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9601-9608		●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9609-0004		●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	0005-		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9601-9608		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9609-0004		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	0005-		●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9601-9608		●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9609-0004		●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	0005-		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9601-9608		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9609-0004		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	0005-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9601-9608		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9609-9804		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9805-0004	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0005-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-9608		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9609-0004		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0005-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9805-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9608		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9609-9804		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9805-0004	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9608		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9609-9804		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9805-0004	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9804		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-9804		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9805-0004	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9601-9608		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9609-9804		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9805-0004	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9601-9608		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9609-9804		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9805-0004	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0005-	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0307-0309		●
296	ROD END L=48	1-09760-038-1	02	1	9601-9804		●
296	ROD END L=48	1-09760-038-1	02	1	9805-0004	●	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-		●
298	SHAFT; SHIFT LEVER	1-33522-168-0	01	1	9805-0307	●
298	SHAFT; SHIFT LEVER	1-33522-189-0	01	1	0308-	●
315	LEVER; SELECT	1-33651-669-0	01	1	9601-		●
315	LEVER; SELECT	1-33651-704-0	01	1	9805-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9609-9804		●
317	BUSHING; LEVER	1-09330-119-0	02	1	9805-0004	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-	●	●
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	9601-		●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	9805-	●
320	SHAFT; LEVER	1-33619-537-0	01	1	9601-		●
320	SHAFT; LEVER	1-33619-474-0	01	1	9805-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9601-9608		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9609-9804		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9805-0004	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0005-0512	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9608		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9609-9804		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9805-0004	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9601-9608		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9609-9804		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9805-0004	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9601-9608		●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9609-9804		●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9805-0004	●	●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	0005-	●	●

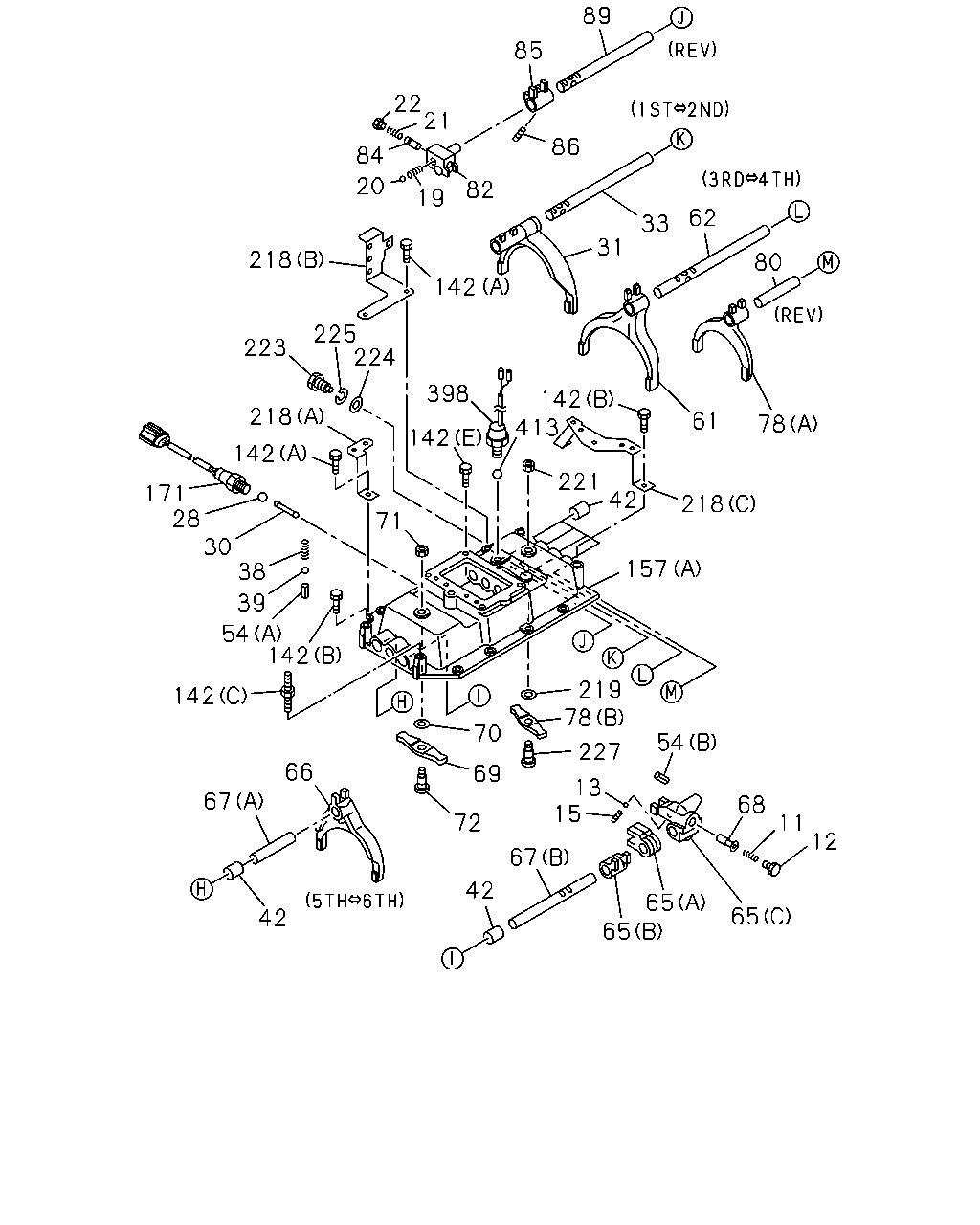

89 85 22 21 84 86 19 20 82 62 33 31 218 80 142 225 224 223 398 142 413 218 61 78 142 142 221 42 171 28 30 38 218 71 157 39 54 142 219 78 142 70 54 227 66 69 13 15 67 68 72 11 12 67 42 65 65 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	8-98294-206-0	01	1	1511-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-9804		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9805-1510	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	1511-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9805-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9601-9804		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9805-	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9601-		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9805-	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9805-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9601-9804		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9805-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9601-		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9805-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9805-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9601-9804		●
28	BALL; INTER LK	9-00097-501-0	04	1	9805-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9601-9804		●
30	PIN; INTER LK	9-33534-003-0	03	1	9805-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9805-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9805-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9601-		●
38	SPRING; DETENT	1-09580-419-0	04	1	9805-	●
39	BALL; DETENT	1-09843-012-0	04	1	9601-9804		●
39	BALL; DETENT	1-09843-012-0	04	1	9805-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9805-	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9601-9804		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9805-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9805-0201	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9805-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9805-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	9805-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	9805-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9805-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	9805-	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	9805-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9805-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9805-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	9805-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	9805-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	9805-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	9805-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9805-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9805-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9805-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9805-	●
84	SLEEVE; REV	1-33516-025-0	01	1	9805-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9805-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9805-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9805-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0805		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9601-9804		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9805-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0805		●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9805-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9805-0512	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9805-	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-		●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9805-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9805-	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9601-9804		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9805-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9601-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9601-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9805-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9805-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9805-0004	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9601-9804		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9805-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9601-9804		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9805-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9601-9804		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9805-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9601-9804		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9805-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9601-9804		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9805-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9601-9804		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9805-	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9601-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9805-0602	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
413	BALL; BACK SW	9-00097-013-0	01	1	9805-	●

142 218 142 142 221 218 158 398 223 225 142 142 171 224 162 22 21 54 2 18 28 162 17 133 38 39 157 142 16 30 53 19 20 217 17 16 1 25 30 53 54 28 29 16 26 30 219 227 16 53 53 49 54 28 34 16 53 30 28 53 50 16 16 53 15 13 5 2 4 6 3 4 6 9 11 16 53 6 12 440 10 7 521

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9601-9610		●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9611-		●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9601-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9601-9603		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-366-1	01	1	9601-9603		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-399-1	01	1	9604-9610		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9611-		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9601-		●
4	ROD; SHIFT,6TH (B)	1-33531-328-1	01	1	9601-9603		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9604-		●
4	ROD; SHIFT,6TH (A)	1-33531-336-1	01	1	9601-9603		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	9604-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9601-		●
6	LEVER; RELAY	9-33511-402-1	01	1	9601-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9601-0004		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9601-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9601-		●
11	SPRING; RETURN,SHIFT SLEEVE	8-98294-206-0	01	1	1511-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-9804		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9805-1510	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	1511-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9805-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9601-9804		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9805-	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9601-		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9805-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	08	1	9601-9601		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9602-9803		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9804-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9601-9610		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9611-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9601-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9805-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9601-9804		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9805-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9601-		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9805-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9805-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9601-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-365-1	01	1	9601-9603		●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	9604-		●
28	BALL; INTER LK	9-00097-501-0	04	1	9601-9804		●
28	BALL; INTER LK	9-00097-501-0	04	1	9805-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9601-		●
30	PIN; INTER LK	9-33534-003-0	03	1	9601-9804		●
30	PIN; INTER LK	9-33534-003-0	03	1	9805-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-368-1	01	1	9601-9603		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	9604-		●
38	SPRING; DETENT	1-09580-379-0	04	1	9601-		●
38	SPRING; DETENT	1-09580-419-0	04	1	9805-	●
39	BALL; DETENT	1-09843-012-0	04	1	9601-9804		●
39	BALL; DETENT	1-09843-012-0	04	1	9805-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9601-		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9601-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9601-9804		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9805-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9805-0201	●
133	SEAT; SPR	1-33549-072-0	04	1	9601-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0805		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9601-9804		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9805-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0805		●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9805-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9805-0512	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9805-	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-		●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9805-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9805-	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9601-		●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9601-		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9601-9804		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9805-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9601-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9601-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9601-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9805-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9805-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9805-0004	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9601-9804		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9805-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9601-9804		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9805-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9601-9804		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9805-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9601-9804		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9805-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9601-9804		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9805-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9601-9804		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9805-	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9601-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9805-0602	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9805-		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9601-		●

296 292 295 292 296 167 293 188 321 187 320 292 181 433 289 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-		●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9805-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0805		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9601-9804		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9805-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0805		●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9805-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9805-0512	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9805-	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-		●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9805-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9805-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9601-9608		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9609-9804		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9805-0004	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-9804		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9805-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9608		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9609-9804		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9805-0004	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9601-9608		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9609-9804		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9805-0004	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9601-9608		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9609-9804		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0004	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9805-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9805-	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9805-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9601-9608		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9609-9804		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9805-0004	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0005-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-9608		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9609-0004		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0005-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9805-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9608		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9609-9804		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9805-0004	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9608		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9609-9804		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9805-0004	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9804		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-9804		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9805-0004	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9601-9608		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9609-9804		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9805-0004	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9601-9608		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9609-9804		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9805-0004	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0005-	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0307-0309		●
296	ROD END L=48	1-09760-038-1	02	1	9601-9804		●
296	ROD END L=48	1-09760-038-1	02	1	9805-0004	●	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-		●
298	SHAFT; SHIFT LEVER	1-33522-168-0	01	1	9805-0307	●
298	SHAFT; SHIFT LEVER	1-33522-189-0	01	1	0308-	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	9805-	●
315	LEVER; SELECT	1-33651-669-0	01	1	9601-		●
315	LEVER; SELECT	1-33651-704-0	01	1	9805-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9609-9804		●
317	BUSHING; LEVER	1-09330-119-0	02	1	9805-0004	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-	●	●
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	9601-		●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	9805-	●
320	SHAFT; LEVER	1-33619-537-0	01	1	9601-		●
320	SHAFT; LEVER	1-33619-474-0	01	1	9805-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9601-9608		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9609-9804		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9805-0004	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0005-0512	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9608		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9609-9804		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9805-0004	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9601-9608		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9609-9804		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9805-0004	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9601-9608		●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9609-9804		●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	9805-0004	●	●
433	GASKET; BUSHING (A)	1-09623-594-0	02	1	0005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
