◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#63990) — 269 parça

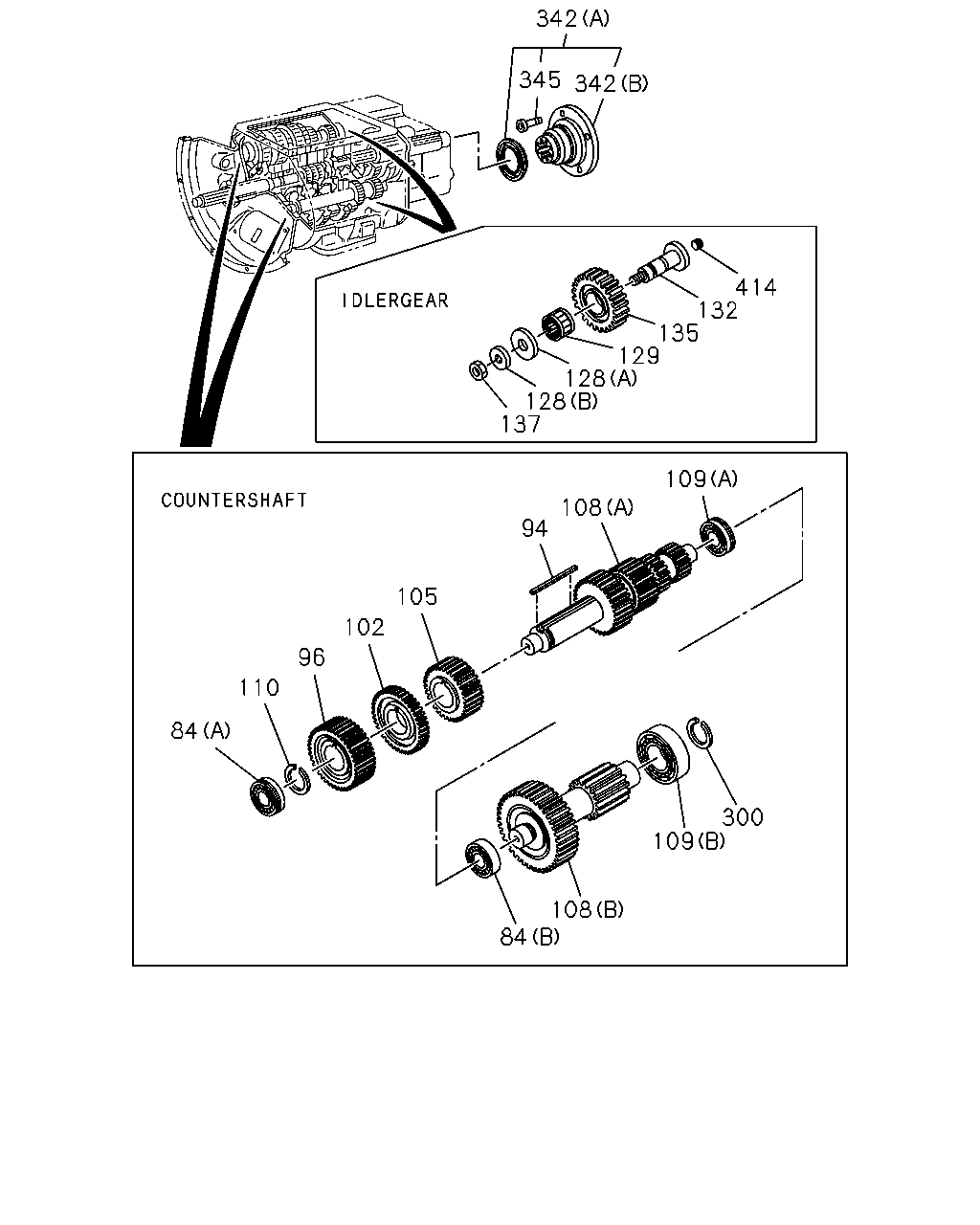

çizim 109812
342 345 342 414 132 135 129 128 128 137 109 108 94 105 102 96 110 84 300 109 108 84
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 9601-0004 ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 9609-0004 ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 9609-0004 ●
94 KEY; FEATHER,COUNTER SHAFT 1-87061-450-0 02 1 9609-0004 ●
96 GEAR; COUNTER DRIVE 1-33331-242-0 01 1 9601-0004 ●
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 9609-0004 ●
102 GEAR; PTO DRIVE,COUNTER 1-87061-446-0 02 1 9609-0004 ●
105 GEAR; 3RD,COUNTER 1-87061-447-0 02 1 9609-0004 ●
108 SHAFT; COUNTER
(C) 		1-33311-296-0 01 1 9601-0004 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 9609-0004 ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 9609-0004 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 9601-0004 ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 9609-0004 ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 9609-0004 ●
110 RING; SNAP,COUNTER BRG 1-87061-410-0 02 1 9609-0004 ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 9601-0004 ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 9609-0004 ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 9609-0004 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 9601-0004 ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 9609-0004 ●
132 SHAFT; REV 1-33351-028-0 01 1 9601-0004 ●
132 SHAFT; REV 1-87061-452-0 02 1 9609-0004 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 9601-0004 ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 9609-0004 ●
137 NUT; REV GEAR 1-87061-221-0 02 1 9609-0004 ●
300 RING; SNAP,COUNTER SHAFT,RR END 1-87061-295-0 02 1 9609-0004 ●
342 FLANGE; OUTPUT
(C) 		1-37243-299-0 01 1 9601-0004 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 9609-0004 ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 9609-0004 ●
345 BOLT; FLANGE TO YOKE
M16X51 W/MARK 		1-46219-086-0 04 1 9601-0004 ●
414 PLUG; REV SHAFT 1-87061-203-0 02 1 9609-0004 ●

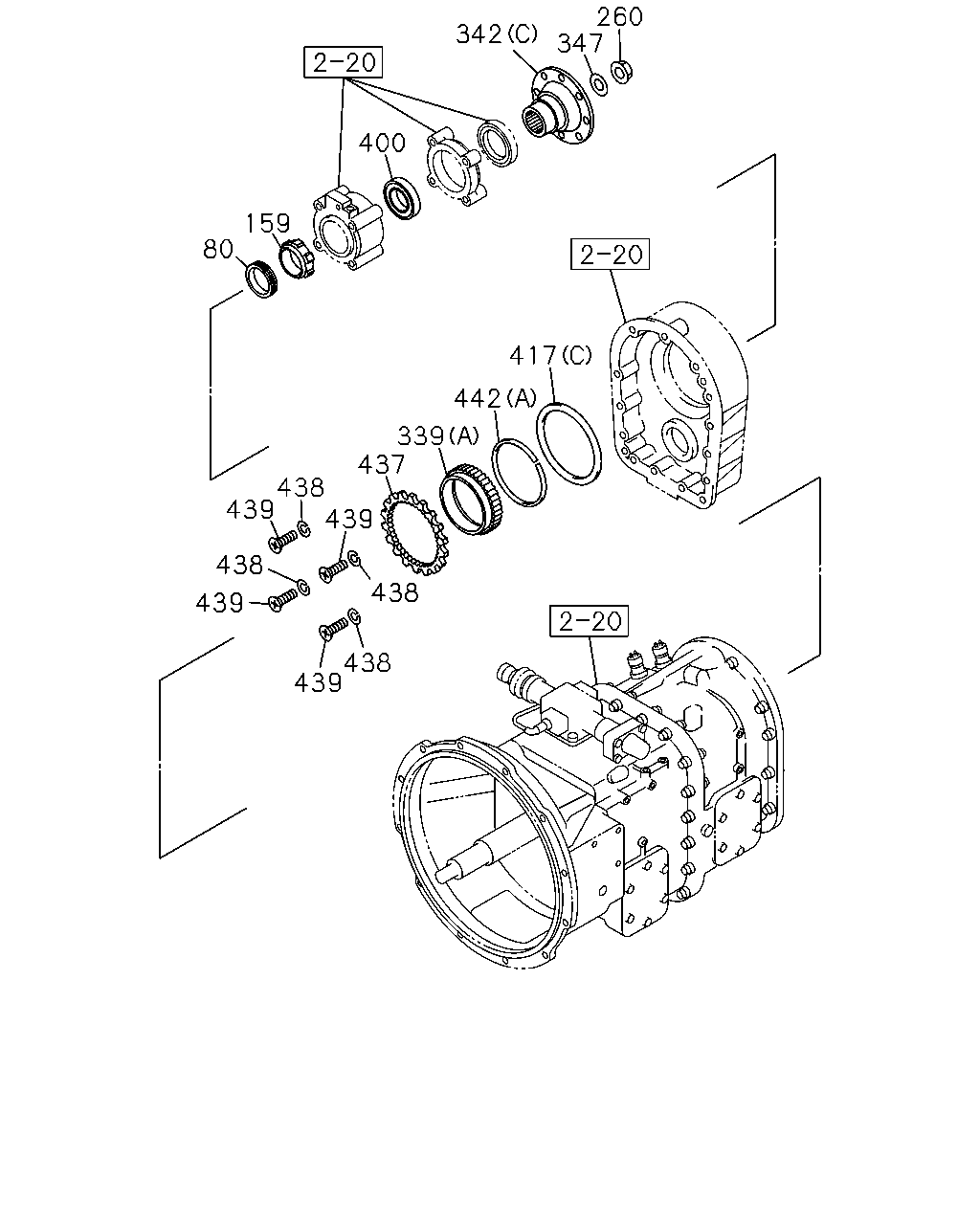

çizim 109890
260 347 342 400 159 80 417 442 339 437 438 439 439 438 438 439 438 439
BalonParca AdiParca NoAdetTipApplied Date A B
80 GEAR; SPD DRIVE 1-33371-062-0 01 1 9601-0004 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 9609-0004 ●
159 SPACER; SPD DRIVE GEAR 1-33159-045-0 01 1 9601-0004 ●
260 NUT; MAINSHAFT END 1-33239-237-0 01 1 9601-0004 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-456-0 01 1 9601-0004 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-457-0 01 1 9601-0004 ●
342 FLANGE; OUTPUT
(C) 		1-37243-299-0 01 1 9601-0004 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 9609-0004 ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 9609-0004 ●
347 WASHER; FLANGE 1-33239-236-0 01 1 9601-0004 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 9601-0004 ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 9609-0004 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 9601-0004 ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 9609-0004 ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 9609-0004 ●
437 PLATE; LOCK 1-33269-054-0 01 1 9601-0004 ●
438 WASHER; LOCK PLATE 1-33269-056-0 04 1 9601-0004 ●
439 SCREW; LOCK PLATE 1-33269-057-0 04 1 9601-0004 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 9601-0004 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 9601-0004 ●

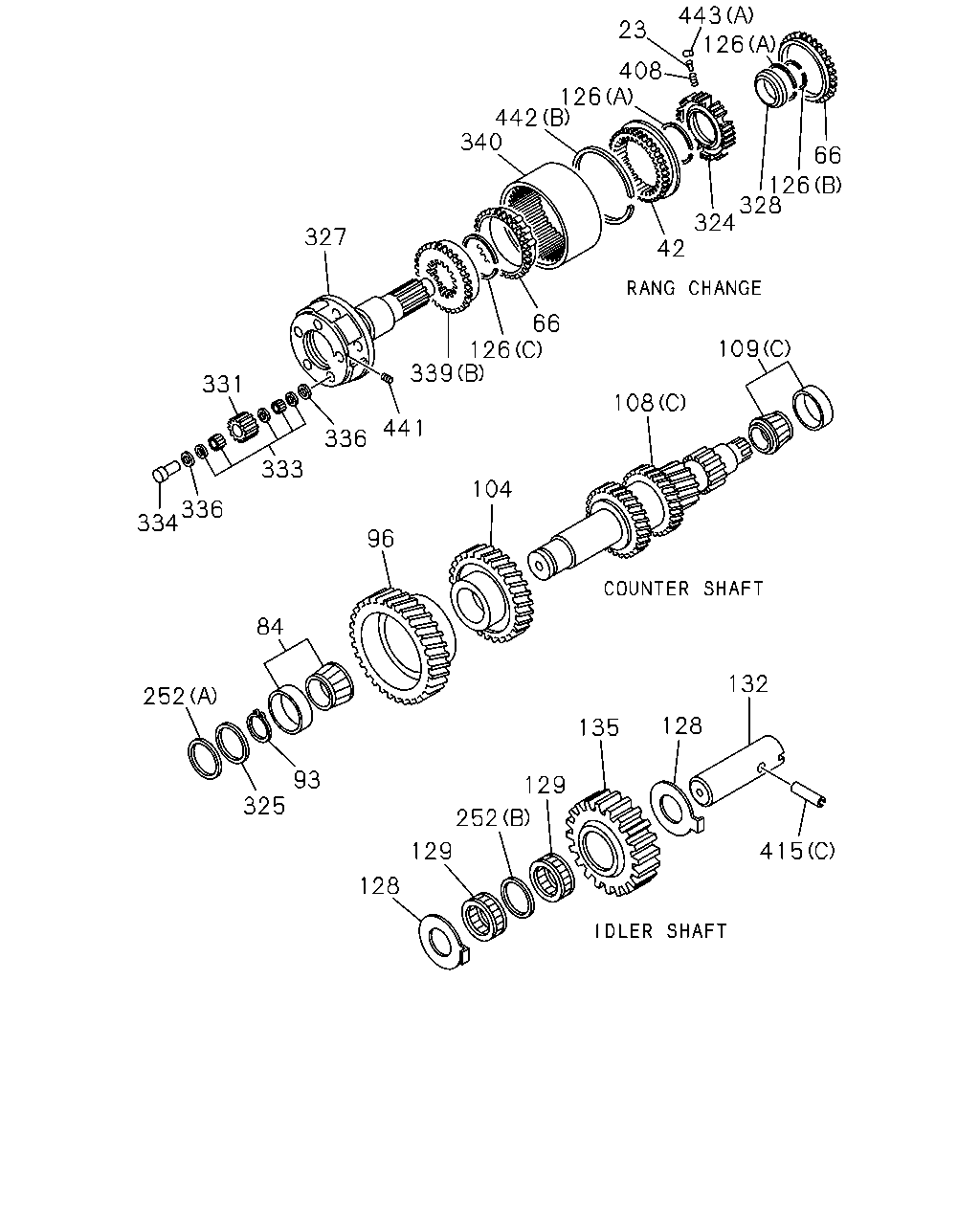

çizim 184501
443 126 23 408 126 442 340 66 126 328 324 42 327 66 126 339 109 331 108 441 336 333 104 336 334 96 84 132 252 128 135 93 325 129 252 129 415 128
BalonParca AdiParca NoAdetTipApplied Date A B
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 9601-0004 ●
42 SLEEVE 1-33262-196-0 01 1 9601-0004 ●
66 RING; BLOCK,SYN 1-33265-455-0 02 1 9601-0004 ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 9601-0004 ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 9609-0004 ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 9609-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 9601-0004 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 9601-0004 ●
96 GEAR; COUNTER DRIVE 1-33331-242-0 01 1 9601-0004 ●
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 9609-0004 ●
104 GEAR; 4TH,COUNTER 1-33338-338-0 01 1 9601-0004 ●
108 SHAFT; COUNTER
(C) 		1-33311-296-0 01 1 9601-0004 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 9609-0004 ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 9609-0004 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 9601-0004 ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 9609-0004 ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 9609-0004 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 02 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 9601-0004 ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 9601-0004 ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 9609-0004 ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 9609-0004 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 9601-0004 ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 9609-0004 ●
132 SHAFT; REV 1-33351-028-0 01 1 9601-0004 ●
132 SHAFT; REV 1-87061-452-0 02 1 9609-0004 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 9601-0004 ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 9609-0004 ●
252 SPACER
(A) 		1-33319-151-0 01 1 9601-0004 ●
252 SPACER
(B) 		1-33359-006-0 01 1 9601-0004 ●
324 HUB; CLU 1-33261-234-0 01 1 9601-0004 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 9601-0004 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 9601-0004 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 9601-0004 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 9601-0004 ●
327 CARRIER; PLANETARY GEAR 1-33231-288-0 01 1 9601-0004 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 9601-0004 ●
331 GEAR SET; PLANETARY 1-33239-248-0 05 1 9601-0004 ●
333 ROLLER; PLANETARY GEAR 1-33239-250-0 05 1 9601-0004 ●
334 SHAFT; PLANETARY GEAR 1-33239-249-0 05 1 9601-0004 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-252-0 10 1 9601-0004 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-456-0 01 1 9601-0004 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-457-0 01 1 9601-0004 ●
340 GEAR; RING 1-33339-052-0 01 1 9601-0004 ●
408 SPRING 1-33264-039-0 18 1 9601-0004 ●
408 SPRING 1-87061-137-0 03 1 9609-0004 ●
415 PIN; OUTPUT SHAFT
(C) 		1-33359-007-0 01 1 9601-0004 ●
415 PIN; OUTPUT SHAFT
(A) 		1-87061-271-0 01 1 9609-0004 ●
415 PIN; OUTPUT SHAFT
(B) 		1-87061-284-0 01 1 9609-0004 ●
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 9601-0004 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 9601-0004 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 9601-0004 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 9601-0004 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 9601-0004 ●

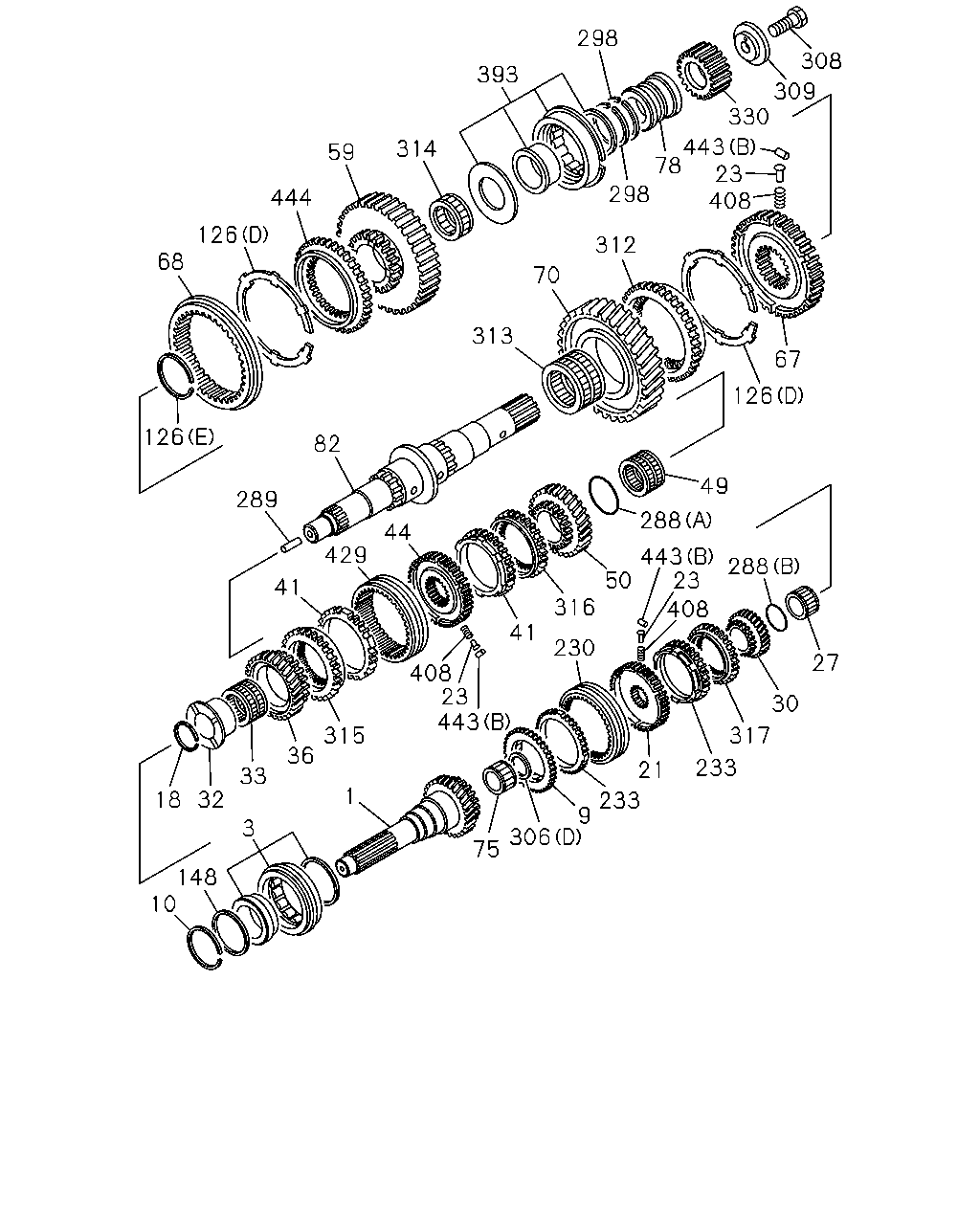

çizim 184505
298 308 393 309 330 443 78 23 408 314 59 298 444 126 312 68 70 313 67 126 126 82 49 289 288 44 429 443 50 23 288 41 316 408 41 230 27 408 23 443 30 315 317 36 233 21 33 1 32 18 233 9 306 3 75 148 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33211-911-0 01 1 9601-0004 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 9609-0004 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 9601-0004 ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 9609-0004 ●
9 CLUTCH; DOG,TOP GEAR 1-33265-460-0 01 1 9601-0004 ●
10 RING; SNAP,PILOT BRG 1-33219-193-0 01 1 9601-0004 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 9609-0004 ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 9609-0004 ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 9601-0004 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 9601-0004 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 9601-0004 ●
27 BEARING; 4TH GEAR 1-33259-071-0 01 1 9601-0004 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 9601-0004 ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 9609-0004 ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 9601-0004 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-069-0 01 1 9601-0004 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-454-0 01 1 9601-0004 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 9609-0004 ●
41 RING; BLOCK,2ND & 3RD 1-33265-459-0 02 1 9601-0004 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 9601-0004 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-069-0 01 1 9601-0004 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-375-0 01 1 9601-0004 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 9609-0004 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 9601-0004 ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 9609-0004 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 9601-0004 ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 9601-0004 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 9601-0004 ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 9609-0004 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 9601-0004 ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 9609-0004 ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-244-0 01 1 9601-0004 ●
82 SHAFT; MAIN,TRANS 1-33231-287-0 01 1 9601-0004 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 9609-0004 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 02 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 9601-0004 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.70 		1-33219-187-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.75 		1-33219-188-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.80 		1-33219-189-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.85 		1-33219-190-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.90 		1-33219-191-0 01 1 9601-0004 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.95 		1-33219-192-0 01 1 9601-0004 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 9601-0004 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-459-0 02 1 9601-0004 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 9601-0004 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 9601-0004 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 9601-0004 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.12 		1-33239-238-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.07 		1-33239-239-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.02 		1-33239-240-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 9609-0004 ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 9609-0004 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 9609-0004 ●
308 BOLT; MAINSHAFT 1-33239-247-0 01 1 9601-0004 ●
309 PLATE; MAINSHAFT 1-33239-301-0 01 1 9601-0004 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-461-0 01 1 9601-0004 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-069-0 01 1 9601-0004 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 9601-0004 ●
315 CLUTCH; DOG,2ND GEAR 1-33265-460-0 01 1 9601-0004 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-460-0 01 1 9601-0004 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-460-0 01 1 9601-0004 ●
330 GEAR; SUN 1-34311-003-0 01 1 9601-0004 ●
393 BEARING; MAINSHAFT END 1-33239-243-0 01 1 9601-0004 ●
408 SPRING 1-33264-039-0 18 1 9601-0004 ●
408 SPRING 1-87061-137-0 03 1 9609-0004 ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 9601-0004 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 9601-0004 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 9601-0004 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 9601-0004 ●

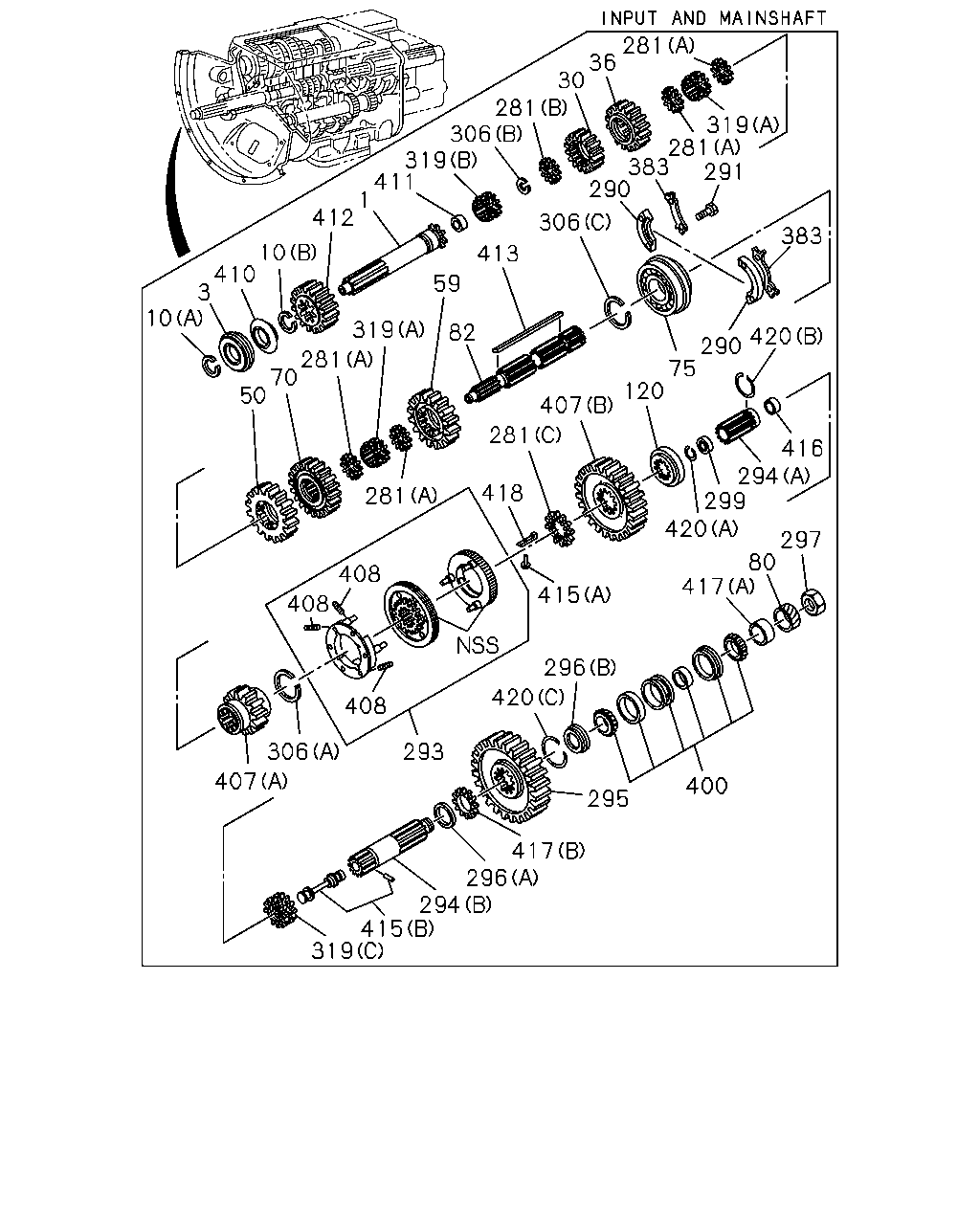

çizim 184507
281 36 30 281 306 319 411 1 412 319 281 383 291 290 306 383 10 410 3 413 59 10 319 82 420 290 75 120 281 70 50 407 281 416 294 299 420 418 281 297 80 408 417 415 408 296 420 408 306 293 407 400 295 417 296 294 415 319
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33211-911-0 01 1 9601-0004 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 9609-0004 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 9601-0004 ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 9609-0004 ●
10 RING; SNAP,PILOT BRG 1-33219-193-0 01 1 9601-0004 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 9609-0004 ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 9609-0004 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 9601-0004 ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 9609-0004 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-454-0 01 1 9601-0004 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 9609-0004 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-375-0 01 1 9601-0004 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 9609-0004 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 9601-0004 ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 9609-0004 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 9601-0004 ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 9609-0004 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 9601-0004 ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 9609-0004 ●
80 GEAR; SPD DRIVE 1-33371-062-0 01 1 9601-0004 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 9609-0004 ●
82 SHAFT; MAIN,TRANS 1-33231-287-0 01 1 9601-0004 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 9609-0004 ●
120 SLEEVE 1-87061-436-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.203 		1-87061-273-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.207 		1-87061-274-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.211 		1-87061-275-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.260 		1-87061-457-0 04 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.264 		1-87061-458-0 04 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.269 		1-87061-459-0 04 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.274 		1-87061-460-0 04 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.279 		1-87061-461-0 04 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.260 		1-87061-479-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.264 		1-87061-480-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.269 		1-87061-481-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.274 		1-87061-482-0 01 1 9609-0004 ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.279 		1-87061-483-0 01 1 9609-0004 ●
290 RETAINER; BRG 1-87061-492-0 02 1 9609-0004 ●
291 BOLT; RET 1-87061-529-0 04 1 9609-0004 ●
293 SYNCHRONIZER; LOW HIGH 1-87061-216-0 01 1 9609-0004 ●
294 SHAFT; OUTPUT
(A) 		1-87061-280-0 01 1 9609-0004 ●
294 SHAFT; OUTPUT
(B) 		1-87061-506-0 01 1 9609-0004 ●
295 GEAR; LOW,DRIVEN 1-87061-441-0 01 1 9609-0004 ●
296 WASHER; THRUST
(A) 		1-87061-411-0 01 1 9609-0004 ●
296 WASHER; THRUST
(B) 		1-87061-430-0 01 1 9609-0004 ●
297 NUT; LOCK 1-87061-291-0 01 1 9609-0004 ●
299 BEARING; OUTPUT SHAFT FRT 1-87061-279-0 01 1 9609-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.12 		1-33239-238-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.07 		1-33239-239-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.02 		1-33239-240-0 01 1 9601-0004 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 9609-0004 ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 9609-0004 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 9609-0004 ●
319 CLUTCH; SLIDING
(C) 		1-87061-425-0 01 1 9609-0004 ●
319 CLUTCH; SLIDING
(A) 		1-87061-456-0 02 1 9609-0004 ●
319 CLUTCH; SLIDING
(B) 		1-87061-478-0 01 1 9609-0004 ●
383 WASHER; LK 1-87061-493-0 02 1 9609-0004 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 9601-0004 ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 9609-0004 ●
407 GEAR; PRIMARY MAIN
(B) 		1-87061-486-0 01 1 9609-0004 ●
407 GEAR; PRIMARY MAIN
(A) 		1-87061-487-0 01 1 9609-0004 ●
408 SPRING 1-33264-039-0 18 1 9601-0004 ●
408 SPRING 1-87061-137-0 03 1 9609-0004 ●
410 SPACER; TOP GEAR SHAFT 1-87061-467-0 01 1 9609-0004 ●
411 BUSHING; TOP GEAR SHAFT 1-87061-427-0 01 1 9609-0004 ●
412 GEAR; DRIVE 1-87060-718-0 01 1 9609-0004 ●
413 KEY; MAIN SHAFT 1-87061-507-0 01 1 9609-0004 ●
415 PIN; OUTPUT SHAFT
(C) 		1-33359-007-0 01 1 9601-0004 ●
415 PIN; OUTPUT SHAFT
(A) 		1-87061-271-0 01 1 9609-0004 ●
415 PIN; OUTPUT SHAFT
(B) 		1-87061-284-0 01 1 9609-0004 ●
416 BUSHING; OUTPUT SHAFT 1-87061-282-0 01 1 9609-0004 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 9601-0004 ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 9609-0004 ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 9609-0004 ●
418 KEY; OUTPUT SHAFT 1-87061-272-0 01 1 9609-0004 ●
420 RING; SNAP,OUTPUT SHAFT
(A) 		1-87061-278-0 01 1 9609-0004 ●
420 RING; SNAP,OUTPUT SHAFT
(B) 		1-87061-281-0 01 1 9609-0004 ●
420 RING; SNAP,OUTPUT SHAFT
(C) 		1-87061-289-0 01 1 9609-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
