8-52 — PIPING; AIR CONDITIONING (#6399) — 99 parça

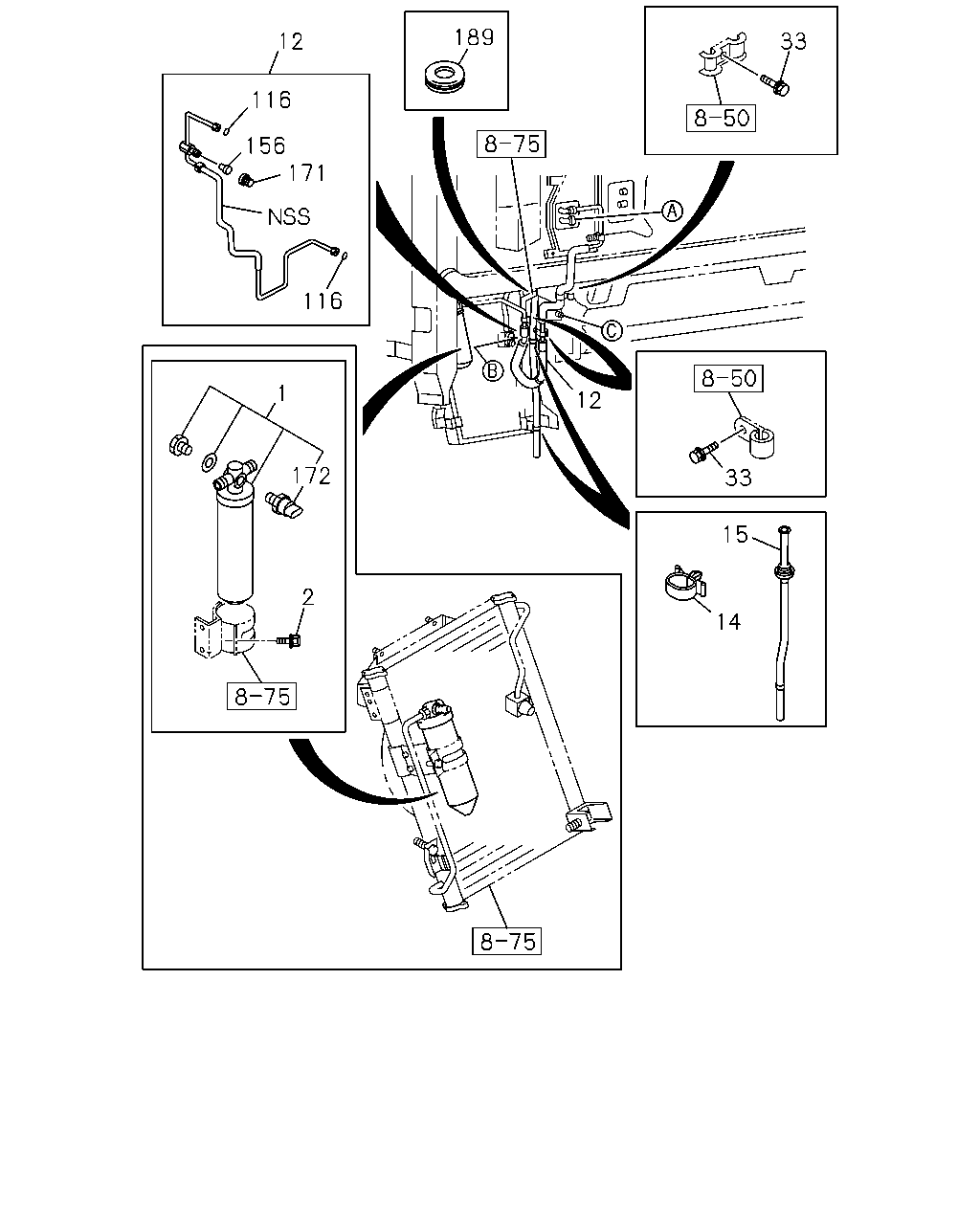

189 33 12 116 156 171 116 1 12 172 33 15 2 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-079-0	01	1	9604-9904
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	9905-
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-9904
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-204-0	01	1	9604-9904
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9905-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9604-9904
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-903-3	01	1	9604-9702
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9703-9904
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9604-9702
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-9904
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9604-9904
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9905-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9604-9904
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9604-9904
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	9905-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	9905-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-218-0	01	1	9604-9904
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9604-

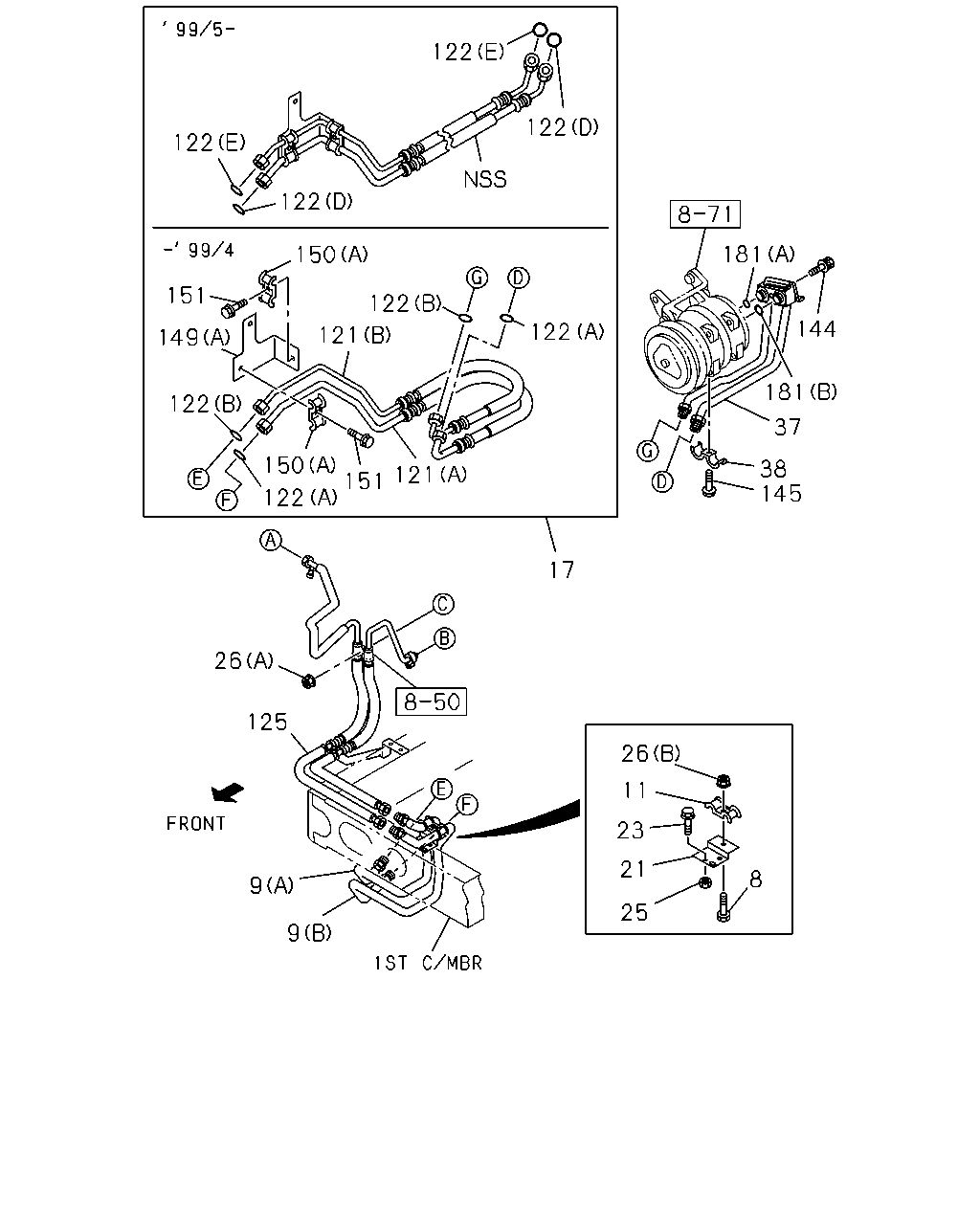

122 122 122 122 181 150 151 122 144 122 121 149 181 122 37 150 151 38 145 121 122 17 26 125 26 11 23 21 8 9 25 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9904
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-250-0	01	1	9604-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-550-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-251-0	01	1	9604-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-554-0	01	1	9905-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9604-9904
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-248-0	01	1	9604-9904
17	HOSE; FLEX,CMPR TO PIPE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-548-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-1	01	1	0002-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-930-1	01	1	9604-9904
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-930-1	01	1	9905-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9604-9904
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9905-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9604-9904
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9905-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8 FLANGE	0-91150-108-0	01	1	9604-9606
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A),(B) M8 FLANGE	0-91150-108-0	02	1	9607-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8	9-09110-408-0	01	1	9604-9606
37	CONNECTOR; CMPR TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-077-0	01	1	9604-9904
37	CONNECTOR; CMPR TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-173-0	01	1	9905-
38	CLIP; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	9604-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-124-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-301-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-423-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-424-0	01	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13.9	8-94113-330-0	01	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-0001
122	GASKET 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-0001
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	9905-0001
122	GASKET 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	9905-0001
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	0002-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-314-0	01	1	9604-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-545-1	01	1	9905-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9604-
145	BOLT; CLIP,CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9604-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-901-1	01	1	9604-9904
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-046-0	01	1	9604-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-157-0	02	1	9604-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	9604-9904
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9604-9904
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-514-0	01	1	9604-9904
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9905-
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-515-0	01	1	9604-9904
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	01	1	9905-

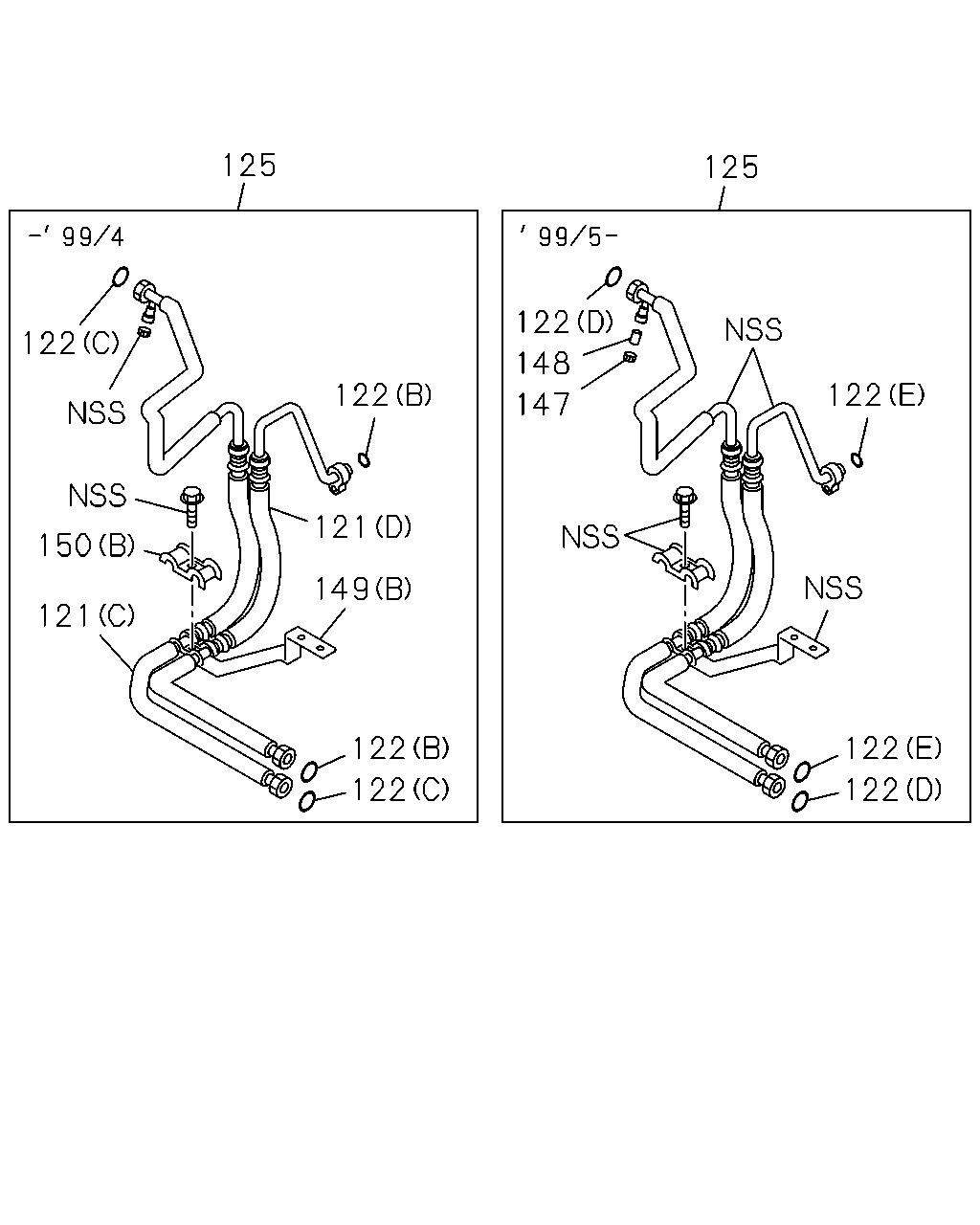

125 125 122 122 148 122 122 147 121 150 149 121 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-124-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-301-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-423-0	01	1	9604-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-424-0	01	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13.9	8-94113-330-0	01	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-0001
122	GASKET 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-0001
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	02	1	9604-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	9905-0001
122	GASKET 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	9905-0001
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	0002-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=15.5	8-97161-777-0	02	1	0002-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-314-0	01	1	9604-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-545-1	01	1	9905-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9905-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9905-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-901-1	01	1	9604-9904
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-046-0	01	1	9604-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-157-0	02	1	9604-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	9604-9904
