Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#63986) — 296 parça

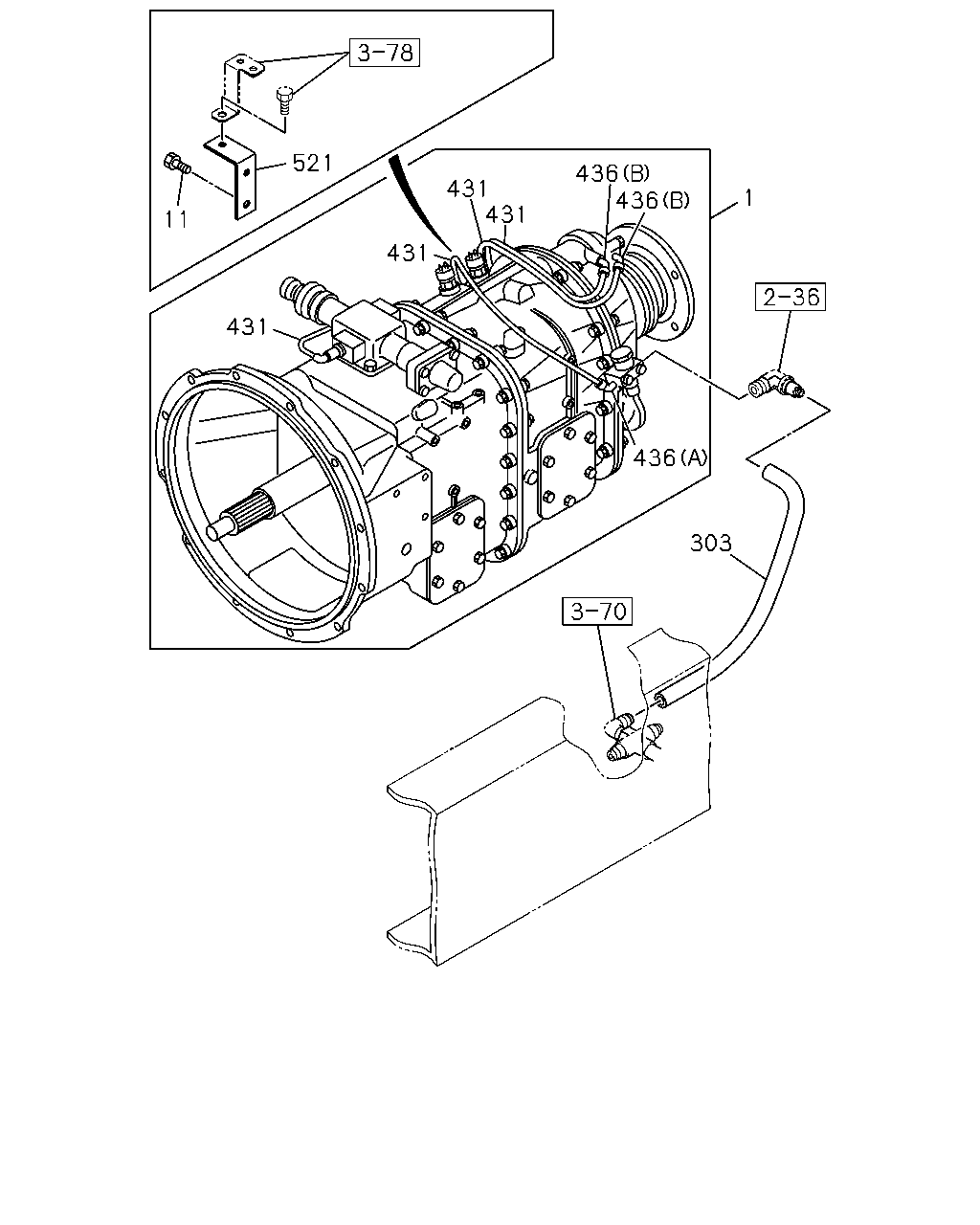

521 436 436 431 431 1 11 431 431 436 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	1-33041-007-1	01	1	9601-9708	●
1	TRANSMISSION ASM; MANUAL	1-33041-480-0	01	1	9709-0004	●
1	TRANSMISSION ASM; MANUAL	1-33040-583-0	01	1	9609-0004		●
11	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	01	1	9607-0004	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9601-9608	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9609-0004	●	●
431	TUBE; NYLON	1-33119-331-0	04	1	9601-0004	●
436	CONNECTOR; AIR HOSE,SUPPLY (A)	1-33119-329-0	01	1	9601-0004	●
436	CONNECTOR; AIR HOSE,SUPPLY (B)	1-33119-330-0	02	1	9601-0004	●
436	CONNECTOR; AIR HOSE,SUPPLY (C) L=35	1-09660-039-0	01	1	9609-0004		●
521	BRACKET; HOSE	1-47477-698-0	01	1	9607-0004	●

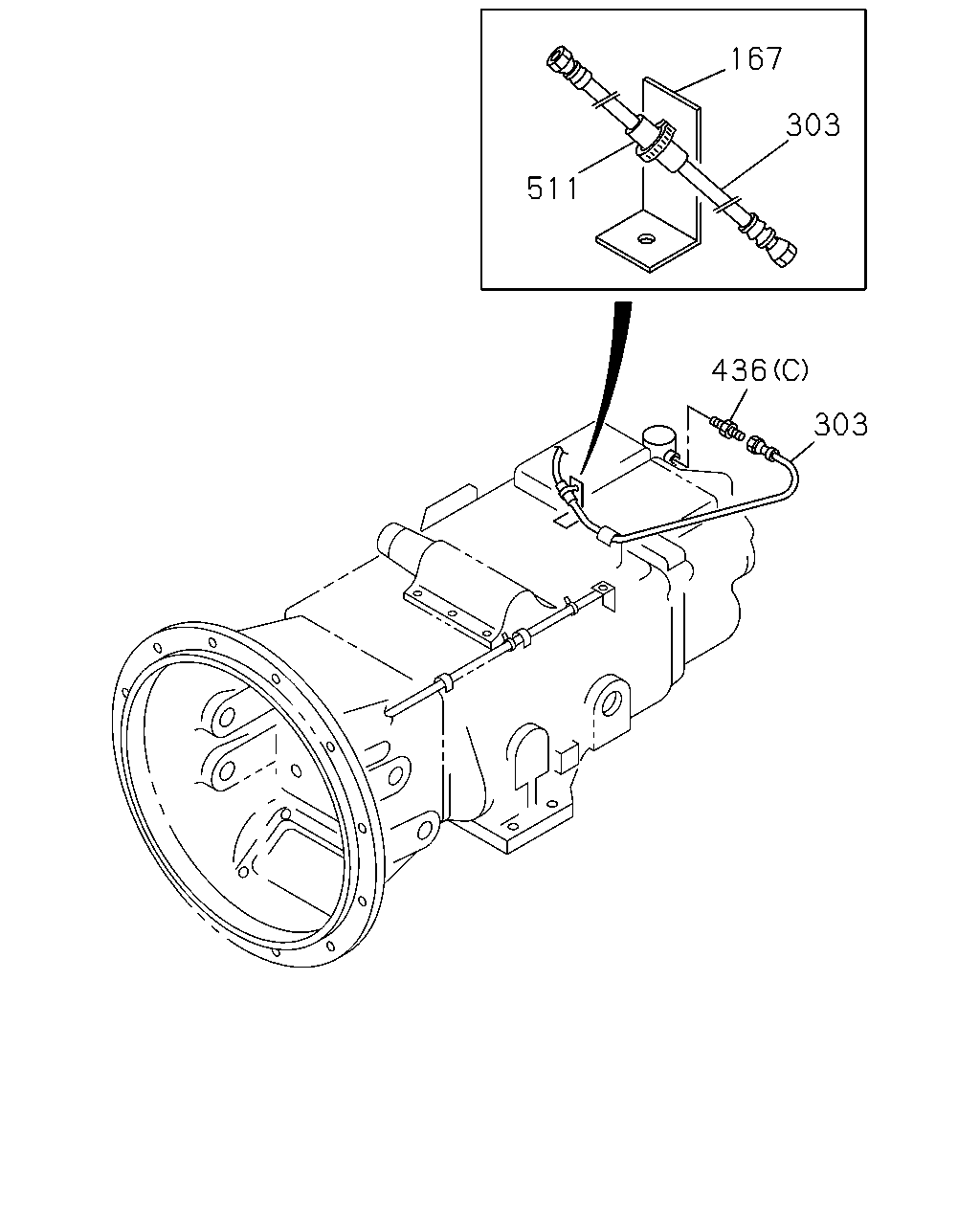

167 303 511 436 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
167	BRACKET; CLIP,AIR TUBE L=55	1-47476-177-0	01	1	9609-0004		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9601-9608	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9609-0004	●	●
436	CONNECTOR; AIR HOSE,SUPPLY (A)	1-33119-329-0	01	1	9601-0004	●
436	CONNECTOR; AIR HOSE,SUPPLY (B)	1-33119-330-0	02	1	9601-0004	●
436	CONNECTOR; AIR HOSE,SUPPLY (C) L=35	1-09660-039-0	01	1	9609-0004		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9805-9806		●

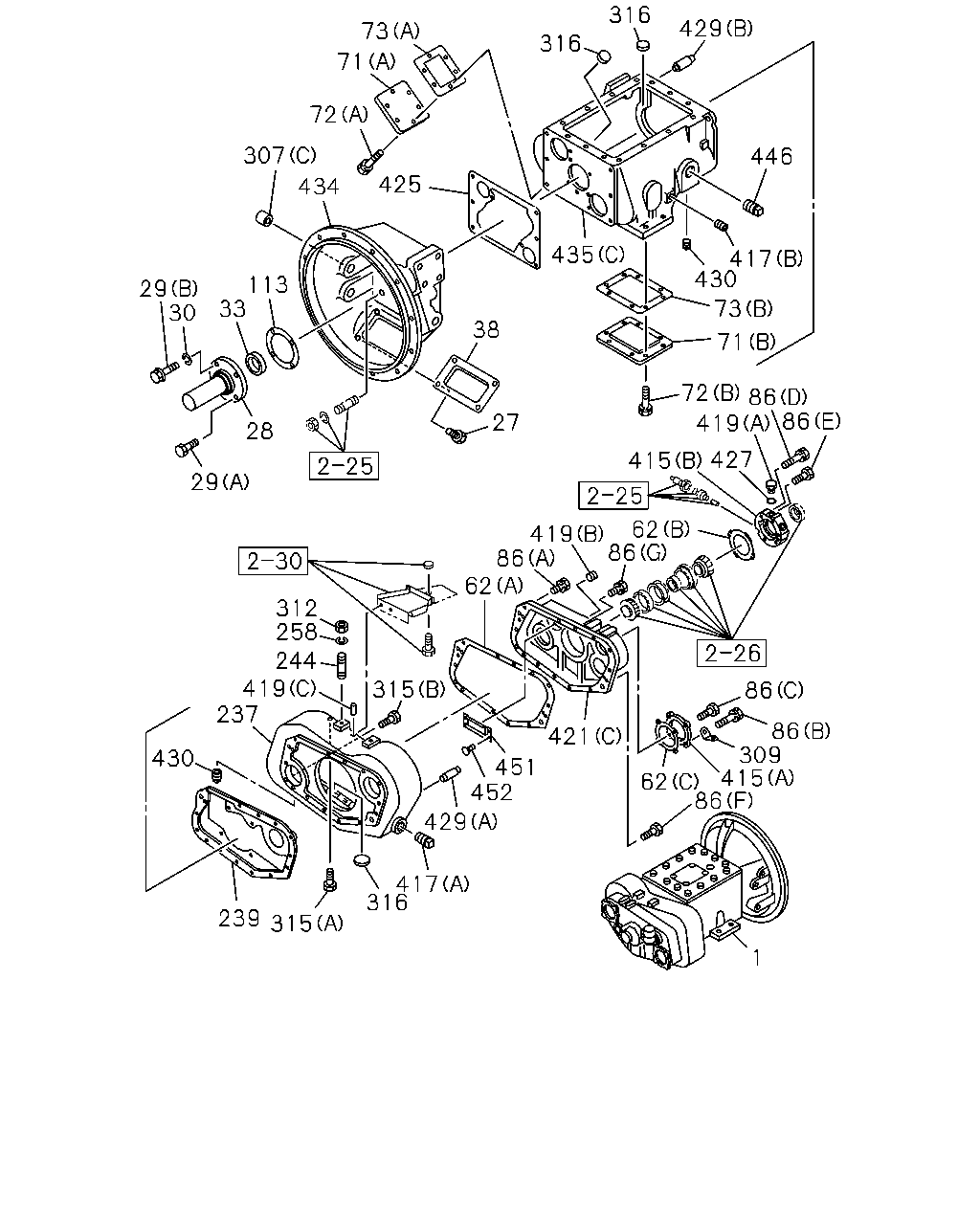

316 429 73 316 71 72 307 446 425 434 435 417 430 113 33 29 30 73 38 71 72 86 419 86 27 28 29 62 419 86 86 62 312 258 244 419 237 315 86 421 86 309 62 415 86 430 451 452 429 417 316 239 315 1 415 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	1-33041-007-1	01	1	9601-9708	●
1	TRANSMISSION ASM; MANUAL	1-33041-480-0	01	1	9709-0004	●
1	TRANSMISSION ASM; MANUAL	1-33040-583-0	01	1	9609-0004		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-9804	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9805-0004	●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-0004		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0004		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-0004		●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-0004		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-0004		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-0004		●
38	COVER; CHECK HOLE,LWR	1-31119-028-0	01	1	9601-9708	●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9609-0004		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9609-0004		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9609-0004		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9609-0004		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-0004		●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-0004		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-0004		●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-0004		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004	●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004	●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004	●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-0004		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-0004		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-0004		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-0004		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-0004		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-0004		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-0004		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9609-0004		●
237	CASE; GEAR	1-87061-520-0	01	1	9609-0004		●
239	GASKET; TRANS	1-87061-491-0	01	1	9609-0004		●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9609-0004		●
258	WASHER; LK	1-87060-770-0	02	1	9609-0004		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-0004		●
309	EYE; LIFTING	1-33119-319-0	01	1	9601-0004	●
309	EYE; LIFTING	1-87060-783-0	02	1	9609-0004		●
312	NUT	1-87061-220-0	02	1	9609-0004		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004	●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004	●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-0004		●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-0004		●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004	●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-0004		●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004	●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004	●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-0004		●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-0004		●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9609-0004		●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9609-0004		●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9609-0004		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004	●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004	●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-0004		●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9609-0004		●
427	GASKET; RR COVER	1-87061-174-0	01	1	9609-0004		●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004	●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-0004		●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-0004		●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9609-0004		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708	●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802	●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004	●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0004		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004	●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004	●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-0004		●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004	●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-0004		●
451	PLATE; RR COVER	1-87061-435-0	01	1	9609-0004		●
452	SCREW; PLATE	1-87061-523-0	04	1	9609-0004		●

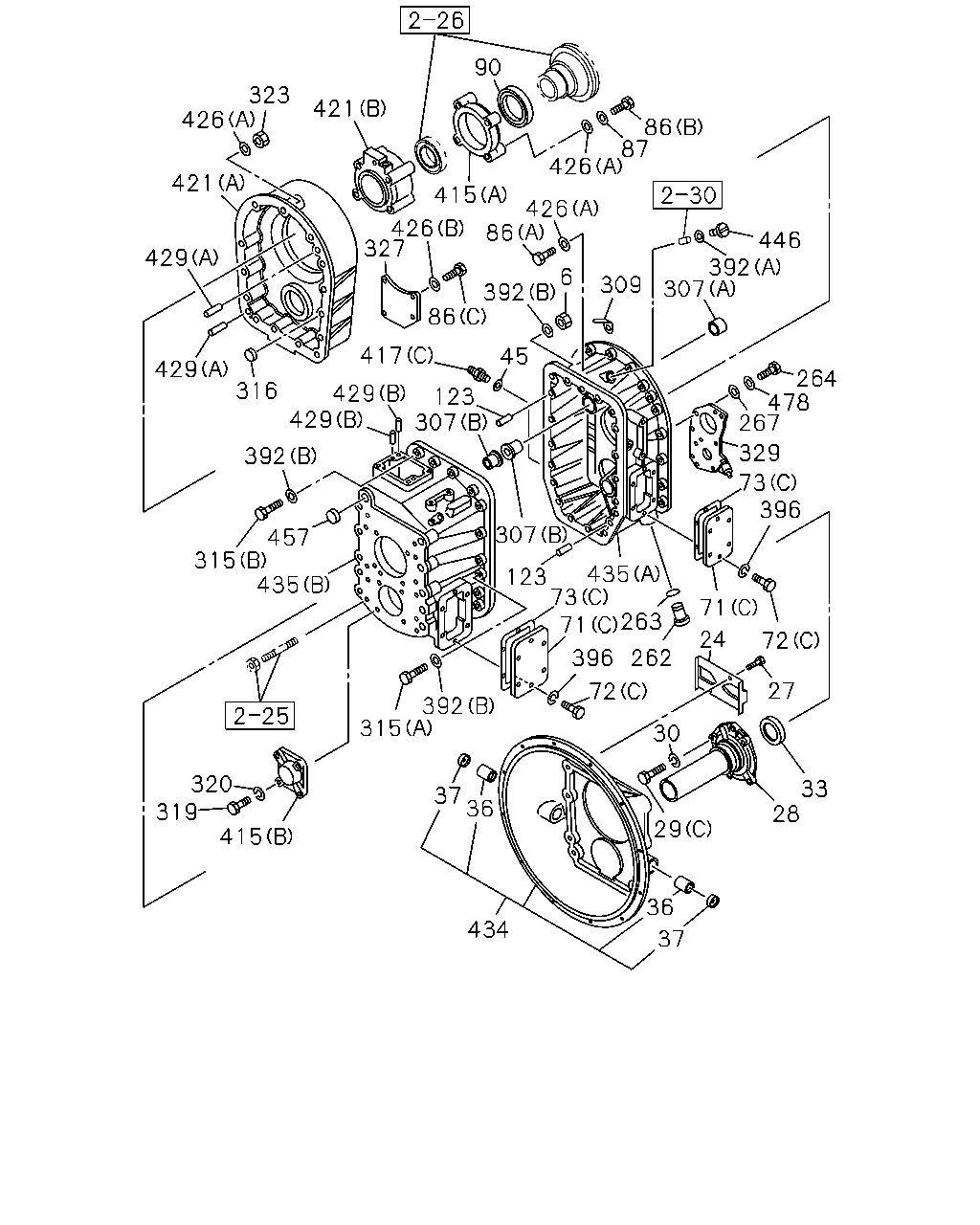

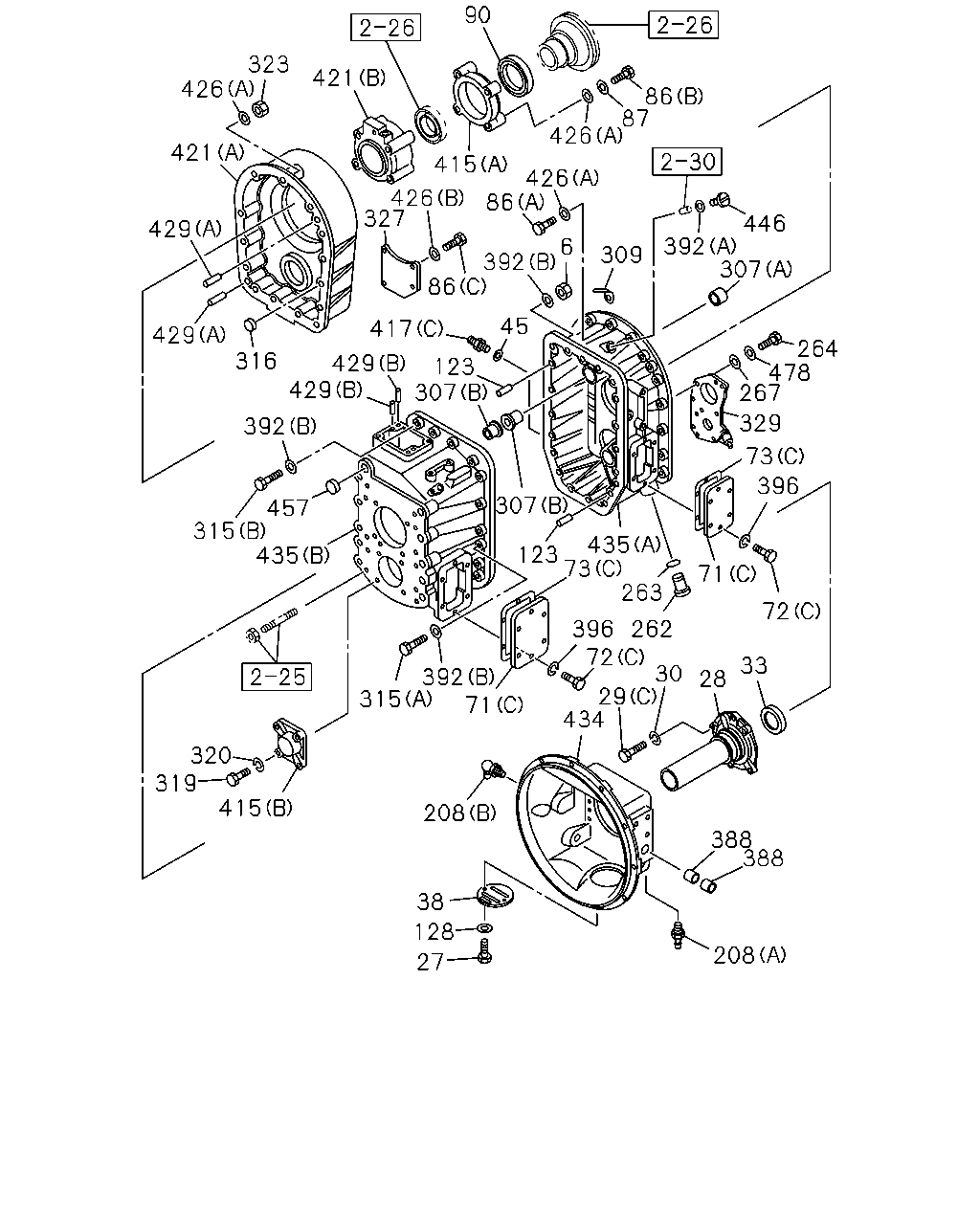

90 323 421 426 86 87 426 421 415 426 86 426 327 446 392 307 429 6 392 86 309 417 45 429 316 264 478 267 429 429 123 307 329 392 73 396 307 457 315 435 123 435 73 71 263 71 24 72 396 262 27 72 392 30 315 320 319 33 28 37 36 29 415 36 434 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS	1-33119-317-0	14	1	9601-0004	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9709-9804	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9805-9807	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0004	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-9804	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9805-0004	●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-0004		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0004		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-0004		●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-0004		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-0004		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-0004		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9709-9804	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9805-0004	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9709-9804	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9805-0004	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-328-0	01	1	9601-0004	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-0004		●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-0004		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-0004		●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-0004		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004	●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004	●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004	●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-0004		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-0004		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-0004		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-0004		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-0004		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-0004		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-0004		●
87	WASHER; LK,RR COVER	1-34159-066-0	04	1	9601-0004	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	9601-0004	●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	9601-0004	●
262	STRAINER; OIL PUMP	1-33119-324-0	01	1	9601-0004	●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-325-0	01	1	9601-0004	●
264	BOLT; OIL PUMP	1-34159-065-0	08	1	9601-0004	●
267	WASHER; PL	1-33119-318-0	08	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-0004		●
309	EYE; LIFTING	1-33119-319-0	01	1	9601-0004	●
309	EYE; LIFTING	1-87060-783-0	02	1	9609-0004		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004	●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004	●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-0004		●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-0004		●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004	●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-0004		●
319	BOLT; COVER	1-33159-041-0	04	1	9601-0004	●
320	WASHER; COVER	1-33159-042-0	04	1	9601-0004	●
323	NUT; RR COVER	1-33119-317-0	17	1	9601-0004	●
327	COVER; RR,COUNTER	1-33139-076-0	01	1	9601-0004	●
329	PUMP ASM; OIL	1-34150-075-0	01	1	9601-0004	●
392	WASHER; PL,CASE (A)	1-33119-307-0	01	1	9601-0004	●
392	WASHER; PL,CASE (B)	1-33119-318-0	32	1	9601-0004	●
396	WASHER; LK,SIDE COVER	1-34159-066-0	12	1	9601-0004	●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004	●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004	●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-0004		●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-0004		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004	●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004	●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-0004		●
426	WASHER; PL,RR COVER (A)	1-33119-318-0	33	1	9601-0004	●
426	WASHER; PL,RR COVER (B)	1-33159-042-0	04	1	9601-0004	●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004	●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-0004		●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-0004		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708	●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802	●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004	●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0004		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004	●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004	●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-0004		●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004	●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-0004		●
457	CUP; SEALING,CASE	1-33119-310-0	01	1	9601-0004	●
478	WASHER; LK,OIL PUMP	1-34159-066-0	08	1	9601-0004	●

90 323 421 426 86 87 426 421 415 426 86 426 327 446 392 307 429 6 392 86 309 45 417 429 316 264 478 267 429 429 123 307 329 392 307 73 396 457 315 435 435 123 73 263 71 72 72 33 30 29 434 392 71 28 315 320 319 415 208 388 388 38 128 208 27 396 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS	1-33119-317-0	14	1	9601-0004	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-9804	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9805-0004	●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-0004		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0004		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-0004		●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-0004		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-0004		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-0004		●
38	COVER; CHECK HOLE,LWR	1-31119-028-0	01	1	9601-9708	●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9609-0004		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-328-0	01	1	9601-0004	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-0004		●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-0004		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-0004		●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-0004		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-0004		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004	●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004	●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004	●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-0004		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-0004		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-0004		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-0004		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-0004		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-0004		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-0004		●
87	WASHER; LK,RR COVER	1-34159-066-0	04	1	9601-0004	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	9601-0004	●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	9601-0004	●
128	WASHER; PL,CLU HSG	1-34159-066-0	02	1	9601-9708	●
208	NIPPLE; GREASE,CLU HSG (A)	1-31119-029-0	02	1	9601-9708	●
208	NIPPLE; GREASE,CLU HSG (B)	1-31119-030-0	01	1	9601-9708	●
262	STRAINER; OIL PUMP	1-33119-324-0	01	1	9601-0004	●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-325-0	01	1	9601-0004	●
264	BOLT; OIL PUMP	1-34159-065-0	08	1	9601-0004	●
267	WASHER; PL	1-33119-318-0	08	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004	●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-0004		●
309	EYE; LIFTING	1-33119-319-0	01	1	9601-0004	●
309	EYE; LIFTING	1-87060-783-0	02	1	9609-0004		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004	●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004	●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-0004		●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-0004		●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004	●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-0004		●
319	BOLT; COVER	1-33159-041-0	04	1	9601-0004	●
320	WASHER; COVER	1-33159-042-0	04	1	9601-0004	●
323	NUT; RR COVER	1-33119-317-0	17	1	9601-0004	●
327	COVER; RR,COUNTER	1-33139-076-0	01	1	9601-0004	●
329	PUMP ASM; OIL	1-34150-075-0	01	1	9601-0004	●
388	BUSHING; CLU HSG	1-87061-485-0	04	1	9601-9708	●
392	WASHER; PL,CASE (A)	1-33119-307-0	01	1	9601-0004	●
392	WASHER; PL,CASE (B)	1-33119-318-0	32	1	9601-0004	●
396	WASHER; LK,SIDE COVER	1-34159-066-0	12	1	9601-0004	●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004	●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004	●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-0004		●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-0004		●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-0004		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004	●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004	●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-0004		●
426	WASHER; PL,RR COVER (A)	1-33119-318-0	33	1	9601-0004	●
426	WASHER; PL,RR COVER (B)	1-33159-042-0	04	1	9601-0004	●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004	●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-0004		●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-0004		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708	●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802	●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004	●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0004		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004	●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004	●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-0004		●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004	●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-0004		●
457	CUP; SEALING,CASE	1-33119-310-0	01	1	9601-0004	●
478	WASHER; LK,OIL PUMP	1-34159-066-0	08	1	9601-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
