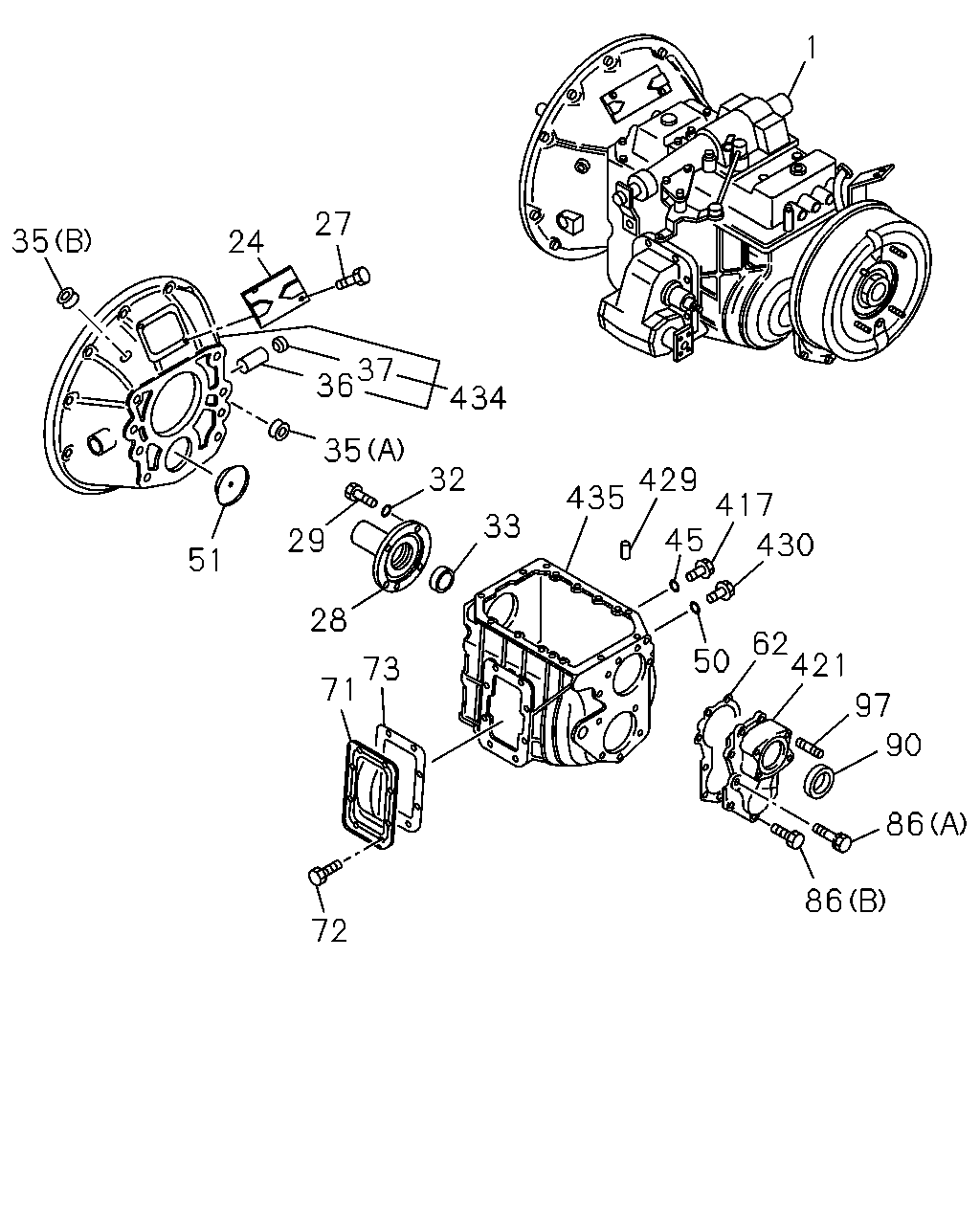

2-20A — MANUAL TRANSMISSION ASM AND CASE (#63985) — 179 parça

1 27 35 24 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 73 71 97 90 86 86 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	9601-	●
1	TRANSMISSION ASM; MANUAL	1-33041-576-0	01	1	9805-		●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9601-	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9805-9807		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0004		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0005-1410		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9601-9708	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-9804	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9805-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-130-0	01	1	9601-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9805-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9805-0805		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9805-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9805-		●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9601-	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9805-		●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	9805-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9601-9708	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9709-9804	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9805-0004	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9601-9708	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9709-9804	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9805-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9804	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9805-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9804	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9805-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9805-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9805-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33141-030-1	01	1	9601-0004	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0005-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9805-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9601-9804	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9805-0004	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9805-0004		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0005-0512	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-043-0	01	1	9805-0004	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0005-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9805-		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9601-9804	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9805-	●	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9805-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9601-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9805-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9805-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9805-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9804	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9805-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9601-9605	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9606-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9805-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9601-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9805-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-9804	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9805-	●	●
434	HOUSING; CLU	1-31110-125-1	01	1	9601-	●
434	HOUSING; CLU	1-31110-169-0	01	1	9805-		●
435	CASE; TRANS	1-33111-260-0	01	1	9601-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-	●
435	CASE; TRANS	1-33111-235-0	01	1	9805-0201		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802		●

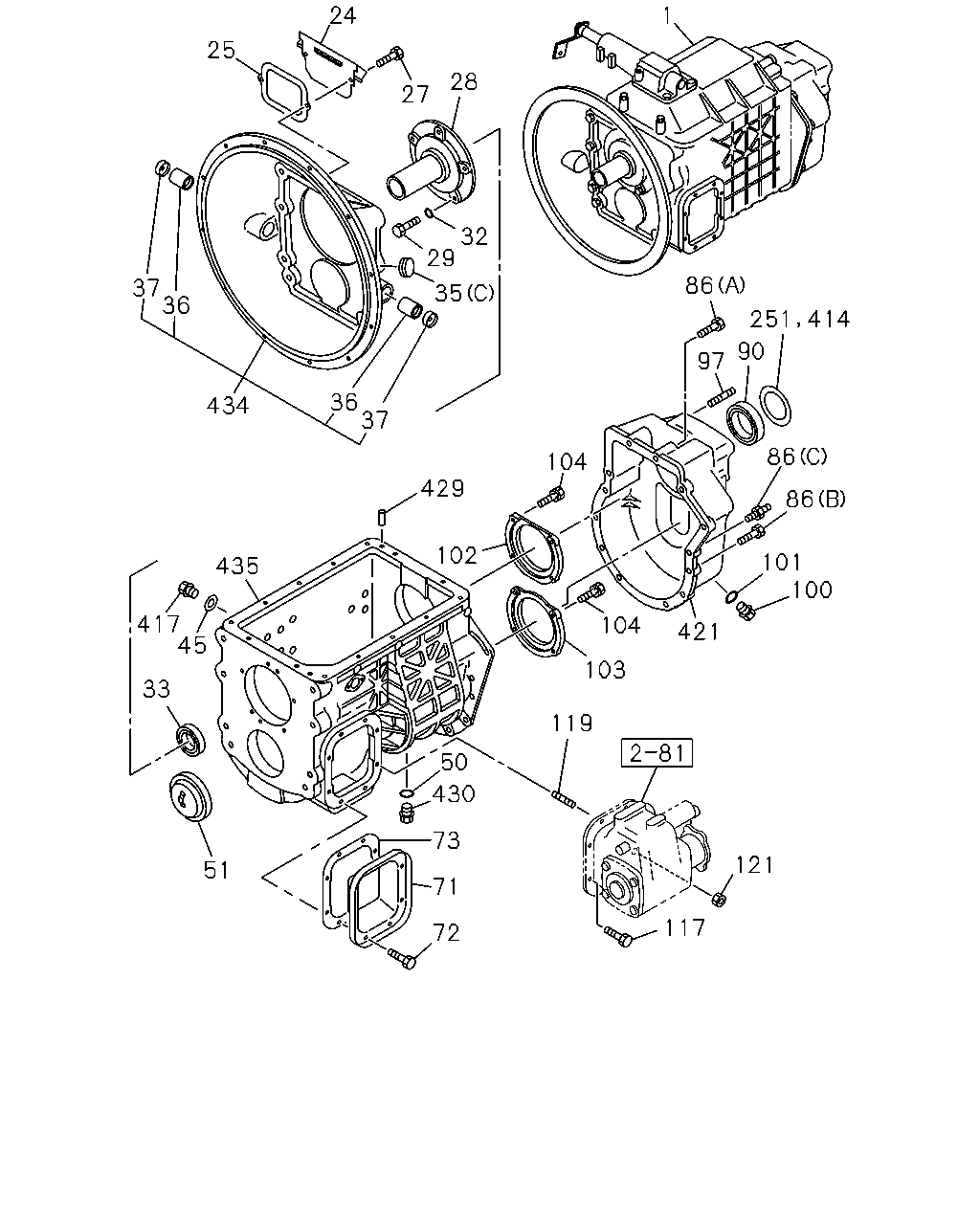

24 1 25 28 27 32 29 86 37 36 35 90 97 36 37 434 86 104 429 86 102 101 100 435 417 45 104 421 103 33 119 50 430 73 121 51 71 117 72 251 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	9601-	●
1	TRANSMISSION ASM; MANUAL	1-33041-576-0	01	1	9805-		●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9601-	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9805-9807		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0004		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0005-1410		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9601-1406	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9601-9708	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-9804	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9805-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-130-0	01	1	9601-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9805-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9805-0805		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9805-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9805-		●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9601-	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9805-		●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	9805-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9601-9708	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9709-9804	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9805-0004	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9601-9708	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9709-9804	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9805-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9804	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9805-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9804	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9805-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9805-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33141-030-1	01	1	9601-0004	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0005-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9805-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9601-9804	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9805-0004	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9805-0004		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0005-0512	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-043-0	01	1	9805-0004	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0005-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9805-		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9601-9804	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9805-	●	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9805-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9601-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9805-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9805-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9805-		●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9601-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9601-	●
103	RETAINER; BRG	9-33151-014-0	01	1	9601-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X22 FLANGE	0-28181-022-0	06	1	9601-0004	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40	9-04411-025-0	02	1	9601-0004	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE	0-91150-210-0	02	1	9601-0004	●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	9912-1204	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9601-9911	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9804	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9805-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9601-9605	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9606-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9805-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9601-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9805-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-9804	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9805-	●	●
434	HOUSING; CLU	1-31110-125-1	01	1	9601-	●
434	HOUSING; CLU	1-31110-169-0	01	1	9805-		●
435	CASE; TRANS	1-33111-260-0	01	1	9601-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-	●
435	CASE; TRANS	1-33111-235-0	01	1	9805-0201		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
