8-50 — AIR CONDITIONING SYSTEM; FRONT (#6398) — 46 parça
çizim 10399
84 84 84 211 213
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9604-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 9604-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 9604-
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-168-0 01 1 9604-9904
211 CLIP; HOSE
8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-168-0 01 1 9905-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 01 1 9604-

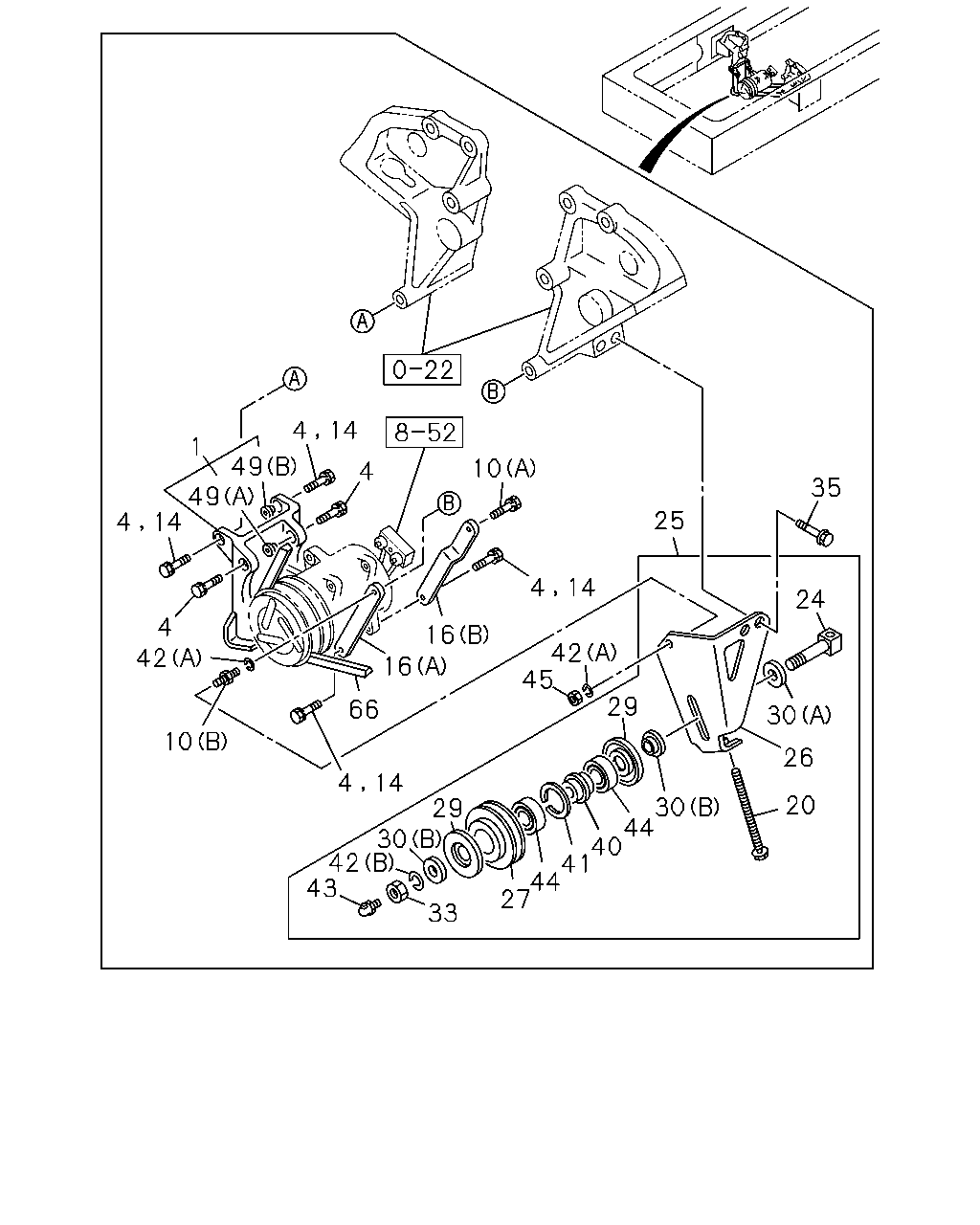

çizim 10401
4 14 1 49 49 14 10 4 35 25 4 4 14 24 4 42 16 42 45 16 29 66 30 10 26 4 14 20 30 44 40 41 44 27 29 30 42 43 33
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 9604-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER 		9-01911-030-0 02 1 9604-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 9604-0001
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 0004-
4 BOLT; A/C CMPR BRKT
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE 		0-28081-020-0 02 1 9905-0001
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE 		0-28081-020-0 02 1 0002-
4 BOLT; A/C CMPR BRKT
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE 		0-28081-240-0 02 1 9905-0001
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE 		0-28081-240-0 02 1 0002-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 W/LK WASHER 		0-50041-225-0 01 1 9604-9702
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28681-225-0 01 1 9703-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60 		1-09029-055-3 01 1 9604-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE 		0-28081-020-0 02 1 9604-9904
14 BOLT; CMPR
8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE 		0-28081-020-0 02 1 9905-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE 		0-28081-240-0 02 1 9604-9904
14 BOLT; CMPR
8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE 		0-28081-240-0 02 1 9905-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 9604-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 9604-
20 BOLT; ADJ PLATE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X135 		1-09009-113-1 01 1 9604-
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-2 01 1 9604-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13660-284-0 01 1 9604-9612
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13660-298-0 01 1 9701-
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13668-028-0 01 1 9604-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13663-057-0 01 1 9604-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-126-0 02 1 9604-9612
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-175-0 02 1 9701-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13666-021-1 01 1 9604-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-022-0 02 1 9604-9612
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-040-0 02 1 9701-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M18 		9-99111-518-0 01 1 9604-
35 BOLT; IDLER PULLEY TO C/BL
AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE 		0-28091-235-0 02 1 9604-
40 BUSHING; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-128-0 01 1 9604-
41 RING; SNAP,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2 		9-09180-152-0 01 1 9604-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 		9-09150-512-0 02 1 9604-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 		9-09150-818-0 01 1 9604-
43 NIPPLE; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW 		9-09031-210-0 01 1 9604-
44 BEARING; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09800-217-0 02 1 9604-
45 NUT; BOLT,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M12 		9-99110-412-0 01 1 9604-
49 COLLAR; BRKT,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-601-0 02 1 9604-
49 COLLAR; BRKT,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-602-0 01 1 9604-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1335 		1-13671-404-0 01 1 9604-
