2-05B — CLUTCH PIPING (#63979) — 120 parça

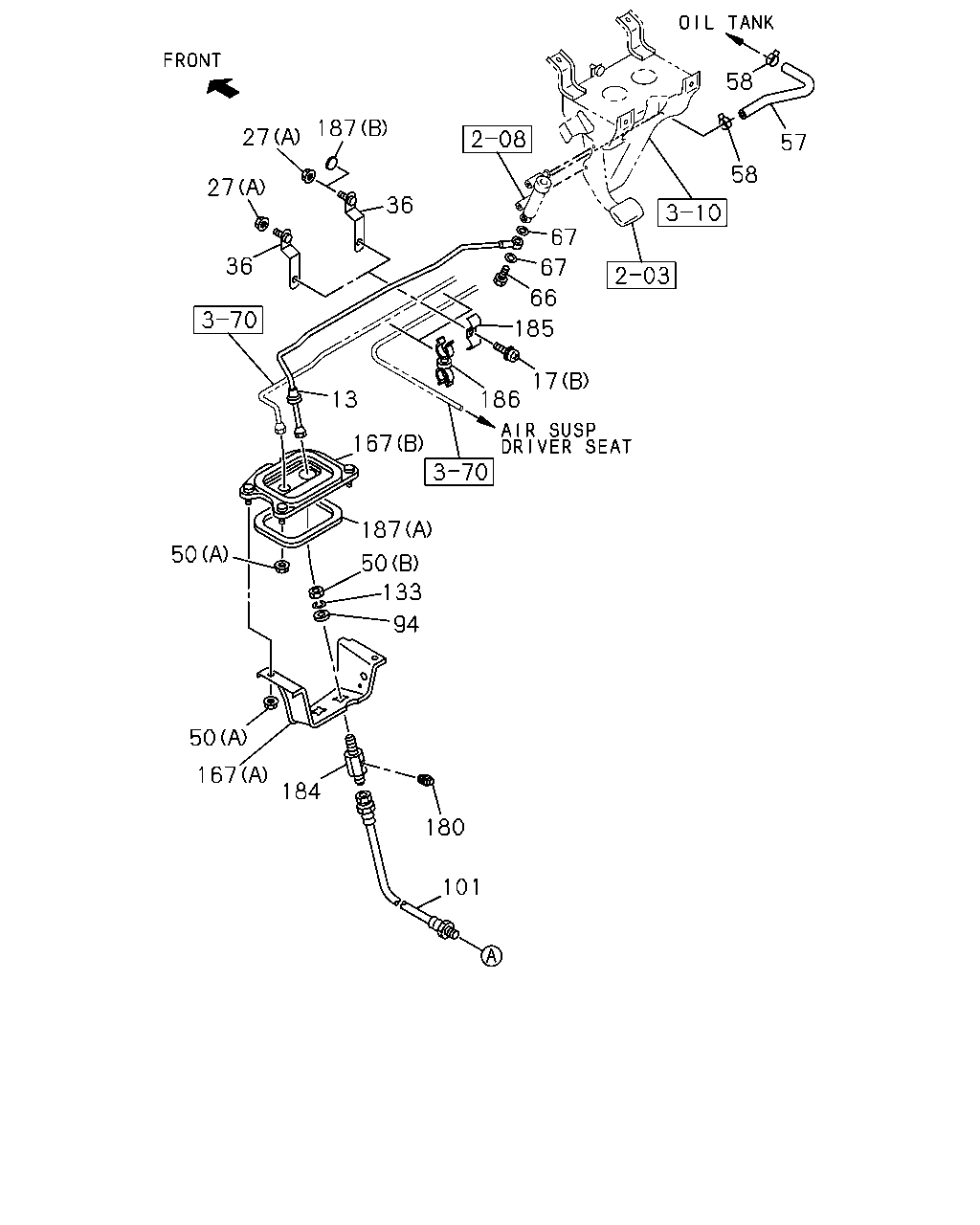

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 50 167 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9601-9804	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9601-9804	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9805-9810	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9601-9804	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-0001	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0002-0004	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9804	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9805-0004	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9804	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9805-0004	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9804	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9805-0004	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-0001	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0002-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-0004	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-0001	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0002-0004	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9601-0004	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-0001	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0002-0004	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-0001	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0002-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9601-9804	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9805-9810	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9601-9804	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9601-9706	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9804	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9805-9810	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-0004	●	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9601-9804	●	●

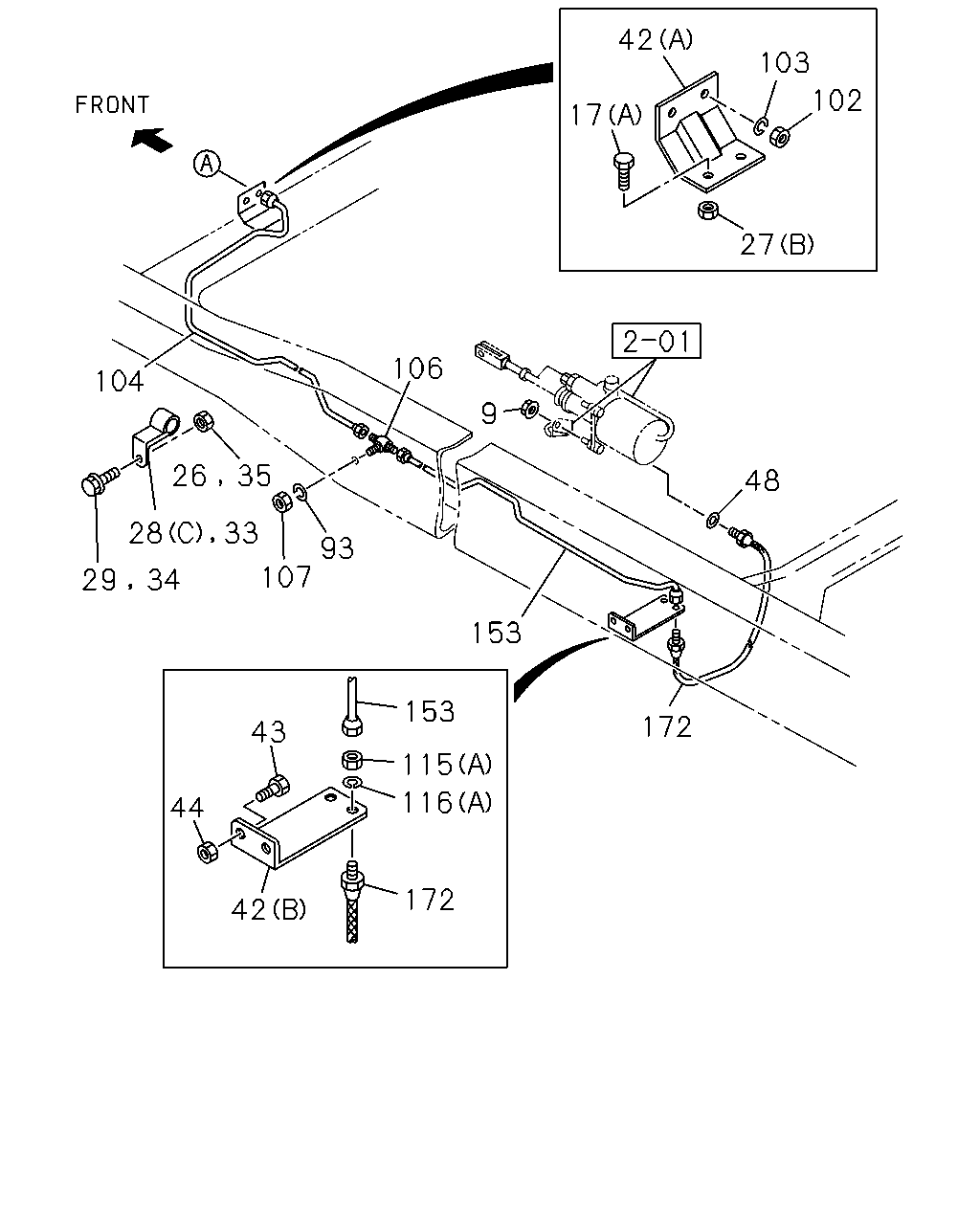

42 103 102 17 27 106 104 9 26 35 48 93 107 34 29 153 153 172 43 115 116 44 172 42 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	01	1	9601-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9804	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9805-0004	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9804	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9805-0004	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9702	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9703-9804	●	●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	03	1	9805-0004	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9702	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9703-9804	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9805-9810	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9811-0004	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9702	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9703-9804	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9805-9810	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9811-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9804	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9804	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9805-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-944-0	01	1	9805-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9804	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9805-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9804	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9804	●	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9805-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9601-9804	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9805-0004	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9804	●	●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 2WAY	1-09654-176-2	01	1	9805-0004	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9804	●	●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9805-0004	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	9601-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9608-9804	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9805-0004	●	●
172	HOSE; FLEX,CLU BOOSTER L=350	1-09364-446-0	01	1	9601-0004		●
172	HOSE; FLEX,CLU BOOSTER L=415	1-09364-490-0	01	1	9609-0004	●
