Sayfa 2-05A - Isuzu EPC

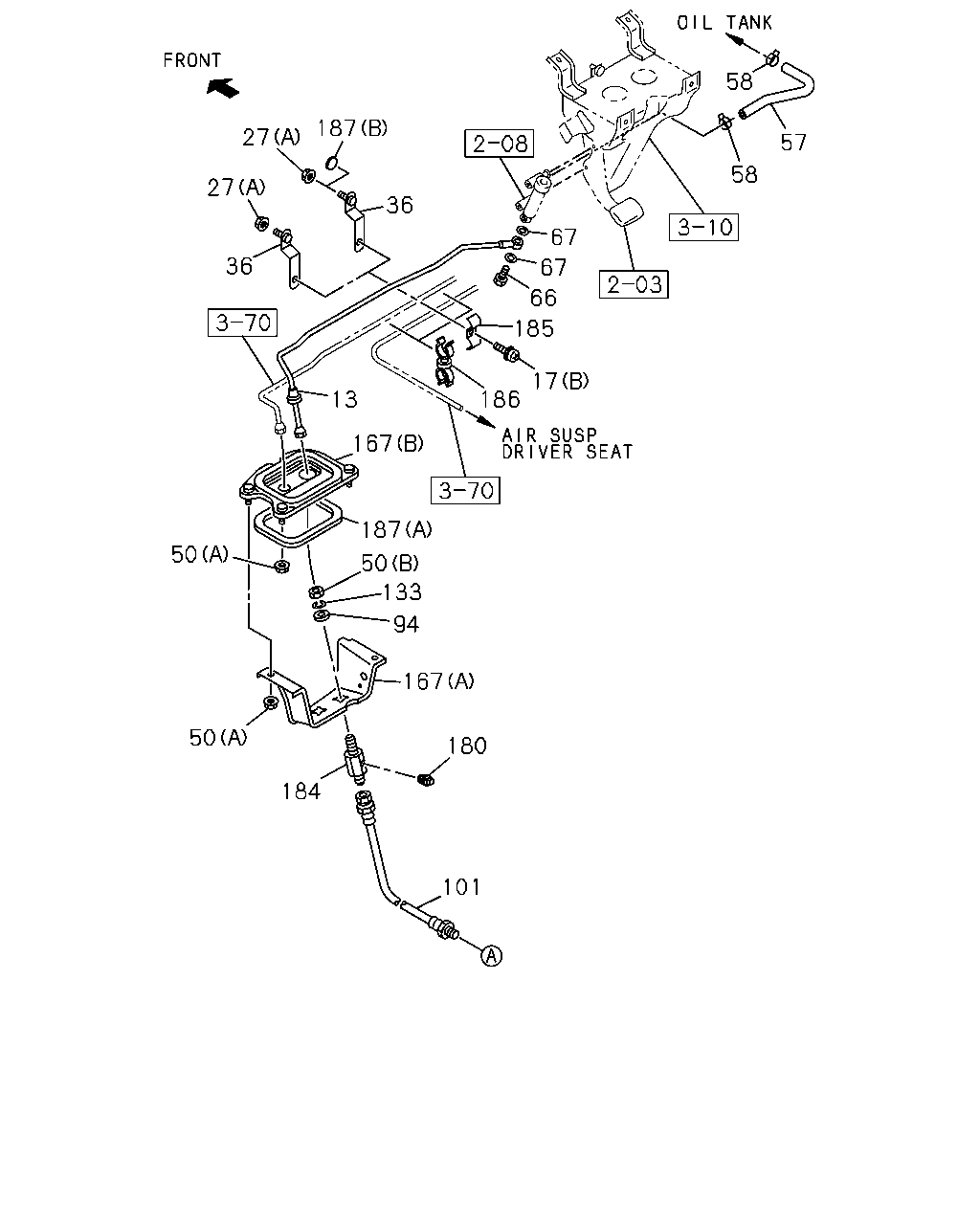

2-05A — CLUTCH PIPING (#63978) — 367 parça

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9601-9804	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9805-0004	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9805-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9805-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9601-9804	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9805-9810	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9805-9810	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-	●	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9601-9804	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>	1-79738-186-1	01	1	9805-9810	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9811-0004	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>	1-79738-186-1	01	1	0011-	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-0001	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0002-0004	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0512	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9804	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9805-0004	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9804	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9805-0004	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9804	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9805-0004	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-0001	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0002-0004	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0605	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-0001	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0002-0004	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9601-0004	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0005-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-0001	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0002-0004	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-0001	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0002-0004	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0005-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9601-9804	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9805-9810	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9805-9810	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9601-9804	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	01	1	9805-9810	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9601-9706	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9804	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9805-9810	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-0004	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9601-9804	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) OD=25 BLACK	1-76798-019-0	01	1	9805-9810	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-	●	●

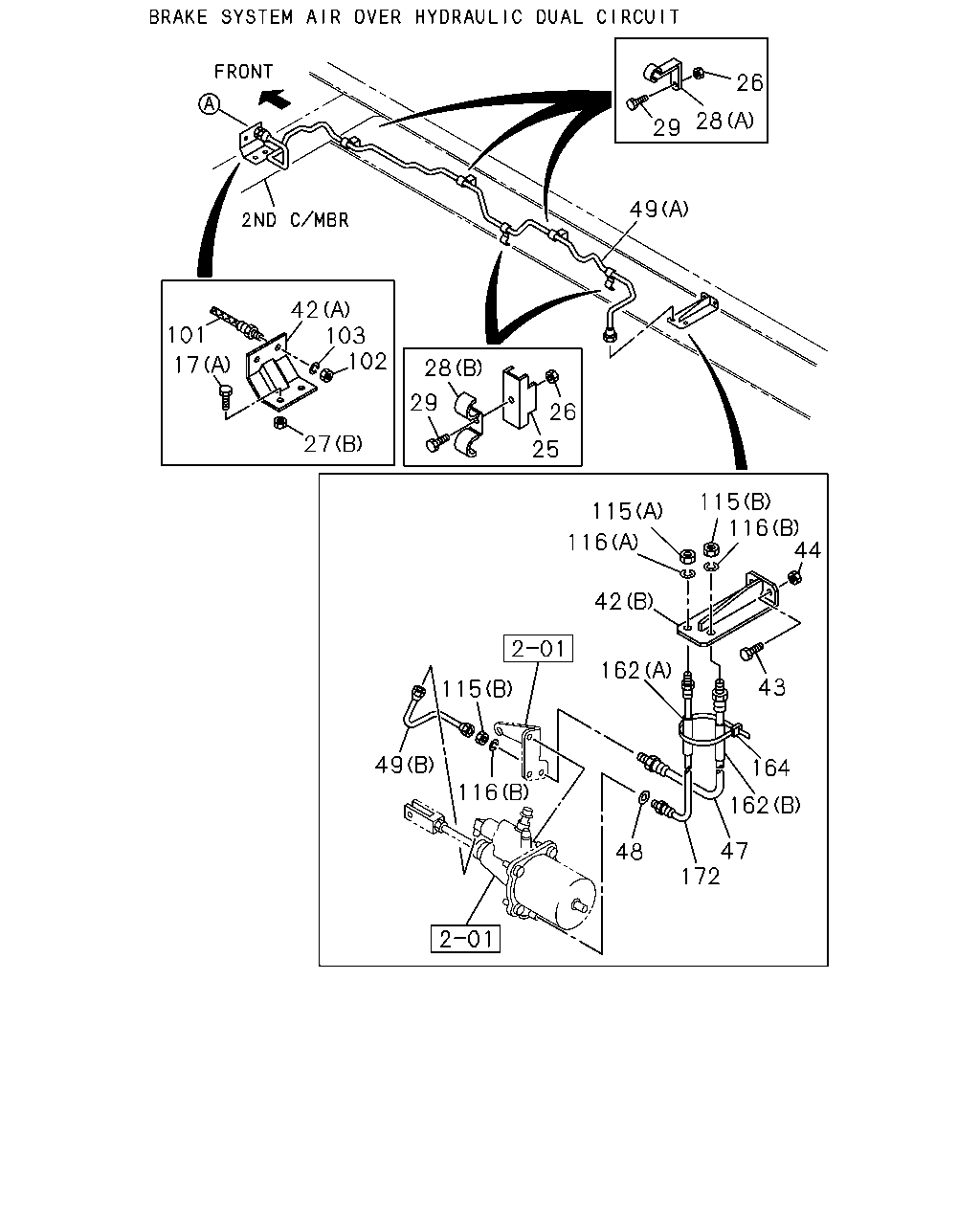

26 28 29 49 42 103 102 101 17 28 29 26 27 25 115 116 44 115 116 42 162 43 115 49 164 116 162 47 172 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9805-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●
25	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	02	1	9805-		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	07	1	9805-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	07	1	0603-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9805-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9804	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9805-0004	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8 H=20 L=20	1-09700-604-0	05	1	9805-		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9805-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9804	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	05	1	9805-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28050-830-0	05	1	0601-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9805-0004	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	02	1	9805-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9804	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-912-1	01	1	9805-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9804	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9805-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-944-0	01	1	9805-0004	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-944-0	01	1	0005-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9804	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9805-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=600	1-09363-699-0	01	1	9805-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=216	1-47493-418-1	01	1	9805-0004		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=204	1-49117-400-0	01	1	0005-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-49161-385-0	01	1	9805-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	9601-0004	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	0005-0512	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	02	1	9805-		●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	0005-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	9-09150-512-0	02	1	9805-0603		●
116	WASHER; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	0-91510-512-0	02	1	0604-		●
162	COVER; RUBBER,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9808-		●
162	COVER; RUBBER,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9808-		●
164	CLIP; BAND,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	5-09707-031-1	01	1	9805-		●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=430	1-09364-725-0	01	1	9601-	●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=520	1-09364-583-0	01	1	9805-		●

104 107 93 106 35 26 153 28 33 29 34 42 115 103 102 116 44 17 42 27 48 43 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9805-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	07	1	9805-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	07	1	0603-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9805-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9804	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9805-0004	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8 H=20 L=20	1-09700-604-0	05	1	9805-		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9805-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9804	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	05	1	9805-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28050-830-0	05	1	0601-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9805-0004	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	02	1	9805-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9702	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9703-9804	●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	02	1	9805-9810	●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	02	1	9811-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9702	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9811-0512	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9703-9804	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9805-9810	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9702	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9703-9804	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9805-9810	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9804	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-912-1	01	1	9805-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9804	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9805-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-944-0	01	1	9805-0004	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-944-0	01	1	0005-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9804	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9805-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9804	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9805-0004	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	0005-0603	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	0-91510-512-0	01	1	0604-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1607 SERVICED BY L=1700	1-47426-391-0	01	1	9601-9804	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1607 SERVICED BY L=1700	1-47426-391-0	01	1	9805-9810	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1607 SERVICED BY L=1700	1-47426-391-0	01	1	9811-0112	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1605 SERVICED BY L=1700	1-47426-391-0	01	1	0201-	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9804	●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 2WAY	1-09654-176-2	01	1	9805-0004	●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 2WAY	1-09654-176-2	01	1	0005-	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9804	●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9805-0004	●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	0005-0512	●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	0-91111-512-0	01	1	0601-	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	9601-0004	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	0005-0512	●	●
115	NUT; FLEX HOSE,CLU CONT (A) M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	02	1	9805-		●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	9601-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	0005-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	9-09150-512-0	02	1	9805-0603		●
116	WASHER; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	0-91510-512-0	02	1	0604-		●
153	PIPE ASM; CLU,UNION TO FLEX L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	9601-9804	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	9805-9810	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	9811-0205	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1335 SERVICED BY L=1400	1-47426-389-0	01	1	0206-	●	●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=430	1-09364-725-0	01	1	9601-	●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=520	1-09364-583-0	01	1	9805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
