◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01B - CLUTCH ▶
2-01B — CLUTCH (#63976) — 104 parça

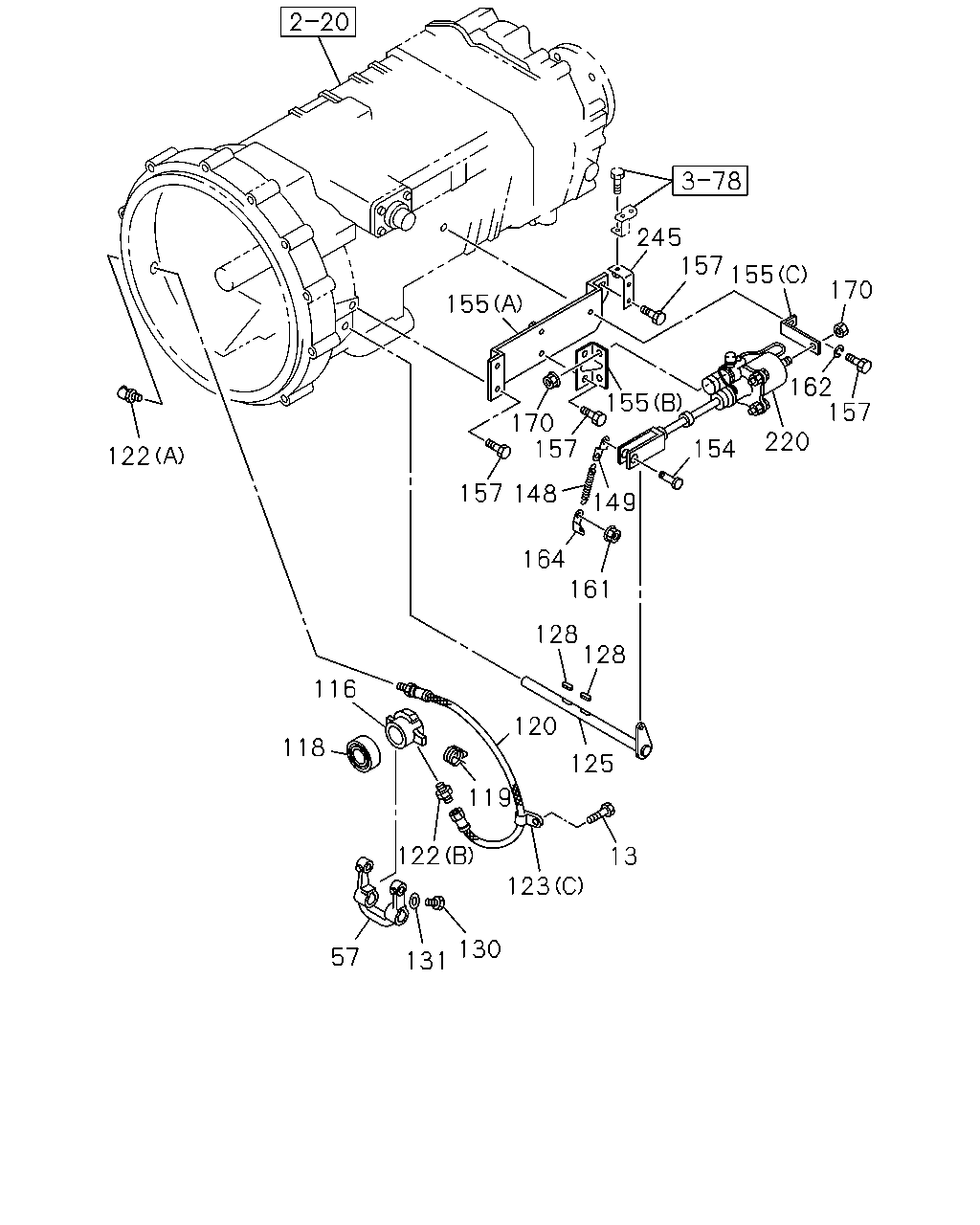

çizim 97708
245 157 155 170 155 155 162 157 170 157 149 220 154 122 157 148 164 161 128 128 116 120 118 125 119 122 13 123 130 57 131
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9803-9804 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9805-0004 ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 9601-0004 ● ●
116 BLOCK; SHIFT,CLU 1-31321-088-0 01 1 9601-9708 ●
116 BLOCK; SHIFT,CLU 1-31321-077-0 01 1 9709-0004 ●
116 BLOCK; SHIFT,CLU 1-31321-063-1 01 1 9609-0004 ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9601-0004 ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9601-0004 ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9601-0004 ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=165 		1-09364-958-0 01 1 9601-9708 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=170 		1-09364-869-0 01 1 9709-9802 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9803-9804 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9805-0003 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0004-0004 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=204 		1-09364-633-0 01 1 9609-0004 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9803-9804 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9805-0004 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9709-9804 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9805-0004 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9709-9802 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
(C) ID=9 L=20 		9-09524-835-0 01 1 9803-9804 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
(C) ID=9 L=20 		9-09524-835-0 01 1 9805-0004 ●
125 SHAFT; CLU 1-31342-289-1 01 1 9601-9708 ●
125 SHAFT; CLU 1-31342-291-0 01 1 9709-0004 ●
125 SHAFT; CLU 1-31342-287-0 01 1 9609-0004 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9804 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9805-0004 ● ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9601-0004 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9804 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9805-0004 ● ●
148 SPRING; CLU RETURN
L=137.7 		1-09583-284-0 01 1 9601-9710 ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9711-9804 ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9805-0004 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9601-0004 ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-0004 ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-378-0 01 1 9601-9606 ●
155 BRACKET; MINIPACK
(A) 		1-31429-380-0 01 1 9607-0004 ●
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 9601-0004 ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 9601-0004 ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-375-0 01 1 9609-0004 ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 04 1 9601-0004 ●
157 BOLT; BRKT
M12X20 FLANGE 		0-28181-220-0 02 1 9601-0004 ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 9609-0004 ●
157 BOLT; BRKT
3/4"-10UNC 		1-09087-033-0 02 1 9609-0004 ●
161 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609-0004 ●
162 WASHER; LK,BRKT
ID=20.2 		9-09150-520-0 02 1 9609-0004 ●
164 EYE; SPRING 1-31426-050-0 01 1 9601-0004 ● ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9601-0004 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-0 01 1 9601-0004 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9601-0004 ● ●
245 BRACKET; HOSE 1-47477-698-0 01 1 9607-0004 ●

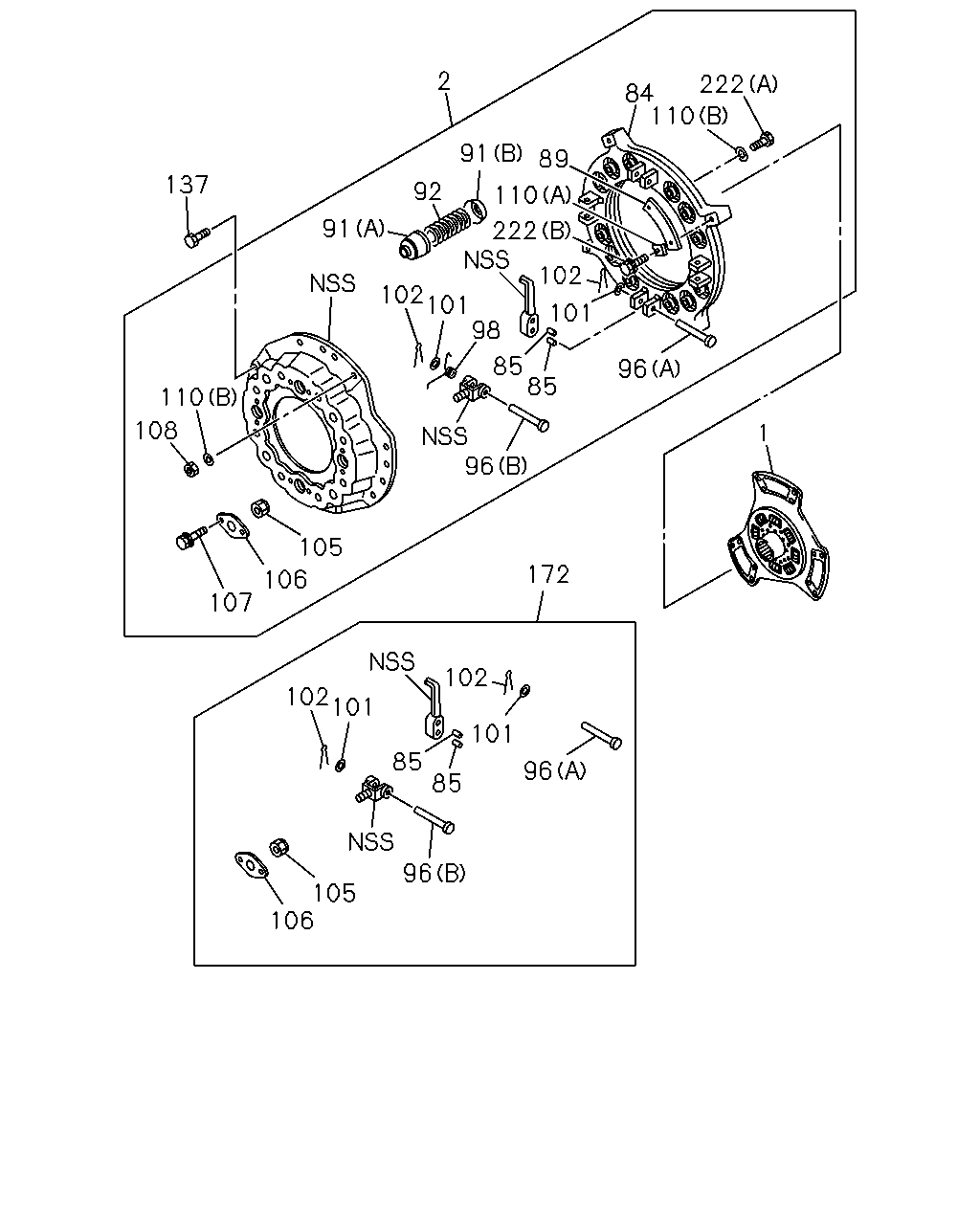

çizim 184497
2 222 84 110 91 89 137 92 110 91 222 102 102 101 98 101 85 85 96 110 108 1 96 105 172 106 107 102 102 101 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 9601-0004 ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-306-0 01 1 9601-0004 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9601-9810 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0004 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9804 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9805-9810 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9811-0004 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 9601-9810 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0004 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9804 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9805-9810 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9811-0004 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9804 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9805-9810 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9811-0004 ● ●
92 SPRING; CLU 1-31214-053-0 12 1 9601-0004 ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9601-0004 ● ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 9601-0004 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9804 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9805-9810 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9811-0004 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9804 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9805-9810 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9811-0004 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9601-9804 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9805-9810 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-0004 ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9804 ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9805-9810 ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9811-0004 ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9601-9804 ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9805-9810 ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9811-0004 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9804 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9805-9810 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9811-0004 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9601-9804 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9805-9810 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9811-0004 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9601-9804 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9805-9810 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9811-0004 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9601-9804 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9805-9810 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9811-0004 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-0004 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-0 01 1 9601-0004 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9601-9804 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9805-9810 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-0004 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9601-9804 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9805-9810 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
