Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#63975) — 361 parça

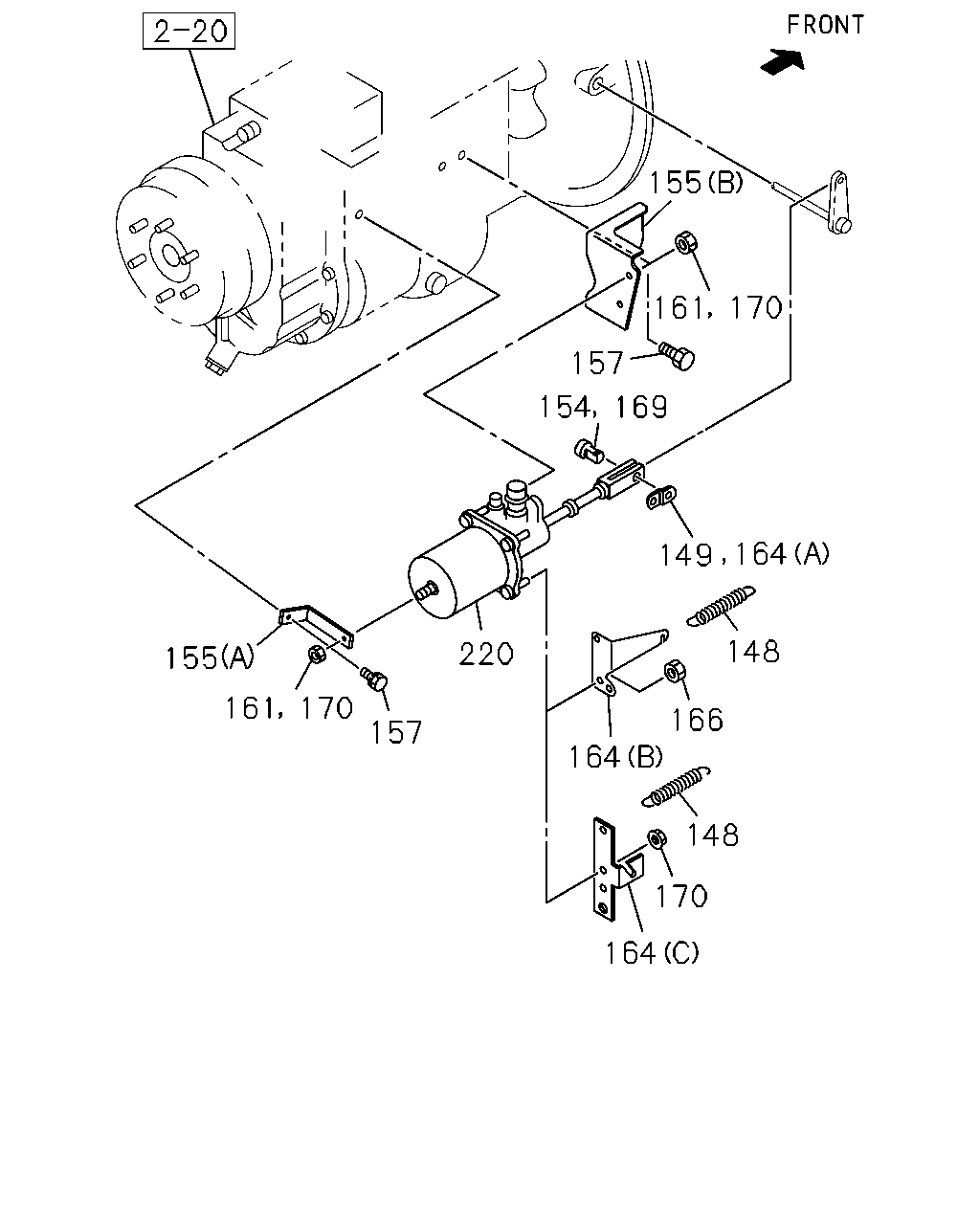

155 161 170 157 154 169 164 149 148 220 155 161 170 166 164 157 148 170 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
148	SPRING; CLU RETURN	1-09583-212-0	01	1	9601-	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9805-0004		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-		●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9601-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9601-0004	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-	●
155	BRACKET; MINIPACK (B)	1-31429-368-0	01	1	9601-	●
155	BRACKET; MINIPACK (A)	1-31429-369-0	01	1	9601-	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9805-		●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9805-		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9601-9804	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9805-	●	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9805-0602		●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-		●
164	EYE; SPRING (C)	1-47475-372-0	01	1	9601-	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	9805-		●
164	EYE; SPRING (B)	1-47477-789-0	01	1	9805-		●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9805-0602		●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-		●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9805-		●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9601-0004	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0005-0602	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-0	01	1	9601-0004	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-4	01	1	0005-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-3	01	1	9805-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-088-0	01	1	9601-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9805-		●

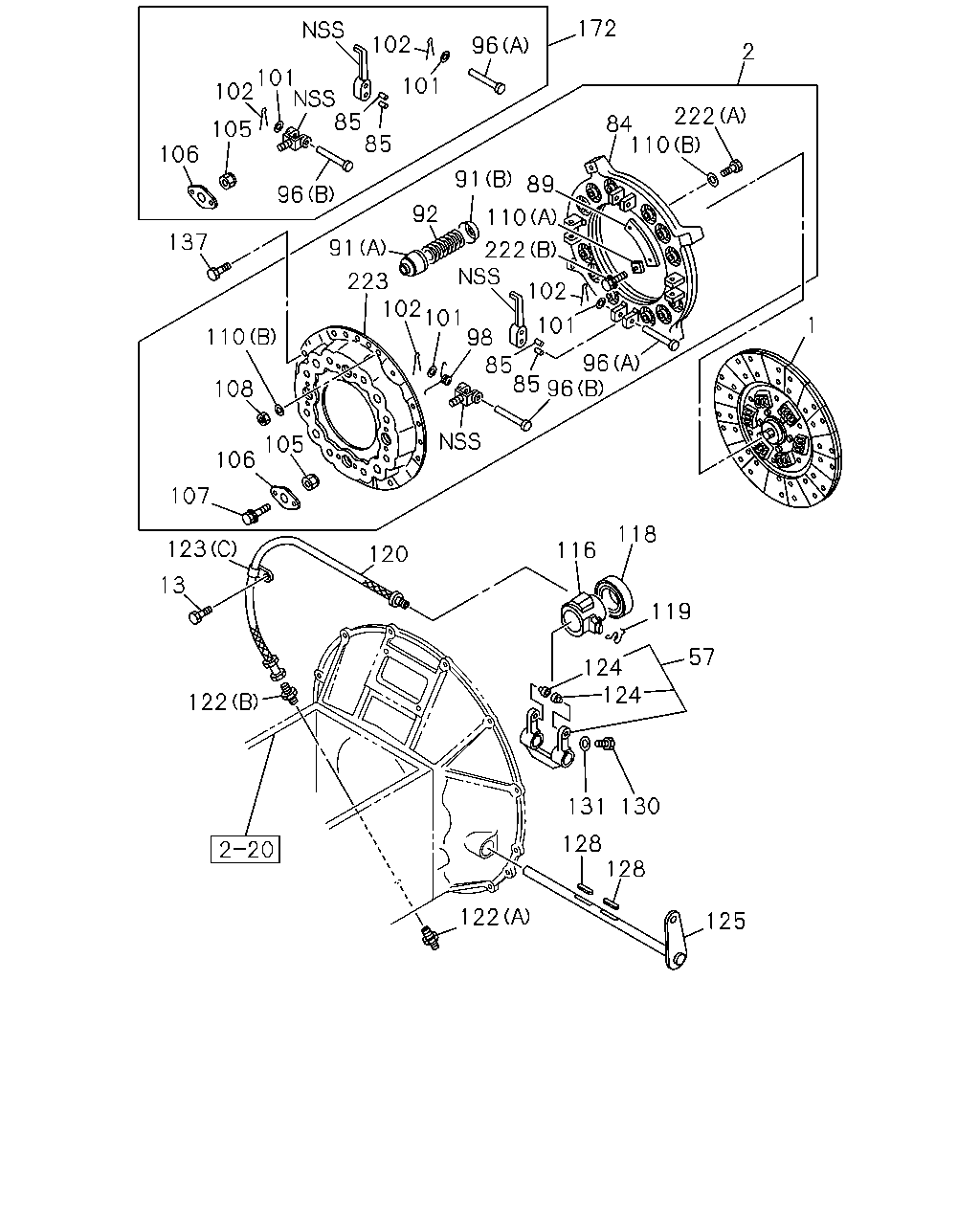

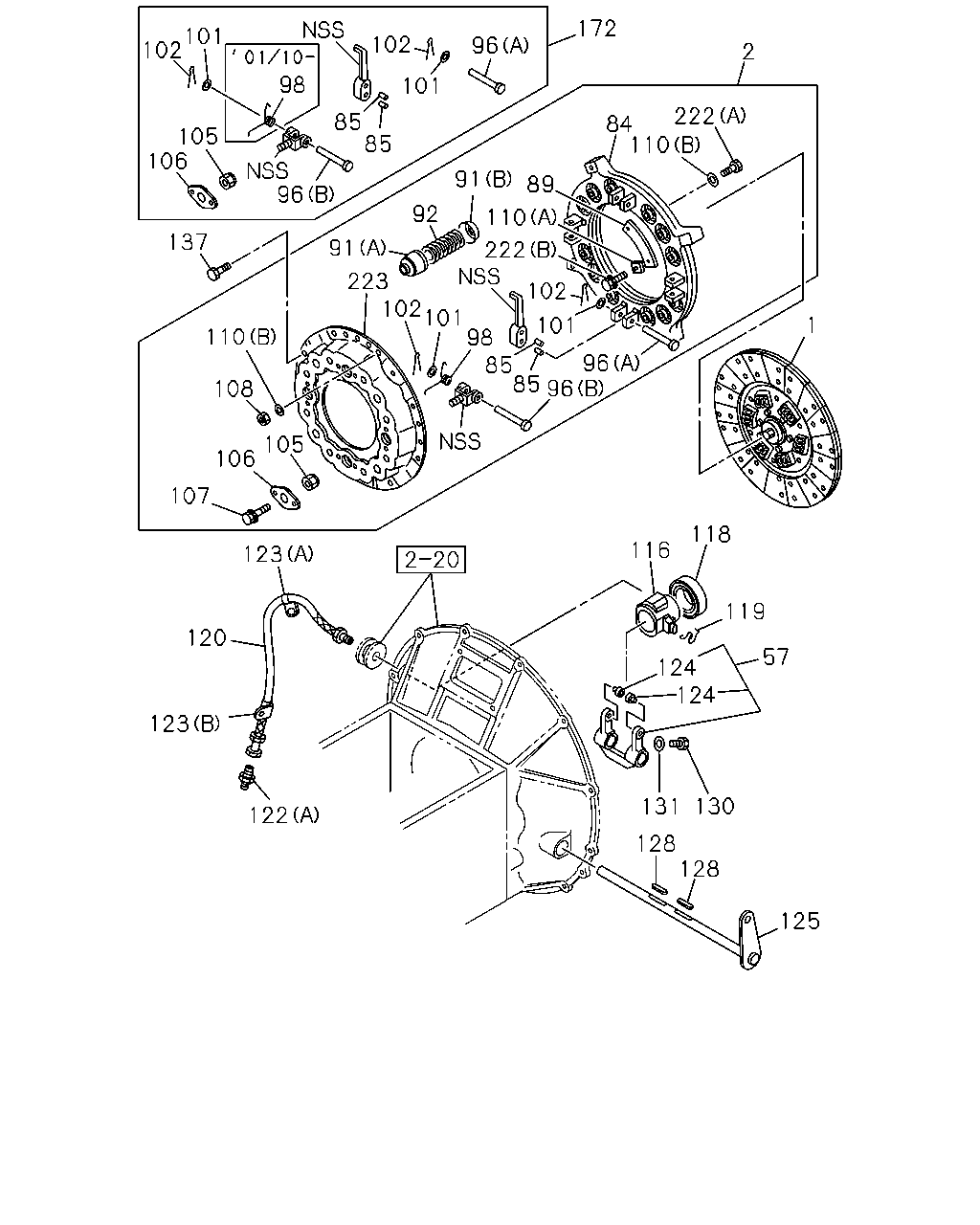

172 101 102 102 96 2 98 101 222 85 85 84 110 105 106 96 91 89 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 118 116 123 119 120 57 124 124 123 131 130 122 128 128 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9601-0106	●
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0107-	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9805-0105		●
1	DISC; CLUTCH 15"	1-31240-902-0	01	1	0106-		●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0107-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-2	01	1	9601-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0110-	●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-170-2	01	1	9805-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0110-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	9601-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9805-		●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9601-9810	●
84	PLATE; PRESSURE 15"	1-31221-051-0	01	1	9805-9810		●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-0004	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9805-9810	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9601-9804	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9805-9810		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9811-0004	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9601-9804	●
89	PLATE; STRAP	1-31229-001-0	12	1	9805-9810		●
89	PLATE; STRAP	1-31229-001-0	12	1	9805-9810	●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-0004	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9805-9810	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9805-9810	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9601-9804	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9805-9810		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9811-0004	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9601-9804	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9805-9810		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9811-0004	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-	●	●
92	SPRING; CLU	1-31214-019-0	12	1	9601-0308	●
92	SPRING; CLU	1-31214-086-0	12	1	0309-	●
92	SPRING; CLU 15"	1-09580-239-0	12	1	9805-		●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9601-9804	●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9805-9810		●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9601-9804	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9805-9810		●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9805-9810	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9805-9810	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9811-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9805-9810	●
98	SPRING; RETURN	1-31233-003-0	04	1	9601-9804	●
98	SPRING; RETURN	1-31233-003-0	04	1	9805-9810		●
98	SPRING; RETURN	1-31233-003-0	04	1	9811-0004	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9805-9810	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9601-9804	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9805-9810		●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9811-0004	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9805-9810	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9601-9804	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9805-9810		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9811-0004	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9805-9810	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9601-9804	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9805-9810		●
105	NUT; SUPPORT	9-31235-061-0	04	1	9811-0004	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0110-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9805-9810	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9601-9804	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9805-9810		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9811-0004	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0005-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9805-9810	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-9804	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9805-9810		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9811-0004	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0308	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-		●
108	NUT; STRAP	1-09449-036-0	04	1	9805-9810	●
108	NUT; STRAP	1-09449-036-0	04	1	9601-9804	●
108	NUT; STRAP	1-09449-036-0	04	1	9805-9810		●
108	NUT; STRAP	1-09449-036-0	04	1	9811-0004	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0005-	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9805-9810	●
110	WASHER; SPECIAL,STRAP (B) T=1.2	1-31229-009-0	04	1	9805-9810	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9601-9804	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9805-9810		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9811-0004	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0005-0403	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0404-		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9601-9804	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9805-9810		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9811-0004	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0005-	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	9601-1205	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1206-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9805-		●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9601-0004	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0005-0110	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0111-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9805-0111		●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0111-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9601-9804	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9805-	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9601-9804	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9805-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=405	1-09364-449-0	01	1	9601-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9805-0003		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0004		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-9802	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9803-9804	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9805-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9805-0004		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=22	1-09700-644-1	01	1	9601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	9-09917-613-0	01	1	9601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	9805-0004		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	0005-0606		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	0-95234-835-0	01	1	0607-		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9601-9804	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9805-	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9601-9804	●
125	SHAFT; CLU	1-31342-169-1	01	1	9805-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9601-9804	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9805-0004	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9601-9804	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9805-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-9804	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9805-0004	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-0004	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0512	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-2	01	1	9601-0004	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0110-0308	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0309-	●
172	LEVER KIT; RELEASE,CLU 15"	1-87410-042-2	01	1	9805-		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9601-9804	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9805-9810		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9811-0004	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9601-9804	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9805-9810		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9811-0004	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9805-9810	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9805-9810	●
223	COVER; CLU	1-31211-019-1	01	1	9601-	●	●

172 102 96 2 101 102 85 85 101 222 84 110 105 106 91 89 96 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 118 123 116 120 13 119 57 124 124 122 131 130 128 128 122 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9601-0106	●
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0107-	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9805-0105		●
1	DISC; CLUTCH 15"	1-31240-902-0	01	1	0106-		●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0107-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-2	01	1	9601-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0110-	●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-170-2	01	1	9805-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0110-	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9805-0004		●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	9601-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9805-		●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9601-9810	●
84	PLATE; PRESSURE 15"	1-31221-051-0	01	1	9805-9810		●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-0004	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9805-9810	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9601-9804	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9805-9810		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9811-0004	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9601-9804	●
89	PLATE; STRAP	1-31229-001-0	12	1	9805-9810		●
89	PLATE; STRAP	1-31229-001-0	12	1	9805-9810	●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-0004	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9805-9810	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9805-9810	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9601-9804	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9805-9810		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9811-0004	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9601-9804	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9805-9810		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9811-0004	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-	●	●
92	SPRING; CLU	1-31214-019-0	12	1	9601-0308	●
92	SPRING; CLU	1-31214-086-0	12	1	0309-	●
92	SPRING; CLU 15"	1-09580-239-0	12	1	9805-		●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9601-9804	●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9805-9810		●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9601-9804	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9805-9810		●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9805-9810	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9805-9810	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9811-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9805-9810	●
98	SPRING; RETURN	1-31233-003-0	04	1	9601-9804	●
98	SPRING; RETURN	1-31233-003-0	04	1	9805-9810		●
98	SPRING; RETURN	1-31233-003-0	04	1	9811-0004	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9805-9810	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9601-9804	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9805-9810		●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9811-0004	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9805-9810	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9601-9804	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9805-9810		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9811-0004	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9805-9810	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9601-9804	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9805-9810		●
105	NUT; SUPPORT	9-31235-061-0	04	1	9811-0004	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0110-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9805-9810	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9601-9804	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9805-9810		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9811-0004	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0005-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9805-9810	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-9804	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9805-9810		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9811-0004	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0308	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-		●
108	NUT; STRAP	1-09449-036-0	04	1	9805-9810	●
108	NUT; STRAP	1-09449-036-0	04	1	9601-9804	●
108	NUT; STRAP	1-09449-036-0	04	1	9805-9810		●
108	NUT; STRAP	1-09449-036-0	04	1	9811-0004	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0005-	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9805-9810	●
110	WASHER; SPECIAL,STRAP (B) T=1.2	1-31229-009-0	04	1	9805-9810	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9601-9804	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9805-9810		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9811-0004	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0005-0403	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0404-		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9601-9804	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9805-9810		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9811-0004	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0005-	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	9601-1205	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1206-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9805-		●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9601-0004	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0005-0110	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0111-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9805-0111		●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0111-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9601-9804	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9805-	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9601-9804	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9805-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=405	1-09364-449-0	01	1	9601-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9805-0003		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0004		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-9802	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9803-9804	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9805-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9805-0004		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=22	1-09700-644-1	01	1	9601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	9-09917-613-0	01	1	9601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	9805-0004		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	0005-0606		●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	0-95234-835-0	01	1	0607-		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9601-9804	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9805-	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9601-9804	●
125	SHAFT; CLU	1-31342-169-1	01	1	9805-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9601-9804	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9805-0004	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9601-9804	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9805-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-9804	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9805-0004	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-0004	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0512	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-2	01	1	9601-0004	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0110-0308	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0309-	●
172	LEVER KIT; RELEASE,CLU 15"	1-87410-042-2	01	1	9805-		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9601-9804	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9805-9810		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9811-0004	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9601-9804	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9805-9810		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9811-0004	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9805-9810	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9805-9810	●
223	COVER; CLU	1-31211-019-1	01	1	9601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
