1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#63973) — 510 parça

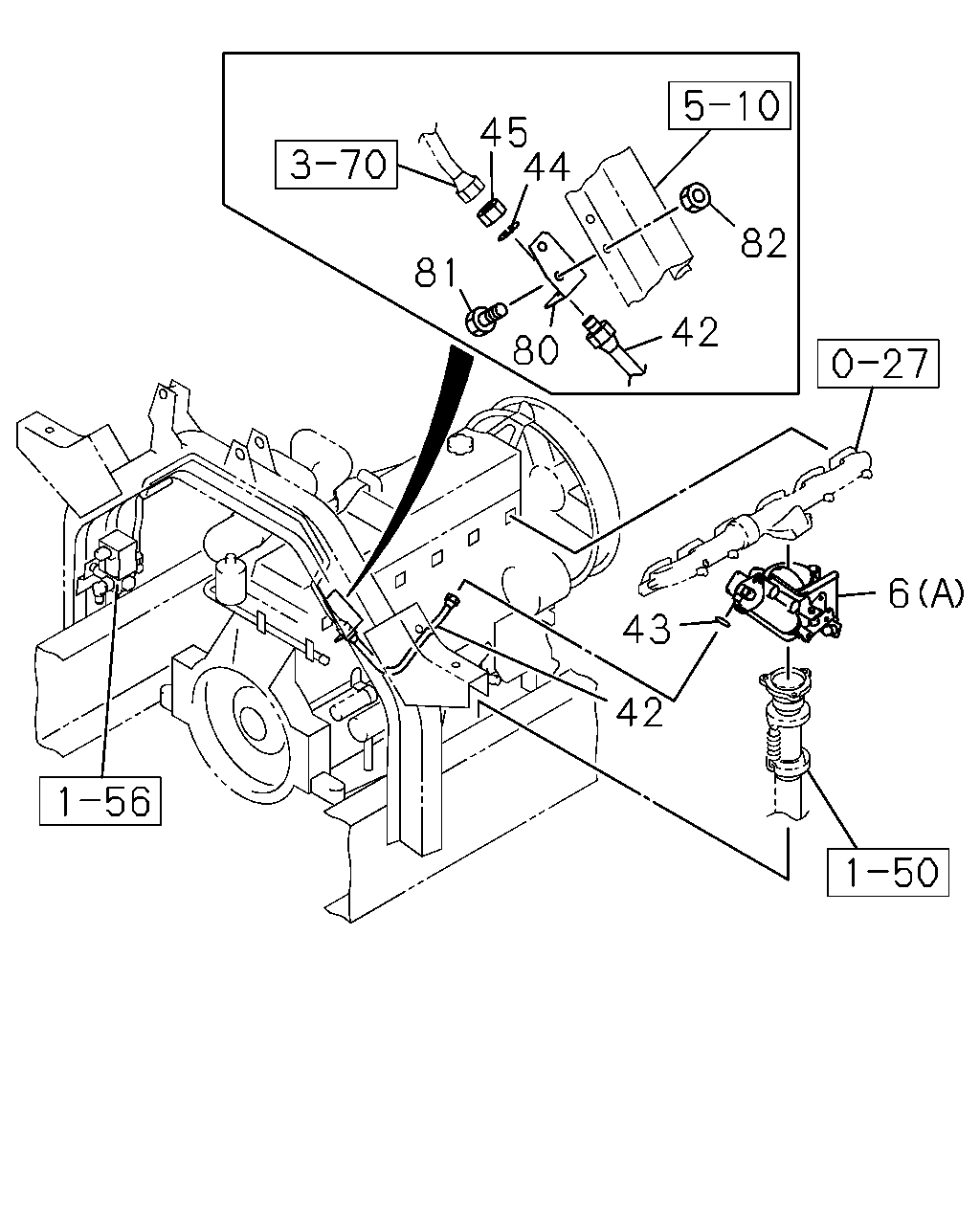

çizim 97248
45 44 82 80 81 42 6 43 42
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-527-1 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9805-9809 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-1 01 1 9805-0108 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 0109-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
42 HOSE; FLEX,EXH BRK
L=520 		1-09363-589-1 01 1 9602-0212 ●
42 HOSE; FLEX,EXH BRK
L=560 		1-09363-914-0 01 1 0301- ●
42 HOSE; FLEX,EXH BRK
L=370 		1-09363-621-0 01 1 9805- ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9805-0108 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9805-0603 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9805- ●
80 BRACKET; FLEX HOSE 1-47476-355-0 01 1 9805- ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9805-0512 ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9805-0602 ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●

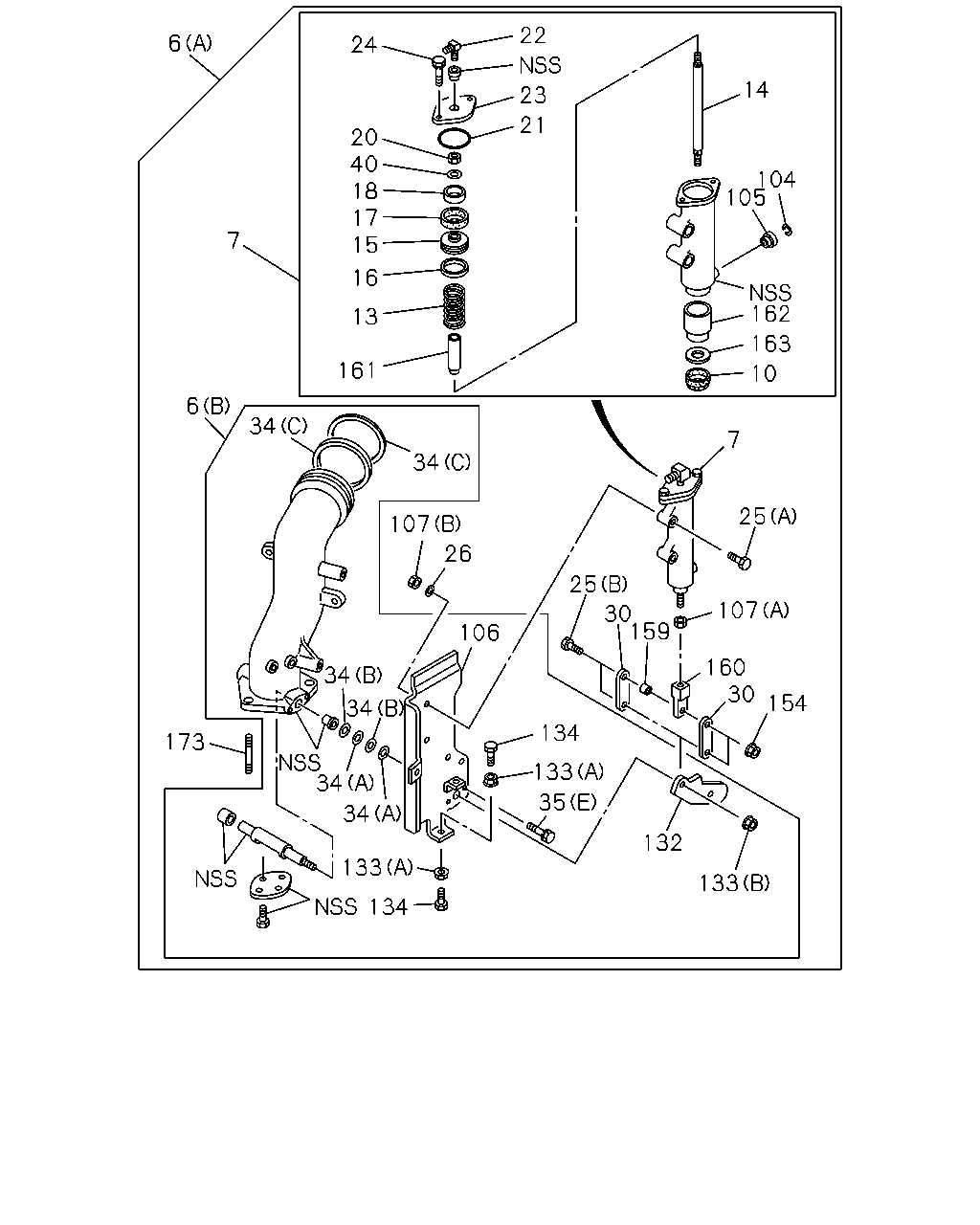

çizim 184449
22 6 24 14 23 21 20 40 18 17 15 104 105 7 16 162 13 163 161 10 6 34 7 34 25 107 26 25 107 30 159 106 160 30 34 154 34 134 173 34 133 35 34 132 133 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-527-1 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9805-9809 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-1 01 1 9805-0108 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 0109-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9601-0211 ●
7 CYLINDER ASM; CONT 1-22190-635-0 01 1 9601-0004 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9805-9809 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 9810-0108 ●
7 CYLINDER ASM; CONT 1-22190-655-0 01 1 0109-0211 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 0212- ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9601-9804 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9805-0004 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0005-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9601-9804 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9805-9807 ● ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810-0211 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9601-0004 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9601-0004 ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0005-0211 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9805- ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9601-9804 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9805-9809 ● ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9810-0004 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0005-0211 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9601-9804 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9805-9809 ● ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9810-0004 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0005-0211 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9601-9804 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9805-9809 ● ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9810-0004 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0005-0211 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9601-9804 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9805-9809 ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9810-0004 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0005-0211 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9601-0004 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0005-0211 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9805-9809 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ●
21 GASKET; COVER 1-22199-072-0 01 1 9601-9804 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9805-0004 ● ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0005-0211 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0212- ●
22 CONNECTOR; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9601-0004 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9601-9804 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9805-9809 ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9810-0004 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0005-0211 ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ●
24 BOLT; COVER 1-22199-155-0 02 1 9601-9804 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9805-9809 ● ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9810-0004 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0005-0211 ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ●
25 BOLT; CONT CYL
(A) M10X60 		9-01056-060-0 02 1 9601-9807 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9601-9804 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9805-9807 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9808-9809 ● ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9810-0004 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0211 ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 9601-0004 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 9810- ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9601-9807 ● ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9808-0004 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 9601-0211 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 9601-0004 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9601-9804 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9805-0211 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9601-9804 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9805-0211 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 9601-0004 ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 9601-0004 ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 9601-0004 ●
35 BOLT; PLATE FIX
(G) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9601-9807 ●
35 BOLT; PLATE FIX
(C) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		9-02051-020-0 01 1 9601-9807 ●
35 BOLT; PLATE FIX
(D) 		1-22199-174-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(B) 		1-22199-188-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(E) M8X16 FLANGE 		0-28080-816-0 04 1 9601-0004 ●
35 BOLT; PLATE FIX
(F) 		1-22199-154-0 05 1 9805-9809 ●
35 BOLT; PLATE FIX
(F) 		1-22199-174-0 05 1 9810- ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9601-0004 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0005-0211 ●
104 RING; RET 9-88510-331-0 01 1 9601-9804 ● ●
104 RING; RET 9-88510-331-0 01 1 9805-0004 ● ● ●
104 RING; RET 9-88510-331-0 01 1 0005-0211 ● ●
104 RING; RET 9-88510-331-0 01 1 0212- ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9601-9804 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9805-0004 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0005-0211 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0212- ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9601-0211 ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 9601-0004 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9805-9809 ●
106 BRACKET; CONT CYL 8-97600-313-0 01 1 9810-0211 ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 0212- ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 9808-0211 ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9601-9807 ● ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9808-0004 ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9601-0004 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0005-0211 ●
107 NUT; CONT CYL
(C) M10 FLANGE 		0-91150-110-0 01 1 9805- ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9601-0211 ●
132 LEVER; BRK VLV 1-22196-347-0 01 1 9601-0004 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9805- ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9601-9809 ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 0212- ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 9601-0004 ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9805-9809 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9805-9809 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9601-9809 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9810-0004 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0005-0211 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9805-9809 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0005-0211 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9805- ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 9601-0211 ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9601-0004 ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 9601-0211 ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 9601-0004 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9601-9804 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9805-0004 ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0005-0211 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0212- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9601-9804 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9805-0004 ● ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0005-0211 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0212- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9601-9804 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9805-0004 ● ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0005-0211 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0212- ●
173 STUD; EXH BRK VLV
M12X40 L=64 		9-94321-240-0 03 1 9601-0004 ●

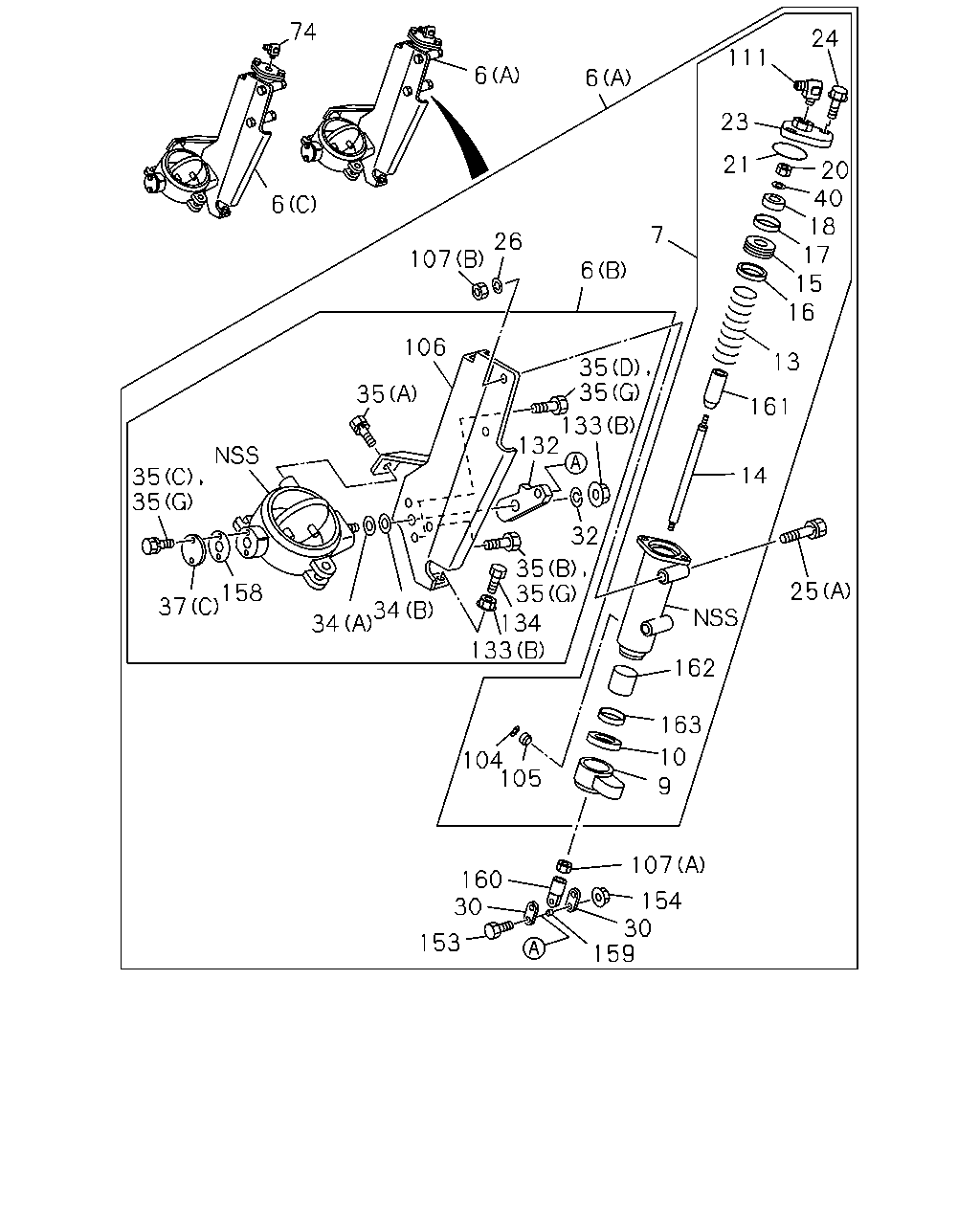

çizim 184453
74 24 111 6 6 23 21 20 40 18 17 15 16 6 7 26 107 6 106 13 35 35 35 161 133 132 14 35 35 32 35 35 134 133 25 158 37 34 34 162 163 10 9 104 105 107 160 30 154 30 159 153
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-527-1 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9805-9809 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-1 01 1 9805-0108 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 0109-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9601-0211 ●
7 CYLINDER ASM; CONT 1-22190-635-0 01 1 9601-0004 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9805-9809 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 9810-0108 ●
7 CYLINDER ASM; CONT 1-22190-655-0 01 1 0109-0211 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 0212- ●
9 COVER; CYL 1-22199-070-0 01 1 9601-0211 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9601-9804 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9805-0004 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0005-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9601-9804 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9805-9807 ● ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810-0211 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9601-0004 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9601-0004 ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0005-0211 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9805- ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9601-9804 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9805-9809 ● ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9810-0004 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0005-0211 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9601-9804 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9805-9809 ● ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9810-0004 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0005-0211 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9601-9804 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9805-9809 ● ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9810-0004 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0005-0211 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9601-9804 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9805-9809 ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9810-0004 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0005-0211 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9601-0004 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0005-0211 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9805-9809 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ●
21 GASKET; COVER 1-22199-072-0 01 1 9601-9804 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9805-0004 ● ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0005-0211 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0212- ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9601-9804 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9805-9809 ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9810-0004 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0005-0211 ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ●
24 BOLT; COVER 1-22199-155-0 02 1 9601-9804 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9805-9809 ● ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9810-0004 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0005-0211 ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ●
25 BOLT; CONT CYL
(A) M10X60 		9-01056-060-0 02 1 9601-9807 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9601-9804 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9805-9807 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9808-9809 ● ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9810-0004 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0211 ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 9601-0004 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 9810- ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9601-9807 ● ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9808-0004 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 9601-0211 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 9601-0004 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9807 ●
32 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9805-9807 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9601-9804 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9805-0211 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9601-9804 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9805-0211 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 9601-0004 ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 9601-0004 ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 9601-0004 ●
35 BOLT; PLATE FIX
(G) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9601-9807 ●
35 BOLT; PLATE FIX
(C) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		9-02051-020-0 01 1 9601-9807 ●
35 BOLT; PLATE FIX
(D) 		1-22199-174-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(B) 		1-22199-188-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(E) M8X16 FLANGE 		0-28080-816-0 04 1 9601-0004 ●
35 BOLT; PLATE FIX
(F) 		1-22199-154-0 05 1 9805-9809 ●
35 BOLT; PLATE FIX
(F) 		1-22199-174-0 05 1 9810- ●
37 COVER; BODY
(C) 		1-22189-274-0 01 1 9601-9807 ●
37 COVER; BODY
(C) 		1-22189-327-0 01 1 9808-0211 ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9805- ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9805- ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9601-0004 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0005-0211 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
104 RING; RET 9-88510-331-0 01 1 9601-9804 ● ●
104 RING; RET 9-88510-331-0 01 1 9805-0004 ● ● ●
104 RING; RET 9-88510-331-0 01 1 0005-0211 ● ●
104 RING; RET 9-88510-331-0 01 1 0212- ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9601-9804 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9805-0004 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0005-0211 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0212- ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9601-0211 ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 9601-0004 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9805-9809 ●
106 BRACKET; CONT CYL 8-97600-313-0 01 1 9810-0211 ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 0212- ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 9808-0211 ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9601-9807 ● ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9808-0004 ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9601-0004 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0005-0211 ●
107 NUT; CONT CYL
(C) M10 FLANGE 		0-91150-110-0 01 1 9805- ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9601-0108 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 0109-0211 ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9805-0108 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9601-0211 ●
132 LEVER; BRK VLV 1-22196-347-0 01 1 9601-0004 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9805- ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9601-9809 ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 0212- ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 9601-0004 ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9805-9809 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9805-9809 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9601-9809 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9810-0004 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0005-0211 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9805-9809 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9601-0211 ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9805-9809 ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0005-0211 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9805- ●
158 GASKET; COVER 1-22189-286-0 01 1 9601-0211 ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 9601-0211 ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9601-0004 ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 9601-0211 ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 9601-0004 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9601-9804 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9805-0004 ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0005-0211 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0212- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9601-9804 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9805-0004 ● ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0005-0211 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0212- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9601-9804 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9805-0004 ● ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0005-0211 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0212- ●

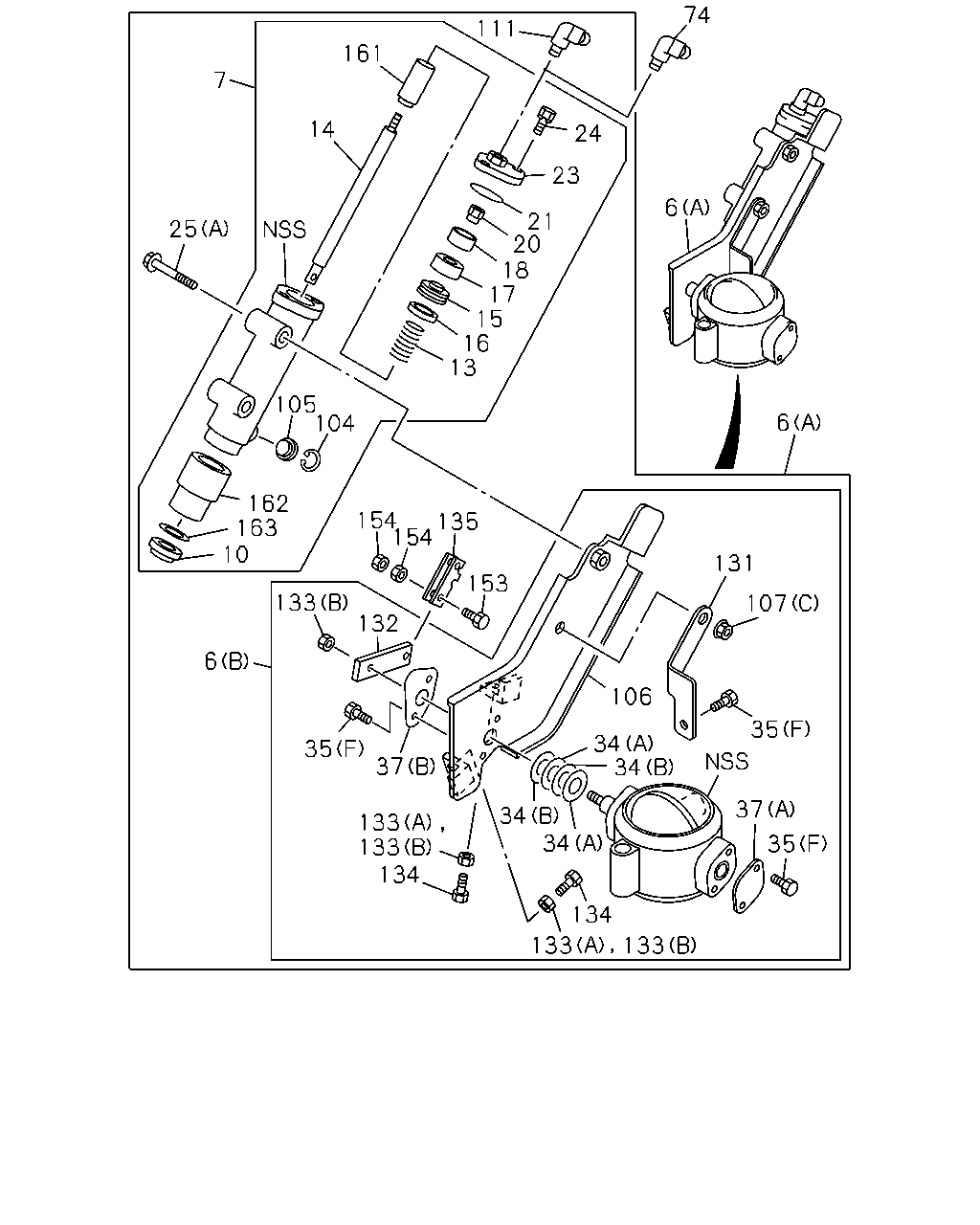

çizim 184454
74 111 161 7 14 24 23 6 21 20 18 17 15 16 13 25 105 104 6 162 163 10 154 135 154 131 153 133 107 132 6 106 35 34 34 35 37 37 34 34 133 133 134 35 134 133 133
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 9601-0211 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-527-1 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 9601-0004 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9805-9809 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-1 01 1 9805-0108 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 0109-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9601-0211 ●
7 CYLINDER ASM; CONT 1-22190-635-0 01 1 9601-0004 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9805-9809 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 9810-0108 ●
7 CYLINDER ASM; CONT 1-22190-655-0 01 1 0109-0211 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 0212- ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9601-9804 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9805-0004 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0005-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9601-9804 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9805-9807 ● ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9808-9809 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810-0211 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0212- ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9601-0004 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9601-0004 ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0005-0211 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9805- ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9601-9804 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9805-9809 ● ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9810-0004 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0005-0211 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9601-9804 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9805-9809 ● ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9810-0004 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0005-0211 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9601-9804 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9805-9809 ● ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9810-0004 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0005-0211 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9601-9804 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9805-9809 ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9810-0004 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0005-0211 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9601-0004 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0005-0211 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9805-9809 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ●
21 GASKET; COVER 1-22199-072-0 01 1 9601-9804 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9805-0004 ● ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0005-0211 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0212- ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9601-9804 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9805-9809 ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9810-0004 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0005-0211 ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ●
24 BOLT; COVER 1-22199-155-0 02 1 9601-9804 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9805-9809 ● ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9810-0004 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0005-0211 ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ●
25 BOLT; CONT CYL
(A) M10X60 		9-01056-060-0 02 1 9601-9807 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9601-9804 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9805-9807 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9808-9809 ● ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 9810-0004 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0211 ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 9601-0004 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 9810- ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9601-9804 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9805-0211 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9601-9804 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9805-0211 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 9601-0004 ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 9601-0004 ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 9601-0004 ●
35 BOLT; PLATE FIX
(G) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9601-9807 ●
35 BOLT; PLATE FIX
(C) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		9-02051-020-0 01 1 9601-9807 ●
35 BOLT; PLATE FIX
(D) 		1-22199-174-0 02 1 9808-0211 ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(B) 		1-22199-188-0 01 1 9808-0211 ●
35 BOLT; PLATE FIX
(E) M8X16 FLANGE 		0-28080-816-0 04 1 9601-0004 ●
35 BOLT; PLATE FIX
(F) 		1-22199-154-0 05 1 9805-9809 ●
35 BOLT; PLATE FIX
(F) 		1-22199-174-0 05 1 9810- ●
37 COVER; BODY
(C) 		1-22189-274-0 01 1 9601-9807 ●
37 COVER; BODY
(C) 		1-22189-327-0 01 1 9808-0211 ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9805- ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9805- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
104 RING; RET 9-88510-331-0 01 1 9601-9804 ● ●
104 RING; RET 9-88510-331-0 01 1 9805-0004 ● ● ●
104 RING; RET 9-88510-331-0 01 1 0005-0211 ● ●
104 RING; RET 9-88510-331-0 01 1 0212- ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9601-9804 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9805-0004 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0005-0211 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0212- ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9601-0211 ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 9601-0004 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9805-9809 ●
106 BRACKET; CONT CYL 8-97600-313-0 01 1 9810-0211 ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 0212- ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 9808-0211 ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9601-9807 ● ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9808-0004 ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9601-0004 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0005-0211 ●
107 NUT; CONT CYL
(C) M10 FLANGE 		0-91150-110-0 01 1 9805- ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9601-0108 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 0109-0211 ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9805-0108 ●
131 PLATE; BODY 8-94391-039-0 01 1 9805- ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9601-0211 ●
132 LEVER; BRK VLV 1-22196-347-0 01 1 9601-0004 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9805- ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9601-9809 ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 0212- ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 9601-0004 ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9805-9809 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9805-9809 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9601-9809 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9810-0004 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0005-0211 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9805-9809 ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9805- ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9601-0211 ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9805-9809 ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9601-0004 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0005-0211 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9805- ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9601-9804 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9805-0004 ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0005-0211 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0212- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9601-9804 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9805-0004 ● ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0005-0211 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0212- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9601-9804 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9805-0004 ● ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0005-0211 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0212- ●
çizim 184455
42 83 47
BalonParca AdiParca NoAdetTipApplied Date A B C
42 HOSE; FLEX,EXH BRK
L=520 		1-09363-589-1 01 1 9602-0212 ●
42 HOSE; FLEX,EXH BRK
L=560 		1-09363-914-0 01 1 0301- ●
42 HOSE; FLEX,EXH BRK
L=370 		1-09363-621-0 01 1 9805- ●
47 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9602-9606 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
83 CLIP; FLEX HOSE
ID=11 H=20 L=20 		5-09700-351-0 01 1 9602-0707 ●
83 CLIP; FLEX HOSE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
