1-50 — EXHAUST PIPE AND SILENCER (#63972) — 422 parça

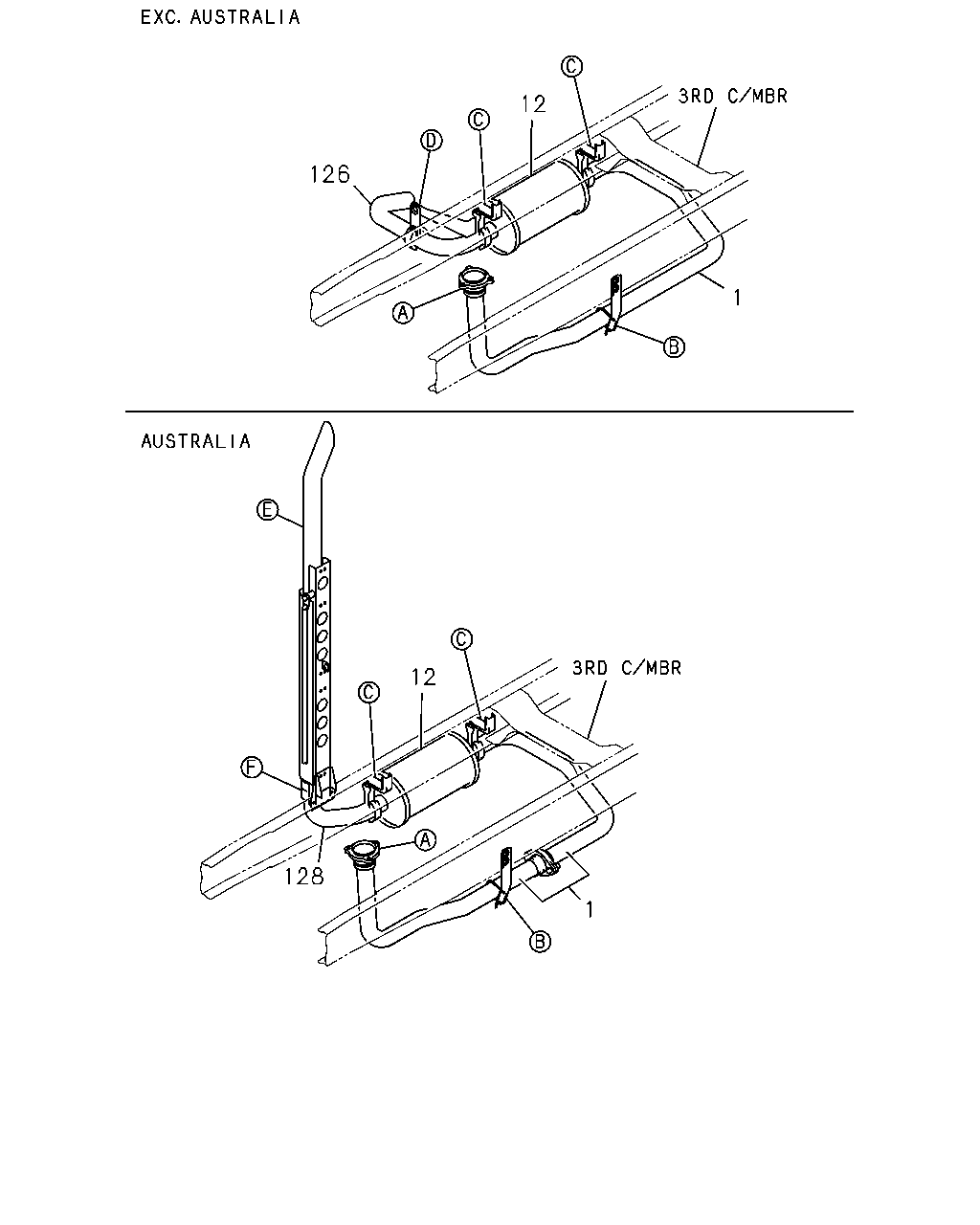

çizim 184442
12 126 1 12 128 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-675-0 01 1 9805- ●
12 SILENCER ASM; EXH 1-22140-649-1 01 1 9601- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9601-0004 ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9805-9807 ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206- ●
126 PIPE; EXH,RR 1-22122-617-0 01 1 9601- ●
126 PIPE; EXH,RR
EXC. VERTICAL TAIL PIPE<NC4> 		1-22122-678-0 01 1 9601-0004 ●
126 PIPE; EXH,RR 1-22126-135-0 01 1 9805- ●
128 PIPE; EXH,RR
VERTICAL TAIL PIPE<NC4> 		1-22122-563-1 01 1 9601-9804 ●
128 PIPE; EXH,RR
VERTICAL TAIL PIPE<NC4> 		1-22126-250-0 01 1 9805-0004 ●

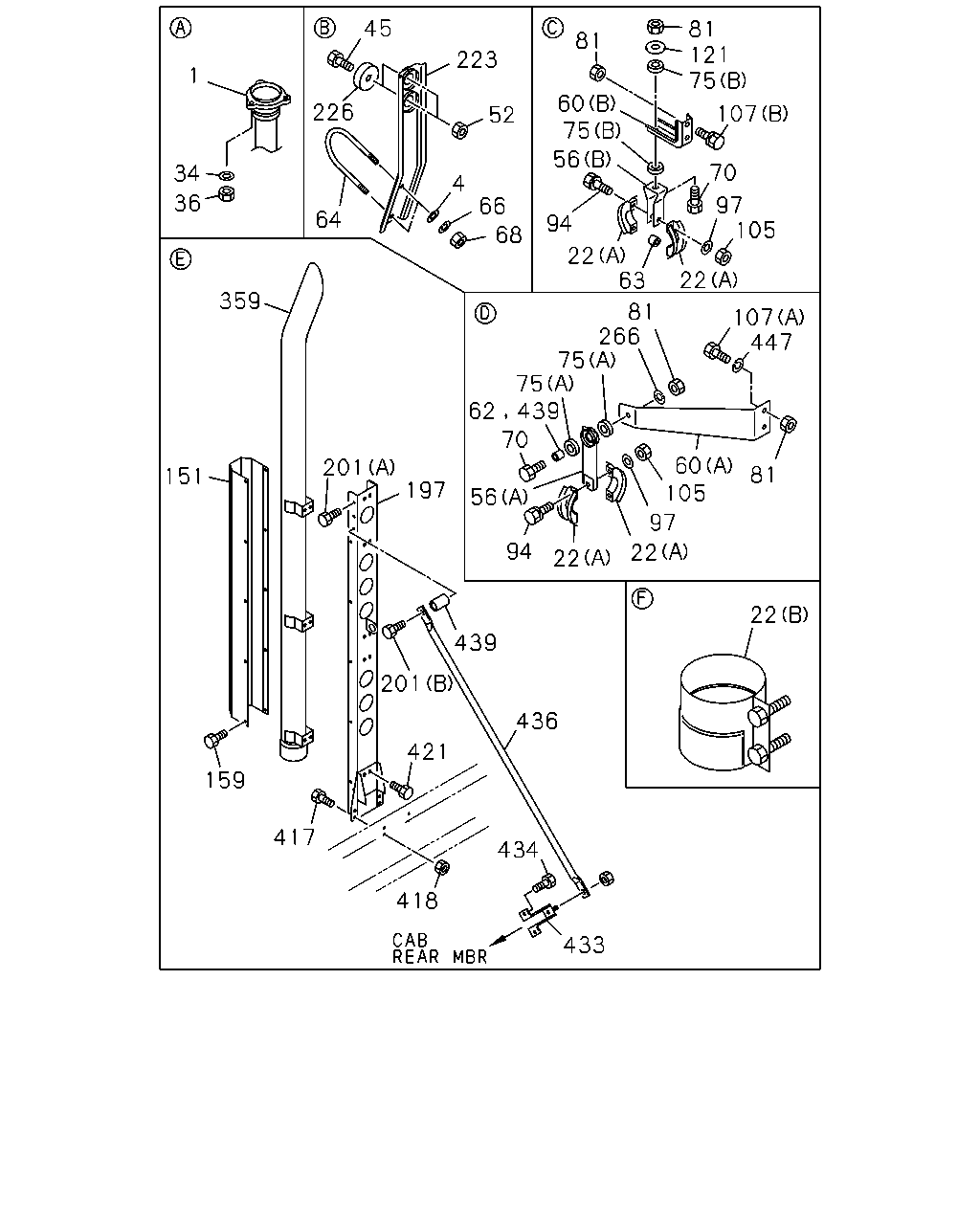

çizim 184447
45 81 121 75 81 223 1 60 75 226 107 52 56 70 34 4 36 97 105 66 64 94 68 22 63 22 359 81 266 75 75 107 447 70 60 105 201 81 151 197 56 97 94 22 439 201 436 421 159 417 434 418 433 22 22 439 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-675-0 01 1 9805- ●
4 WASHER; PL,U BOLT
ID=8.4 		9-09160-508-0 02 1 9601-0004 ● ●
4 WASHER; PL,U BOLT
ID=8.4 		9-09160-508-0 02 1 0005-0605 ●
4 WASHER; PL,U BOLT
ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 9601- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9601-0004 ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005- ●
22 CLAMP; EXH PIPE
(A) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (B) 		1-22133-253-0 01 1 9601-0001 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (B) 		1-22133-284-0 01 1 0002-0004 ●
22 CLAMP; EXH PIPE
(C) ID=80-84 		1-22133-233-0 06 1 9805- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-9804 ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9805-0004 ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9609-9804 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9805- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9601-9608 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9609-0004 ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9601-0004 ● ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0005-0512 ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-0004 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 9601-0004 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9601-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9601-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9601-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-528-1 01 1 9805- ●
56 BRACKET; CLAMP,EXH PIPE
(D) H=163 		1-22139-049-0 02 1 9805- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9805-0004 ● ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9805-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0005- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9601-0004 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9601-0004 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0005- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0005- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-630-1 02 1 9805- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9601-9804 ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9601-9804 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9805-0004 ● ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9805-0004 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0005- ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-0004 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-0004 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9805- ●
64 U-BOLT; EXH PIPE,RR 1-22139-033-1 01 1 9601-0004 ● ●
64 U-BOLT; EXH PIPE,RR 1-22139-033-1 01 1 0005-1105 ●
64 U-BOLT; EXH PIPE,RR 1-22113-101-0 01 1 1106- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9601-0004 ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 0005-0603 ●
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604- ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9601-0004 ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 0005-0512 ●
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0601- ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9601-9804 ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10X55 		0-10806-055-0 01 1 9601-9804 ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9805-0004 ● ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10X55 		0-10806-055-0 01 1 9805-0004 ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9601-0004 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9601-0004 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9805-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 03 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 03 1 0601- ●
70 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9805-0512 ●
70 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) OD=40 		1-22159-094-0 02 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 9805-0004 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) OD=40 		1-22159-094-0 02 1 9805-0004 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0005- ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 9601-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 9601-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0005- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0005- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 9805- ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0205-0602 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0605- ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9601-9804 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 01 1 9601-9804 ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9805-0004 ● ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 01 1 9805-0004 ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 0005-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0205-0205 ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-9804 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 02 1 9607-9804 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-0004 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0205 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0206-0602 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ●
81 NUT; BRKT
M10 		9-09110-510-0 04 1 9601-9606 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9804 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 02 1 9805-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-0004 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-0004 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0005-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0005-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9601-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 06 1 9805-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9601-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901-0907 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0908- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-0004 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-0004 ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9601-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0005- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 9805-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 04 1 0901-0907 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 0908- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9601-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-0004 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-0004 ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0005-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 06 1 9805-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 0601- ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0604 ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 9607-9804 ● ●
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28681-040-0 04 1 9805-0512 ●
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 9805-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-0604 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-0004 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-0004 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9805-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
151 PROTECTOR; HEAT,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22159-240-1 01 1 9601-0004 ●
159 BOLT; HEAT PROTECTOR
VERTICAL TAIL PIPE<NC4> M8X20 FLANGE 		0-28080-820-0 10 1 9601-0004 ●
197 BRACKET; EXH PIPE,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22131-723-4 01 1 9601-9804 ●
197 BRACKET; EXH PIPE,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22131-796-0 01 1 9805-0004 ●
201 BOLT; STAY
VERTICAL TAIL PIPE<NC4> (A) M10X25 FLANGE 		0-28081-025-0 01 1 9601-0004 ●
201 BOLT; STAY
VERTICAL TAIL PIPE<NC4> (B) M10X50 FLANGE 		0-28081-050-0 02 1 9601-0004 ●
223 BRACKET; EXH PIPE 1-22131-727-0 01 1 9601-0004 ● ●
223 BRACKET; EXH PIPE 1-22131-727-0 01 1 0005- ●
226 RUBBER; CUSHION
OD=40 		1-22159-094-0 04 1 0005- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9601-9804 ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9601-9804 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9805-0004 ● ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9805-0004 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0204 ● ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22122-564-1 01 1 9601-9804 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22122-963-0 01 1 9805-9907 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22123-295-0 01 1 9908-9908 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22123-350-0 01 1 9909-0004 ●
417 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M10X30 FLANGE 		0-28081-030-0 06 1 9601-9606 ●
417 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M10X35 FLANGE 		0-28681-035-0 06 1 9607-0004 ●
418 NUT; BRKT
VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 01 1 9601-0004 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 06 1 9601-9907 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 04 1 9908-9908 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 06 1 9909-0004 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X30 FLANGE 		0-28681-030-0 02 1 9908-9908 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-697-0 01 1 9601-9705 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-790-1 01 1 9706-9804 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-783-1 01 1 9805-0004 ●
434 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
434 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ●
436 STAY; SUPPORT,EXH
VERTICAL TAIL PIPE<NC4> 		1-22131-698-2 01 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9601-0004 ● ●
439 TUBE; DIST,SUPPORT RUBBER
VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 02 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005- ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9601-0004 ● ●

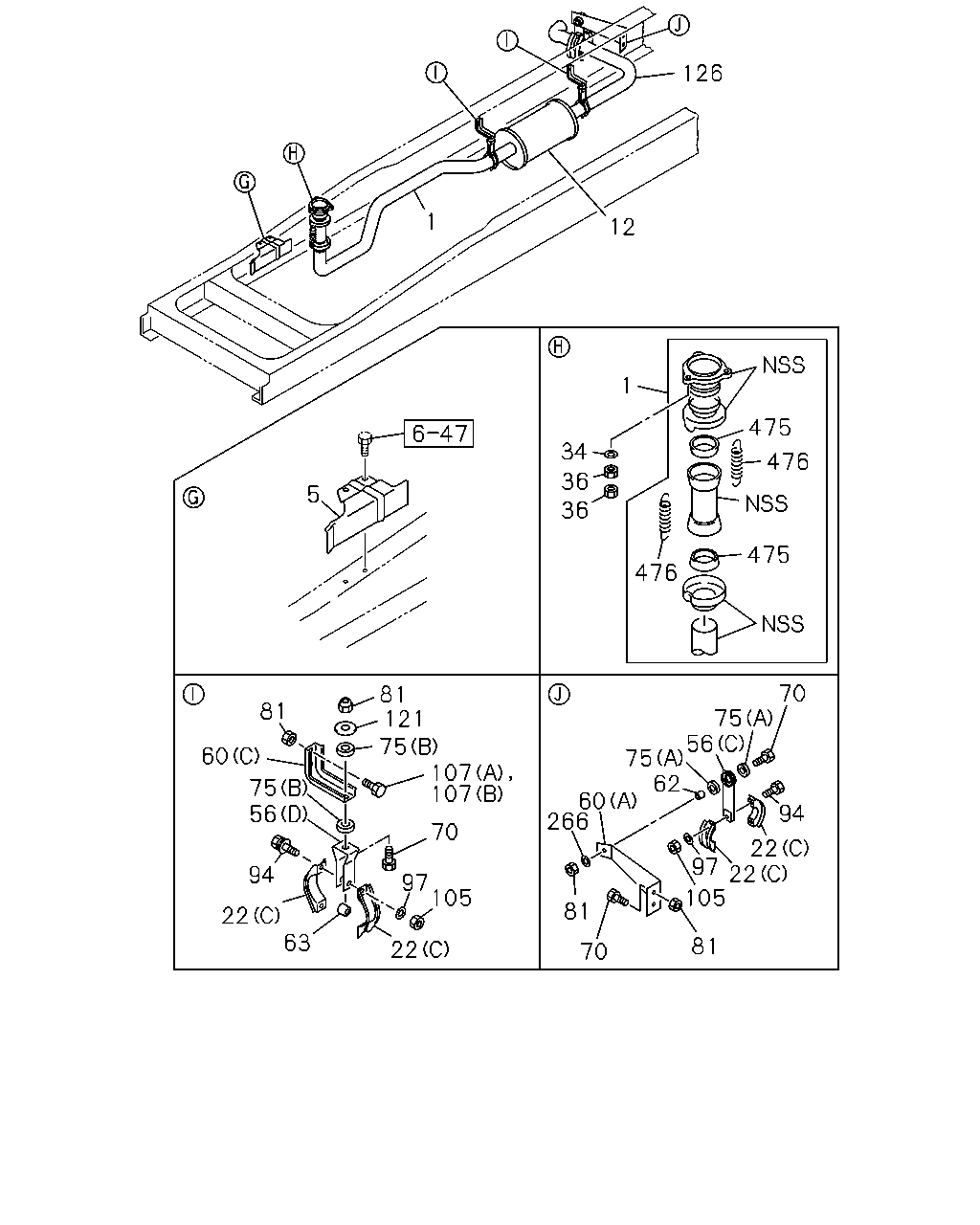

çizim 184452
126 1 12 1 475 34 476 36 5 36 475 476 70 81 121 75 107 107 81 75 56 75 62 60 75 56 60 266 94 70 22 22 105 97 94 97 105 81 22 63 81 22 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-675-0 01 1 9805- ●
5 PROTECTOR; HEAT 1-33659-182-1 01 1 9805- ●
12 SILENCER ASM; EXH 1-22140-649-1 01 1 9601- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9601-0004 ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9805-9807 ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 9601- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9601-0004 ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005- ●
22 CLAMP; EXH PIPE
(A) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (B) 		1-22133-253-0 01 1 9601-0001 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (B) 		1-22133-284-0 01 1 0002-0004 ●
22 CLAMP; EXH PIPE
(C) ID=80-84 		1-22133-233-0 06 1 9805- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-9804 ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9805-0004 ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9609-9804 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9805- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9601-9608 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9609-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 9601-0004 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9601-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9601-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9601-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0005- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-528-1 01 1 9805- ●
56 BRACKET; CLAMP,EXH PIPE
(D) H=163 		1-22139-049-0 02 1 9805- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9805-0004 ● ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9805-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0005- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9601-0004 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9601-0004 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0005- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0005- ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-630-1 02 1 9805- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9601-9804 ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9601-9804 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9805-0004 ● ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9805-0004 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0005- ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-0004 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-0004 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9805- ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9601-9804 ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10X55 		0-10806-055-0 01 1 9601-9804 ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9805-0004 ● ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10X55 		0-10806-055-0 01 1 9805-0004 ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9601-0004 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9601-0004 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9805-0204 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 03 1 0205-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 03 1 0601- ●
70 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9805-0512 ●
70 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) OD=40 		1-22159-094-0 02 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 9805-0004 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) OD=40 		1-22159-094-0 02 1 9805-0004 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0005- ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 9601-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 9601-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0005- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0005- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 9805- ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0205-0602 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0605- ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9601-9804 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 01 1 9601-9804 ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9805-0004 ● ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 01 1 9805-0004 ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 0005-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0205-0205 ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-9804 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 02 1 9607-9804 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-0004 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0205 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0206-0602 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0605- ●
81 NUT; BRKT
M10 		9-09110-510-0 04 1 9601-9606 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9804 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 02 1 9805-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-0004 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-0004 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0005-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0005-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9805-0004 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9601-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 06 1 9805-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9601-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901-0907 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0908- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-0004 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-0004 ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9601-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0005- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 9805-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 04 1 0901-0907 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 0908- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9601-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-0004 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-0004 ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0005-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 06 1 9805-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 0601- ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0604 ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 9607-9804 ● ●
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28681-040-0 04 1 9805-0512 ●
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 9805-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-0604 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-0004 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-0004 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9805-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
126 PIPE; EXH,RR 1-22122-617-0 01 1 9601- ●
126 PIPE; EXH,RR
EXC. VERTICAL TAIL PIPE<NC4> 		1-22122-678-0 01 1 9601-0004 ●
126 PIPE; EXH,RR 1-22126-135-0 01 1 9805- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9601-9804 ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9601-9804 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9805-0004 ● ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9805-0004 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0204 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 9805- ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
