Sayfa 1-41 - Isuzu EPC

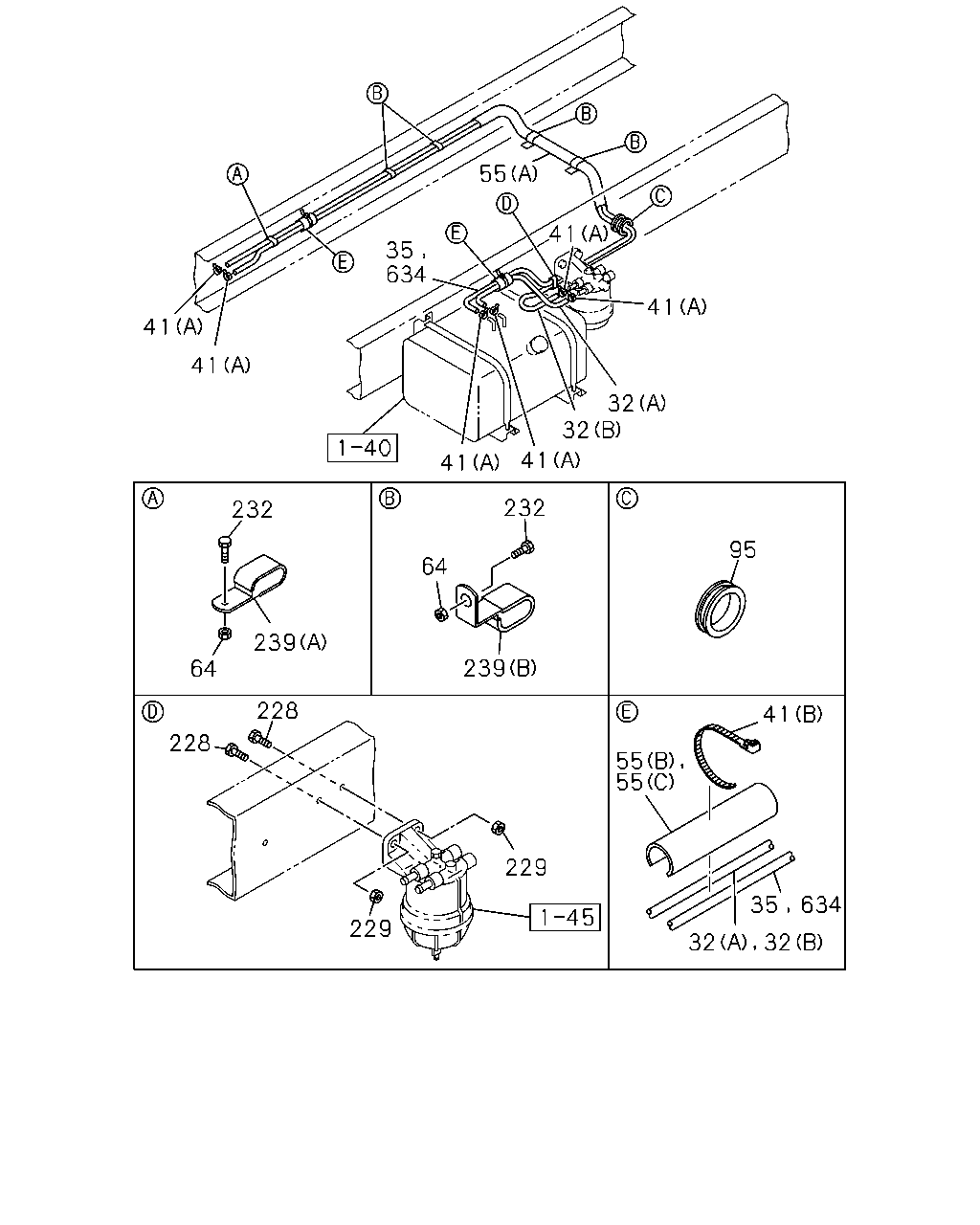

1-41 — FUEL PIPING; CHASSIS (#63970) — 281 parça

41 41 41 41 41 41 55 35 634 32 32 232 239 64 64 239 95 232 228 228 229 229 55 55 35 32 32 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0012	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0207	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0208-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905		●
32	PIPE; DELIVERY,FUEL TANK (B) L=4900 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=4900 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0208-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9804		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9805-0004		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	9805-0004		●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0005-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9805-			●
35	PIPE; FUEL TANK,RETURN L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905		●
35	PIPE; FUEL TANK,RETURN L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 7100MM(71W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9804		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 7100MM(71W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9805-0004		●
35	PIPE; FUEL TANK,RETURN L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	9805-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9804	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=13X2 H=25 L=50	1-09700-777-0	02	1	9805-9907			●
41	CLIP; FUEL PIPE,FUEL TANK (C) M13X2 H=20 L=60	1-09701-280-0	02	1	9908-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	0005-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9805-0004	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-	●		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14X29 H=30 L=25	1-09701-101-0	03	1	9805-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	9805-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	04	1	0012-0201	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0202-0207	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0202-0207			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0208-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0208-			●
55	COVER; PIPE,FUEL TANK (A) L=800 L=800	1-09361-018-0	01	1	0006-	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9601-9606	●	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9607-0004	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1300	1-09360-677-1	01	1	9607-0004		●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	0005-0011	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=1300	1-09360-677-1	01	1	0012-0201	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=1300	1-09360-677-1	01	1	0202-0207	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	0202-0207			●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=1300 L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-	●
55	COVER; PIPE,FUEL TANK (B) L=1300 L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-			●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9607-9804	●	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9805-0201			●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9805-0004	●	●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	0005-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=250	9-09912-735-1	01	1	9607-9804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=1300	1-09360-677-1	01	1	9805-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	9808-9901	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	11	1	9808-9901		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	9902-9905	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	09	1	9902-9905		●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9902-9905		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	12	1	9906-0004	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	12	1	9906-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0012	●
64	NUT; CLIP FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0101-0207	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0208-0602	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91180-108-0	11	1	0603-	●
64	NUT; CLIP M8	9-09110-408-0	09	1	9601-9606	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	9607-9807	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	13	1	9808-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-			●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9808-9901		●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9906-0004		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-0004	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9804	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9805-0004	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0512	●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9804	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-0004	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	9808-9901	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	11	1	9808-9901		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	09	1	9902-9905	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	09	1	9902-9905		●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9902-9905		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	12	1	9906-0004	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	12	1	9906-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0012	●
232	BOLT; CLIP,PIPE FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0101-0207	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0208-0512	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28650-830-0	11	1	0601-	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	09	1	9601-9606	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	09	1	9607-9807	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	13	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0512			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-			●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9808-9901		●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9906-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9808-9901	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9808-9901		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9906-0004	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9906-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0012	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0101-0207	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0208-	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9807	●	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-9901	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-9901		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9902-9905	●	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9906-0004	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9906-0004		●
239	CLIP; FUEL PIPE (A) ID=32 L=50	1-09701-055-1	02	1	0005-	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	08	1	9601-9807	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	11	1	9808-9901		●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0005-			●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9808-9901		●
239	CLIP; FUEL PIPE (B) L=50 ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0012	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0101-0207	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0208-	●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	08	1	9808-9901		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9906-0004		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9906-0004		●
239	CLIP; FUEL PIPE (C) M13X2 H=20 L=60	1-09701-280-0	02	1	0005-			●
634	HOSE; RUBBER RETURN L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0005-			●
634	HOSE; RUBBER RETURN L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0208-0604	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0605-	●

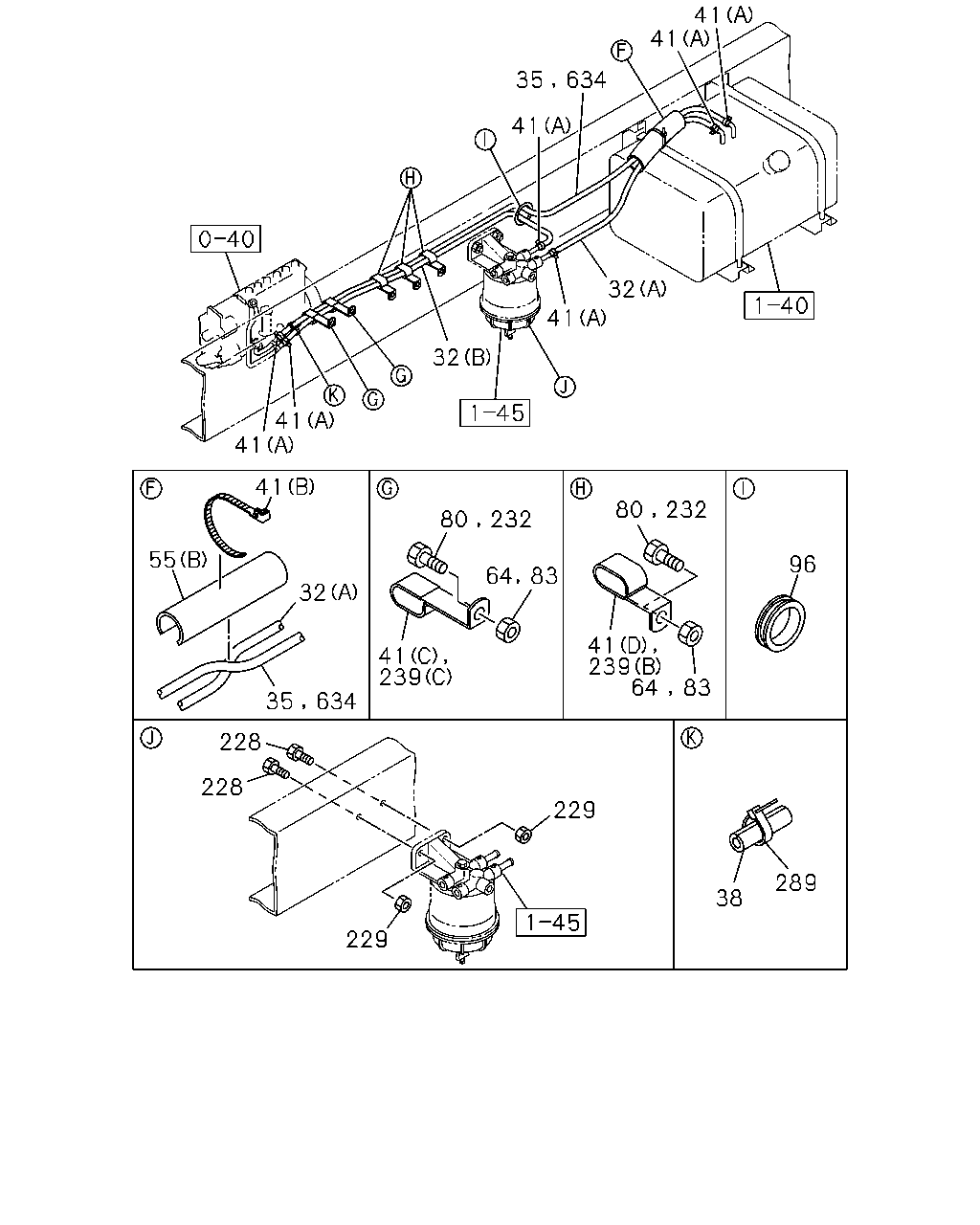

41 41 41 41 41 41 41 41 41 35 634 32 32 55 32 232 80 80 232 96 83 64 239 289 38 229 229 228 228 239 35 634 64 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0012	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0207	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0208-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905		●
32	PIPE; DELIVERY,FUEL TANK (B) L=4900 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=4900 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0208-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9804		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9805-0004		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	9805-0004		●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0005-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9805-			●
35	PIPE; FUEL TANK,RETURN L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9905		●
35	PIPE; FUEL TANK,RETURN L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9906-0004		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 7100MM(71W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9804		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 7100MM(71W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9805-0004		●
35	PIPE; FUEL TANK,RETURN L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	9805-0004			●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9805-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9804	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=13X2 H=25 L=50	1-09700-777-0	02	1	9805-9907			●
41	CLIP; FUEL PIPE,FUEL TANK (C) M13X2 H=20 L=60	1-09701-280-0	02	1	9908-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	0005-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9805-0004	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-	●		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14X29 H=30 L=25	1-09701-101-0	03	1	9805-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	9805-0004			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	04	1	0012-0201	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0202-0207	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0202-0207			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0208-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0208-			●
55	COVER; PIPE,FUEL TANK (A) L=800 L=800	1-09361-018-0	01	1	0006-	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9601-9606	●	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9607-0004	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1300	1-09360-677-1	01	1	9607-0004		●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	0005-0011	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=1300	1-09360-677-1	01	1	0012-0201	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=1300	1-09360-677-1	01	1	0202-0207	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	0202-0207			●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=1300 L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-	●
55	COVER; PIPE,FUEL TANK (B) L=1300 L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-			●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9607-9804	●	●
55	COVER; PIPE,FUEL TANK (B) L=1300	1-09360-677-1	01	1	9805-0201			●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9805-0004	●	●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	0005-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=250	9-09912-735-1	01	1	9607-9804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 7100MM(71W) (B) L=1300	1-09360-677-1	01	1	9805-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	9808-9901	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	11	1	9808-9901		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	9902-9905	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	09	1	9902-9905		●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9902-9905		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	12	1	9906-0004	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	12	1	9906-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0012	●
64	NUT; CLIP FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0101-0207	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0208-0602	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91180-108-0	11	1	0603-	●
64	NUT; CLIP M8	9-09110-408-0	09	1	9601-9606	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	9607-9807	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	13	1	9808-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-			●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9808-9901		●
64	NUT; CLIP WHEEL BASE 7100MM(71W) M8 FLANGE	0-91150-108-0	09	1	9906-0004		●
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE	0-28680-830-0	05	1	9805-0004			●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91150-108-0	05	1	9805-0004			●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9805-			●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9804	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9805-0004	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0512	●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9804	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-0004	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	9808-9901	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	11	1	9808-9901		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	09	1	9902-9905	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	09	1	9902-9905		●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9902-9905		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	12	1	9906-0004	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	12	1	9906-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0012	●
232	BOLT; CLIP,PIPE FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0101-0207	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0208-0512	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28650-830-0	11	1	0601-	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	09	1	9601-9606	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	09	1	9607-9807	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	13	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0512			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-			●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9808-9901		●
232	BOLT; CLIP,PIPE WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28680-830-0	09	1	9906-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9808-9901	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9808-9901		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-9905		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9906-0004	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9906-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0012	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0101-0207	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0208-	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9807	●	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-9901	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-9901		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9902-9905	●	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9906-0004	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9906-0004		●
239	CLIP; FUEL PIPE (A) ID=32 L=50	1-09701-055-1	02	1	0005-	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	08	1	9601-9807	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	11	1	9808-9901		●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0005-			●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9808-9901		●
239	CLIP; FUEL PIPE (B) L=50 ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0012	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0101-0207	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0208-	●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	08	1	9808-9901		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9906-0004		●
239	CLIP; FUEL PIPE WHEEL BASE 7100MM(71W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9906-0004		●
239	CLIP; FUEL PIPE (C) M13X2 H=20 L=60	1-09701-280-0	02	1	0005-			●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	01	1	9805-			●
634	HOSE; RUBBER RETURN L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0005-			●
634	HOSE; RUBBER RETURN L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0208-0604	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0605-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
