1 |
TANK; FUEL

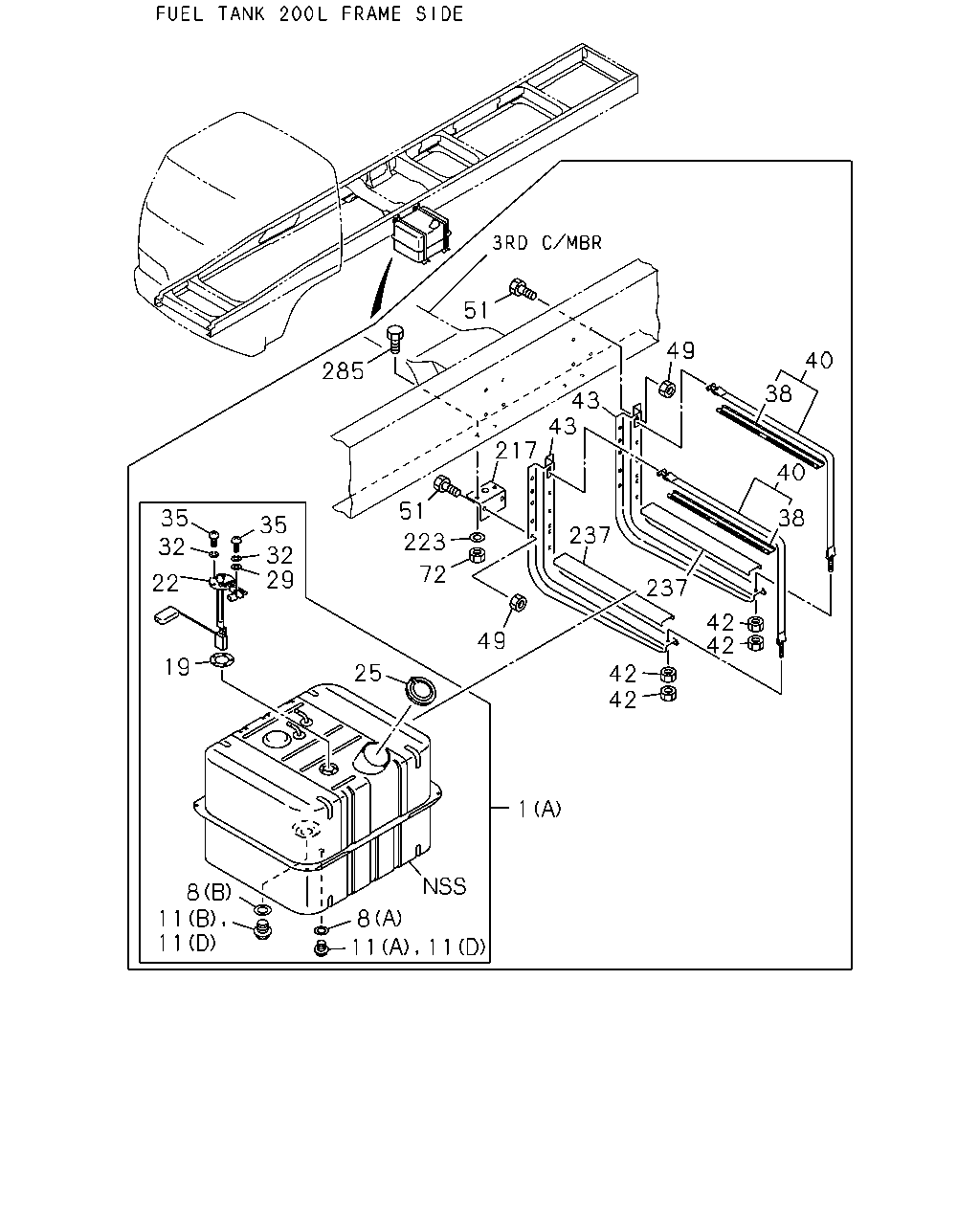

FUEL TANK 200L FRAME SIDE(N20)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
1 |
TANK; FUEL

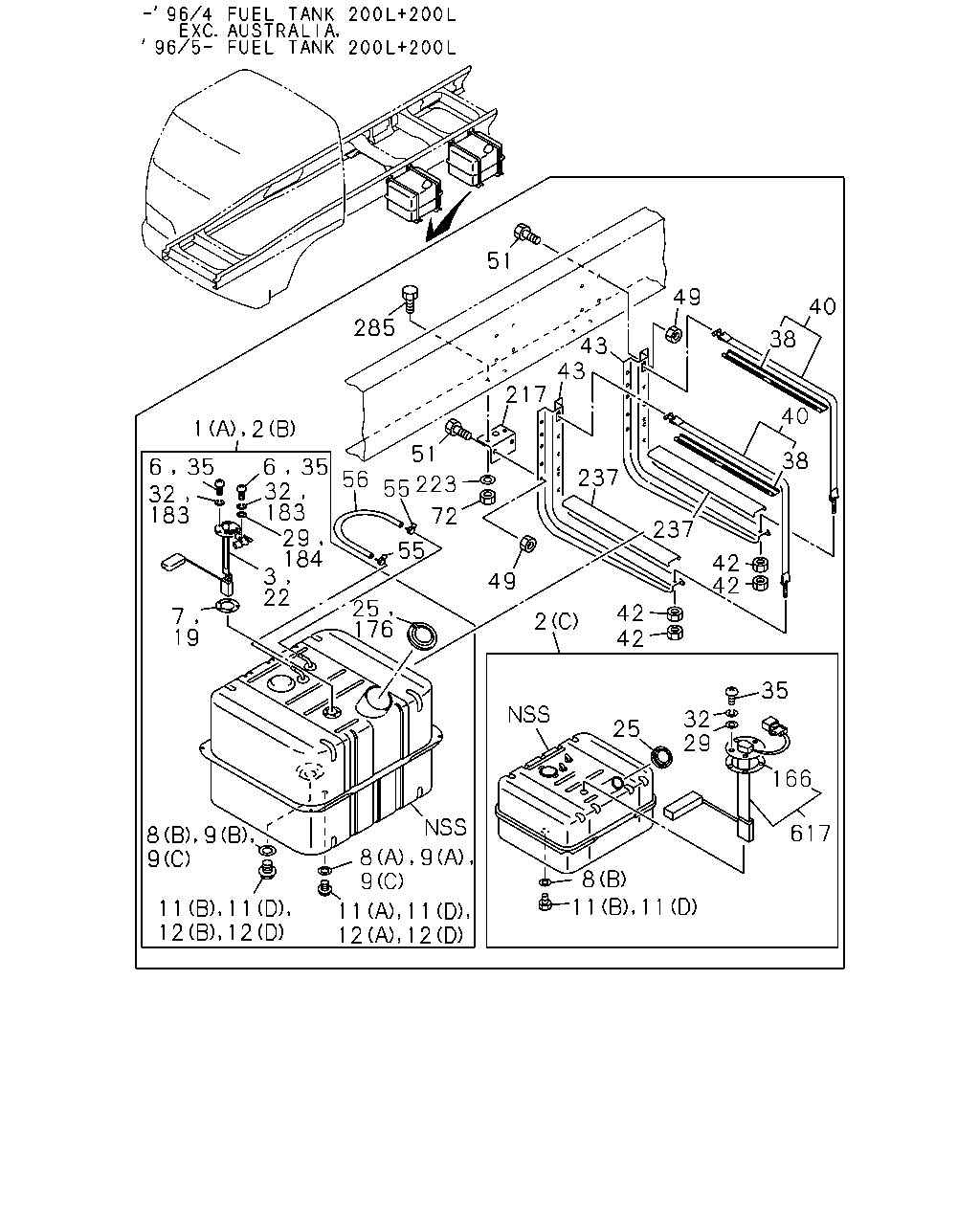

FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9605-9804 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9605-9804 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9805-9810 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9805-9810 |
● |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE(N20)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9805-9810 |
|
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9811-0003 |
● |
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22401-120-0 |
01 |
1 |
0004-0004 |
● |
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22401-120-1 |
01 |
1 |
0005-0112 |
|
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
1-22401-192-2 |
01 |
1 |
0201-1505 |
|
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
720X610X496 200L
|
8-98299-274-0 |
01 |
1 |
1506- |
|
● |
● |
| |
1 |
TANK; FUEL

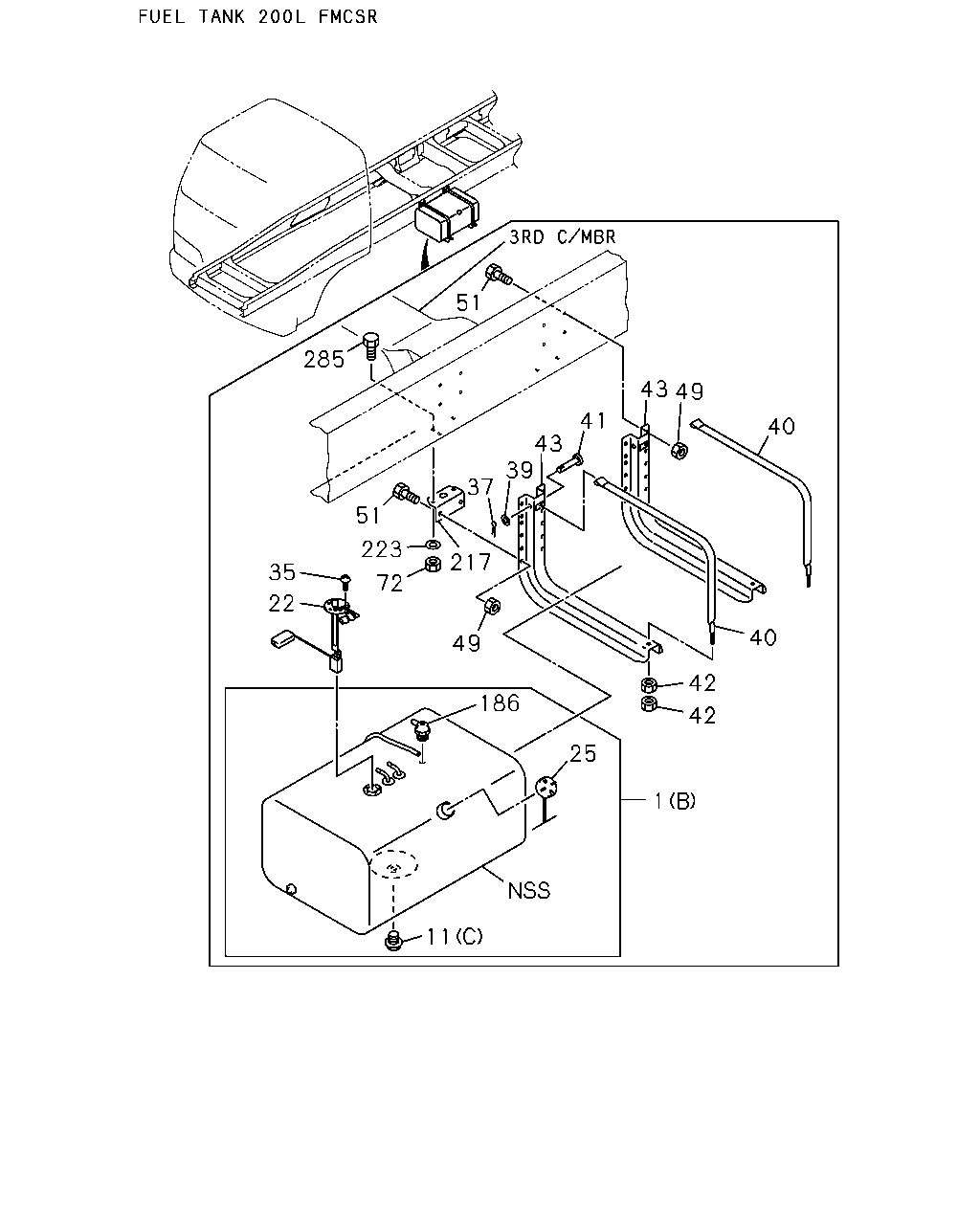

FUEL TANK 200L FMCSR(PK6)
(B)
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
1 |
TANK; FUEL

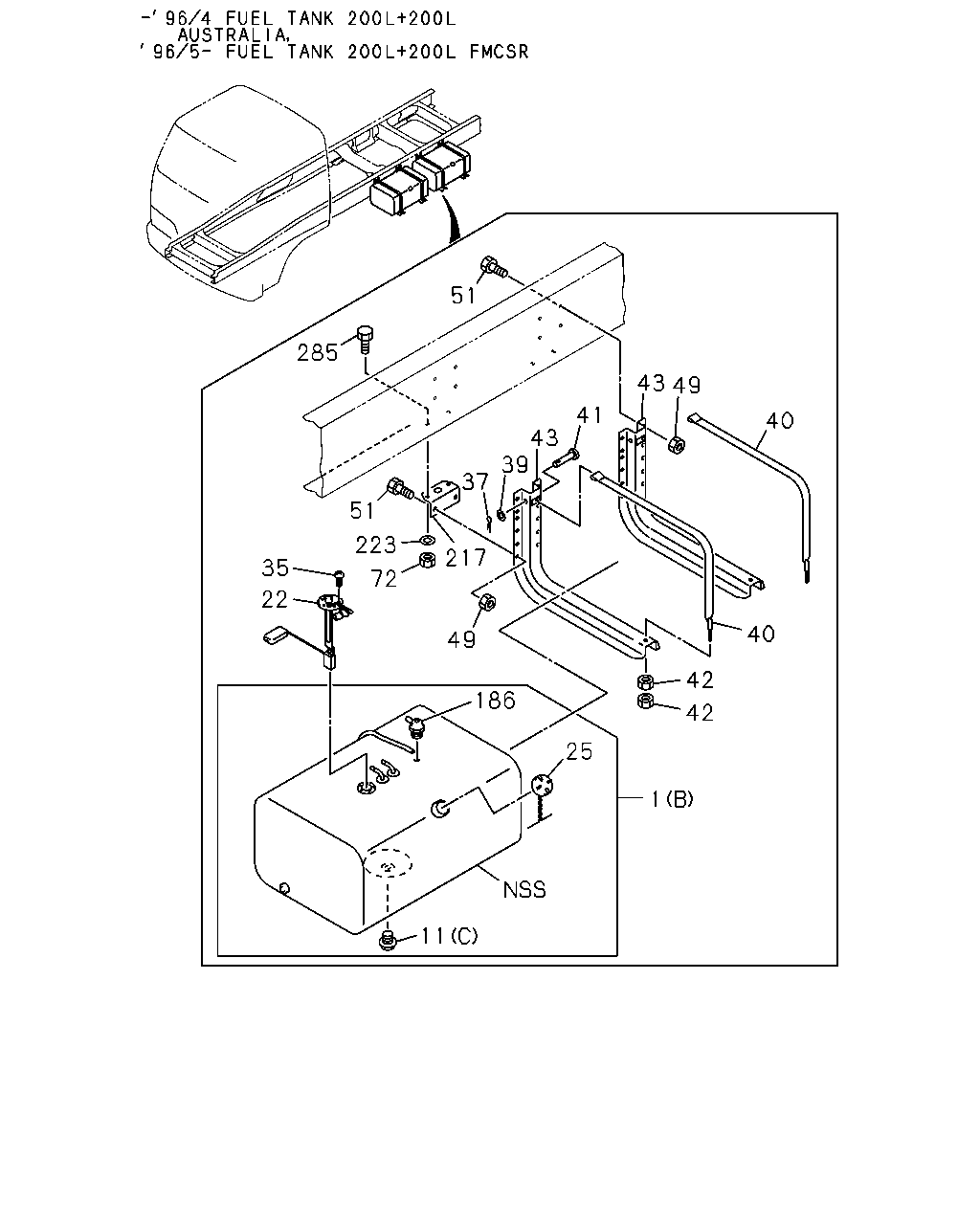

FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
(B)
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
1 |
TANK; FUEL
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
(B)
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L(NF7)
(B)
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9811-0003 |
● |
● |
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L(NF7)
(B)
720X610X496 200L
|
1-22401-120-0 |
01 |
1 |
0004-0004 |
● |
● |
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L(NF7)
(B)
720X610X496 200L
|
1-22401-120-1 |
01 |
1 |
0005-0112 |
|
● |
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L(NF7)
(B)
720X610X496 200L
|
1-22401-192-0 |
01 |
1 |
0201-0404 |
|
● |
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L(NF7)
(C)
720X610X496 200L
|
1-22401-213-1 |
01 |
1 |
0405- |
|
● |
|
| |
2 |
TANK ASM; FUEL,SUB

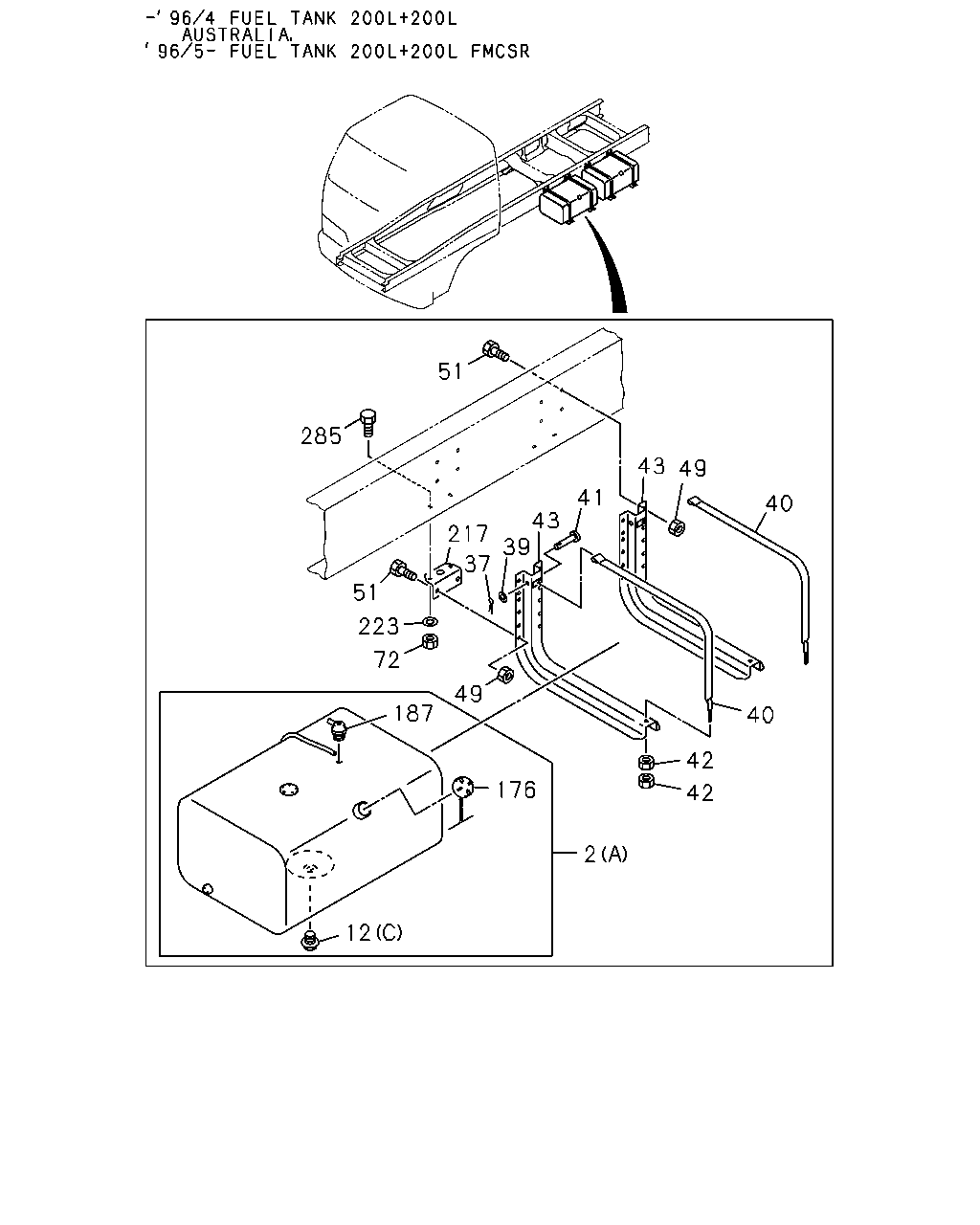

FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
(A)
869X597X413 200L
|
1-22400-867-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
2 |
TANK ASM; FUEL,SUB
FUEL TANK 200L+200L FMCSR(TGS)
(A)
869X597X413 200L
|
1-22400-867-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L+200L(NF7)
|
1-83141-124-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L+200L(NF7)
|
1-83141-124-0 |
01 |
1 |
0005-0404 |
|
● |
|
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 200L+200L(NF7)
M5X10
|
9-93497-510-0 |
05 |
1 |
9811-0004 |
● |
● |
|
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 200L+200L(NF7)
M5X10
|
9-93497-510-0 |
05 |
1 |
0005-0604 |
|
● |
|
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
FUEL TANK 200L+200L(NF7)
M5X10
|
0-34218-510-0 |
05 |
1 |
0605- |
|
● |
|
| |
7 |
GASKET; TANK UNIT,SUB TANK
FUEL TANK 200L+200L(NF7)
|
9-83135-003-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
7 |
GASKET; TANK UNIT,SUB TANK
FUEL TANK 200L+200L(NF7)
|
9-83135-003-0 |
01 |
1 |
0005-0404 |
|
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
0005-0112 |
|
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
0005-0106 |
|
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0107-0112 |
|
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
02 |
1 |
0201- |
|
● |
● |
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
0005-0112 |
|
● |
|
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
0005-0106 |
|
● |
|
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0107-0112 |
|
● |
|
| |
9 |
GASKET; DRAIN PLUG,SUB TANK
FUEL TANK 200L+200L(NF7)
(C)
ID=14.2 OD=23.0
|
9-09572-014-0 |
02 |
1 |
0201- |
|
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9811-0003 |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0004-0004 |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0005-0106 |
|
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0107-0112 |
|
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(D)
M14X14
|
9-09862-156-0 |
02 |
1 |
0201- |
|
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
0005-0112 |
|
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FMCSR(PK6)
(C)
|
1-09604-082-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-09604-082-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
(C)
|
1-09604-082-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9811-0003 |
● |
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0004-0004 |
● |
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0005-0106 |
|
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0107-0112 |
● |
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(D)
M14X14
|
9-09862-156-0 |
02 |
1 |
0201- |
● |
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9811-0112 |
● |
● |
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-09604-082-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
12 |
PLUG; DRAIN,SUB TANK
FUEL TANK 200L+200L FMCSR(TGS)
(C)
|
1-09604-082-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0005- |
|
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
|
9-83135-003-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
9-83135-003-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
9-83135-003-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
|
9-83135-003-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
9-83135-003-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
|
9-83135-003-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
9-83135-003-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-83141-124-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-83141-124-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-83141-124-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7)
|
1-83141-124-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-83141-124-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-83141-124-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-83141-124-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-83141-124-0 |
01 |
1 |
0005-1505 |
|
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
8-98296-671-0 |
01 |
1 |
1506- |
|
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FMCSR(PK6)
|
1-83141-121-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-83141-121-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-83141-121-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-22440-033-2 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-22440-033-2 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-22440-033-2 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-033-2 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-033-2 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-22440-033-2 |
01 |
1 |
9605-9810 |
|
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-033-2 |
01 |
1 |
9811-0003 |
● |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-067-0 |
01 |
1 |
0004-0004 |
● |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-067-0 |
01 |
1 |
0005-0109 |
|
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-069-0 |
01 |
1 |
0110-0112 |
|
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-067-0 |
01 |
1 |
0201-0309 |
|
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-070-0 |
01 |
1 |
0310-0404 |
|
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-22440-046-1 |
01 |
1 |
0405- |
|
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FMCSR(PK6)
|
1-22440-050-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-22440-050-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-22440-050-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9601-9604 |
● |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9605-9810 |
● |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9605-9810 |
|
|
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
0005-0605 |
|
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.3
|
0-91610-505-0 |
01 |
1 |
0606- |
|
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9605-9810 |
● |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9605-9810 |
● |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9605-9810 |
|
|
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9811-0004 |
● |
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
0005-0603 |
|
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
ID=5.1
|
0-91510-505-0 |
05 |
1 |
0604- |
|
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
M5X10
|
9-93497-510-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
M5X10
|
9-93497-510-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
M5X10
|
9-93497-510-0 |
05 |
1 |
9601-9604 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
M5X10
|
9-93497-510-0 |
05 |
1 |
9605-9810 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M5X10
|
9-93497-510-0 |
05 |
1 |
9605-9810 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE(N20)
M5X10
|
9-93497-510-0 |
05 |
1 |
9605-9810 |
|
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M5X10
|
9-93497-510-0 |
05 |
1 |
9811-0004 |
● |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M5X10
|
9-93497-510-0 |
05 |
1 |
0005-0604 |
|
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M5X10
|
0-34218-510-0 |
05 |
1 |
0605- |
|
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FMCSR(PK6)
|
1-09187-007-0 |
05 |
1 |
9601-9604 |
● |
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-09187-007-0 |
05 |
1 |
9601-9604 |
● |
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-09187-007-0 |
05 |
1 |
9605-0004 |
● |
|
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
L=650
|
1-22553-022-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=650
|
1-22553-022-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=650
|
1-22553-022-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
L=650
|
1-22553-022-1 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=650
|
1-22553-022-1 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
L=650
|
1-22553-022-1 |
02 |
1 |
9605-0004 |
|
|
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
L=650
|
1-22553-022-1 |
02 |
1 |
0005- |
|
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=650
|
1-22553-022-1 |
02 |
1 |
0005- |
|
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
L=650
|
1-22553-022-1 |
02 |
1 |
0005- |
|
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=1030
|
1-22550-204-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1030
|
1-22550-204-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1030
|
1-22550-204-1 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
L=1030
|
1-22550-204-1 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=1030
|
1-22550-204-1 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=1030
|
1-22550-204-1 |
02 |
1 |
9605-0004 |
|
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
L=1030
|
1-22550-204-2 |
02 |
1 |
0005- |
|
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=1030
|
1-22550-204-2 |
02 |
1 |
0005- |
|
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=1030
|
1-22550-204-2 |
02 |
1 |
0005- |
|
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FMCSR(PK6)
L=1035
|
1-22550-221-0 |
02 |
1 |
9601-9604 |
● |
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
L=1035
|
1-22550-221-0 |
02 |
1 |
9601-9604 |
● |
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
L=1035
|
1-22550-221-0 |
02 |
1 |
9601-9604 |
● |
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
L=1035
|
1-22550-221-0 |
02 |
1 |
9605-0004 |
● |
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L FMCSR(TGS)
L=1035
|
1-22550-221-0 |
02 |
1 |
9605-0004 |
● |
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
M10
|
9-09110-510-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
M10
|
9-09110-510-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
M10
|
9-09110-510-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
M10
|
9-09110-510-0 |
04 |
1 |
9605-0004 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M10
|
9-09110-510-0 |
04 |
1 |
9605-0004 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
M10
|
9-09110-510-0 |
04 |
1 |
9605-0004 |
|
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
M10
|
9-09110-510-0 |
04 |
1 |
0005-0512 |
|
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M10
|
9-09110-510-0 |
04 |
1 |
0005-0512 |
|
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
M10
|
9-09110-510-0 |
04 |
1 |
0005-0512 |
|
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
|
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
|
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE(N20)
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
|
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FMCSR(PK6)
|
1-09487-027-1 |
04 |
1 |
9601-9604 |
● |
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-09487-027-1 |
04 |
1 |
9601-9604 |
● |
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-09487-027-1 |
04 |
1 |
9601-9604 |
● |
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-09487-027-1 |
04 |
1 |
9605-0004 |
● |
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L FMCSR(TGS)
|
1-09487-027-1 |
04 |
1 |
9605-0004 |
● |
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-279-4 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-53461-279-4 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-53461-279-4 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
|
1-53461-279-4 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-53461-279-4 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-279-4 |
02 |
1 |
9605-0004 |
|
|
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
|
1-53461-279-4 |
02 |
1 |
0005- |
|
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-53461-279-4 |
02 |
1 |
0005- |
|
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-279-4 |
02 |
1 |
0005- |
|
|
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FMCSR(PK6)
|
1-53461-354-2 |
02 |
1 |
9601-9604 |
● |
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-53461-354-2 |
02 |
1 |
9601-9604 |
● |
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-53461-354-2 |
02 |
1 |
9601-9604 |
● |
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-53461-354-2 |
02 |
1 |
9605-0004 |
● |
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L FMCSR(TGS)
|
1-53461-354-2 |
02 |
1 |
9605-0004 |
● |
|
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
9601-9604 |
● |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
12 |
1 |
9601-9604 |
● |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
9605-9711 |
● |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
9605-9711 |
● |
● |
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
9712-9804 |
● |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
12 |
1 |
9712-9804 |
● |
● |
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
9805-0004 |
● |
● |
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
12 |
1 |
9805-0004 |
● |
● |
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
0005-0012 |
|
● |
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
9-99110-512-0 |
12 |
1 |
0005-0012 |
|
● |
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
9-99110-512-0 |
12 |
1 |
0101-0512 |
|
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12
|
9-99110-512-0 |
12 |
1 |
0101-0512 |
|
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12
|
9-99110-512-0 |
12 |
1 |
0101-0512 |
|
|
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
|
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
|
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28081-235-0 |
12 |
1 |
9601-9606 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X35 FLANGE
|
0-28081-235-0 |
12 |
1 |
9601-9606 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
9607-9612 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
9607-9612 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
9701-9804 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
9701-9804 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
9805-0004 |
● |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
9805-0004 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0005-0012 |
|
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0005-0012 |
|
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0101-0512 |
|
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0101-0512 |
|
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE(N20)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0101-0512 |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7)
M12X40 FLANGE
|
0-28651-240-0 |
12 |
1 |
0601- |
|
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12X40 FLANGE
|
0-28651-240-0 |
12 |
1 |
0601- |
|
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE(N20)
M12X40 FLANGE
|
0-28651-240-0 |
12 |
1 |
0601- |
|
|
● |
| |
55 |
CLIP; FUEL PIPE
FUEL TANK 200L+200L(NF7)
ID=14
|
1-09704-102-0 |
02 |
1 |
9601-0004 |
● |
● |
|
| |
55 |
CLIP; FUEL PIPE
FUEL TANK 200L+200L(NF7)
ID=14
|
1-09704-102-0 |
02 |
1 |
0005- |
|
● |
|
| |
56 |
PIPE; FUEL SHUTTER
FUEL TANK 200L+200L(NF7)
L=260 ID=9.5
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
56 |
PIPE; FUEL SHUTTER
FUEL TANK 200L+200L(NF7)
L=260 ID=9.5
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0005- |
|
● |
|
| |
72 |
NUT; BRKT
M12
|
9-99110-512-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
72 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9605-9711 |
● |
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9605-9711 |
● |
● |
|
| |
72 |
NUT; BRKT
M12
|
9-99110-512-0 |
04 |
1 |
9712-9804 |
● |
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
04 |
1 |
9712-9804 |
● |
● |
|
| |
72 |
NUT; BRKT
M12
|
9-99110-512-0 |
04 |
1 |
9805-0004 |
● |
● |
● |
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12
|
9-99110-512-0 |
04 |
1 |
9805-0004 |
● |
● |
|
| |
72 |
NUT; BRKT
M12
|
9-99110-512-0 |
04 |
1 |
0005-0012 |
|
● |
● |
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
9-99110-512-0 |
04 |
1 |
0005-0012 |
|
● |
● |
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
9-99110-512-0 |
04 |
1 |
0101-0512 |
|
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12
|
9-99110-512-0 |
04 |
1 |
0101-0512 |
|
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12
|
9-99110-512-0 |
04 |
1 |
0101-0512 |
|
|
● |
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
|
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
|
● |
|
| |
72 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
|
|
● |
| |
166 |
GASKET
FUEL TANK 200L+200L(NF7)
|
8-94366-904-0 |
01 |
1 |
0405- |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-033-2 |
01 |
1 |
9811-0003 |
● |
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-067-0 |
01 |
1 |
0004-0004 |
● |
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-067-0 |
01 |
1 |
0005-0109 |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-069-0 |
01 |
1 |
0110-0112 |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-067-0 |
01 |
1 |
0201-0309 |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-070-0 |
01 |
1 |
0310-0404 |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
|
1-22440-046-1 |
01 |
1 |
0405- |
|
● |
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-22440-050-0 |
01 |
1 |
9601-9604 |
● |
|
|
| |
176 |
CAP ASM; FILLER,SUB TANK
FUEL TANK 200L+200L FMCSR(TGS)
|
1-22440-050-0 |
01 |
1 |
9605-0004 |
● |
|
|
| |
183 |
WASHER; LK,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9811-0004 |
● |
● |
|
| |
183 |
WASHER; LK,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.1
|
9-09150-505-0 |
05 |
1 |
0005-0603 |
|
● |
|
| |
183 |
WASHER; LK,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.1
|
0-91510-505-0 |
05 |
1 |
0604- |
|
● |
|
| |
184 |
WASHER; PL,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
184 |
WASHER; PL,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.3
|
9-09160-505-0 |
01 |
1 |
0005-0605 |
|
● |
|
| |
184 |
WASHER; PL,SUB TANK UNIT
FUEL TANK 200L+200L(NF7)
ID=5.3
|
0-91610-505-0 |
01 |
1 |
0606- |
|
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-283-2 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-53461-283-2 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-53461-283-2 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
|
1-53461-283-2 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-53461-283-2 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-283-2 |
02 |
1 |
9605-0004 |
|
|
● |
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
|
1-53461-283-2 |
02 |
1 |
0005- |
|
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
|
1-53461-283-2 |
02 |
1 |
0005- |
|
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L FRAME SIDE(N20)
|
1-53461-283-2 |
02 |
1 |
0005- |
|
|
● |
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L FMCSR(PK6)
|
1-53461-432-1 |
02 |
1 |
9601-9604 |
● |
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-53461-432-1 |
02 |
1 |
9601-9604 |
● |
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L(NF7)
AUSTRALIA EQUIPMENT(RR3)
|
1-53461-432-1 |
02 |
1 |
9601-9604 |
● |
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L
FMCSR(TGS)
|
1-53461-432-1 |
02 |
1 |
9605-0004 |
● |
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FUEL TANK 200L+200L FMCSR(TGS)
|
1-53461-432-1 |
02 |
1 |
9605-0004 |
● |
|
|
| |
223 |
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
223 |
WASHER; PL,LWR BRKT FIX
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9601-9604 |
● |
● |
|
| |
223 |
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9712-9804 |
● |
● |
|
| |
223 |
WASHER; PL,LWR BRKT FIX
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9712-9804 |
● |
● |
|
| |
223 |
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9805-0004 |
● |
● |
● |
| |
223 |
WASHER; PL,LWR BRKT FIX
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9805-0004 |
● |
● |
|
| |
223 |
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
0005-0006 |
|
● |
● |
| |
223 |
WASHER; PL,LWR BRKT FIX
FUEL TANK 200L+200L(NF7)
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
0005-0006 |
|
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=580
|
1-22553-003-0 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=580
|
1-22553-003-0 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=580
|
1-22553-003-0 |
02 |
1 |
9601-9604 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7)
L=580
|
1-22553-003-0 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=580
|
1-22553-003-0 |
02 |
1 |
9605-0004 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=580
|
1-22553-003-0 |
02 |
1 |
9605-0004 |
|
|
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7)
L=580
|
1-22553-003-0 |
02 |
1 |
0005- |
|
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=580
|
1-22553-003-0 |
02 |
1 |
0005- |
|
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
L=580
|
1-22553-003-0 |
02 |
1 |
0005- |
|
|
● |
| |
285 |
BOLT; BRKT
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
9601-9804 |
● |
● |
|
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
9601-9804 |
● |
● |
|
| |
285 |
BOLT; BRKT
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
9805-0004 |
● |
● |
● |
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L
FMCSR(TGS)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
9805-0004 |
● |
● |
|
| |
285 |
BOLT; BRKT
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0005-0012 |
|
● |
● |
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0005-0012 |
|
● |
● |
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0101-0512 |
|
● |
|
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0101-0512 |
|
● |
|
| |
285 |
BOLT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0101-0512 |
|
|
● |
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7)
M12X50 FLANGE
|
0-28051-250-0 |
04 |
1 |
0601- |
|
● |
|
| |
285 |
BOLT; BRKT
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M12X50 FLANGE
|
0-28051-250-0 |
04 |
1 |
0601- |
|
● |
|
| |
285 |
BOLT; BRKT
FUEL TANK 200L FRAME SIDE(N20)
M12X50 FLANGE
|
0-28051-250-0 |
04 |
1 |
0601- |
|
|
● |
| |
617 |
PLATE
FUEL TANK 200L+200L(NF7)
|
1-22419-021-0 |
01 |
1 |
0405- |
|
● |
|
