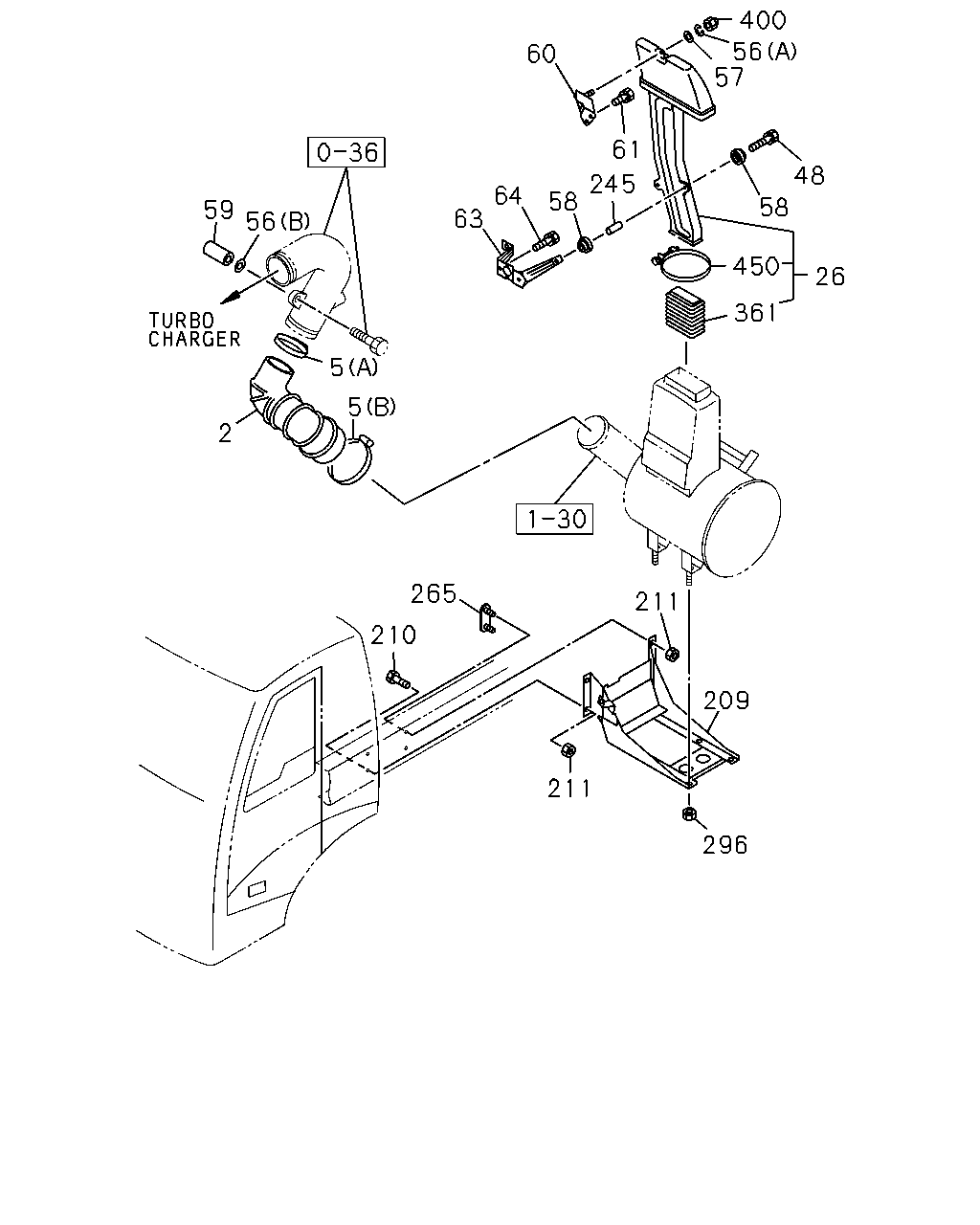

1-31 — AIR DUCT (#63967) — 182 parça

56 57 60 400 61 58 48 245 64 58 63 26 5 450 361 2 5 265 210 211 209 211 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-936-1	01	1	9601-	●
2	HOSE; ACL	1-14231-914-1	01	1	9601-0004		●
2	HOSE; ACL	1-14231-908-2	01	1	9805-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9601-9804	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9805-0212	●		●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811	●		●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001	●		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9601-9804	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9805-0212	●		●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812	●		●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001	●		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9601-0004		●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9601-0004		●
26	DUCT; AIR INT	1-14230-126-4	01	1	9601-9610	●
26	DUCT; AIR INT	1-14230-153-0	01	1	9611-9712	●
26	DUCT; AIR INT	1-14230-176-0	01	1	9801-9804	●
26	DUCT; AIR INT	1-14230-177-2	01	1	9805-0611	●		●
26	DUCT; AIR INT	8-98064-761-0	01	1	0612-	●		●
26	DUCT; AIR INT	1-14230-120-4	01	1	9601-9611		●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712		●
26	DUCT; AIR INT	1-14230-173-0	01	1	9801-9804		●
26	DUCT; AIR INT	1-14230-175-0	01	1	9805-0004		●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	9601-9804	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	9805-0004	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0005-	●		●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	9601-9804	●	●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	9805-0004	●	●	●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	0005-	●		●
56	WASHER; LK,AIR INT DUCT (B) T=5.5	1-14149-042-0	02	1	9601-0004		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9601-9804	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9805-0004	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-	●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9601-9804	●	●
58	SUPPORT; AIR INL DUCT	1-14119-397-0	04	1	9805-0004	●	●	●
58	SUPPORT; AIR INL DUCT	1-14119-397-0	04	1	0005-0211	●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0212-	●		●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9601-9804	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9805-0004	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-	●		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9601-9804	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9805-0004	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-	●		●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9601-9804	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9805-0004	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-	●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9601-9804	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9805-0004	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-	●		●
209	BRACKET; ACL	1-53497-480-2	01	1	9601-9804	●
209	BRACKET; ACL	1-53497-480-2	01	1	9805-	●		●
209	BRACKET; ACL	1-53497-525-0	01	1	9601-9804		●
209	BRACKET; ACL	1-53497-587-0	01	1	9805-0004		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9804	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9805-0004	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●		●
211	NUT; BRKT M12 FLANGE	0-91150-112-0	03	1	9601-9606	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9607-9804	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9805-0602	●		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●		●
211	NUT; BRKT M12 FLANGE	0-91150-112-0	04	1	9601-9606		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9607-0004		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9601-9804	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9805-0004	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-	●		●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9601-9607	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9608-0004	●	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	0005-	●		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9601-9804	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9805-0004	●	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9611-9611	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9612-9712	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9909-0004	●	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0005-	●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9805-9805		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9601-9804	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9805-0004	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-	●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9611-9611	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9612-9712	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9909-0004	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-	●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9805-9805		●

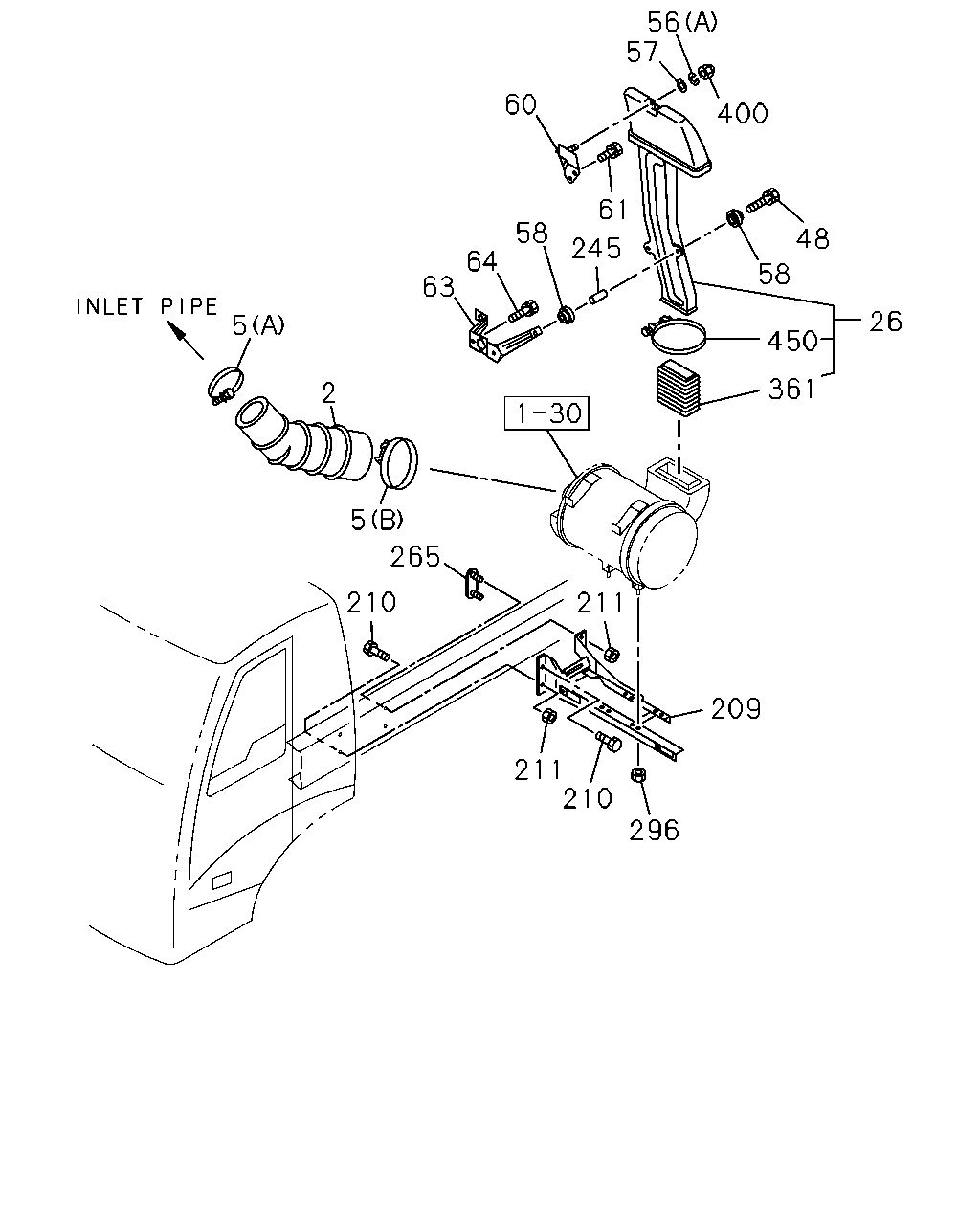

400 56 57 60 61 48 245 64 58 58 59 63 56 450 26 361 5 5 2 265 211 210 209 211 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-936-1	01	1	9601-	●
2	HOSE; ACL	1-14231-914-1	01	1	9601-0004		●
2	HOSE; ACL	1-14231-908-2	01	1	9805-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9601-9804	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9805-0212	●		●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811	●		●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001	●		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9601-9804	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9805-0212	●		●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812	●		●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001	●		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-	●		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9601-0004		●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9601-0004		●
26	DUCT; AIR INT	1-14230-126-4	01	1	9601-9610	●
26	DUCT; AIR INT	1-14230-153-0	01	1	9611-9712	●
26	DUCT; AIR INT	1-14230-176-0	01	1	9801-9804	●
26	DUCT; AIR INT	1-14230-177-2	01	1	9805-0611	●		●
26	DUCT; AIR INT	8-98064-761-0	01	1	0612-	●		●
26	DUCT; AIR INT	1-14230-120-4	01	1	9601-9611		●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712		●
26	DUCT; AIR INT	1-14230-173-0	01	1	9801-9804		●
26	DUCT; AIR INT	1-14230-175-0	01	1	9805-0004		●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	9601-9804	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	9805-0004	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0005-	●		●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	9601-9804	●	●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	9805-0004	●	●	●
56	WASHER; LK,AIR INT DUCT (A) M10	1-09500-046-0	01	1	0005-	●		●
56	WASHER; LK,AIR INT DUCT (B) T=5.5	1-14149-042-0	02	1	9601-0004		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9601-9804	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9805-0004	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-	●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9601-9804	●	●
58	SUPPORT; AIR INL DUCT	1-14119-397-0	04	1	9805-0004	●	●	●
58	SUPPORT; AIR INL DUCT	1-14119-397-0	04	1	0005-0211	●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0212-	●		●
59	TUBE; DIST,AIR INT DUCT L=43	1-14149-048-1	02	1	9601-0004		●
59	TUBE; DIST,AIR INT DUCT L=55	1-14149-166-0	02	1	9601-0004		●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9601-9804	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9805-0004	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-	●		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9601-9804	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9805-0004	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-	●		●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9601-9804	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9805-0004	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-	●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9601-9804	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9805-0004	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-	●		●
209	BRACKET; ACL	1-53497-480-2	01	1	9601-9804	●
209	BRACKET; ACL	1-53497-480-2	01	1	9805-	●		●
209	BRACKET; ACL	1-53497-525-0	01	1	9601-9804		●
209	BRACKET; ACL	1-53497-587-0	01	1	9805-0004		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9804	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9805-0004	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●		●
211	NUT; BRKT M12 FLANGE	0-91150-112-0	03	1	9601-9606	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9607-9804	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9805-0602	●		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●		●
211	NUT; BRKT M12 FLANGE	0-91150-112-0	04	1	9601-9606		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9607-0004		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9601-9804	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9805-0004	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-	●		●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9601-9607	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9608-0004	●	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	0005-	●		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9601-9804	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9805-0004	●	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9611-9611	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9612-9712	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9909-0004	●	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0005-	●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9805-9805		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9601-9804	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9805-0004	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-	●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9611-9611	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9612-9712	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9909-0004	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-	●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9805-9805		●
